Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
51401135-300 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model |
51401135-300 |
|
Product Type |
Redundant Power Distribution Board |
|
Dimensions |
15 x 5.5 x 43.2 cm |
|
Weight |
0.74 kg |
|
Conformal Coating |
Protective anti-corrosion conformal coating (three-proof varnish) |
|
Power Supply |
24 V DC |
|
Total Maximum Current |
Up to 16 A |
|
Input Channels |
Dual redundant input channels |
|
Operating Temperature |
–40 °C to +70 °C |
Description

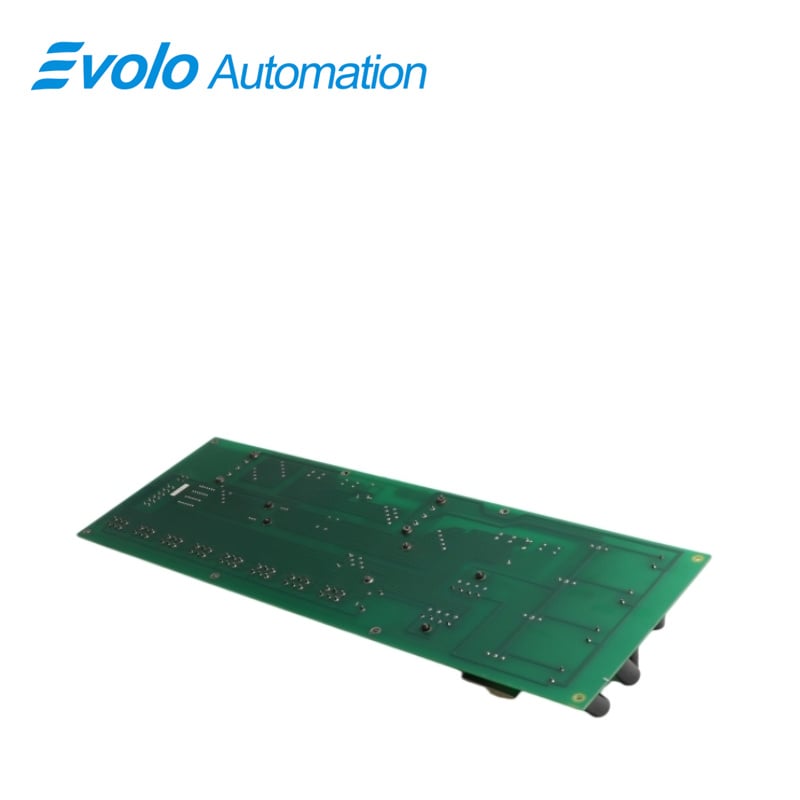

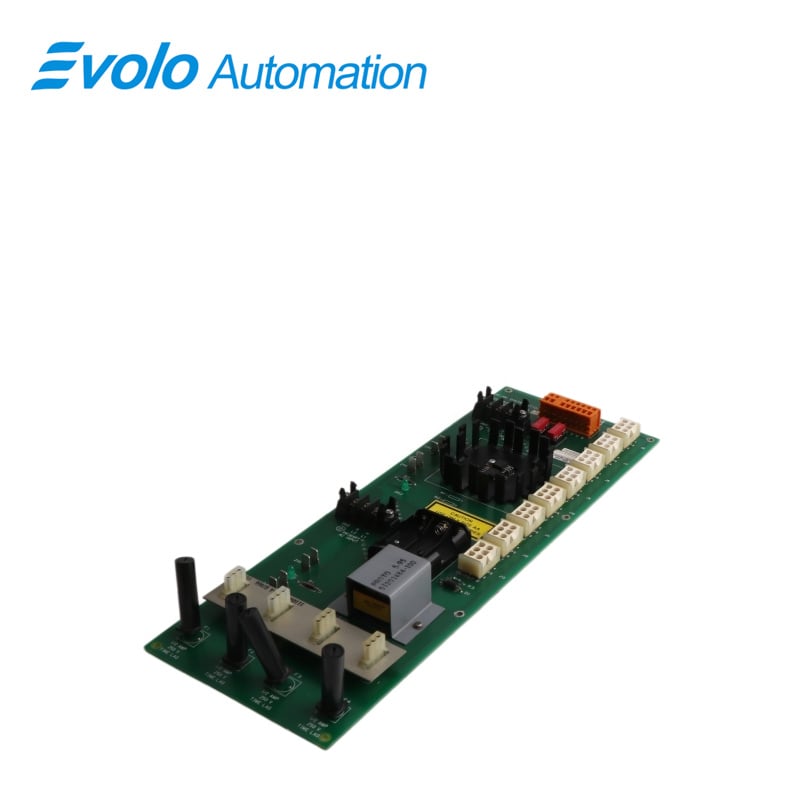

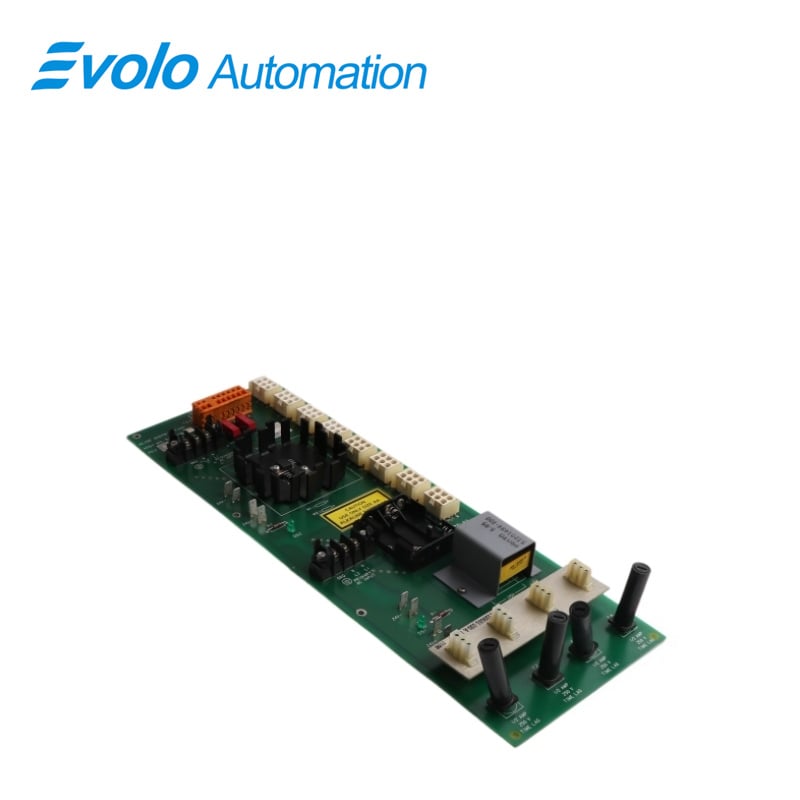

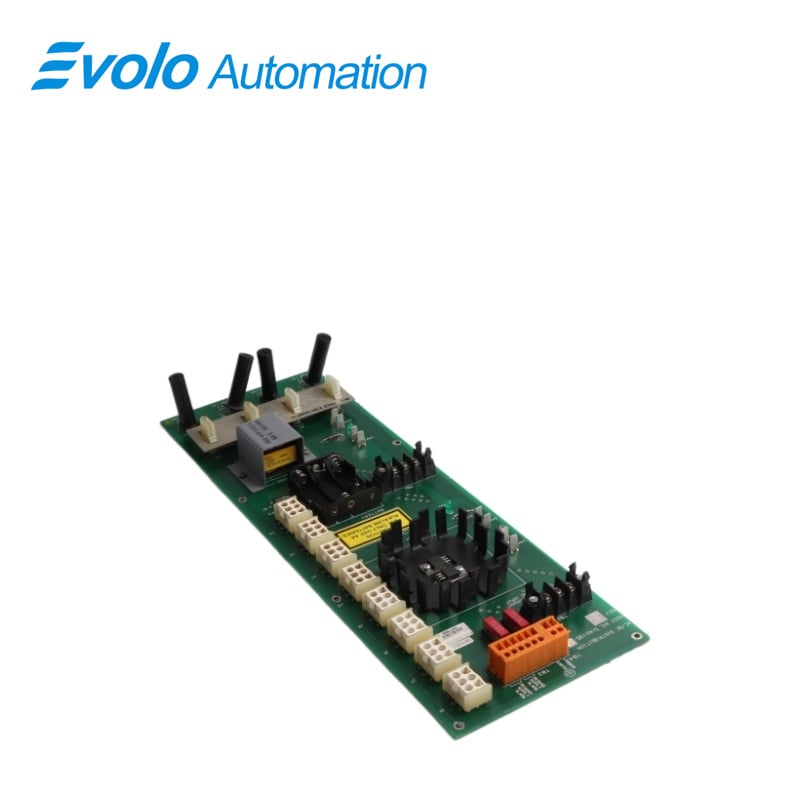

The Honeywell 51401135-300 is a redundant power distribution board. This board supplies DC power to components in the control cabinet via two inputs, and automatically switches the load to the other input in case of a power failure in one input. It also provides power distribution and output short-circuit protection and indicator light status monitoring.
Applications
Petrochemical Plants: Ensure instant power switchover for control systems.
Power Plants: Maintain dual power for turbine protection systems.
Steel Plants: Prevent outages in furnace control systems.
Pharmaceutical Plants: Ensure uninterrupted critical process power.
Fine Chemical Plants: Avoid power-loss-related process risks.
Functions
240V Power Distribution Management: Handles isolation and distribution of 240V AC (50/60 Hz) to system backplane power modules for conversion to low-voltage DC.
Hardware Redundancy: Supports dual independent power inputs with automatic switchover to maintain operation during supply failure.
High Current Protection: Rated 8A load, integrates TVS, varistor, and fuses to suppress surges and protect internal control boards.
FAQ
Q: What is the function of the conformal coating on 51401135-300?
A: It has a protective anti-corrosion conformal coating.
Q: What is the power supply of 51401135-300?
A: The power supply is 24 V DC.
Q: What is the maximum total current of 51401135-300?
A: The maximum total current is up to 16 A.
Q: How many input channels does 51401135-300 have?
A: It has dual redundant input channels.
Q: What is the operating temperature range of 51401135-300?
A: The operating temperature range is –40°C to +70°C.
