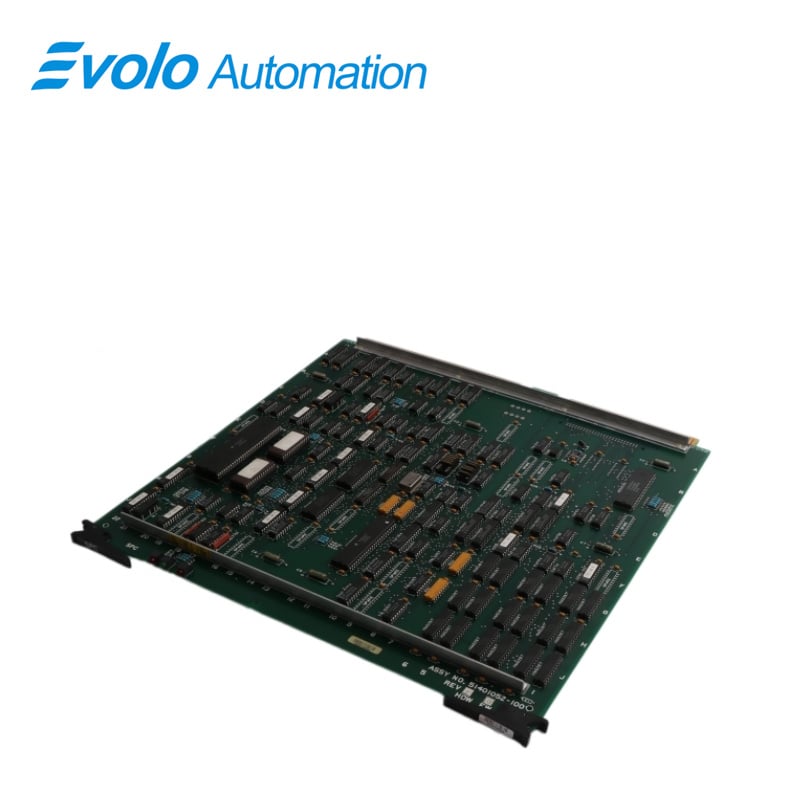

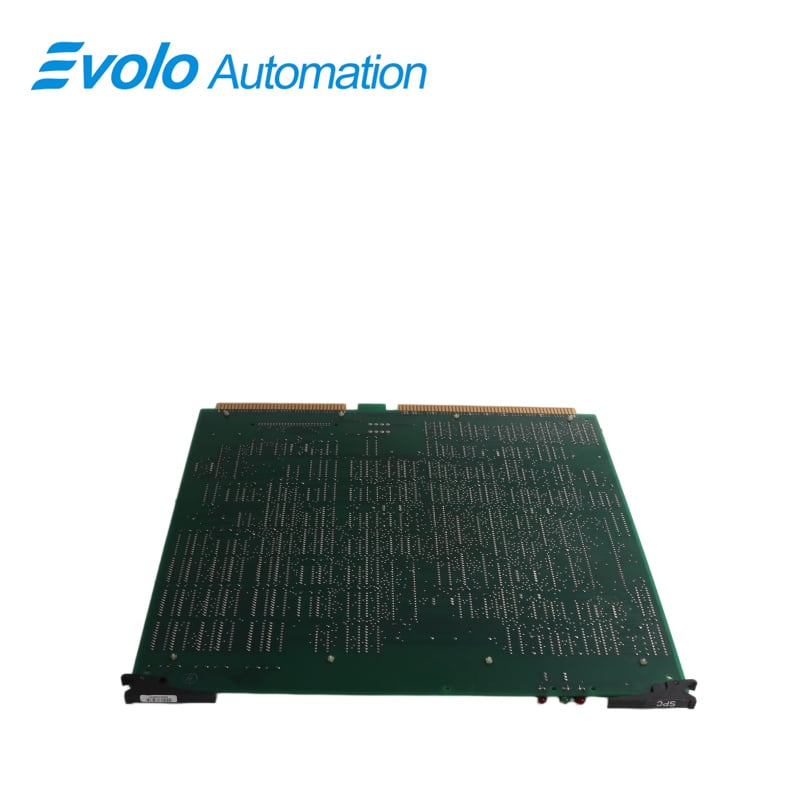

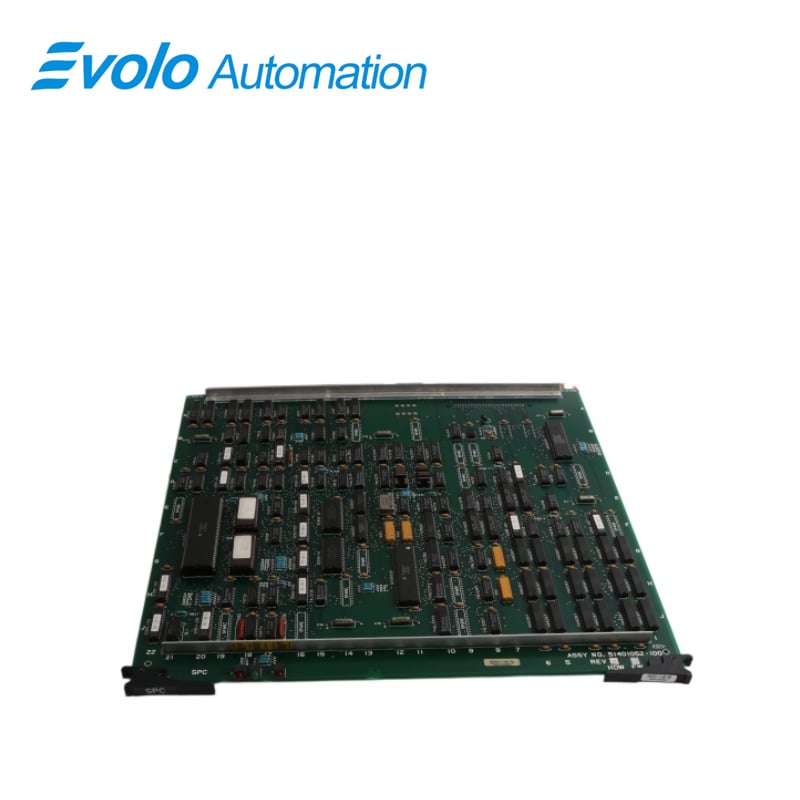

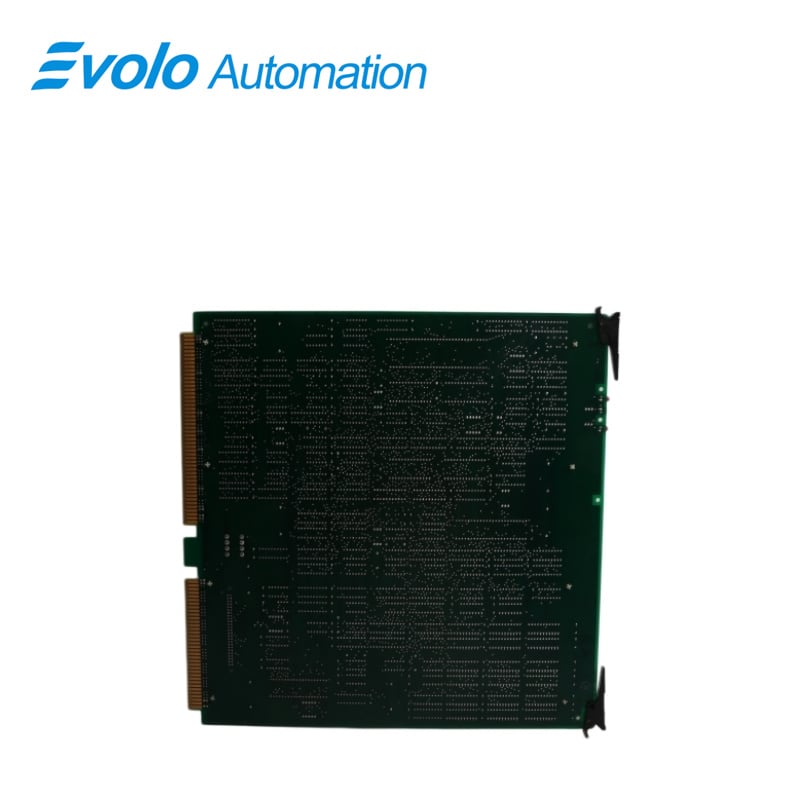

51401052-100 Smart Peripheral Controller Card, China 51401052-100 Smart Peripheral Controller Card Manufacturers, Suppliers, Factory

Overview

Place of Origin:	USA
Brand Name:	HONEYWELL
Model Number:	51401052-100
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Model	51401052-100
Product Type	Smart Peripheral Controller Card
Dimensions	36.6 x 36.4 x 1.5 cm
Weight	0.84 kg
Solder Mask Color	Green
Material	FR4
Mounting Type	Panel mount
Status Indicators	LED indicators
Operating Voltage	120 V
Input Current	10 A
Output Power	250 W
Frequency	50 Hz
Load Capacity	5 A
Communication Interface	RS-485
Control Protocol	Modbus
Operating Temperature Range	-20 °C to +70 °C
Humidity Range	0–95% RH non-condensing

Description

The 51401052-100 Smart Peripheral Controller Card is an industrial storage interface module used in process automation systems to manage and coordinate historical data recording subsystems. It supports continuous operational environments where long-term data logging and system traceability are required for process optimization, maintenance analysis, and regulatory compliance.

Applications

Power Plants: Coordinate coal handling and ash removal systems.

Steel Plants: Control furnace feeding and auxiliary machinery.

Cement Plants: Manage conveyors and material transport systems.

Pharmaceutical Plants: Connect cleanroom monitoring and weighing systems.

Water Treatment Plants: Collect data from dosing and sedimentation units.

Functions

SCSI Hard Drive Control Hub: Manages Wren drives for fast logging of trends, alarms, and configuration data.

Offloading Master Node Computation Load: Runs local polling tasks to reduce main processor communication and prevent CPU overload.

High-Frequency Data Synchronization: Enables low-latency links between LCN and storage media for continuous data transfer.

Special note

1. For installations running at LCN Rel 500 or newer, with 875 or 1.8GB History Module drives, the firmware on the SPC card must be Rev G or better. If the new Dual Logical drives are to be used, the firmware on 51401052-100 must be Rev J or later. (Rev H will work but performance can be degraded.)

2. The I/O card associated with this SPC board is the SPC II I/O (51304907-100) paddle board for WDA History Modules, or SPC I/O (51304156-100) paddle boards for earlier non-WDA History Modules.
