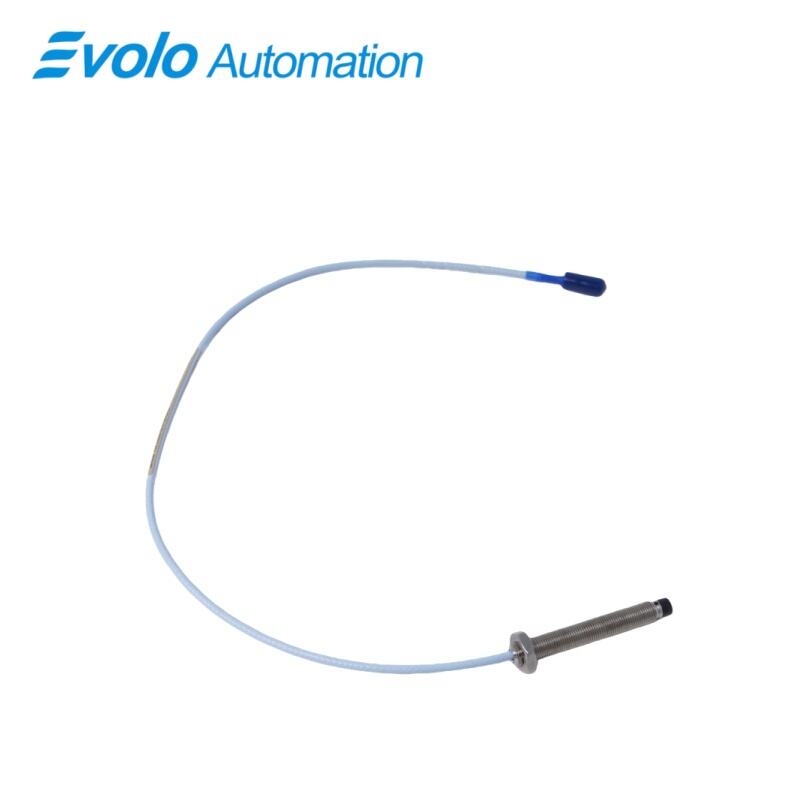

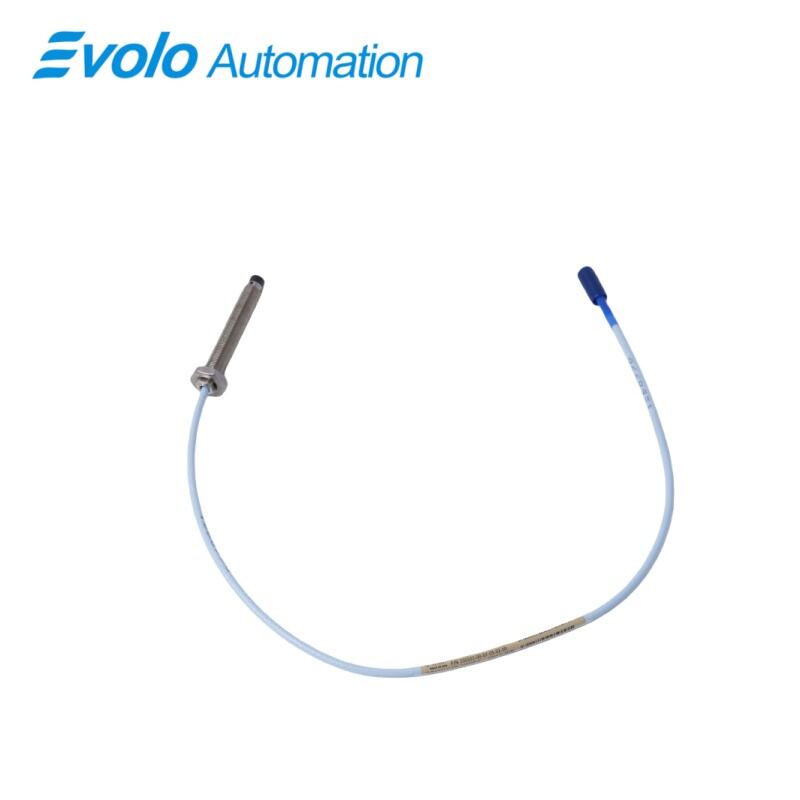

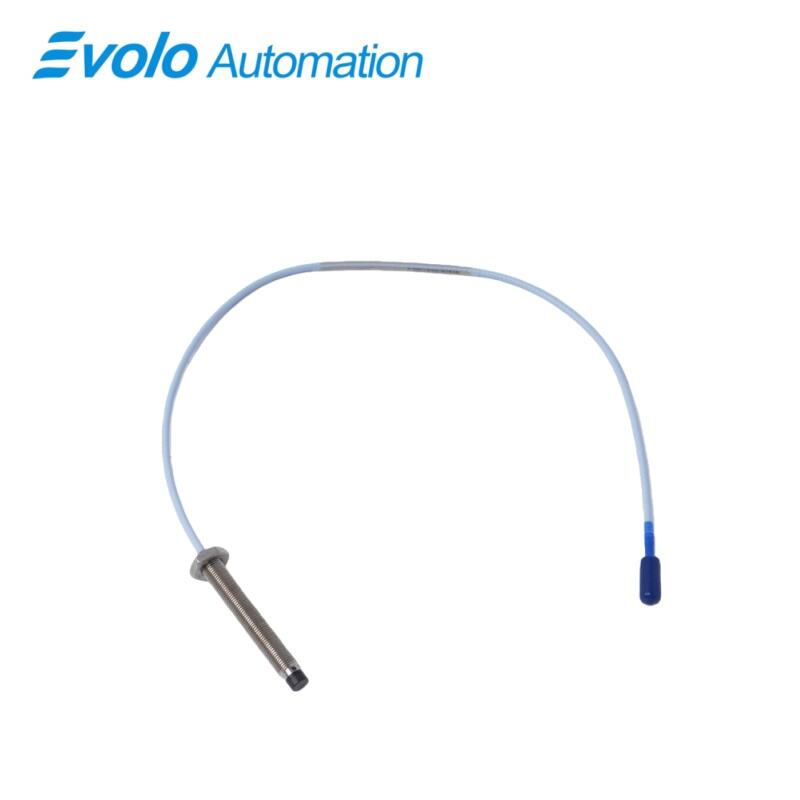

330103-00-07-05-02-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-07-05-02-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-00-07-05-02-00 3300 XL 8 mm Proximity Probes is a high-precision, non-contact displacement sensing solution designed for continuous condition monitoring of critical rotating machinery. As a core member of the 3300 XL 8 mm Proximity Probes family, this model delivers accurate, stable, and repeatable measurement performance in industrial environments where reliability, temperature tolerance, and mechanical robustness are essential.

The 330103-00-07-05-02-00 3300 XL 8 mm Proximity Probes operates using proven eddy current sensing technology to measure the distance between the probe tip and a conductive target surface. Variations in this gap are converted into a linear voltage output, enabling precise detection of shaft vibration, axial displacement, and rotational reference signals. With a defined linear range of 2 mm and a controlled output resistance of approximately 46 Ω, this probe ensures consistent signal quality and high-resolution measurement for machinery protection systems.

Designed for installations requiring extended routing distances, the 3300 XL 8 mm Proximity Probes in this configuration features a total cable length of 9.0 meters. This extended length allows direct connection to monitoring electronics located remotely from the measurement point, reducing the need for additional extension cables and minimizing potential signal degradation or connection-related failures. Its compact mechanical design, with a 70 mm overall case length and zero unthreaded section, enables installation in tight bearing housings and confined machinery spaces without compromising mechanical strength.

Applications

The 330103-00-07-05-02-00 3300 XL 8 mm Proximity Probes is widely applied in radial vibration monitoring of rotating machinery such as turbines, compressors, pumps, and motors. Its 2 mm linear range and stable output characteristics enable accurate detection of shaft movement caused by imbalance, misalignment, or bearing wear, supporting early fault diagnosis and condition-based maintenance programs.

In axial position and thrust monitoring applications, the 3300 XL 8 mm Proximity Probes provides precise measurement of shaft axial displacement to ensure rotating components remain within safe mechanical limits. The extended 9.0-meter cable allows flexible installation where monitoring racks are located at a distance from the machine, maintaining signal integrity across long cable runs.

The 330103-00-07-05-02-00 3300 XL 8 mm Proximity Probes is also suitable for rotational reference and speed measurement by detecting keyways or surface discontinuities on rotating shafts. Its wide operating temperature range and robust construction ensure reliable signal generation in harsh industrial environments, supporting phase analysis, speed indication, and machinery protection logic.

Specifications

Competitive Advantage

1.Integrated Long Cable for Reduced System Complexity

The 3300 XL 8 mm Proximity Probes is supplied with a factory-integrated 9.0-meter cable, reducing the need for separate extension cables and intermediate connections. This simplifies installation, lowers total system cost, and enhances overall measurement reliability by minimizing potential failure points.

2.Wide Temperature Range and Stable Electrical Performance

With an operating temperature capability from -55°C to +106°C and low supply sensitivity, the 330103-00-07-05-02-00 3300 XL 8 mm Proximity Probes maintains consistent output accuracy under fluctuating environmental and power conditions, ensuring dependable long-term monitoring performance.

3.Compact, Durable Construction for Harsh Environments

The combination of a compact probe body, PPS probe tip, and stainless steel housing allows the 3300 XL 8 mm Proximity Probes to be installed in space-limited machinery while resisting oil, moisture, corrosion, and mechanical stress. This design supports extended service life and reduced maintenance frequency in demanding industrial applications.
