Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
51309152-175 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model |
51309152-175 |
|
Product Type |
Analog Output Module |
|
Dimensions |
2.9 x 31.9 x 27.9 cm |
|
Weight |
0.58 kg |
|
IOP Configuration |
AO |
|
Channels |
8 |
|
Smallest ORU |
IOP |
|
Redundancy |
Yes |
|
Redundancy Method |
Outputs electrically isolated via field-replaceable relay switch (module on FTA) |
|
Redundancy Bias |
Yes |
|
Output Ripple |
100 mV peak-to-peak (power line frequency across 250 Ω load) |
|
Resolution |
±0.05% |
|
Calibrated Accuracy |
±0.35% @ 25 °C (including linearity) |
|
Humidity Range |
10–90% non-condensing |
|
Output Current Range |
0.1–21.4 mA |
|
Maximum Output Current |
26 mA |
|
Maximum Resistive Load |
750 Ω @ 22 mA |
|
Surge Withstand Capability |
ANSI/IEEE C37.90.1-1978 |
Description

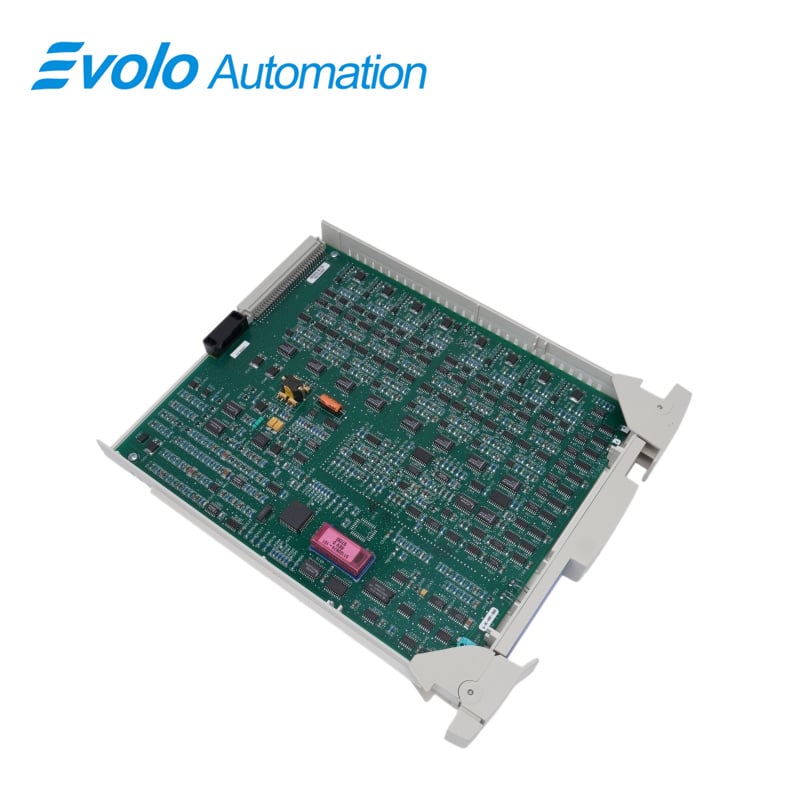

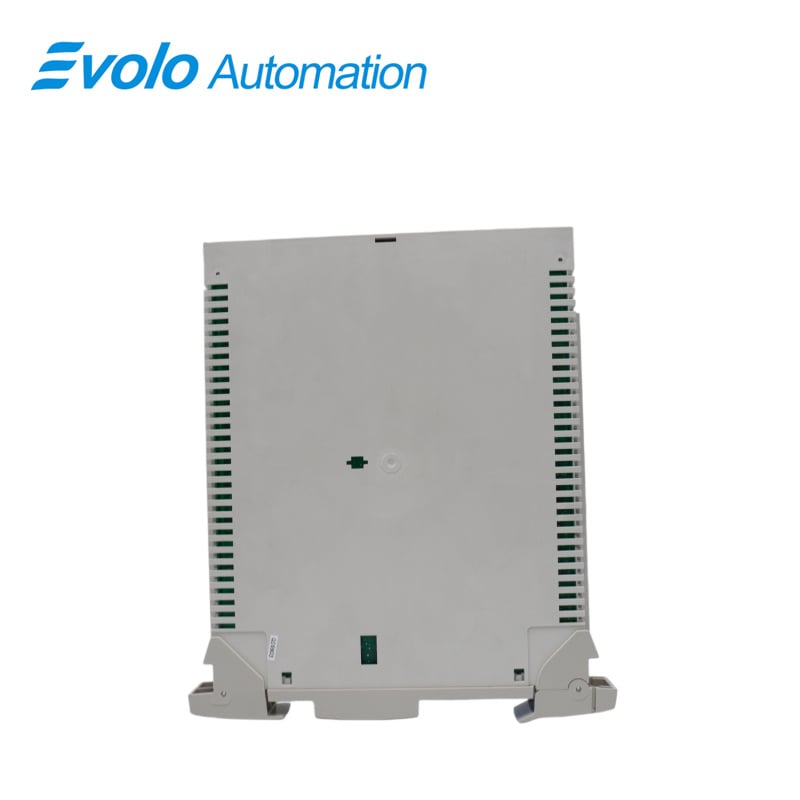

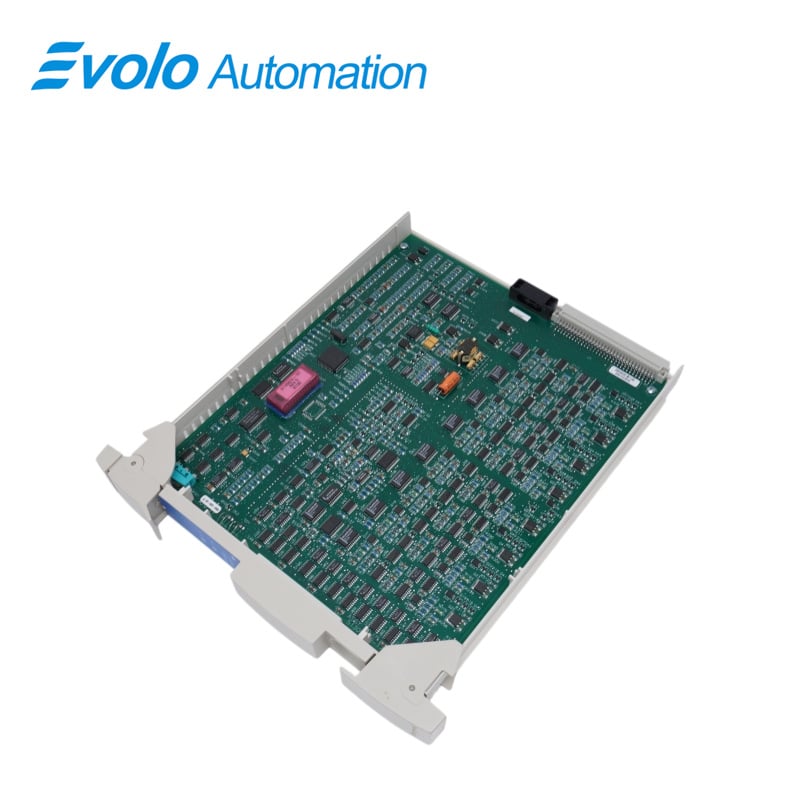

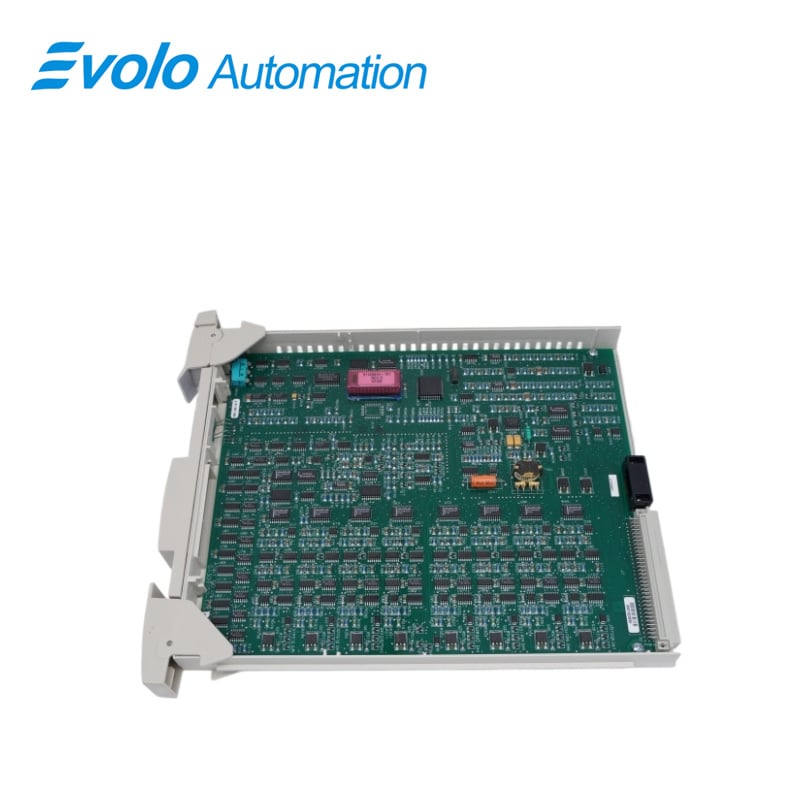

The Honeywell 51309152-175 is an analog output module. This module primarily provides eight outputs current to control valves or actuators in the factory field, actuating the valves to designated positions to regulate flow, and supports dual-unit hot standby to maintain production line operation.
Applications
Petrochemical Plants: Control valve opening for stable flow.
Power Plants: Regulate boiler feedwater and turbine steam.
Fine Chemical Plants: Control heater power and cooling flow.
Steel Plants: Adjust gas mix and furnace air dampers.
Pharmaceutical Plants: Control feed pumps and steam valves.
Precautions
Power Supply Voltage: Ensure the correct power supply voltage is provided according to the product manual.
Wiring: Pay attention to polarity during connection to avoid damaging the module.
Ambient Temperature: The operating ambient temperature should be within the specified range; avoid excessively high or low temperatures.
Interference: Avoid placing the module near sources of strong electromagnetic interference.
Maintenance: Regularly check the module's connections and operating status to ensure normal operation.
Features
8-Channel Analog Output: Provides multiple current outputs for process control.
Redundancy Support: Ensures system reliability with isolated outputs and relay-based redundancy.
High Accuracy: ±0.35% calibrated accuracy with fine resolution for precise control
Environmental Protection: Conformal coating shields against humidity and corrosive gases.
Robust Design: Surge withstand capability per ANSI/lEEE standards
FAQ
Q: What is the number of channels of 51309152-175?
A: The analog output module contains 8 channels.
Q: What is the resolution supported by 51309152-175?
A: The module resolution is ±0.05%.
Q: What is the calibration accuracy of 51309152-175 at 25°C?
A: The calibration accuracy is ±0.35% (including linearity).
Q: What is the maximum output current of 51309152-175?
A: The maximum output current is 26 mA.
Q: What is the maximum load resistance of 51309152-175 at 22 mA?
A: The maximum load resistance is 750 Ω.
