Overview

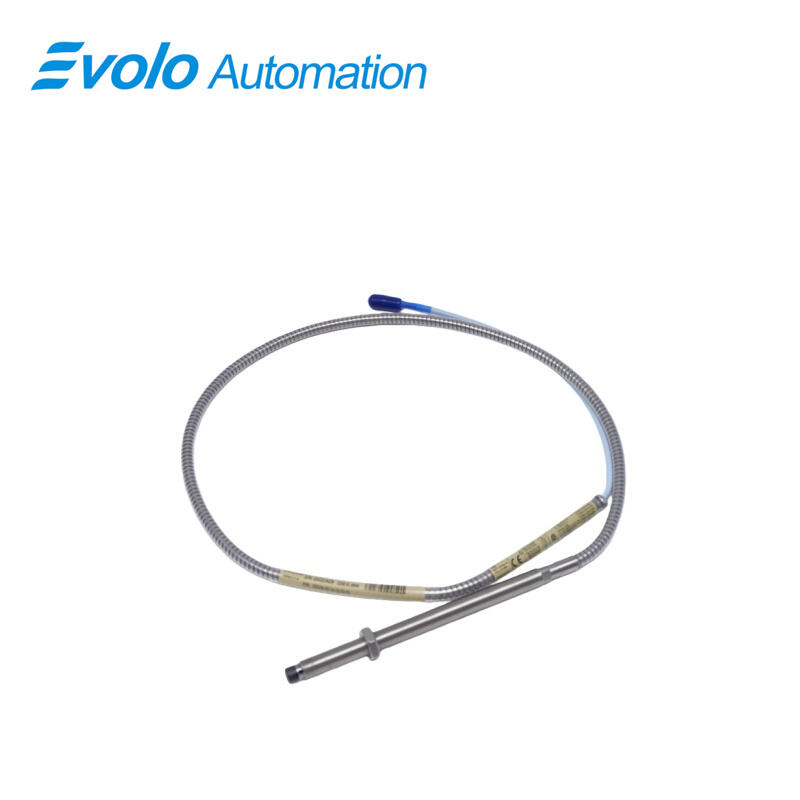

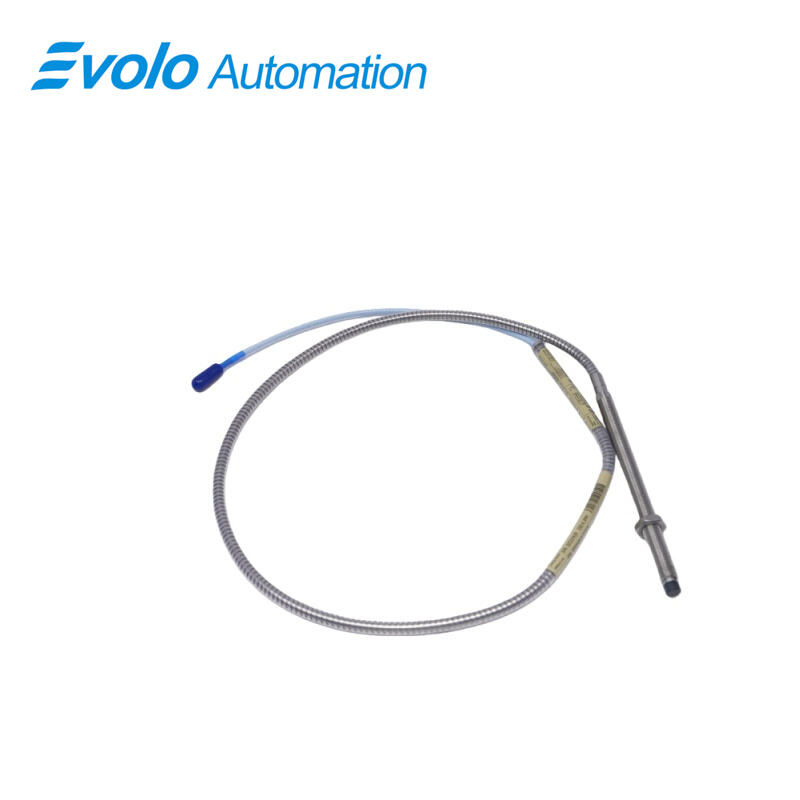

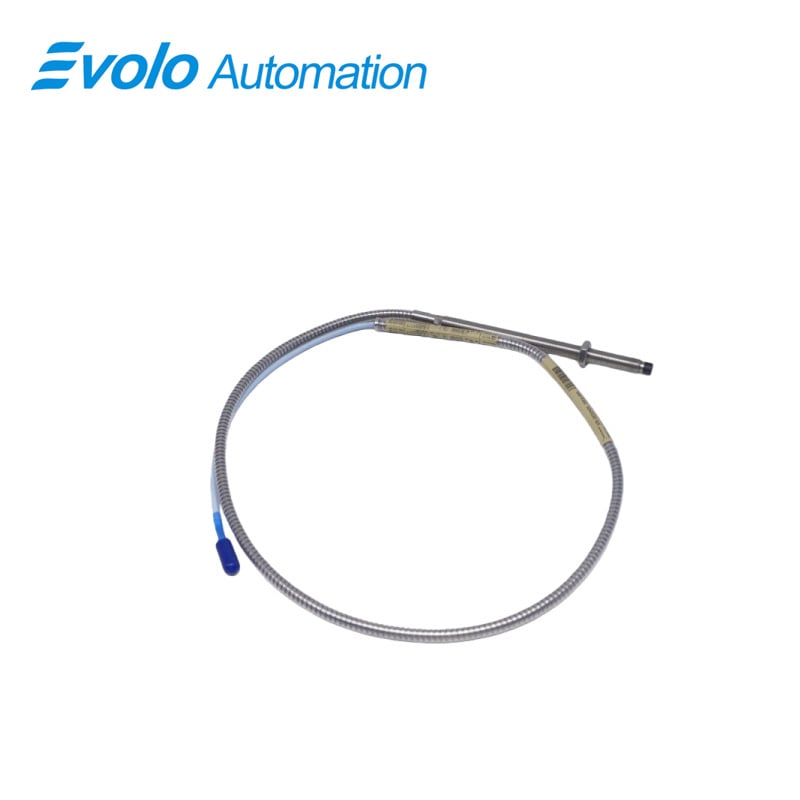

330104-10-19-10-02-00 3300 XL 8 mm Proximity Probes
At a Glance
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330104-10-19-10-02-00 |
Minimum Order Quantity: |
1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Product Overview
Description
The 330104-10-19-10-02-00 3300 XL 8 mm Proximity Probes are precision-engineered non-contact eddy current sensors developed for accurate vibration and displacement monitoring in rotating industrial machinery. As a specialized configuration within the 3300 XL 8 mm Proximity Probes family, this model is designed to deliver stable, linear, and repeatable measurement performance in continuous-duty applications where mechanical reliability and signal integrity are critical. The 3300 XL 8 mm Proximity Probes are widely deployed in machinery protection and condition monitoring systems across power generation, manufacturing, and process industries.
The 3300 XL 8 mm Proximity Probes operate by generating an electromagnetic field at the probe tip and detecting changes in that field as the distance to a conductive target varies. These changes are converted into a proportional voltage output, allowing the 330104-10-19-10-02-00 3300 XL 8 mm Proximity Probes to provide real-time measurement of shaft vibration, radial displacement, axial movement, and reference position signals. With a defined 2 mm linear range, this probe supports high-resolution monitoring essential for identifying early-stage mechanical issues such as imbalance, misalignment, rotor instability, and bearing degradation.
Key Functions
Applications
The 3300 XL 8 mm Proximity Probes are commonly used for continuous radial vibration monitoring of rotating shafts in turbines, compressors, motors, and large pumps. Their non-contact measurement principle and 2 mm linear range allow accurate detection of dynamic shaft movement caused by imbalance, misalignment, or developing mechanical faults.
In shaft position and displacement measurement applications, the 330104-10-19-10-02-00 3300 XL 8 mm Proximity Probes provide stable voltage output proportional to shaft movement. This makes them suitable for monitoring axial position, shaft float, and relative displacement in machinery where precise clearance control is required.
The probes are also widely applied in predictive maintenance and condition monitoring systems. By delivering consistent and repeatable displacement data, the 3300 XL 8 mm Proximity Probes support early fault diagnosis, trend analysis, and maintenance planning, helping reduce unplanned downtime and equipment damage.
Official Specifications
Quick Detail
|
Agency Approval Option: |
Not required |
|
Unthreaded Length Option : |
100 mm |
|
Overall Case Length Option : |
190 mm |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Dimension: |
1.7x1.4x120cm |
|
Weight: |
0.14kg |
Specifications
|
Operating Temperature Range: |
-45°C to +110°C (-65°F to+205°F) |
|
Linear Range: |
2 mm |
|
Output Resistance: |
50 Ω |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage. |
|
Power: |
Requires -17.5 Vdc to -25 Vdc |
|
Probe Tip Material: |
Polyphenylene sulfide (PPS) |
|
Probe Case Material: |
AISI 303 or 304 stainless steel(SST) |
Frequently Asked Questions
What is the model number?
The listed model number is 330104-10-19-10-02-00.
What is the brand name?
The listed brand name is Bently Nevada.
What is the place of origin?
The listed place of origin is USA.
What are the packaging details?
The listed packaging details are Original new Factory Sealed.
What is the delivery time?
The listed delivery time is 5-7 days.
Is this model available?
The listed supply status is In stock.
What are the payment terms?
The listed payment terms are T/T.
Compatibility & Ordering Notes
Competitive Advantage
1. Stable and Accurate Measurement Performance
The 3300 XL 8 mm Proximity Probes offer a 2 mm linear range, low supply sensitivity, and stable 50 Ω output resistance, ensuring reliable and repeatable measurement results under continuous vibration and varying power conditions.
2. Robust Mechanical Design for Industrial Environments
With a stainless steel probe case and PPS probe tip, the 330104-10-19-10-02-00 3300 XL 8 mm Proximity Probes provide strong resistance to oil contamination, corrosion, mechanical stress, and long-term wear.
3. Flexible Installation and System Compatibility
The combination of standard cable length, ClickLoc connector, and optimized mechanical dimensions allows the 3300 XL 8 mm Proximity Probes to be easily integrated into a wide range of machinery monitoring and protection systems.
