Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
51305072-600 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model |
51305072-600 |
|
Product Type |
CLCN-B LCN I/O Card |
|
Dimensions |
22.7 x 14.0 x 2.0 cm |
|
Weight |
0.14 kg |
|
System Compatibility |
Honeywell TDC 3000 / TPN |
|
Compliance |
Non-CE |
|
Node Type |
Dual node |
|
Cable Type |
LCN coaxial cable (Cable B) |
|
Cable Identification |
Color-coded green (green shrink-fit band) |
|
Connector Type |
BNC Tee |
|
Power Supply |
24 VDC |
|
Fault Switching Time |
Millisecond-level (seamless switching) |
|
Redundancy Path |
LCN Cable B redundant path |
Description

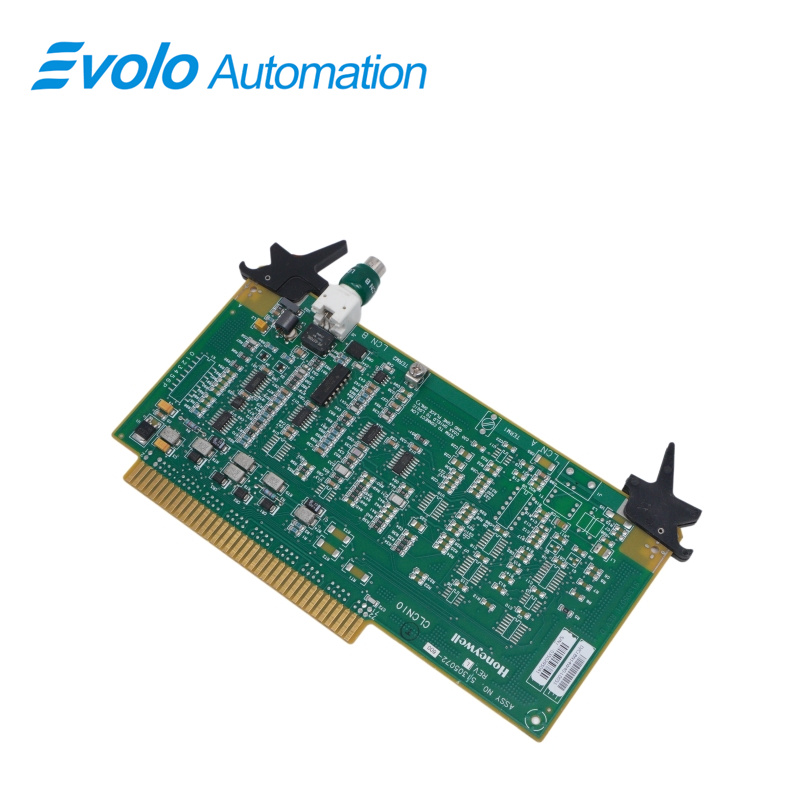

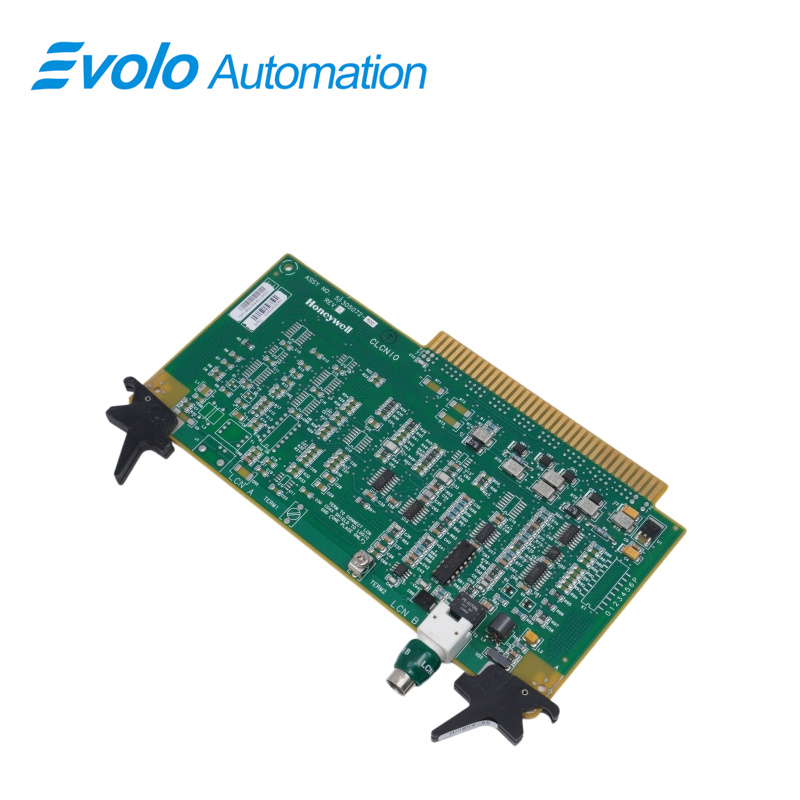

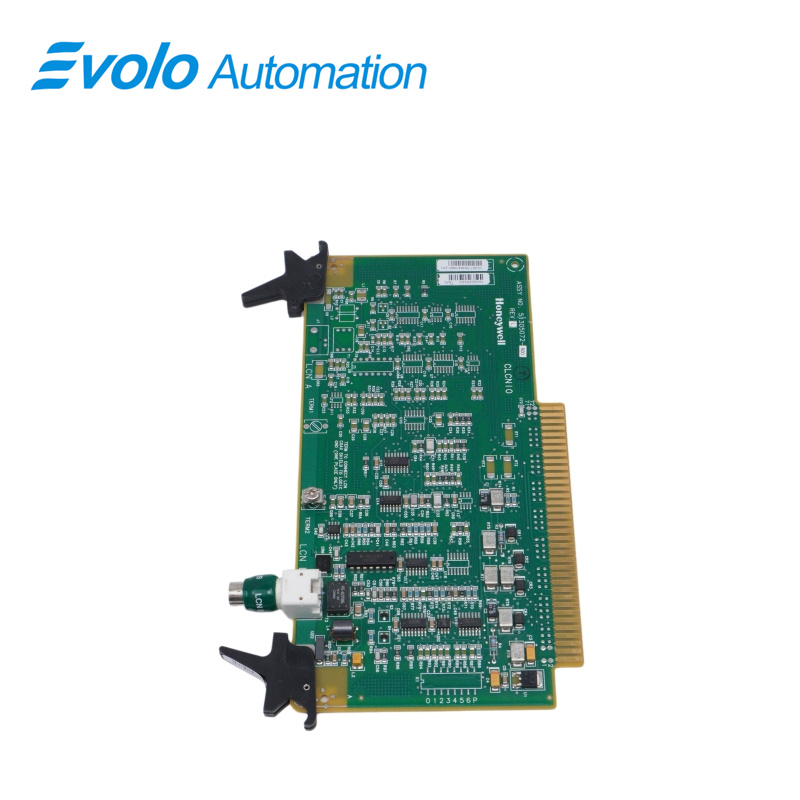

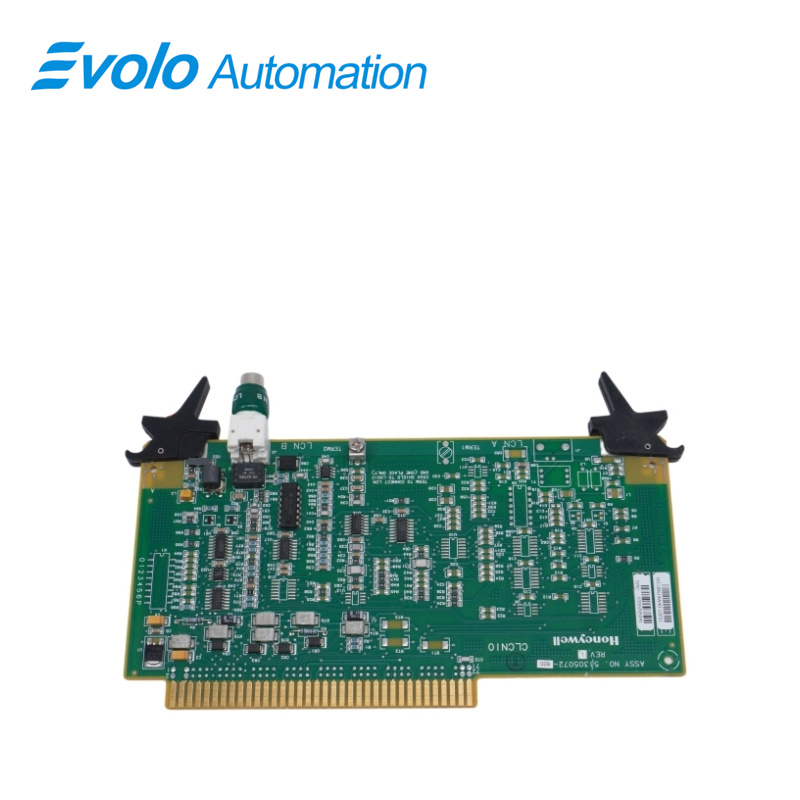

The Honeywell 51305072-600 is a CLCN-B LCN I/O Card for TDC 3000/TPN Distributed Control System (DCS). This card is used to connect the LCN interface with the LCN 'B' cable, Non-CE. The 'A' cable is attached to the CLCN-B paddle board in the same chassis.
Applications
Chemical Plants: Connect DCS racks for safe process data transfer.
Refinery Plants: Sync crude and hydrocracking control networks.
Power Plants: Carry real-time boiler level and steam pressure data.
Steel Plants: Sync thickness and tension across rolling lines.
Cement Plants: Send kiln operation commands from central control.
Troubleshooting
LCN B cable master/slave switchover failure: Check green-band B cable connection and BNC T-connector tightness.
Millisecond-level switchover intermittent timeout: Check opposite CLCN-A board status and dual-node heartbeat pin contact.
Sudden packet loss in node network: Check 24V DC ripple interference or BNC coaxial shielding damage from vibration.
FAQ
Q: What is the power supply of 51305072-600?
A: Its rated power supply is 24 VDC.
Q: What is the fault switching time of 51305072-600?
A: Its failover switching speed is at millisecond level.
Q: What type of node is 51305072-600?
A: It is configured as a dual-node type.
Q: What cable type is used as the redundant path for 51305072-600?
A: It uses LCN coaxial cable (B cable) as the redundant communication path.
Q: What is the cable identification feature of 51305072-600?
A: It uses green heat-shrink coded marking for identification.
