Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
350500-00-00-00-11-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Input Sensitivity Option |
16 pC/psi (232 pC/bar) |
|
Low Pass Frequency Option (See Figures 1 and 2) |
High |
|
Output Sensitivity Option |
100 mV/psi (1.45 V/bar) |
|
Mounting Option |
Din Mount, MIL Connector |
|
Approvals |
No Approvals |
|
Dimension: |
8.8x3.6x7cm |
|
Weight: |
0.24 kg |
Description

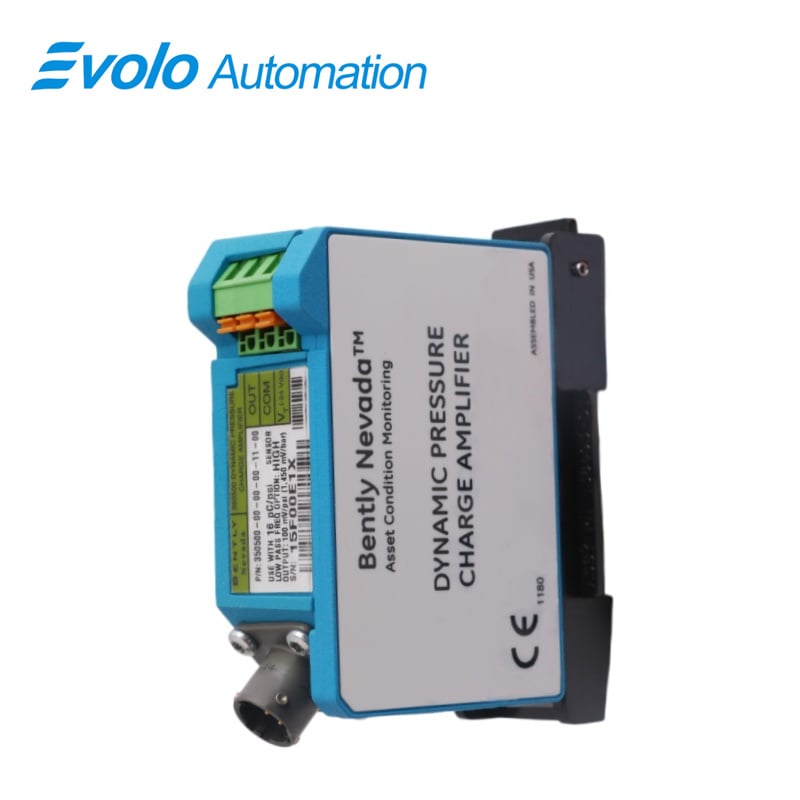

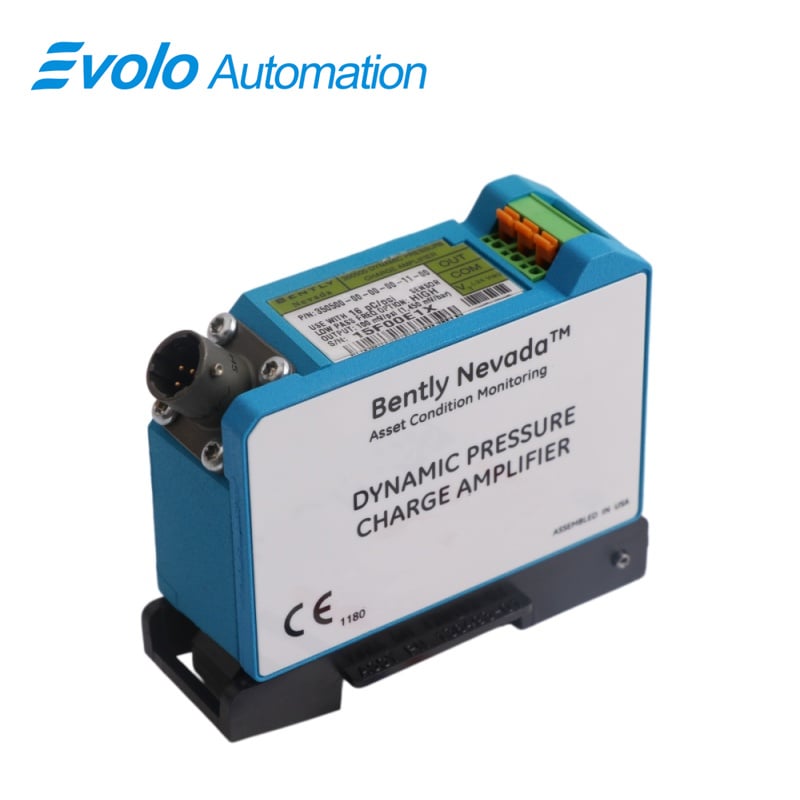

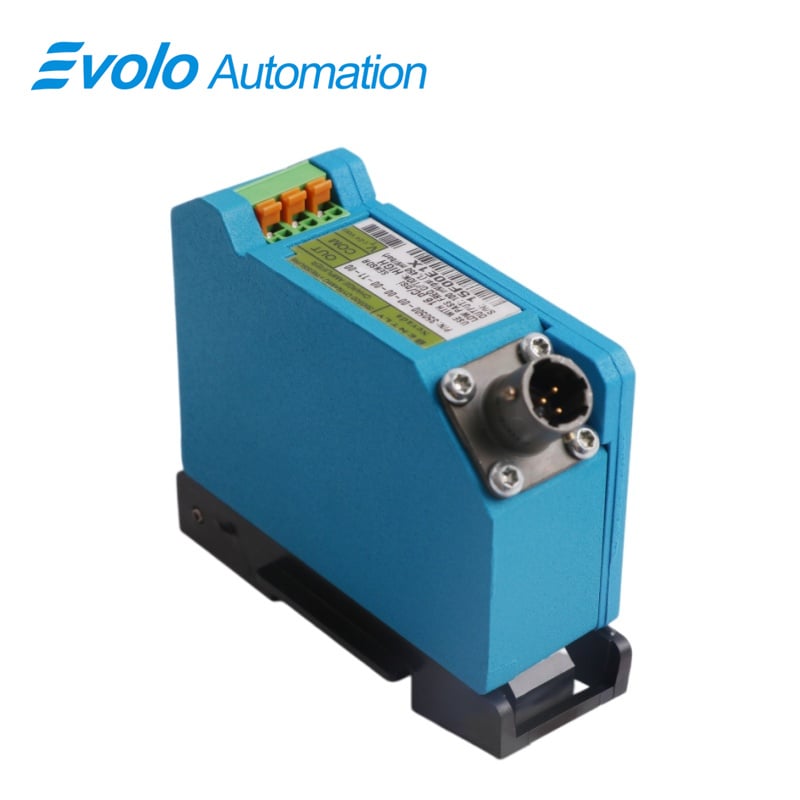

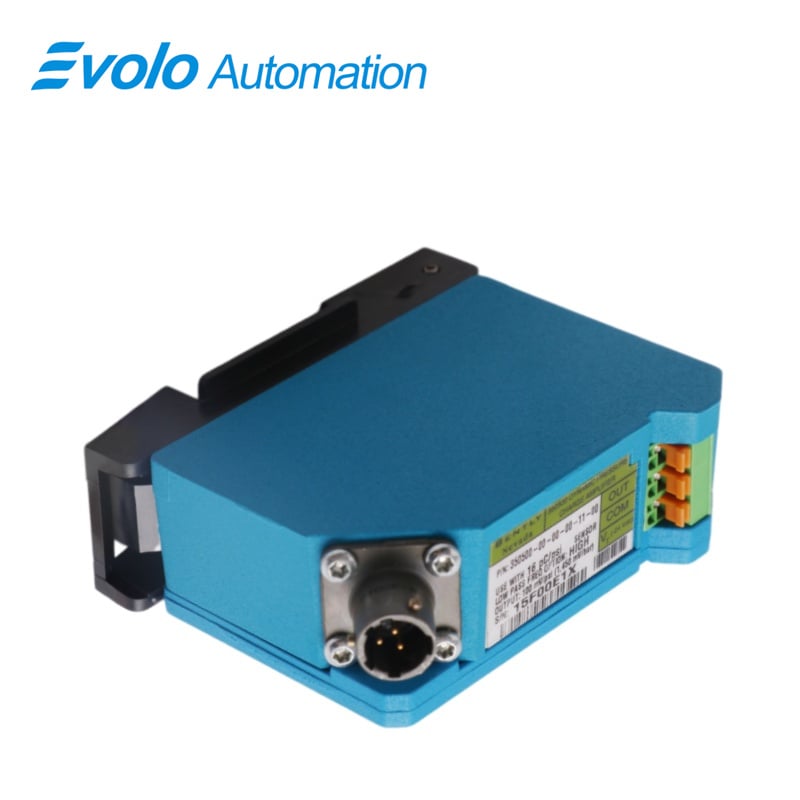

The 350500-00-00-00-11-00 Dynamic Pressure Charge Amplifier converts piezoelectric sensor charge into a low-impedance voltage signal for dynamic pressure monitoring in gas turbine combustion systems. With input sensitivity of 16 pC/psi (232 pC/bar) and output of 100 mV/psi (1.45 V/bar ±2% @150 Hz), the 350500-00-00-00-11-00 supports ±50 psi peak dynamic range and ≥40 dB common-mode rejection. Operating from -20°C to +70°C and storing safely up to -40°C to +85°C with 0–95% non-condensing humidity, it delivers reliable measurements. The unit draws 14.68 mA max and can be powered from -19.6 Vdc to -26 Vdc (no barriers). Mounting is via panel or 35 mm DIN rail, with sensor connections using LEMO or MIL connectors and cable runs up to 305 m (1000 ft). Designed for automation, the 350500-00-00-00-11-00 interfaces with Bently Nevada 3500/64 monitors, enabling precise real-time pressure monitoring and control in industrial turbine systems.
Applications
Power Generation: This is its core application area. It's used to monitor the combustion chamber stability of large industrial gas turbines, preventing hardware damage caused by combustion instability.
Oil & Gas: In refineries and liquefied natural gas (LNG) plants, it's used to monitor large turbine equipment driving compressors, ensuring continuous operation protection in harsh environments.
Aerospace: In engine test benches or specific aerospace turbine applications, it monitors high-frequency dynamic pressure changes using piezoelectric sensors.
Heavy Industry Automation: Widely integrated into API 670-compliant mechanical protection systems for condition monitoring and diagnostics of critical assets.
Specifications
|
Operating Temperature |
-20°C to +70°C (-4°F to +158°F) |
|
Storage Temperature |
-40°C to +85°C (-40°F to +185°F) |
|
Operating & Storage Humidity |
0% to 95% relative, non-condensing |
|
Power Supply Voltage |
-19.60 Vdc to -26 Vdc (no safety barriers) |
|
Power Supply Voltage |
-17.75 Vdc to -26 Vdc (with safety barriers) |
|
Supply Current |
14.68 mA max (no load), 11.69 mA typical (no load) |
|
Sensitivity |
100 mV/psi (1.45 V/bar) ±2% @ 150 Hz |
|
Dynamic Range |
±50 psi peak |
|
Common Mode Rejection |
≥40 dB in passband |
|
Output Resistance / Frequency Response |
50 Ω typical |
|
Option |
High or Low (per ordered configuration) |
|
Mounting |
Panel mount or 35 mm DIN rail mount |
|
Power/Signal Connector |
Three-conductor SpringLoc terminal strip, wire sizes 0.2–1.5 mm² (16–24 AWG) without ferrules, 0.25–0.75 mm² (18–23 AWG) with ferrules, max cable 305 m (1000 ft) |
|
Sensor Connector |
Two-pin LEMO EXG.0B.302.HLN (mates to LEMO FGG.0B.302 or equivalent) |
|
Sensor Connector |
Three-pin MIL MS31128-3P (mates to MS3116F8-3S or equivalent) |
Competitive Advantage
Competitive Advantage Quick Signal Conversion
The 350500-00-00-00-11-00 converts sensor charge to low-impedance voltage instantly, supporting real-time monitoring and automated alarm responses. The 100 mV/psi output ensures consistent data for precise control.
Competitive Advantage Harsh Environment Operation
Operating from -20°C to +70°C and storing up to -40°C to +85°C with 0–95% non-condensing humidity, the 350500-00-00-00-11-00 maintains accurate measurement in extreme turbine environments.
Competitive Advantage Flexible Mounting and Connectivity
The 350500-00-00-00-11-00 can be panel or 35 mm DIN rail mounted. Sensor connections via LEMO or MIL connectors support varied installation setups, simplifying integration into automated turbine monitoring systems.
