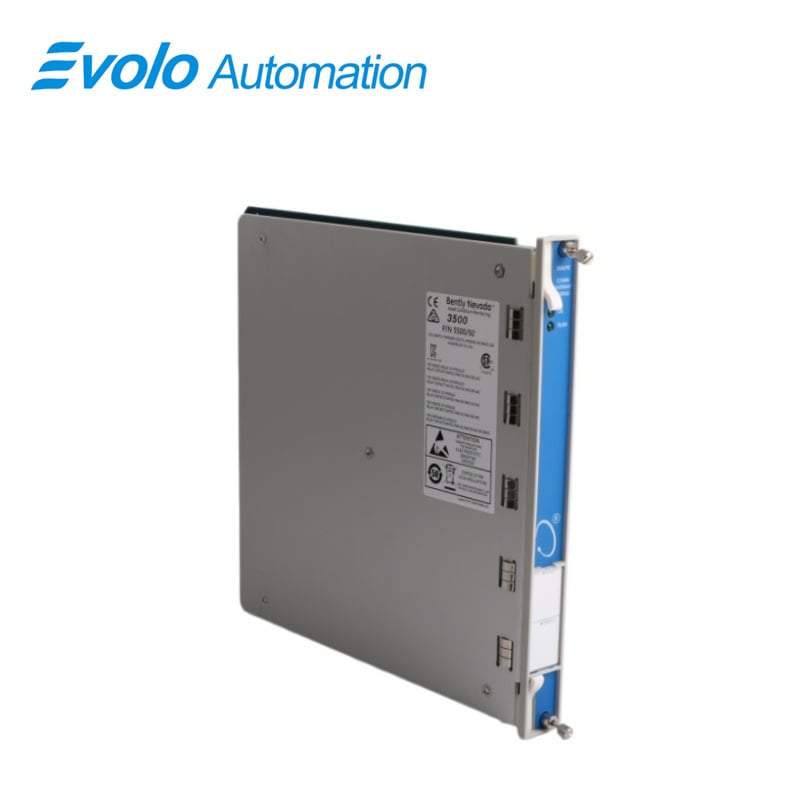

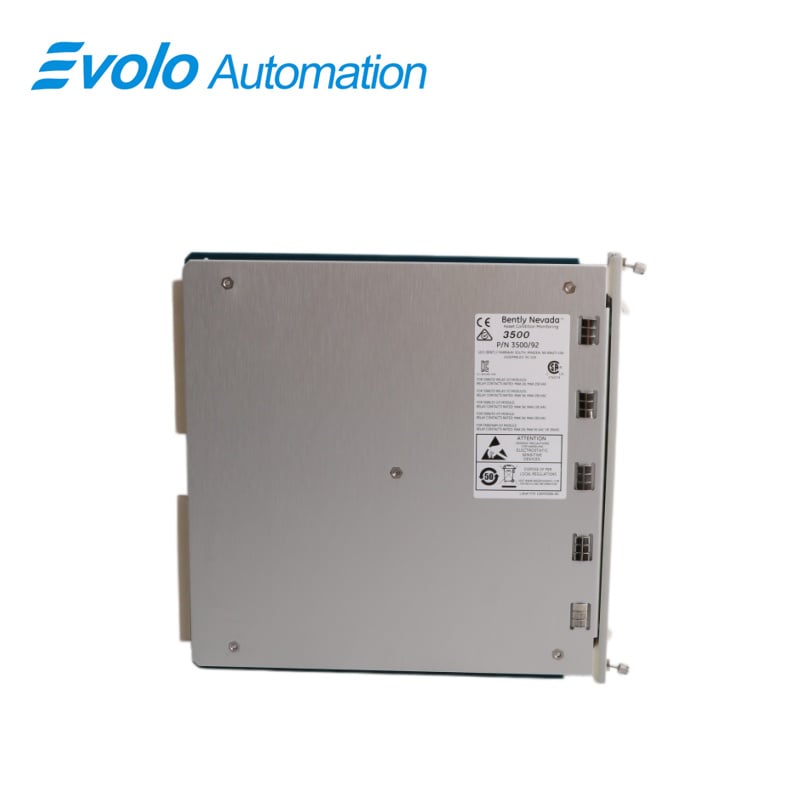

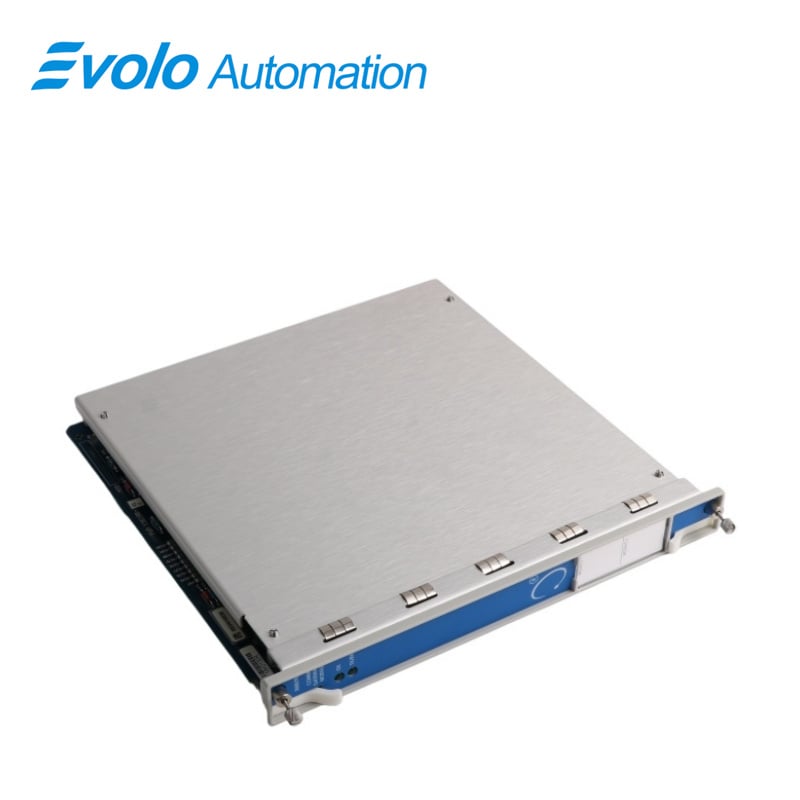

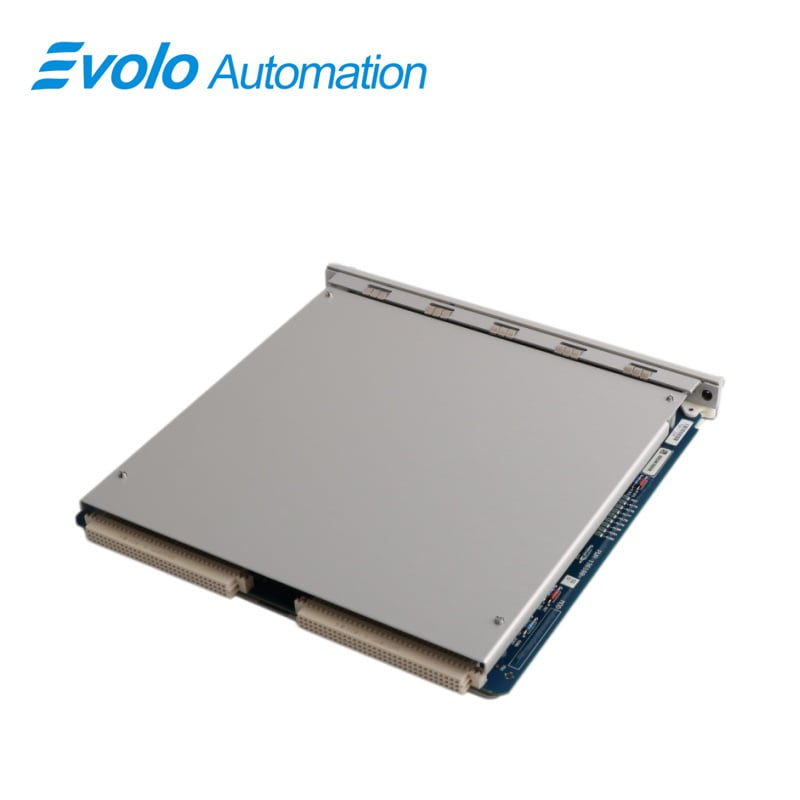

3500/92 136180-01 Communication Gateway Module

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	3500/92 136180-01
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 3500/92 136180-01 Communication Gateway Module from Bently Nevada™ provides direct communication of all 3500 rack-monitored values and statuses to process control and automation systems using Ethernet TCP/IP and serial interfaces (RS232/RS422/RS485). The 3500/92 136180-01 supports Modbus RTU, Modbus/TCP, and proprietary Bently Nevada protocols for integration with 3500 Rack Configuration and Data Acquisition Software. Operating from -30°C to +65°C and with 95% non-condensing humidity, the 3500/92 136180-01 performs reliably in industrial environments. Its single full-height rear slot design allows high-density rack installation, while 5.0–5.6 W power consumption ensures energy-efficient operation. The Configurable Modbus Register Utility on the 3500/92 136180-01 allows precise mapping of rack values to control systems. Ethernet connectivity via RJ-45 at 10 Mbps enables fast data transfer, and TX/RX and OK LEDs provide immediate operational and communication status feedback. The 3500/92 136180-01 allows automation systems to access real-time rack data, integrate multiple monitored channels efficiently, and maintain continuous operation in high-demand industrial applications.

Applications

Oil & Gas: In refineries, LNG terminals, and offshore drilling platforms, the 3500/92 transmits real-time status of compressors and pump units to the central control room.

Power Generation: In gas turbine or steam turbine units, this module provides shaft vibration and speed data to the power plant's DCS system for load control and efficiency analysis.

Petrochemical: Monitors large extruders, fans, and mixers, ensuring that the health data of these high-value assets is synchronously displayed on the operator's HMI interface.

Mining & Metals: Monitors the mechanical fatigue condition of large crushers, ball mills, and conveying systems.

Specifications

Competitive Advantage

Enable Custom Modbus Configuration

The Configurable Modbus Register Utility on the 3500/92 136180-01 replaces primary value Modbus registers, allowing users to define precise mapping for process control integration while handling multiple channels at 5.0–5.6 W power consumption.

Reduce Rack Complexity

By combining Ethernet TCP/IP and serial communication in a single module, the 3500/92 136180-01 eliminates the need for extra interface modules. Its 1 full-height rear slot footprint maximizes rack density while supporting multiple communication channels.

Provide Real-Time Monitoring

The 3500/92 136180-01 allows technicians to verify communication and operational status via TX/RX and OK LEDs. Ethernet 10 Mbps and serial connectivity ensure continuous monitoring of multiple rack channels with minimal latency.

Operate in Industrial Conditions

With an operating range of -30°C to +65°C, storage up to +85°C, and 95% non-condensing humidity, the 3500/92 136180-01 operates reliably in petrochemical, power generation, and mining automation environments. Its low power usage also reduces heat impact on the rack system.
