330910-05-11-10-02-00 3300 NSv Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330910-05-11-10-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

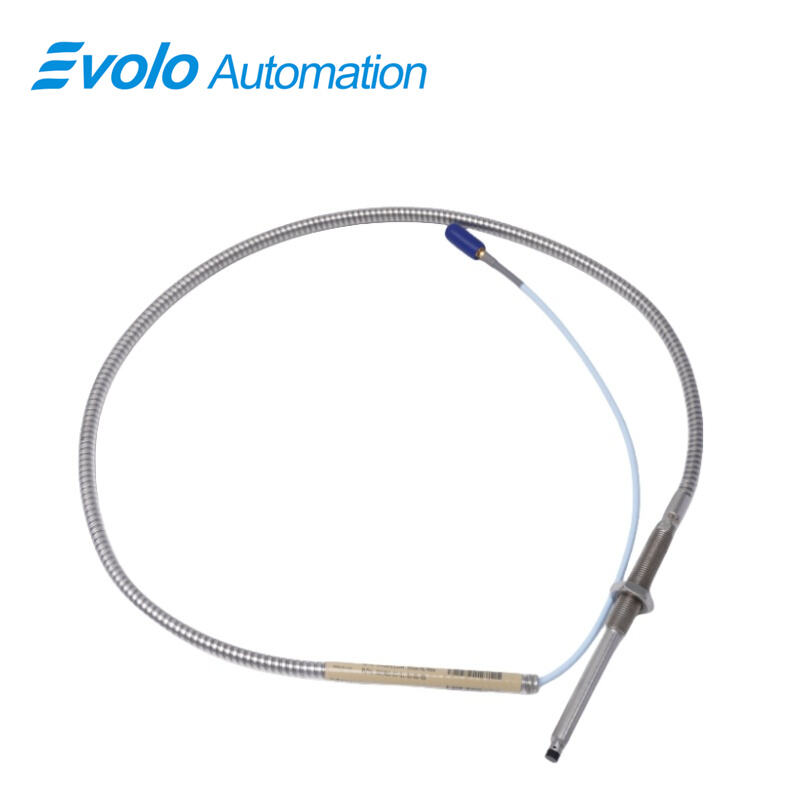

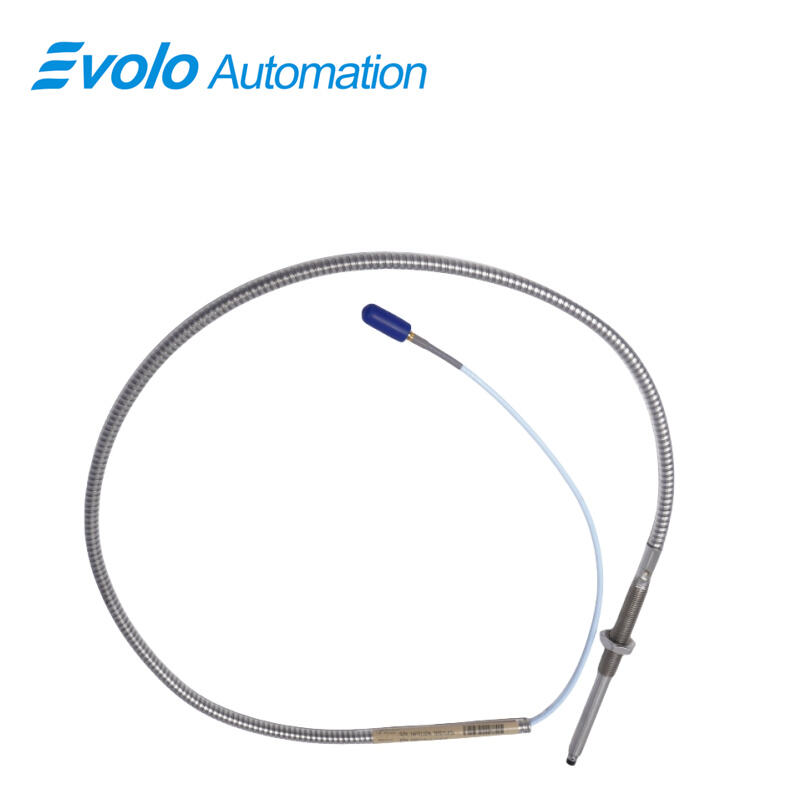

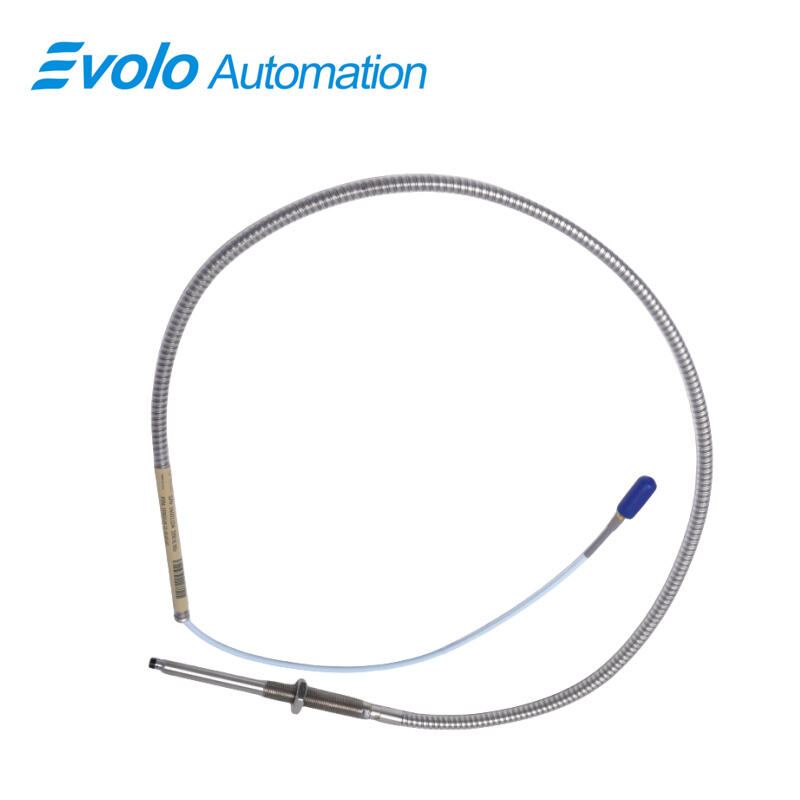

The 330910-05-11-10-02-00 3300 NSv Proximity Probe delivers precise radial vibration and axial position measurements for centrifugal compressors, process gas compressors, and machinery with limited installation space. With a 120 mm overall case length, M10X1 thread, and 15 mm maximum thread engagement, the 330910-05-11-10-02-00 3300 NSv Proximity Probe fits side-view and small-target applications. Its PPS probe tip and AISI 304 stainless steel case operate from -52°C to +177°C, supporting harsh process conditions. The 1.5 mm linear range and 1.0 mm recommended gap ensure accurate vibration and position data. ClickLoc miniature coaxial connectors and 0.5 m cable maintain reliable electrical connections. Output resistance is 50 Ω with less than 2 mV change per volt input variation. The 330910-05-11-10-02-00 3300 NSv Proximity Probe is compatible with existing 3300 RAM systems and integrates with Proximitor Sensors for automated monitoring of shaft speed, phase reference, and machine diagnostics.

Applications

Measure Radial Shaft Vibration on Small Shafts
The 330910-05-11-10-02-00 3300 NSv Proximity Probe monitors radial vibration on shafts smaller than 51 mm using its 1.5 mm linear range and 1.0 mm recommended gap, providing precise data for centrifugal and process gas compressors.

Track Axial Shaft Position on Flat Targets
With a PPS probe tip and 120 mm overall case length, the 330910-05-11-10-02-00 3300 NSv Proximity Probe measures axial (thrust) position on flat targets under 15 mm, enabling accurate monitoring in tight machinery layouts.

Monitor Shaft Speed and Zero Speed Detection
The 330910-05-11-10-02-00 3300 NSv Proximity Probe outputs a 50 Ω signal with minimal voltage variation, supporting tachometer measurements and zero-speed detection in automated rotating equipment.

Generate Phase Reference Signals
Using its ClickLoc miniature coaxial connector and 0.5 m cable, the 330910-05-11-10-02-00 3300 NSv Proximity Probe provides Keyphasor signals for phase reference in automated control systems.

Specifications

Competitive Advantage

Upgrade Existing 3300 RAM Systems without Rewiring
The 330910-05-11-10-02-00 3300 NSv Proximity Probe replaces 3300 RAM probes while retaining extension cables and Proximitor Sensors, reducing installation time and machine downtime.

Operate in High-Temperature Environments
Rated for -52°C to +177°C, the 330910-05-11-10-02-00 3300 NSv Proximity Probe maintains accurate output in compressors and process applications.

Secure Probe and Cable Connection
TipLoc molded probe tip and CableLoc design ensure the 330910-05-11-10-02-00 3300 NSv Proximity Probe cable remains attached under vibration, preserving continuous signal transmission.

Fit Side-View and Tight Installation Areas
With M10X1 probe thread and 120 mm case length, the 330910-05-11-10-02-00 3300 NSv Proximity Probe installs in compact spaces where standard probes cannot fit.

Maintain Accurate Output under Voltage Change
The 330910-05-11-10-02-00 3300 NSv Proximity Probe keeps output voltage changes under 2 mV per volt input change, ensuring precise automated measurements.
