330905-00-05-05-02-CN 3300 NSv Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330905-00-05-05-02-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

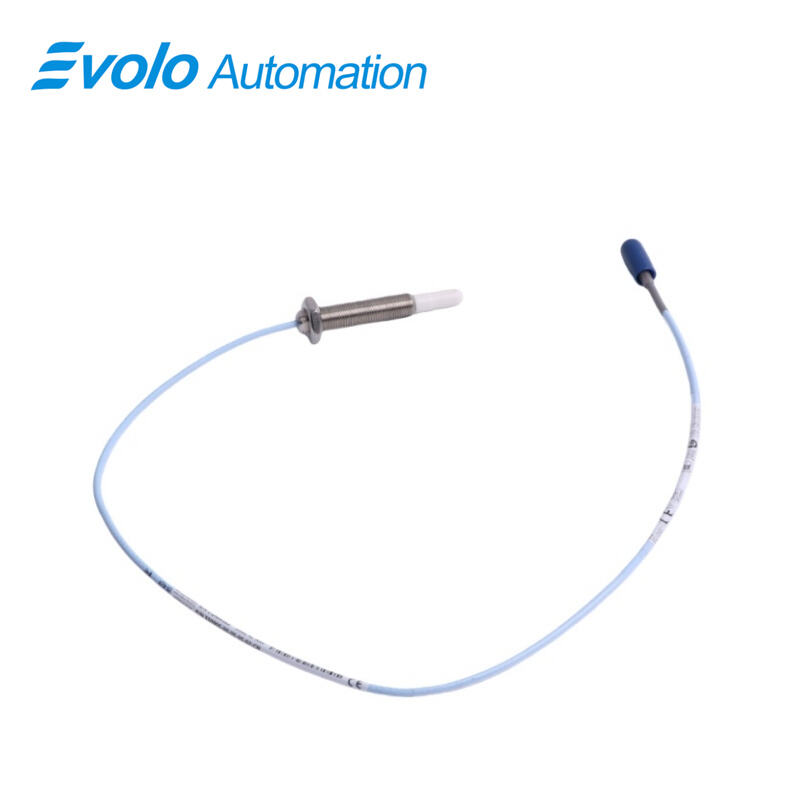

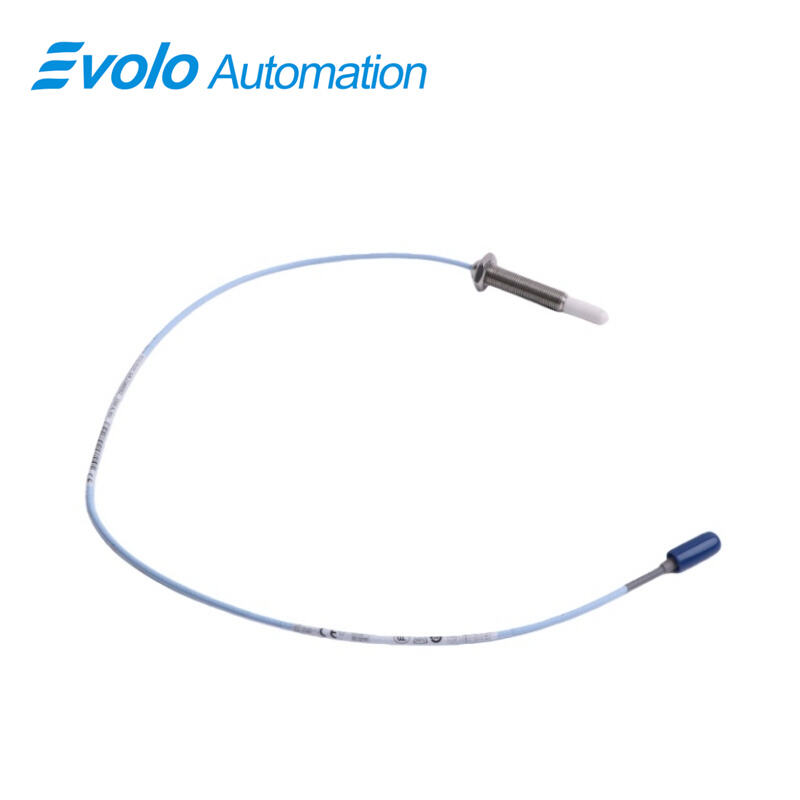

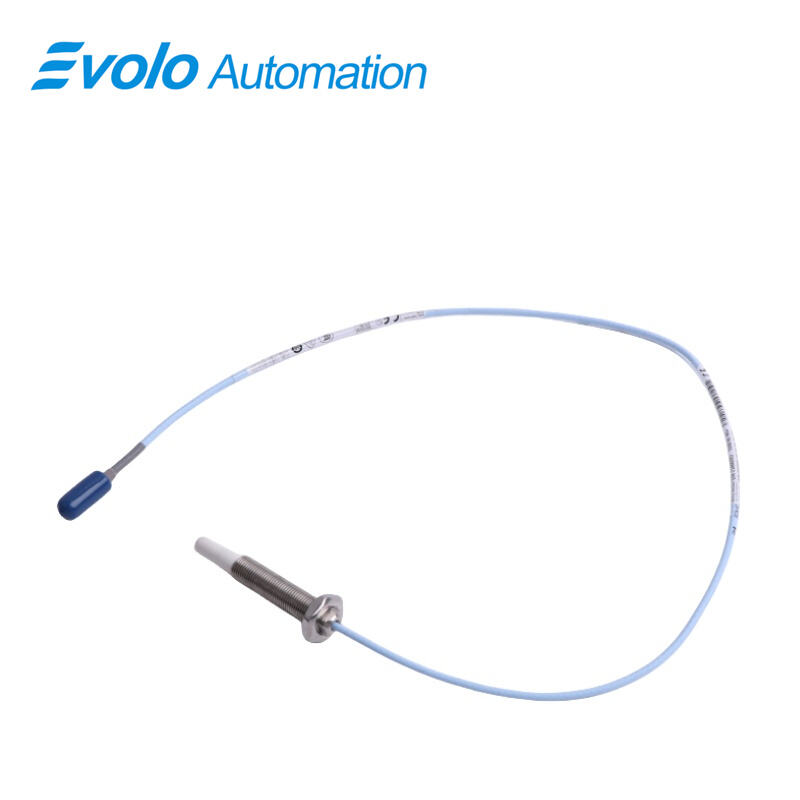

The 330905-00-05-05-02-CN 3300 NSv Proximity Probe features a 50 mm overall case length and M10X1 threaded case, providing precise installation in tight spaces on centrifugal air compressors, refrigeration compressors, and process gas compressors. Its 0.5-meter standard cable with miniature coaxial ClickLoc connector supports low-resistance 50 Ω output and secure connections. The 330905-00-05-05-02-CN 3300 NSv Proximity Probe operates across -52°C to +177°C, with a PPS probe tip and AISI 304 stainless steel case for chemical-resistant performance. Designed for small target measurements, it maintains a 1.5 mm linear range with 1.0 mm recommended gap for accurate radial vibration, axial (thrust) position, and tachometer/Keyphasor signal monitoring. Field wiring supports 0.2 to 1.5 mm² conductors (16–24 AWG), ensuring compatibility with automated monitoring systems. The 330905-00-05-05-02-CN 3300 NSv Proximity Probe enables seamless upgrades from 3300 RAM or 3000/7000-series 190 systems without replacing extension cables or Proximitor sensors. Gold-plated ClickLoc connectors and CableLoc design deliver 220 N pull strength, preventing accidental disconnection, while connector protectors minimize liquid ingress, keeping signals accurate in automated operations.

Applications

Radial Vibration Measurement
The 330905-00-05-05-02-CN 3300 NSv Proximity Probe measures radial vibration on shafts smaller than 51 mm (2 in), using its 1.5 mm linear range and 1.0 mm recommended gap to capture precise vibration data for centrifugal compressors, refrigeration compressors, and process gas compressors.

Axial (Thrust) Position Monitoring
Utilizing its PPS probe tip and AISI 304 stainless steel case, the 330905-00-05-05-02-CN 3300 NSv Proximity Probe accurately monitors axial shaft movement on small flat targets under 15 mm, ensuring proper thrust position control in fluid-filmed bearing machines.

Tachometer and Zero-Speed Detection
The probe’s 50 Ω output resistance and miniature coaxial ClickLoc connector allow the 330905-00-05-05-02-CN 3300 NSv Proximity Probe to generate reliable tachometer signals and zero-speed detection for automated rotational monitoring.

Phase Reference Signal Generation (Keyphasor)
By leveraging its 0.5-meter standard cable and secure ClickLoc connector, the 330905-00-05-05-02-CN 3300 NSv Proximity Probe provides phase reference signals for synchronized rotor monitoring and automated control systems.

Specifications

Competitive Advantage

High-Temperature Operation
Rated for -52°C to +177°C (-62°F to +351°F), the 330905-00-05-05-02-CN 3300 NSv Proximity Probe operates reliably in high-heat compressor environments without signal loss.

Chemical-Resistant Probe Tip
With a PPS probe tip, the 330905-00-05-05-02-CN 3300 NSv Proximity Probe withstands process fluids, enabling installation in aggressive chemical environments without degradation.

Precise Linear Range and Gap Setting
Its 1.5 mm linear range and 1.0 mm recommended gap allow the 330905-00-05-05-02-CN 3300 NSv Proximity Probe to detect small shaft movements accurately, supporting detailed automated monitoring and control.

Secure Connection and Pull Strength
The ClickLoc connector with CableLoc design provides 220 N pull strength, ensuring that the 330905-00-05-05-02-CN 3300 NSv Proximity Probe maintains signal integrity even under vibration or movement.

Seamless System Upgrade
Compatible with 3300 RAM and 3000/7000-series 190 systems, the 330905-00-05-05-02-CN 3300 NSv Proximity Probe allows existing automated
