Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330901-00-08-10-02-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option: |
0.0 in |
|
Overall Case Length Option: |
0.8 in |
|
Cable Length Option: |
1.0 meter (39 in) |
|
Connector and Cable Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
Not required |
|
Probe Case Thread: |
1/4-28 UNF thread |
|
Maximum Length of Thread Engagement: |
0.375 in |
|
Dimension: |
1.2x1x66cm |
|
Weight: |
0.02kg |
Description

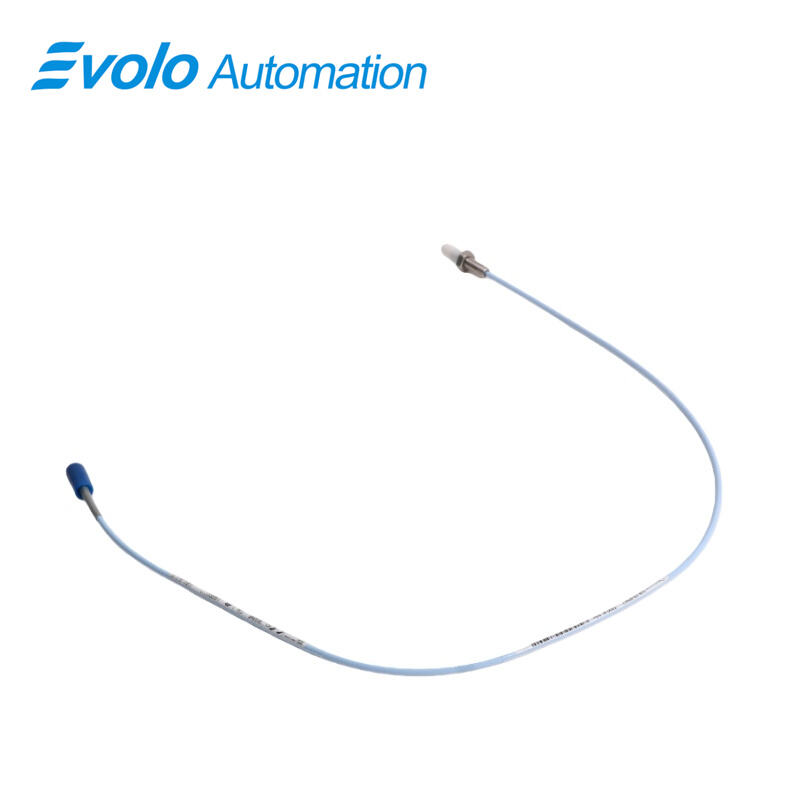

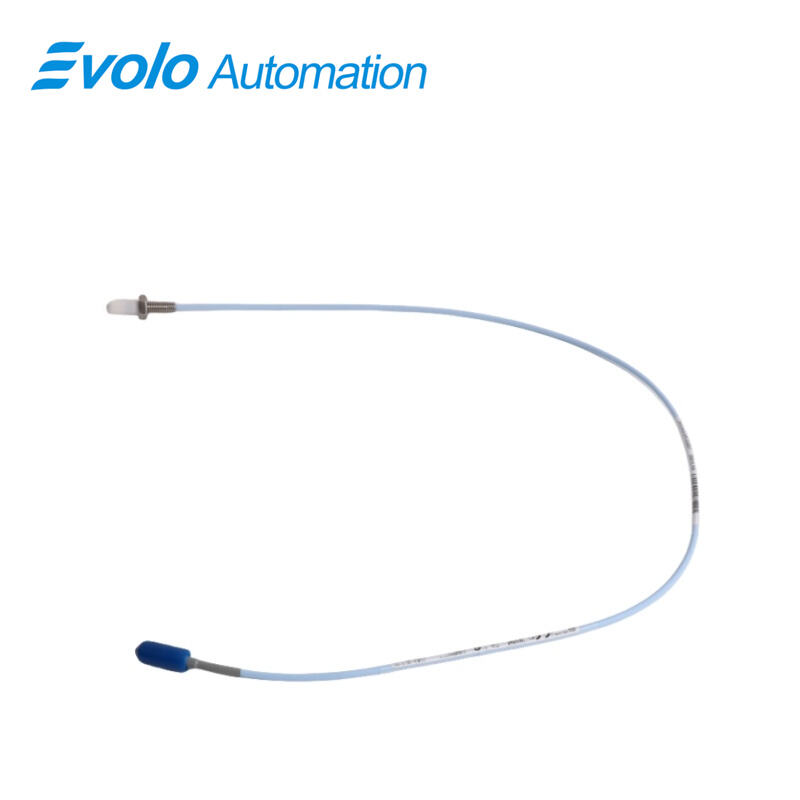

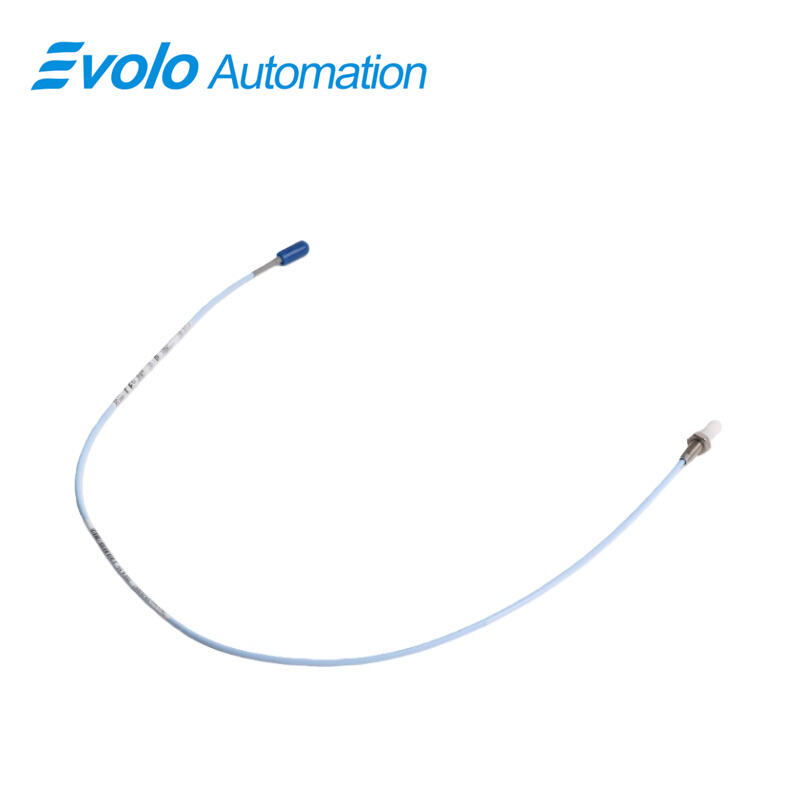

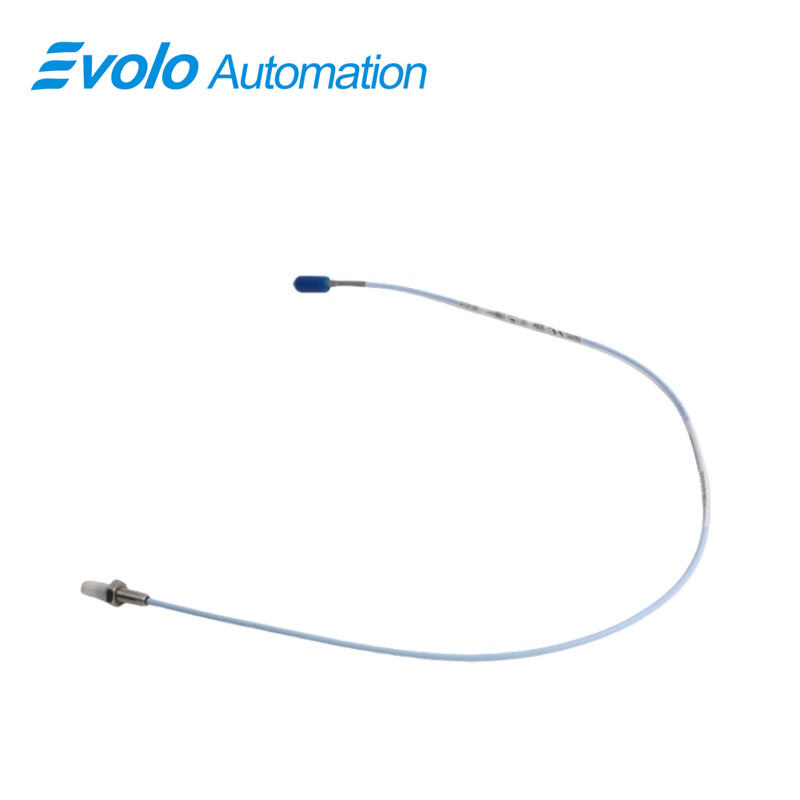

The 330901-00-08-10-02-00 3300 NSv Proximity Probe is designed for tight installation spaces in centrifugal air compressors, refrigeration compressors, and process gas compressors. Featuring a 0.8 in overall case length, 1.0-meter standard cable with ClickLoc connector, and 1/4-28 UNF probe thread, the 330901-00-08-10-02-00 3300 NSv Proximity Probe accurately measures radial vibration on shafts smaller than 51 mm (2 in) and axial position on flat targets under 15 mm (0.6 in). The 1.5 mm linear range and recommended 1.0 mm gap provide precise displacement readings.
The 330901-00-08-10-02-00 3300 NSv Proximity Probe outputs 7.87 V/mm (200 mV/mil) for Keyphasor signals and zero-speed detection, supporting automated monitoring of fluid-film bearing machines. Its PPS probe tip and AISI 304 stainless steel case resist chemical exposure, while the patented TipLoc and CableLoc designs provide 220 N pull strength to secure the probe and cable. Connector protectors prevent moisture ingress into ClickLoc connectors, ensuring reliable signal transmission. The 330901-00-08-10-02-00 3300 NSv Proximity Probe can replace 3300 RAM and 3000/7000-series 190 probes without system modification, enabling seamless upgrades in automation applications.
Applications
Measure Radial Shaft Vibration
The 330901-00-08-10-02-00 3300 NSv Proximity Probe monitors radial vibration on shafts smaller than 51 mm (2 in) in centrifugal and process gas compressors. Its 1.5 mm linear range and 1.0 mm recommended gap ensure accurate displacement readings.
Monitor Axial Position on Small Targets
Use the 330901-00-08-10-02-00 3300 NSv Proximity Probe to track axial (thrust) position on flat targets under 15 mm (0.6 in), enabling precise measurement in tight spaces.
Generate Keyphasor Signals
The 330901-00-08-10-02-00 3300 NSv Proximity Probe outputs 7.87 V/mm (200 mV/mil), supporting automated phase reference and speed measurement for fluid-film bearing machines.
Detect Zero-Speed Conditions
With its miniature coaxial ClickLoc connector and 1.0-meter cable, the 330901-00-08-10-02-00 3300 NSv Proximity Probe provides reliable signals for zero-speed detection and tachometer integration.
Specifications
|
Probe Temperature Range: |
-52°C to +177°C (-62°F to +351°F) |
|
Storage Temperature: |
-52°C to +177°C (-62°F to +351°F) |
|
Probe Tip Material: |
Polyphenylene sulfide (PPS) |
|
Probe Case Material: |
AISI 304 stainless steel (SST) |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG)[0.25 to 0.75 mm2 (18 to 23 AWG) with ferrules] |
|
Linear Range: |
1.5 mm (60 mils) |
|
Recommended Gap Setting: |
1.0 mm (40 mils) |
|
Output resistance: |
50 Ω |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
Competitive Advantage
Chemical-Resistant Probe Tip
The PPS probe tip of the 330901-00-08-10-02-00 3300 NSv Proximity Probe withstands chemical exposure in process compressors, extending operational life.
Secure Probe and Cable Attachment
Patented TipLoc and CableLoc designs provide 220 N pull strength, keeping the 330901-00-08-10-02-00 3300 NSv Proximity Probe probe and cable firmly connected in automated systems.
Moisture-Protected Connectors
Gold-plated ClickLoc connectors with optional connector protectors prevent liquids from entering connections, ensuring uninterrupted signal transmission from the 330901-00-08-10-02-00 3300 NSv Proximity Probe.
