330851-04-000-030-10-00-05 3300 XL 25 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330851-04-000-030-10-00-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

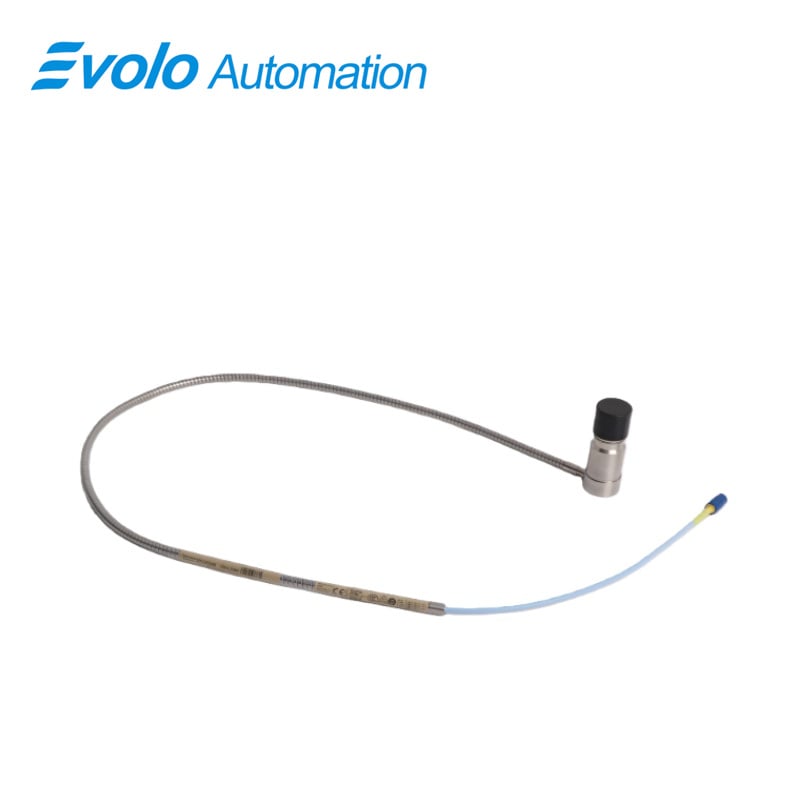

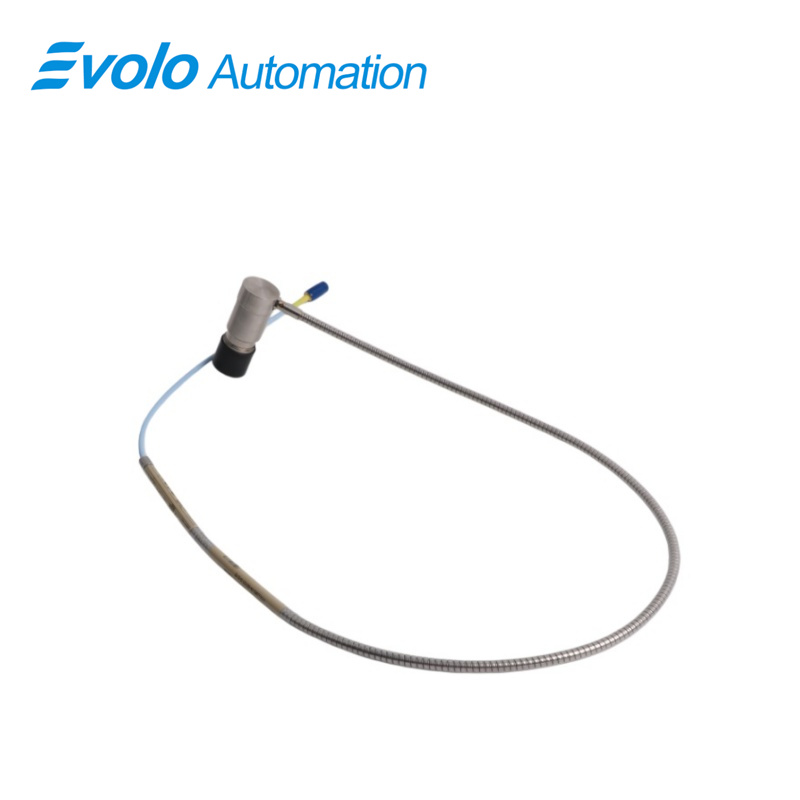

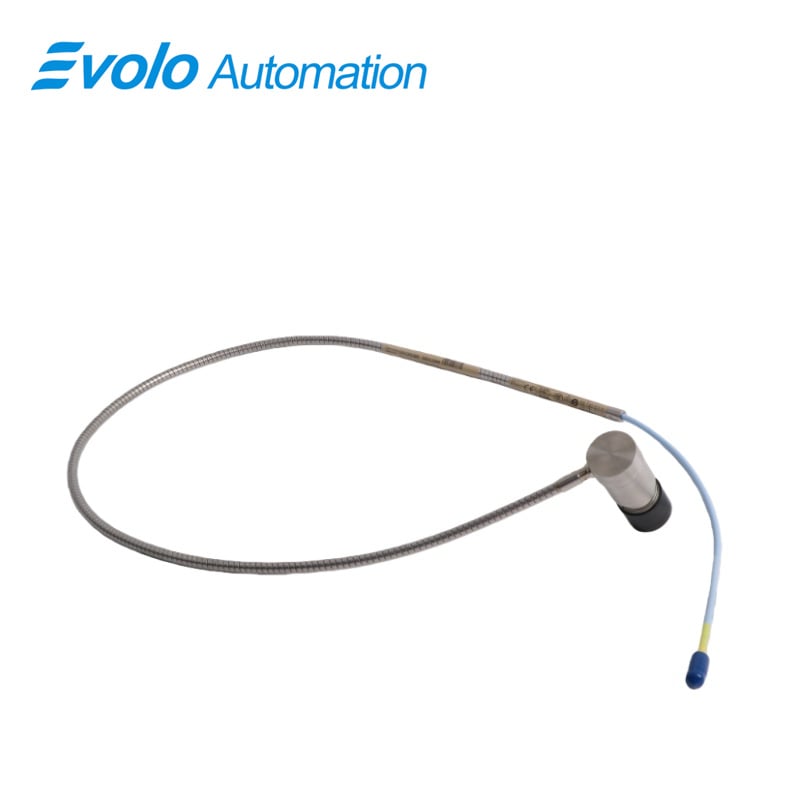

The 330851-04-000-030-10-00-05 3300 XL 25 mm Proximity Probe features a smooth 1.06-inch diameter side-exit case with a 30 mm overall length and a 25.4 mm vertical probe adapter travel, enabling precise differential expansion measurements on midsize to large steam turbines. Its 0.787 V/mm (20 mV/mil) output provides a 12.7 mm linear range for accurate rotor-to-stator monitoring. The 330851-04-000-030-10-00-05 3300 XL 25 mm Proximity Probe operates continuously from -35°C to +200°C, and tolerates short-term exposure up to +250°C, with a 1.0-metre extension cable for flexible placement in automation systems. The PEEK probe tip and AISI 304 stainless steel case protect against harsh turbine conditions. ClickLoc connectors and removable collars on the 330851-04-000-030-10-00-05 3300 XL 25 mm Proximity Probe simplify cable routing through tight clearances, while front and rear seals with FluidLoc cable prevent moisture intrusion. Designed to replace older 7200 DE probes, this 330851-04-000-030-10-00-05 3300 XL 25 mm Proximity Probe integrates seamlessly with 3300 XL Proximitor Sensors, enabling precise high-temperature automation monitoring with minimal installation adjustments.

Applications

Measuring Rotor-to-Stator Differential Expansion
Use the 330851-04-000-030-10-00-05 3300 XL 25 mm Proximity Probe to monitor rotor growth relative to the stator in midsize to large steam turbines, ensuring accurate automation control during thermal expansion cycles.

Integration with Turbine Automation Systems
The 330851-04-000-030-10-00-05 3300 XL 25 mm Proximity Probe works with 3300 XL Proximitor Sensors and standard 7200 DE systems for real-time shaft movement monitoring in turbine control loops.

High-Temperature Proximity Sensing
Install the 330851-04-000-030-10-00-05 3300 XL 25 mm Proximity Probe in environments up to 200°C continuous and 250°C short-term to track differential expansion without downtime in automation systems.

Flexible Mounting and Cable Routing
The 1.0-metre extension cable and ClickLoc connectors of the 330851-04-000-030-10-00-05 3300 XL 25 mm Proximity Probe enable easy routing through tight turbine spaces for precise positioning.

Specifications

Competitive Advantage

Extended Linear Range for Accurate DE Measurement
The 330851-04-000-030-10-00-05 3300 XL 25 mm Proximity Probe provides 12.7 mm linear range and 0.787 V/mm output, allowing precise axial shaft displacement readings.

High-Temperature Operation
With operation up to 200°C and short-term exposure to 250°C, the 330851-04-000-030-10-00-05 3300 XL 25 mm Proximity Probe delivers reliable performance in high-heat steam turbine environments.

Robust Probe Construction
The AISI 304 SST case and PEEK tip of the 330851-04-000-030-10-00-05 3300 XL 25 mm Proximity Probe resist corrosion and mechanical wear, extending probe life in automated monitoring setups.

Simplified Installation and Maintenance
ClickLoc connectors, removable collars, and front/rear seals in the 330851-04-000-030-10-00-05 3300 XL 25 mm Proximity Probe reduce installation errors and allow fast verification of differential expansion monitoring.

Seamless System Upgrade
The 330851-04-000-030-10-00-05 3300 XL 25 mm Proximity Probe is compatible with older 7200 DE probes and integrates directly with 3300 XL Proximitor Sensors, enabling automated system upgrades without rewiring.
