Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330851-04-000-023-10-01-05 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Probe Case Type Option: |
Smooth 1.06 in. dia. - Side Exit |
|
Unthreaded Length Option: |
0 mm |
|
Overall Case Length Option: |
230 mm |
|
Total Length Option: |
1.0 metre (3.3 feet) |
|
Armor Option: |
with SST Armor |
|
Agency Approval Option: |
Multiple Approvals |
|
Dimension: |
2.8x8.2x100cm |
|
Weight: |
0.36kg |
Description

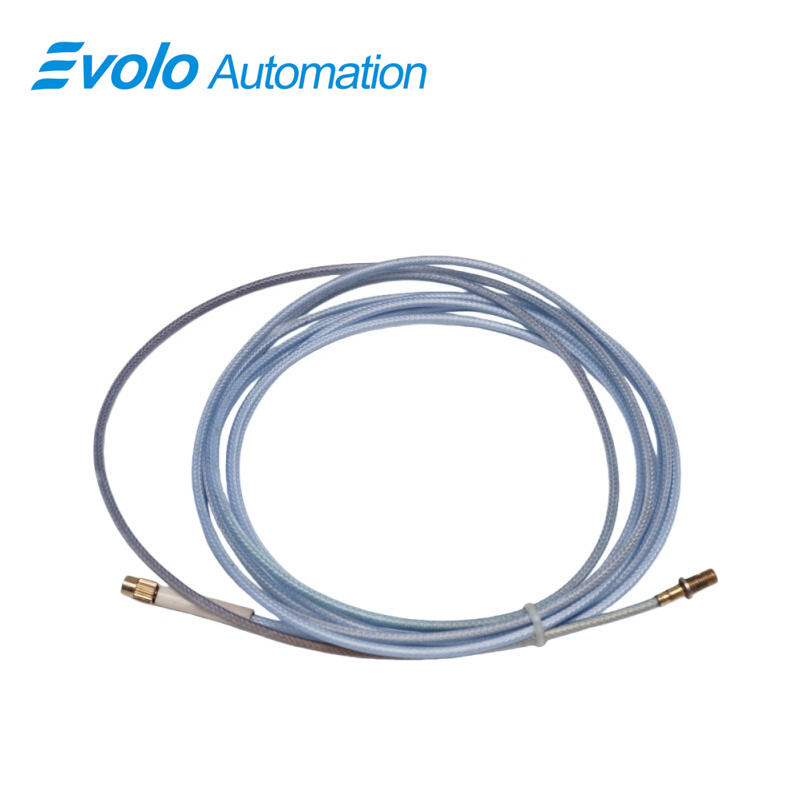

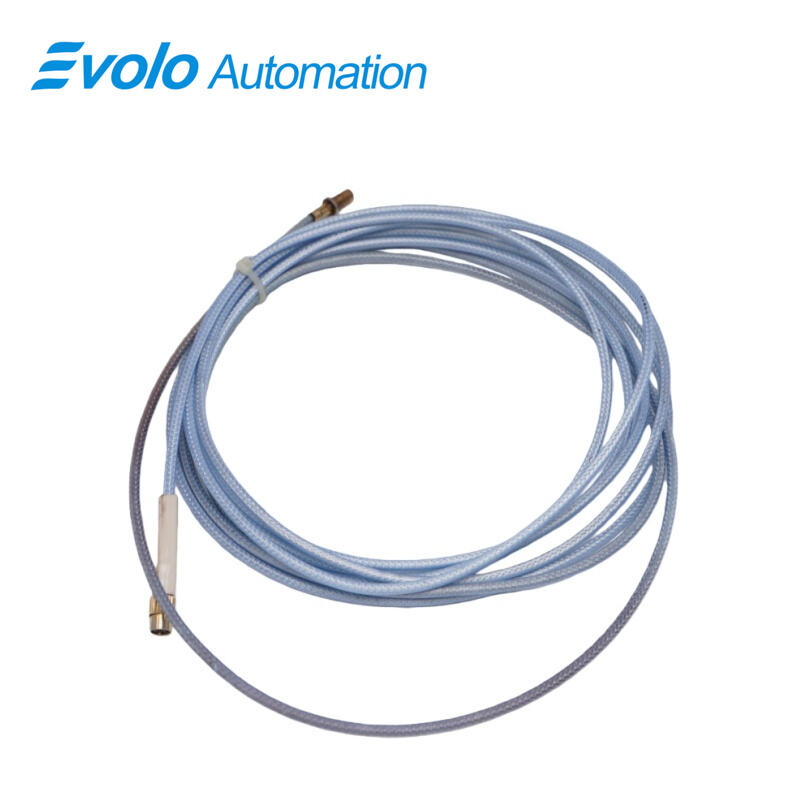

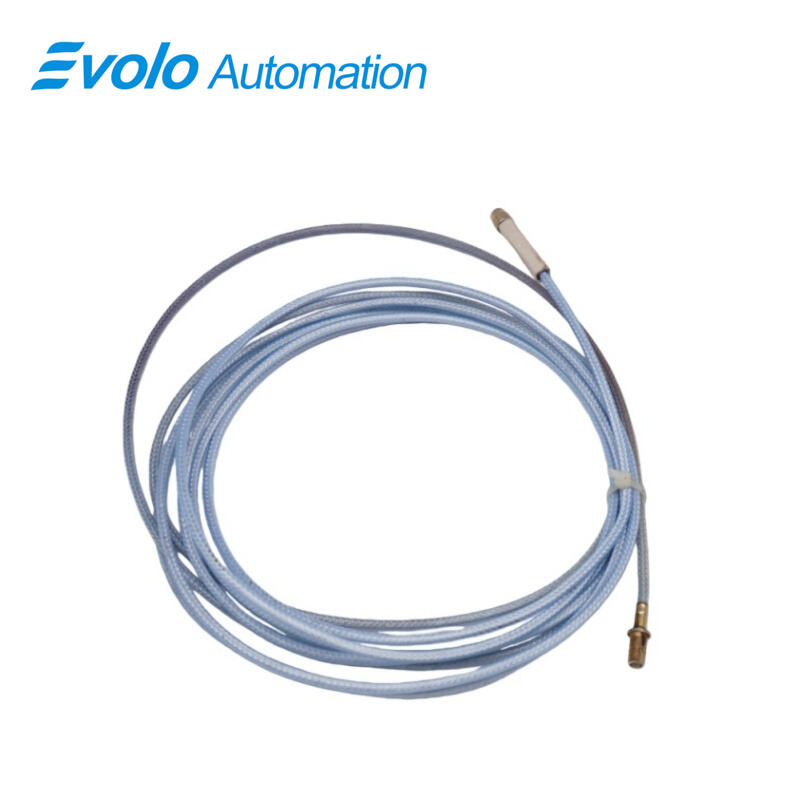

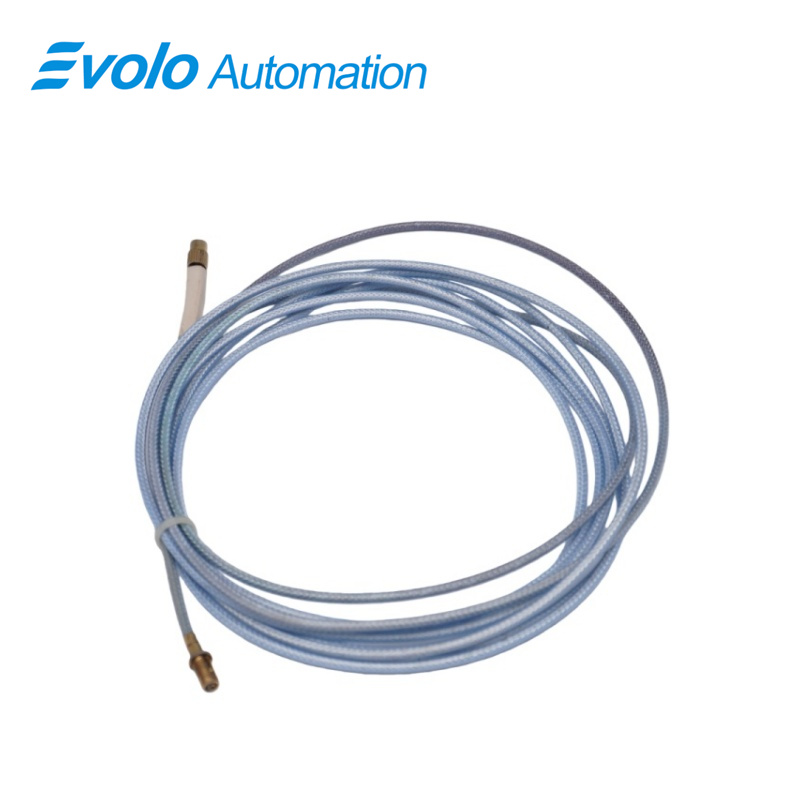

The 330851-04-000-023-10-01-05 3300 XL 25 mm Proximity Probe provides precise differential expansion measurement for steam turbine generators. Featuring a smooth 1.06 in. diameter side-exit case, 230 mm overall length, and 1.0 m SST-armored extension cable, the 330851-04-000-023-10-01-05 operates from –35°C to +200°C continuously and withstands up to 250°C short-term. Constructed from AISI 304 stainless steel with a PEEK tip, it delivers 0.787 V/mm (20 mV/mil) output over a 12.7 mm linear range and 25.4 mm vertical adjustment for precise rotor collar or ramp alignment. High-temperature ClickLoc connectors with FluidLoc cables prevent fluid ingress. The 330851-04-000-023-10-01-05 supports automated turbine monitoring, including axial movement, rod position, and differential expansion measurements, while SpringLoc terminal strips on the Proximitor Sensor enable fast, robust field wiring.
Applications
Measure Differential Expansion on Steam Turbines
Use the 330851-04-000-023-10-01-05 to monitor rotor collars and ramps, providing 0.787 V/mm signals for automated DE analysis.
Track Rotor Axial Movement
Connect the 330851-04-000-023-10-01-05 to measure rotor displacement. Its 25.4 mm vertical adjustment ensures precise probe positioning.
Verify Probe Alignment Using Sliding Bracket
Mount the 330851-04-000-023-10-01-05 on a 3300 XL Sliding Bracket to simulate shaft collar motion and adjust probe gap across the 12.7 mm linear range.
Specifications
|
Probe Case Material : |
AISI 304 stainless steel (SST) |
|
Probe Tip Material : |
Polyetheretherketone (PEEK). |
|
Probe adapter vertical adjustment: |
25.4 mm (1.00 in) total travel |
|
Probe and Extension Cable Armor (optional) : |
Flexible AISI 302 SST with PFA outer jacket. |
|
Short Term Operating and Storage Temperature: |
+250 °C (482 °F) max for less than 24 hours |
|
Operating and Storage Temperature: |
-35°C to +200°C (-31°F to +392°F) |
Competitive Advantage
High-Temperature Operation
The 330851-04-000-023-10-01-05 maintains measurement integrity up to 200°C continuous, 250°C short-term.
Accurate Differential Expansion Measurement
Its 0.787 V/mm output over 12.7 mm ensures precise axial and DE monitoring.
Flexible Installation Options
1.0 m SST-armored cable and side-exit smooth case allow routing in tight turbine casings.
Fluid and Contamination Protection
ClickLoc connectors with FluidLoc cables prevent moisture ingress, maintaining signal accuracy.
Adjustable Alignment for Rotor Collars
The 330851-04-000-023-10-01-05 provides 25.4 mm vertical travel to align probes accurately with collars or ramps.
