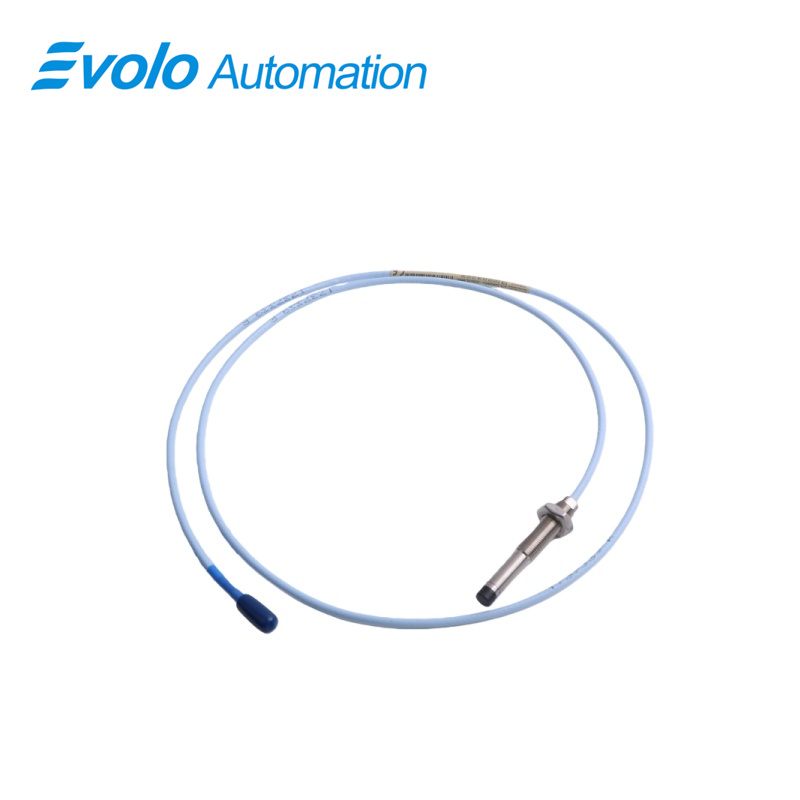

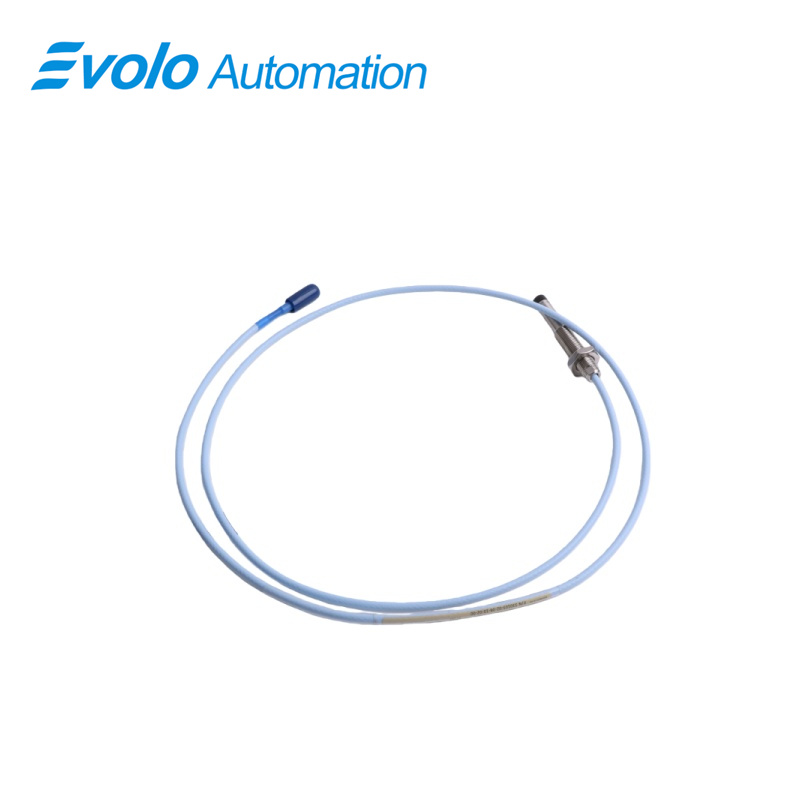

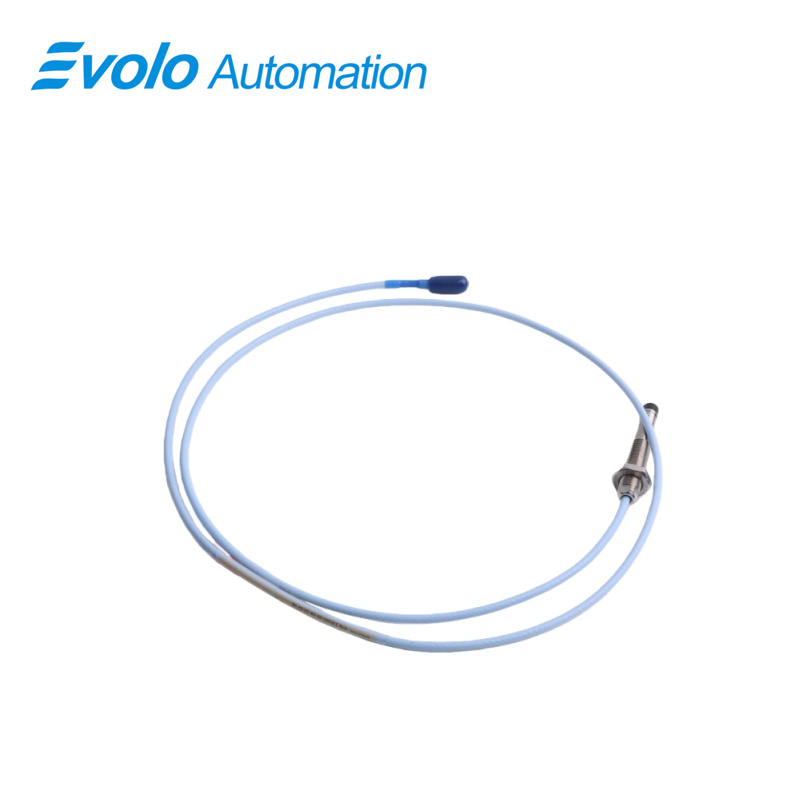

330103-02-04-30-01-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-02-04-30-01-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-02-04-30-01-00 3300 XL 8 mm Proximity Probes emerge as a high-precision eddy current monitoring solution, engineered to deliver reliable measurements by generating an output voltage directly proportional to the gap between its probe tip and the target conductive surface. This advanced functionality empowers the 330103-02-04-30-01-00 3300 XL 8 mm Proximity Probes to excel in both static position tracking and dynamic vibration detection, making it an essential component for industrial condition monitoring systems. Its primary applications span vibration and position measurements on fluid-film bearing machinery, as well as Keyphasor reference signal generation and accurate speed quantification—critical capabilities for optimizing equipment performance and mitigating unplanned downtime in high-stakes industrial environments.​

As a flagship offering in the 3300 XL series eddy current transducer lineup, the 330103-02-04-30-01-00 3300 XL 8 mm Proximity Probes sets a benchmark for performance and reliability. While the standard configuration features a 3.0-meter (9.84 feet) cable (aligned with the model’s “30” length coding), the probe fully adheres to the rigorous American Petroleum Institute (API) 670 Standard, meeting strict requirements for mechanical design, linear measurement range, data accuracy, and temperature stability. This compliance positions the 330103-02-04-30-01-00 3300 XL 8 mm Proximity Probes as a trusted choice for critical sectors including oil and gas, power generation, and heavy manufacturing, where adherence to industry standards is non-negotiable. A key advantage of this probe is its complete interchangeability with other 3300 XL series components, such as extension cables and Proximitor sensors, eliminating the need for time-consuming component matching or bench calibration and streamlining installation and maintenance workflows.​

Applications

330103-02-04-30-01-00 3300 XL 8 mm Proximity Probes is a high-performance eddy current proximity probe engineered for versatile industrial condition monitoring, excelling in static position tracking and dynamic vibration measurement across power generation, general manufacturing, and heavy machinery sectors. With a 2 mm (80 mils) linear range, it delivers precise data on component displacement and vibration, while its ultra-wide operating temperature range of -52°C to +175°C (-62°F to +341°F) ensures stable performance in extreme environments—from freezing outdoor substations to high-heat turbine enclosures. Crafted with AISI 303/304 stainless steel housing and a PPS probe tip, the probe boasts exceptional resistance to dust, oil, and mechanical wear, extending service life in harsh workshop or industrial settings. Its compact 10.0×0.8×0.8cm dimension, 0.1kg lightweight design, 20mm unthreaded length, and 40mm overall case length enable seamless installation in narrow equipment gaps, such as machine tool spindles or robotic arm joints, without compromising operational precision. Equipped with a 3.0-meter standard cable and a miniature coaxial ClickLoc connector with a protector, it ensures secure, vibration-resistant connections for medium-distance wiring between on-machine components and control cabinets. Electrical performance is optimized with 50 Ω output resistance and supply sensitivity <2 mV/V, maintaining signal integrity amid voltage fluctuations (-17.5 Vdc to -26 Vdc power requirement) and electromagnetic interference in industrial grids. Whether monitoring rotor vibration in power plant turbines, tracking shaft position in manufacturing motors, or detecting bearing wear in heavy machinery, this probe provides reliable, actionable data to drive predictive maintenance strategies, minimize unplanned downtime, and enhance operational efficiency across diverse industrial landscapes.

Specifications

Competitive Advantage

1. Ultra-Compact & Lightweight Design for Space-Constrained Installations​

Boasting a slender 10.0×0.8×0.8cm dimension, 0.1kg lightweight build, 20mm unthreaded length, and 40mm overall case length, the probe fits seamlessly into narrow equipment gaps, machine tool spindles, and compact rotating machinery. Its ergonomic design minimizes installation challenges, making it ideal for space-limited industrial setups where bulkier probes are inapplicable.

​

2. Durable Construction for Harsh Industrial Conditions​

Crafted with AISI 303/304 stainless steel housing and a PPS (Polyphenylene sulfide) probe tip, the probe exhibits exceptional resistance to corrosion, mechanical wear, and erosion from dust, oil, and industrial contaminants. This robust build extends service life, reduces maintenance frequency, and lowers total cost of ownership in demanding workshop or power generation environments.​

3. Stable Signal Transmission & High Measurement Precision​

Featuring a 2 mm (80 mils) linear range, 50 Ω output resistance, and supply sensitivity output voltage per volt change in input voltage, the probe captures precise static position and dynamic vibration data with minimal signal attenuation. It maintains stability amid voltage fluctuations (-17.5 Vdc to -26 Vdc), resisting electromagnetic interference for reliable condition monitoring.
