Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330780-90-CN |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Total Length and Mounting Option: |
9.0 meters (29.5 feet) system length, panel mount |
|
Agency Approval Option: |
Multiple approvals |
|
Dimension: |
7.8x6x6.4cm |
|
Weight: |
0.24kg |
Description

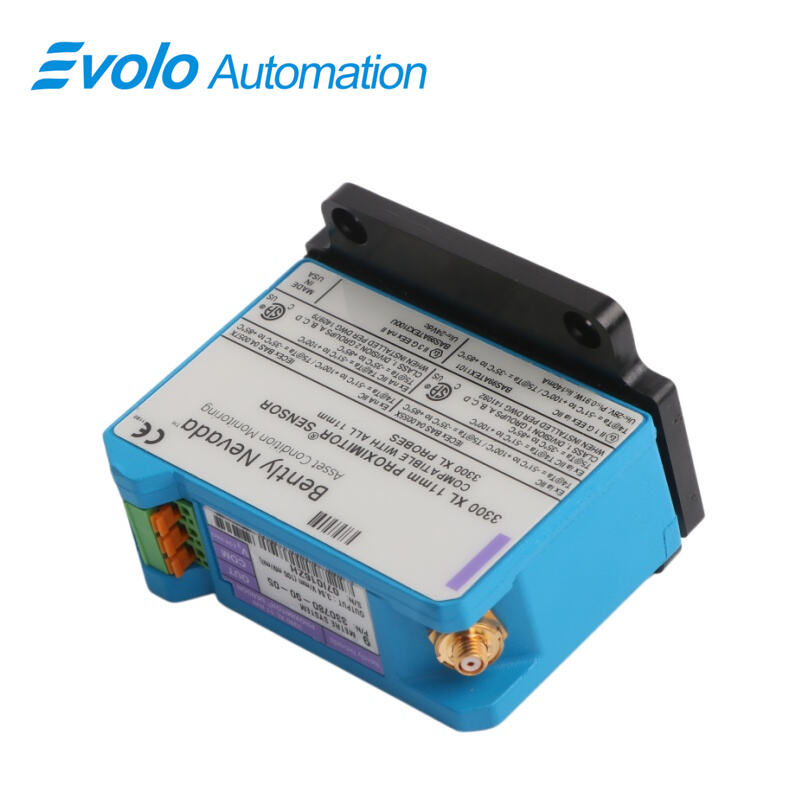

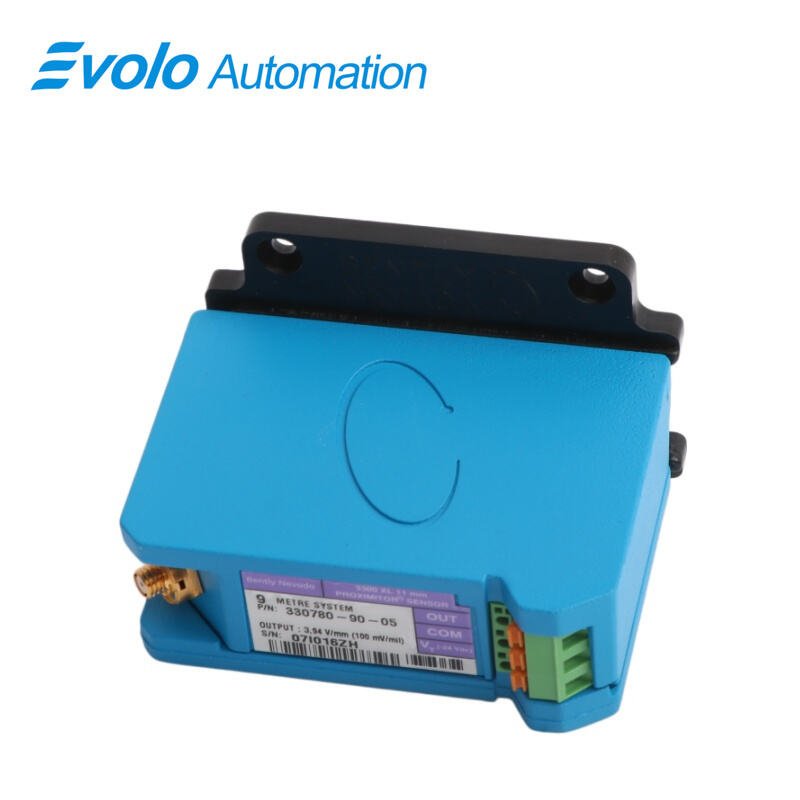

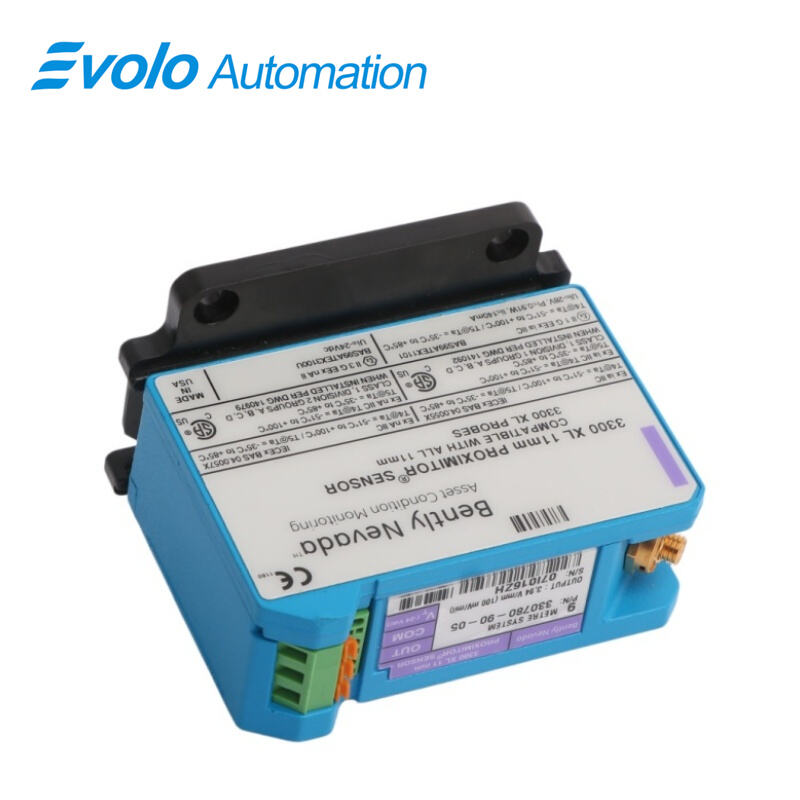

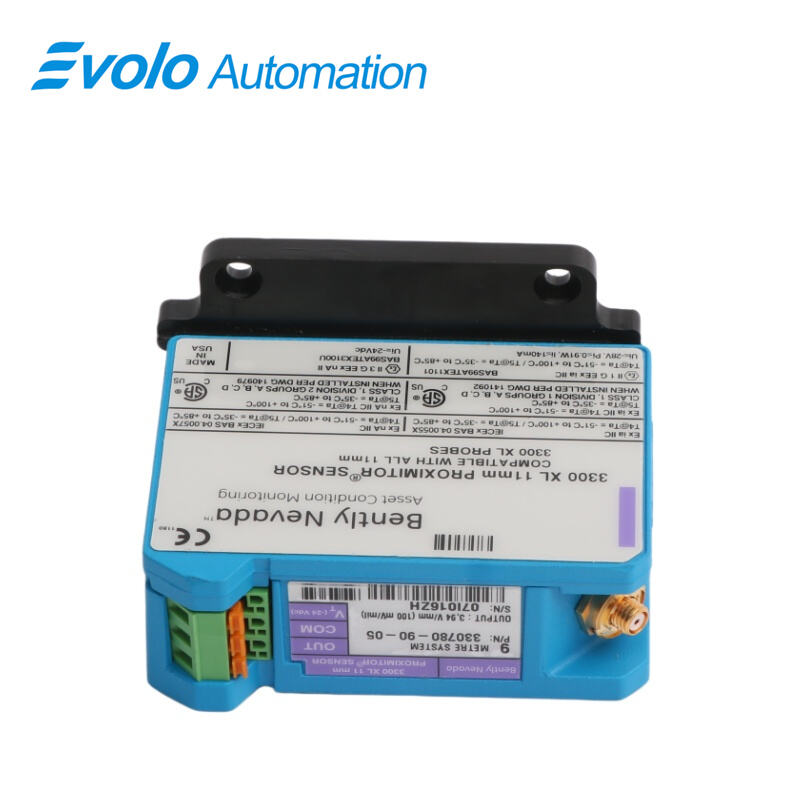

The 330780-90-CN 3300 XL 11 mm Proximitor Sensor provides precise signal conversion for industrial automation systems. Designed for a 9.0-meter (29.5 ft) system length and panel mount, the 330780-90-CN accepts one 3300 XL 11 mm Proximity Probe and Extension Cable. It operates on –23 to –26 Vdc with maximum 12 mA consumption and maintains 50 Ω output resistance with supply sensitivity below 2 mV per volt input change. The 330780-90-CN features A380 aluminum construction, supports field wiring from 0.2–1.5 mm² (16–24 AWG), and functions from –52°C to +100°C operating temperature. This sensor transmits 3.94 V/mm (100 mV/mil) signals for axial position, rod drop, differential expansion, tachometer, and Keyphasor measurements. Its panel-mount design and SpringLoc terminal strips simplify installation while preventing fluid ingress, ensuring accurate automated monitoring in fluid film bearing machinery.
Applications
Measure Axial Position on Steam Turbines
The 330780-90-CN transmits signals from 3300 XL 11 mm probes to measure thrust bearing displacement. Its 3.94 V/mm output allows automated monitoring of axial movement.
Track Rod Position in Reciprocating Compressors
Connect 330780-90-CN to probes to monitor rod drop during compressor cycles. Field wiring supports 0.2–1.5 mm² and operation from –52°C to +100°C for accurate automated readings.
Capture Tachometer and Zero Speed Signals
The 330780-90-CN provides rotor speed and zero speed signals with supply sensitivity below 2 mV/V. SpringLoc terminal strips ensure secure 330 N connections for continuous data collection.
Monitor Differential Expansion in Rotors
Use 330780-90-CN to measure ramp expansion in turbines. Panel mount and aluminum construction allow installation in high-density areas without affecting 3.94 V/mm output.
Specifications
|
Input : |
Accepts one non-contacting 3300 XL 11 mm Proximity Probe and Extension Cable. |
|
Power : |
Requires -17.5 Vdc to -26 Vdc without barriers at 12 mA maximum consumption, -23 Vdc to -26 Vdc with barriers. Operation at a more positive voltage than -23.5 Vdc can result in reduced linear range. |
|
Proximitor Sensor Material: |
A380 aluminum |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) [0.25 to 0.75 mm2 (18 to 23 AWG) with ferrules] |
|
Storage Temperature: |
-52°C to +105°C (-62°F to +221°F) |
|
Operating Temperature: |
-52°C to +100°C (-62°F to +212°F) |
|
Relative Humidity: |
100% condensing, nonsubmersible when connectors are protected. Tested to IEC 68-2-3 damp heat. |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage. |
|
Output resistance: |
50 Ω |
Competitive Advantage
Direct Integration with 3300 XL Systems
The 330780-90-CN works with all 3300 XL 11 mm probes and extension cables. Its 9.0-meter system length and 50 Ω output allow direct installation with accurate signal transfer.
High Pull Strength and Secure Connections
SpringLoc terminal strips on 330780-90-CN provide secure wiring and maintain continuous 50 Ω output during vibration.
Operates in Extreme Temperatures
330780-90-CN functions from –52°C to +100°C, supporting automated monitoring in fluid film bearing machines.
Prevent Fluid Entry and Signal Loss
Panel mount design and protected connectors prevent moisture ingress while maintaining 3.94 V/mm output signals.
Flexible Field Wiring Support
330780-90-CN accommodates 0.2–1.5 mm² (16–24 AWG) wiring, enabling quick connection to multiple probe types in automation systems.
