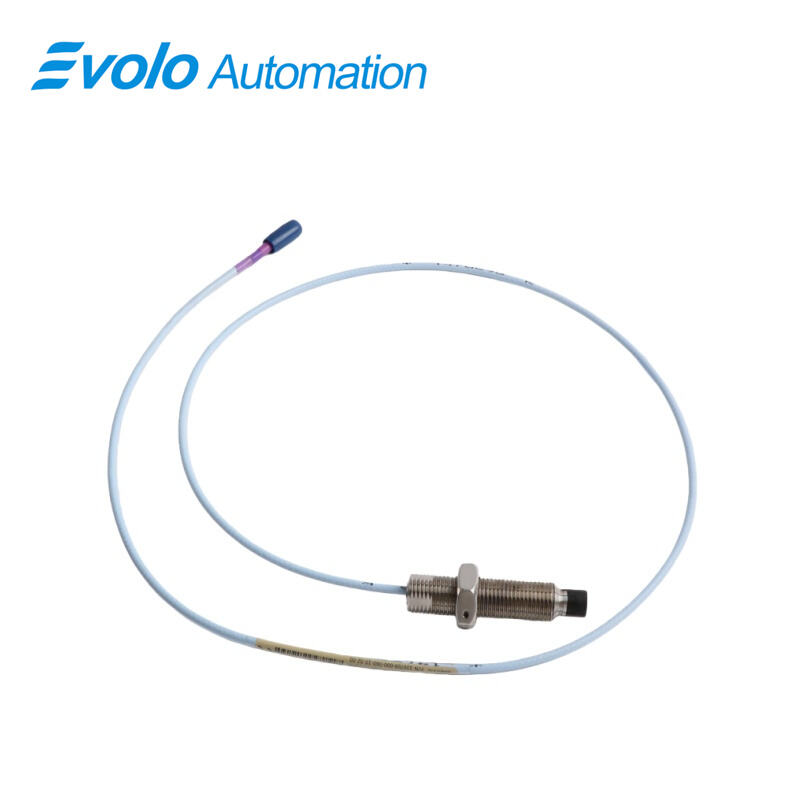

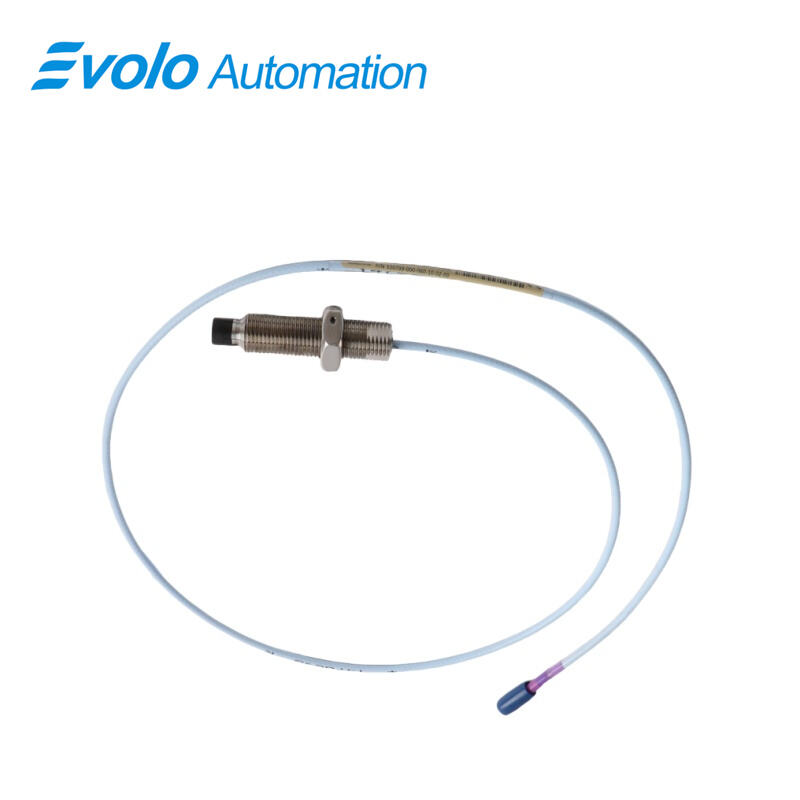

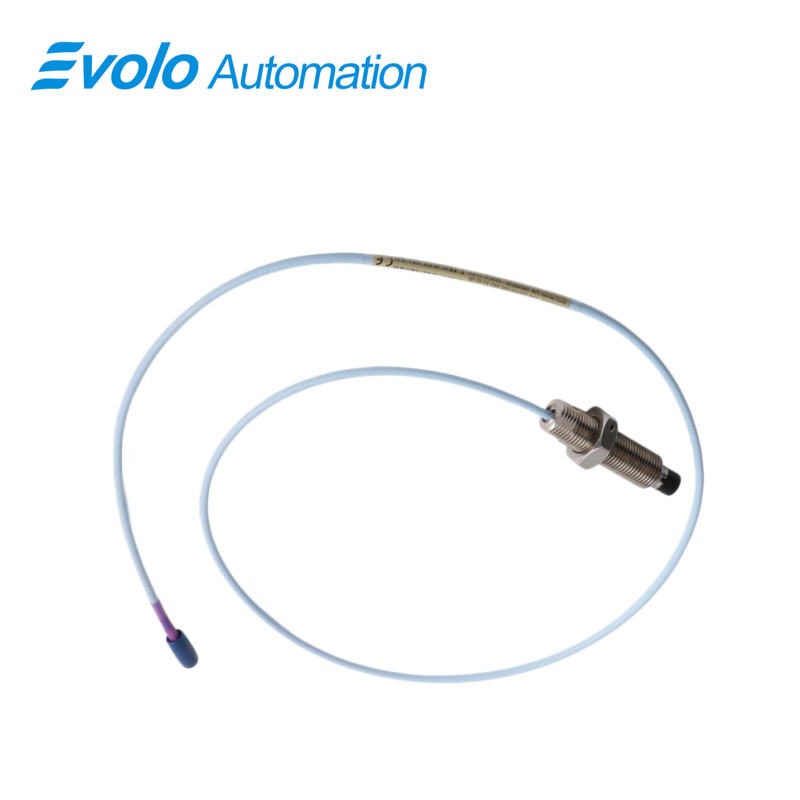

330709-000-080-10-02-00 3300 XL 11 mm Reverse Mount Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330709-000-080-10-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330709-000-080-10-02-00 3300 XL 11 mm Reverse Mount Probe delivthe 330709-000-080-10-02-00 3300 XL 11 mmves a longer linear measurement range than standard 8 mm 3300 XL probers a 3.94 V/mm (100 mV/mil) output for precise non-contact vibration and displacement measurements on fluid film bearing machines. With an 80 mm overall case length and 11 mm tip, Probe achiees. Its M14 x 1.5 threaded case, IP67-rated housing, and 99.9% braided copper shielding ensure accurate data capture in harsh industrial environments. nto existing monitoring systems. The 330709-000-080-10-02-00 3300 XL 11 mm Reverse Mount Probe is ideal for axial (thrust) position measurements, ramp differential expansion monitoring on turbines, rod position detection on compressors, and phase reference signals for automation. The 1.0-meter ClickLoc cable and RJ45 connectors simplify installation and integration FluidLoc cables prevent oil leaks, while CableLoc and TipLoc designs provide secure probe attachment and 330 N pull strength, enhancing operational reliability.

Applications

Axial Position Measurement with 330709-000-080-10-02-00 3300 XL 11 mm Reverse Mount Probe
Use the 330709-000-080-10-02-00 3300 XL 11 mm Probe to measure axial thrust positions on fluid film bearing machines. Its 11 mm probe tip and 3.94 V/mm output provide extended linear range for precise displacement detection in turbines and compressors.

Ramp Differential Expansion Monitoring
Install the 330709-000-080-10-02-00 3300 XL 11 mm Probe on steam turbines to monitor ramp differential expansion. The 80 mm overall case length and M14 x 1.5 threaded case allow reverse mounting while maintaining accurate measurement over large gaps.

Rod Position Detection on Reciprocating Compressors
The 330709-000-080-10-02-00 3300 XL 11 mm Probe accurately tracks rod positions and rod drops. The 1.0-meter ClickLoc cable with 99.9% braided copper shielding ensures reliable signal transmission to monitoring systems.

Phase Reference (Keyphasor) Signals for Automation Control
Deploy the 330709-000-080-10-02-00 3300 XL 11 mm Probe for generating Keyphasor signals. Its IP67-rated housing and RJ45 connectors facilitate integration with digital control systems in industrial automation.

Specifications

Competitive Advantage

Extended Linear Range
The 330709-000-080-10-02-00 3300 XL 11 mm Probe delivers a longer linear measurement range than 8 mm 3300 XL probes, thanks to the large 11 mm probe tip, enabling accurate displacement and vibration monitoring.

Secure Probe and Cable Connection
All 330709-000-080-10-02-00 3300 XL 11 mm Probe components feature TipLoc and CableLoc designs, providing 330 N pull strength, preventing detachment, and ensuring continuous signal output in automated systems.

Flexible Mounting Options
The 330709-000-080-10-02-00 3300 XL 11 mm Reverse Mount Probe supports reverse mounting with M14 x 1.5 threaded case and optional armored or unarmored configurations, simplifying installation in tight industrial spaces.

Fluid Containment for Oil and Liquids
Optional FluidLoc cables for the 330709-000-080-10-02-00 3300 XL 11 mm Probe prevent oil and liquid leaks through the cable, protecting measurement integrity in lubrication-heavy machinery.

Robust Environmental Protection
The 330709-000-080-10-02-00 3300 XL 11 mm Probe provides IP67 dust and water resistance and can operate from -40°C to +85°C, allowing deployment in harsh industrial environments without affecting measurement accuracy.
