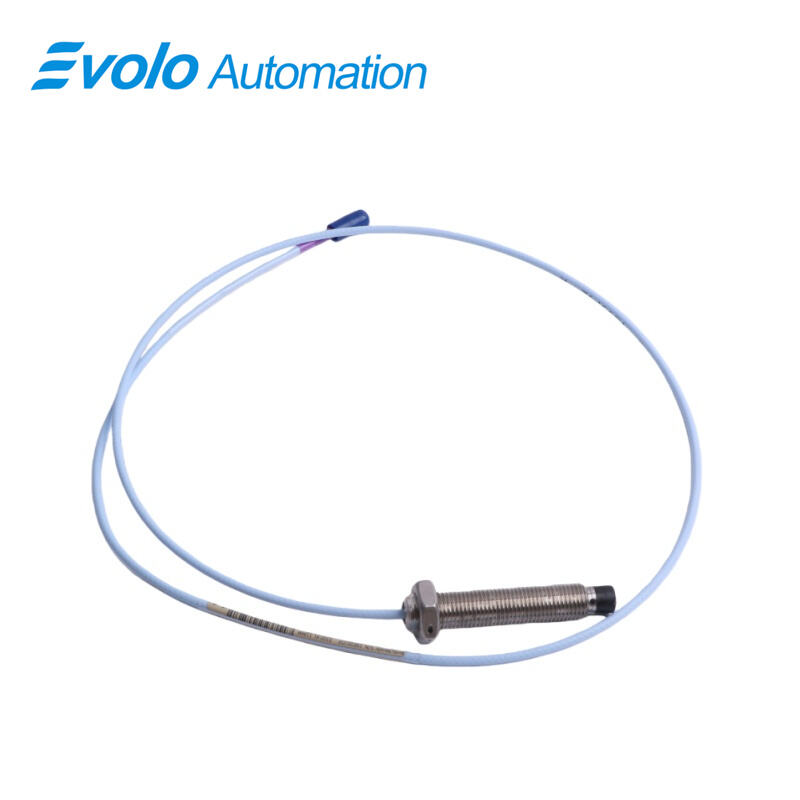

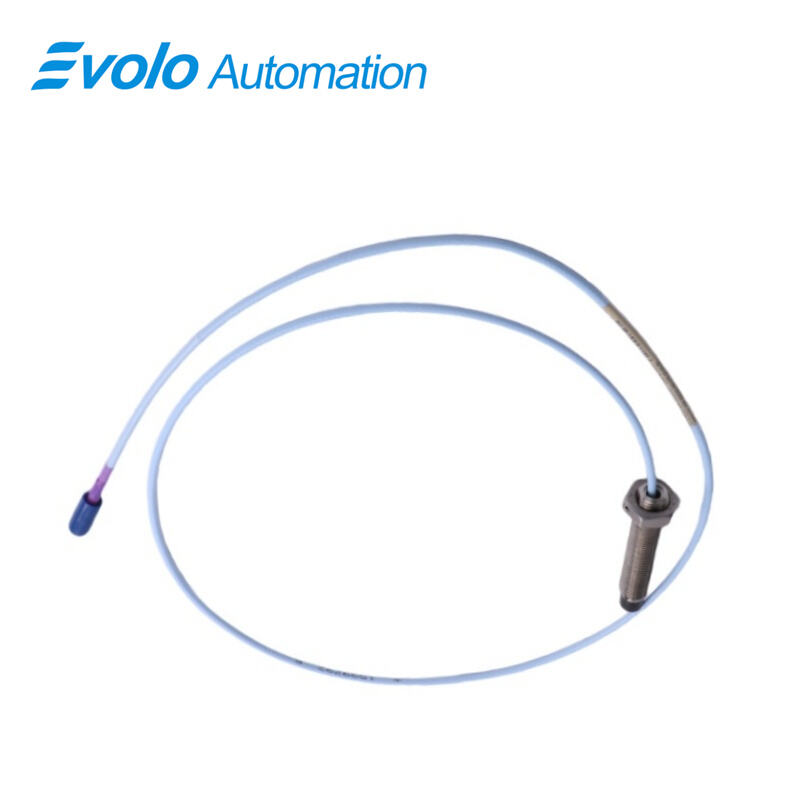

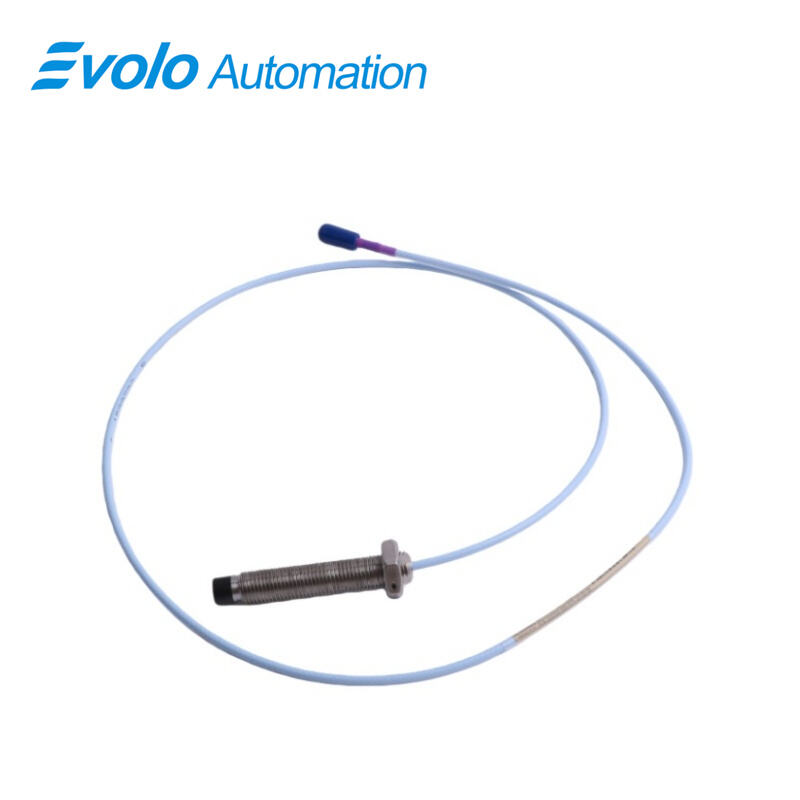

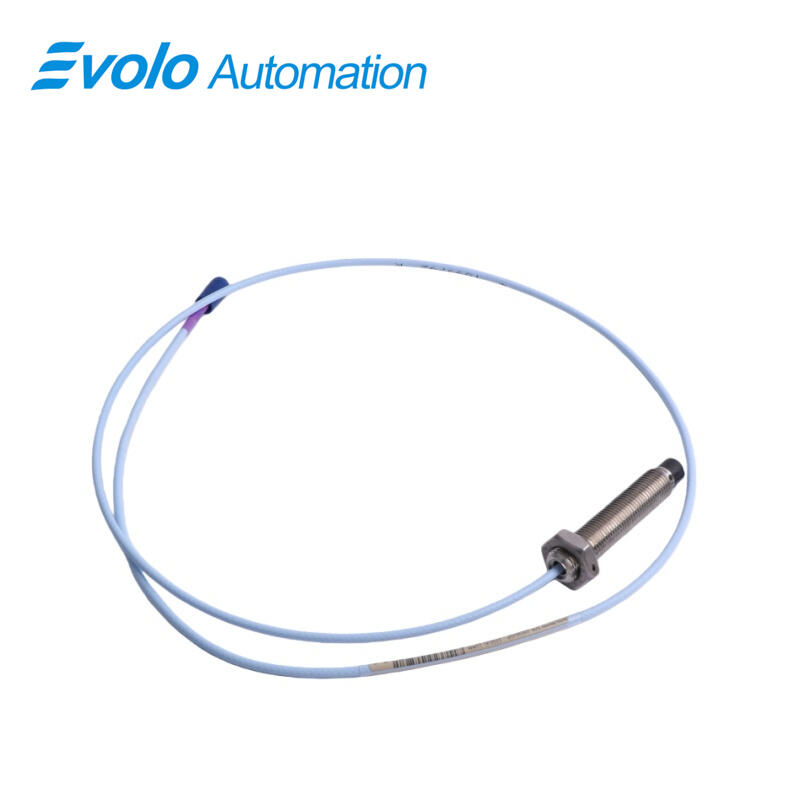

330703-000-070-10-02-00 3300 XL 11 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330703-000-070-10-02-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330703-000-070-10-02-00 3300 XL 11 mm Proximity Probe is a high-precision non-contact displacement and vibration sensor designed for critical industrial automation and machinery protection systems. As part of the 3300 XL proximity probe family, this 11 mm proximity probe is engineered to deliver stable, repeatable measurements in demanding rotating equipment environments such as turbines, compressors, pumps, and generators. With a sensitivity of 3.94 V/mm (100 mV/mil), the probe supports accurate shaft displacement and vibration monitoring over an extended linear range, exceeding the capabilities of standard 8 mm proximity probes.

The 330703-000-070-10-02-00 proximity probe features an M14 x 1.5 threaded probe case, a 70 mm overall case length, and a 1.0 meter standard cable, making it suitable for compact installations while maintaining mechanical robustness. The probe utilizes a Miniature coaxial ClickLoc connector, ensuring secure electrical connections and minimizing signal loss in automated monitoring systems. Its 99.9% braided copper shielding effectively suppresses electromagnetic interference, which is essential for reliable data acquisition in industrial automation environments.

Designed for harsh operating conditions, the 3300 XL 11 mm proximity probe offers an operating temperature range of -40°C to +85°C and IP67-rated environmental resistance, providing dependable performance in dusty, humid, or oil-contaminated machinery enclosures. The probe is commonly integrated with condition monitoring and protection platforms to support predictive maintenance strategies, reduce unplanned downtime, and enhance asset lifecycle management. By combining mechanical durability, extended linear measurement range, and automation-ready signal stability, the 330703-000-070-10-02-00 3300 XL 11 mm Proximity Probe is an ideal solution for advanced industrial automation and rotating machinery health monitoring applications.

Applications

Application 1: Axial Thrust Position Monitoring in Steam Turbines

In steam turbine automation systems, the 3300 XL 11 mm proximity probe is used to measure axial shaft position with high accuracy. The extended linear range enabled by the 11 mm tip allows precise monitoring of thrust movement, even during load changes. With 3.94 V/mm output, control systems can detect micrometer-level axial shifts, helping prevent thrust bearing damage and improving turbine operational safety.

Application 2: Differential Expansion Measurement

For large steam turbines, differential expansion between rotor and casing is a critical parameter. The 330703-000-070-10-02-00 proximity probe provides continuous, non-contact measurement of ramp differential expansion. The stable signal performance and IP67 environmental resistance ensure reliable data under high temperature gradients, enabling automation systems to trigger alarms before mechanical interference occurs.

Application 3: Reciprocating Compressor Rod Position Monitoring

In reciprocating compressors, the probe is applied to rod position and rod drop measurements. The 1.0 meter cable length and M14 x 1.5 mounting thread simplify installation in confined compressor frames. Accurate displacement feedback supports automated shutdown logic, reducing the risk of cylinder or crosshead damage.

Application 4: Tachometer and Zero Speed Detection

The 3300 XL 11 mm proximity probe is widely used as a tachometer input in rotating machinery automation systems. Its fast response and high signal stability allow precise speed measurement and reliable zero speed detection, which is essential for safe startup and shutdown sequences in turbines and compressors.

Application 5: Phase Reference and Keyphasor Signals

As a phase reference sensor, the probe provides consistent Keyphasor signals for vibration analysis systems. The high shielding effectiveness (99.9% braided copper) minimizes electrical noise, ensuring accurate phase angle calculation and supporting advanced diagnostic algorithms in condition monitoring software.

Specifications

Competitive Advantage

Competitive Advantage 1: Extended Linear Measurement Range

Compared with standard 8 mm proximity probes, the 3300 XL 11 mm proximity probe offers a significantly longer linear range. This allows accurate displacement measurement over larger shaft movements, reducing signal saturation and improving automation system reliability in high-load machinery.

Competitive Advantage 2: Superior Signal Integrity

The combination of gold-plated ClickLoc connectors and 99.9% braided copper shielding ensures low contact resistance and excellent EMI suppression. This results in cleaner signals, improved data accuracy, and reduced false alarms in automated monitoring systems.

Competitive Advantage 3: Industrial-Grade Environmental Protection

With IP67 dust and water resistance and a wide operating temperature range of -40°C to +85°C, the probe outperforms many standard proximity sensors. This durability lowers maintenance frequency and ensures consistent performance in harsh industrial automation environments.

Competitive Advantage 4: Secure Mechanical Design

The M14 x 1.5 threaded probe case with a maximum thread engagement of 21 mm provides strong mechanical stability. This design minimizes probe movement due to vibration, maintaining measurement accuracy and extending service life in high-speed rotating machinery.

Competitive Advantage 5: Seamless Integration with Automation Systems

The 330703-000-070-10-02-00 3300 XL 11 mm Proximity Probe is fully compatible with modern condition monitoring and protection platforms. Its standardized output sensitivity and connector design simplify system integration, reduce commissioning time, and support scalable automation architectures across multiple assets.
