330901-00-96-10-02-05 3300 NSv Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330901-00-96-10-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

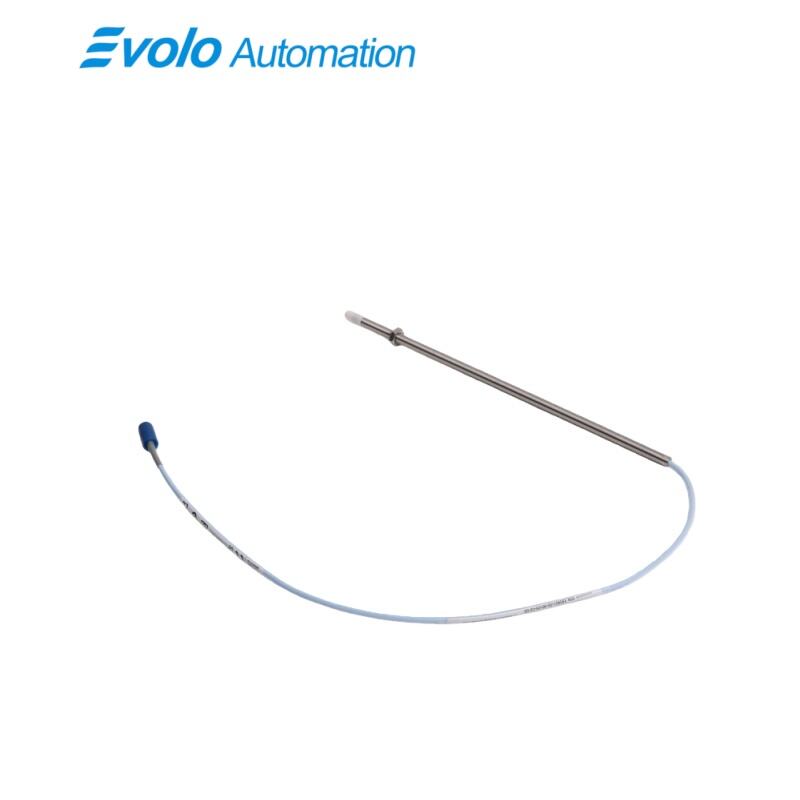

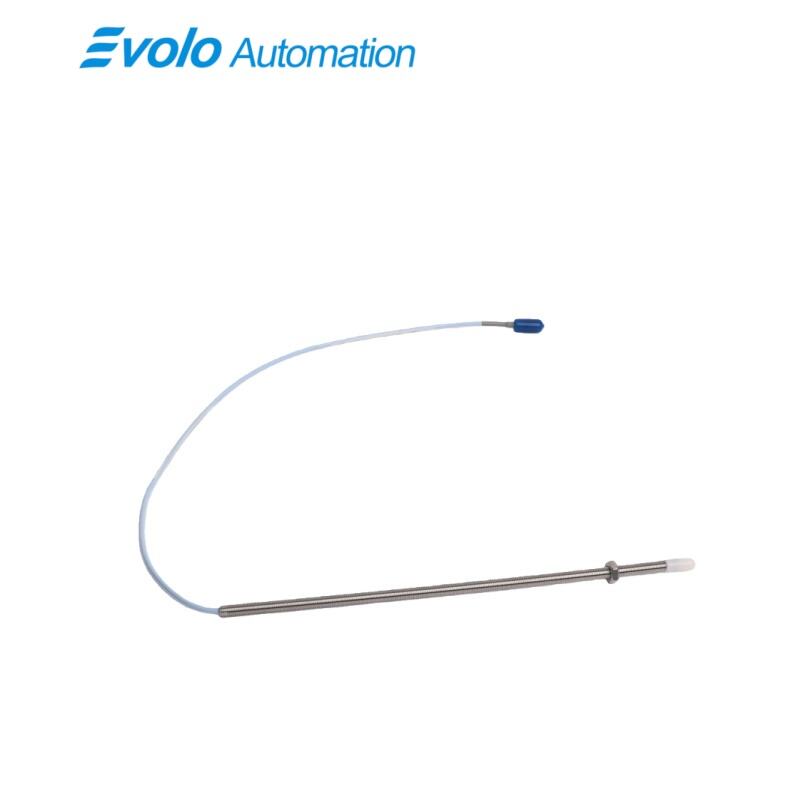

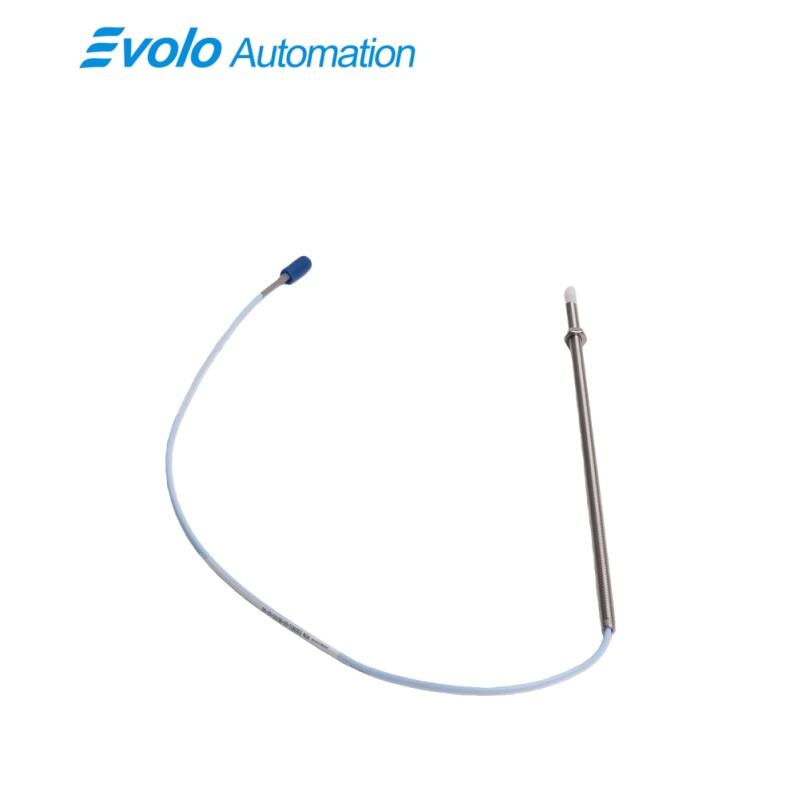

The Bently Nevada 330901-00-96-10-02-05 is a premier-grade 3300 NSv Proximity Probe, engineered to deliver unparalleled precision in non-contact displacement and vibration measurement for the most demanding industrial monitoring applications. As a sophisticated eddy current sensor within the advanced 3300 NSv series, this specific probe is meticulously designed to excel in environments with severe space constraints and challenging installation scenarios. Its defining physical characteristic is the extended 9.6-inch overall case length, a configuration that provides critical reach and flexibility for mounting in deep-set bearing housings, through thick machine casings, or in applications where the measurement point is recessed. Complementing this is a 0-inch unthreaded length, ensuring the probe body sits flush against the mounting surface for optimal stability and precise gap setting.

This 3300 NSv proximity probe is delivered as a complete, ready-to-install unit featuring a 1.0-meter (39-inch) integrated standard cable. The cable is terminated with the robust miniature coaxial ClickLoc connector, which includes a protective shroud to safeguard the connection point from physical damage and environmental contaminants, ensuring long-term signal integrity. With a compact cross-section and a total weight of only 0.09kg, the 330901-00-96-10-02-05 probe facilitates easy handling and routing even in congested cable trays. It carries multiple agency approvals, certifying its compliance with stringent international safety and performance standards for use across diverse global industrial sectors.

Applications

This extended-length 3300 NSv probe is essential for monitoring critical machinery where the measurement point is located deep within the equipment structure, such as in large gearboxes, multi-stage compressors, or turbines with substantial casing thickness. Its 9.6-inch overall case length allows it to traverse these depths effectively, while the integrated 1.0-meter cable with ClickLoc connector ensures a secure and reliable signal path back to the monitoring system for accurate vibration and position data acquisition.

The probe's robust construction and wide operating temperature range (-46°C to +185°C) make it suitable for challenging environments like offshore platforms, heavy industrial mills, and power generation facilities. Its multiple agency approvals allow for deployment in regulated and hazardous areas, providing reliable displacement monitoring for pumps, fans, and motors that are exposed to extreme temperatures, moisture, and corrosive elements.

Ideal for retrofit and upgrade projects, this probe can replace legacy sensors in existing installations that require a longer body length. Its mechanical and electrical compatibility with common monitoring system interfaces, combined with support for standard 0.2 to 1.5 mm² field wiring, simplifies the modernization of condition monitoring networks on large rotating assets, reducing engineering time and ensuring continuity of machine protection.

Specifications

Competitive Advantage

1.Extended-Reach Design for Deep or Recessed Mounting Applications

Featuring a substantial 9.6-inch overall case length, this 3300 NSv probe is uniquely designed to address installation challenges where the measurement target is deeply recessed or accessible only through thick machine structures. This extended reach eliminates the need for complex adapter kits or custom machining, providing a direct, reliable solution for monitoring bearings and shafts within large turbines, multi-stage compressors, and heavy-duty gearboxes that are inaccessible to standard-length probes.

2.Integrated Protected Connection for Enhanced Signal Integrity

The probe comes with a factory-integrated 1.0-meter cable terminated with a miniature coaxial ClickLoc connector that includes a dedicated connector protector. This design provides a superior advantage by offering a vibration-resistant, environmentally sealed connection point right out of the box. It prevents damage during installation and operation, safeguards against moisture and contaminant ingress, and ensures long-term, uninterrupted signal transmission in harsh industrial settings, reducing maintenance issues associated with field-assembled connections.

3.Robust Performance Across Extreme Environmental Conditions

Certified with multiple agency approvals and engineered to operate across a wide temperature range of -46°C to +185°C, this probe delivers reliable performance where others may fail. Its ability to maintain precise measurement accuracy and stable output (66 Ω resistance, <2 mV/V sensitivity) in both extreme cold and high heat, coupled with its compliance for use in hazardous areas, provides a versatile and dependable solution for global projects in sectors like oil & gas, power generation, and mining, minimizing application limitations and project risk.
