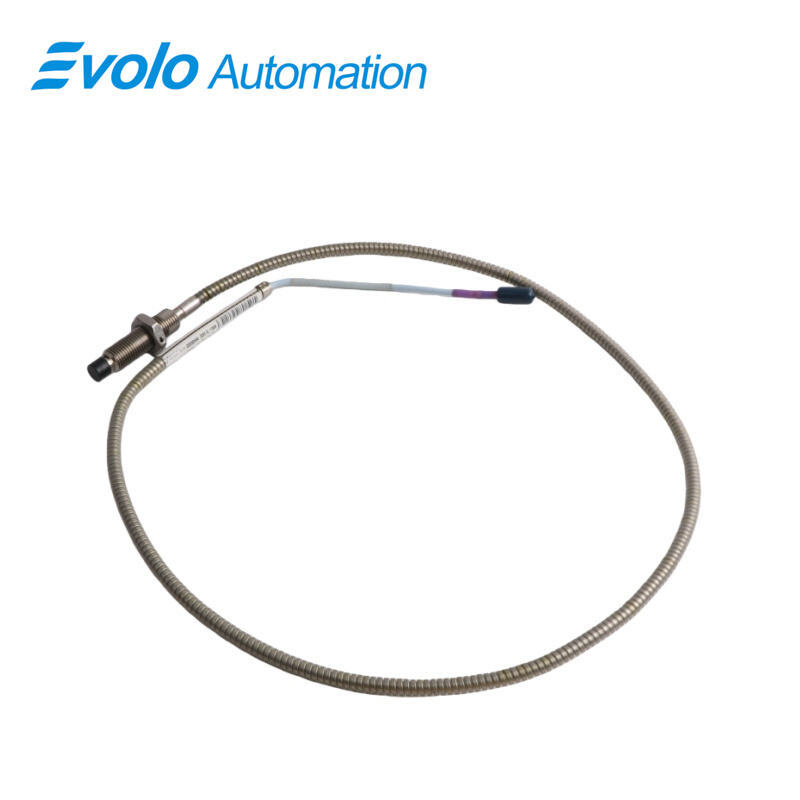

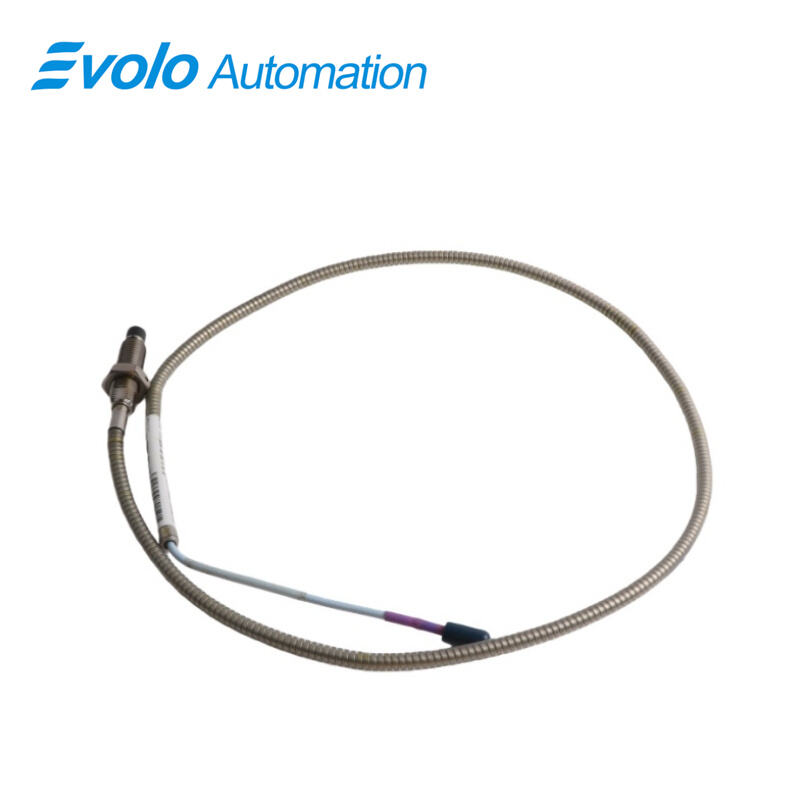

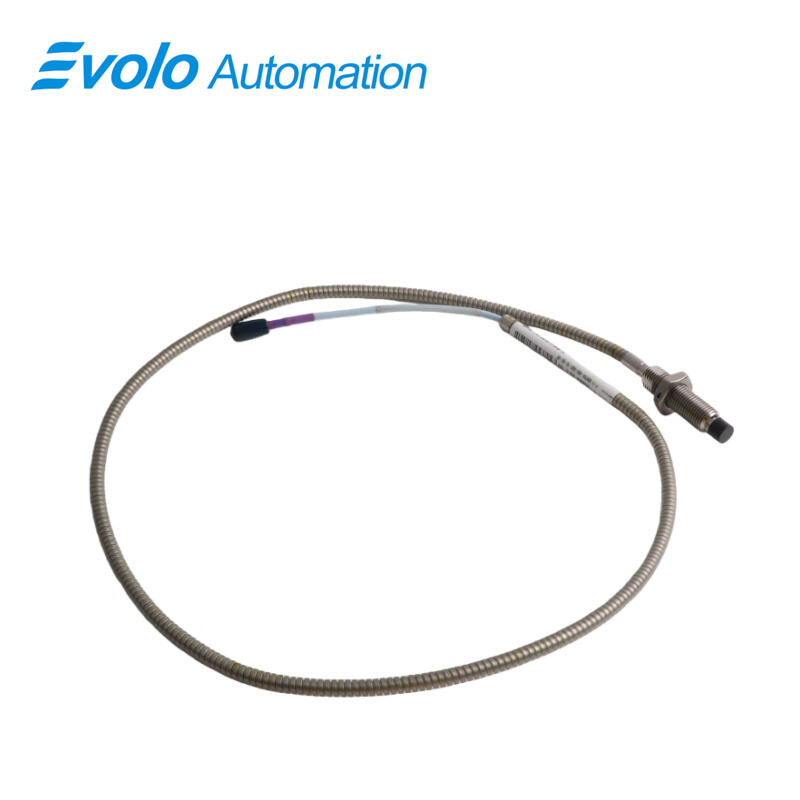

330703-000-050-10-12-00 3300 XL 11 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330703-000-050-10-12-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330703-000-050-10-12-00 3300 XL 11 mm Proximity Probe is designed for automated monitoring of fluid-film bearing machines, turbines, and compressors. Its 11 mm tip provides a 3.94 V/mm output and extended linear range, enabling precise axial and radial shaft measurements.

The 330703-000-050-10-12-00 3300 XL 11 mm Proximity Probe features a 50 mm stainless steel case with M14 x 1.5 threads and a 1.0 meter standard cable. The miniature coaxial ClickLoc connector and 330 N pull strength CableLoc design secure the probe and cable connection. Optional FluidLoc cable prevents oil or fluid leaks during automated monitoring.

Operating between -40°C and +85°C, the 330703-000-050-10-12-00 3300 XL 11 mm Proximity Probe is IP67 rated for dust and water resistance. It is ideal for applications such as axial shaft displacement measurements, ramp differential expansion on steam turbines, rod drop detection on reciprocating compressors, tachometer and zero speed measurements, and Keyphasor phase reference signals.

Applications

Measure axial shaft displacement with high precision
The 330703-000-050-10-12-00 3300 XL 11 mm Proximity Probe uses its 11 mm tip and 3.94 V/mm output to record axial shaft movements on turbines and compressors. The 1.0-meter cable and M14 x 1.5 thread allow secure mounting and reliable signal transfer to monitoring systems.

Track ramp differential expansion on steam turbines
The 330703-000-050-10-12-00 3300 XL 11 mm Proximity Probe detects expansion differences between turbine components. Its 50 mm stainless steel case and robust IP67-rated design ensure accurate automated readings in high-temperature operations (-40°C to +85°C).

Monitor rod drop on reciprocating compressors
The 330703-000-050-10-12-00 3300 XL 11 mm Proximity Probe measures rod displacement events with precise 2 mm linear range. The ClickLoc connector and 330 N CableLoc pull strength maintain continuous signal integrity for automated control.

Generate tachometer and Keyphasor phase reference signals
The 330703-000-050-10-12-00 3300 XL 11 mm Proximity Probe outputs rotational speed and phase data for fluid-film bearing machinery. Its braided copper shielding (99.9%) minimizes interference, ensuring clean signals for automated systems.

Specifications

Competitive Advantage

Long linear range for larger shafts
The 330703-000-050-10-12-00 3300 XL 11 mm Proximity Probe provides a 2 mm linear range, enabling accurate measurements on large-diameter shafts where standard 8 mm probes fall short.

Secure probe and cable connection
The 330703-000-050-10-12-00 3300 XL 11 mm Proximity Probe incorporates TipLoc molding and CableLoc design with 330 N pull strength, ensuring the probe tip and cable stay fixed in high-vibration industrial environments.

Prevent leakage in fluid-filled machines
Optional FluidLoc cables for the 330703-000-050-10-12-00 3300 XL 11 mm Proximity Probe block oil or process fluids from entering the probe cable, maintaining safe automated operation.

Durable industrial operation
The 330703-000-050-10-12-00 3300 XL 11 mm Proximity Probe operates across -40°C to +85°C and IP67-rated for dust and water resistance, allowing installation in challenging automation and process control environments.
