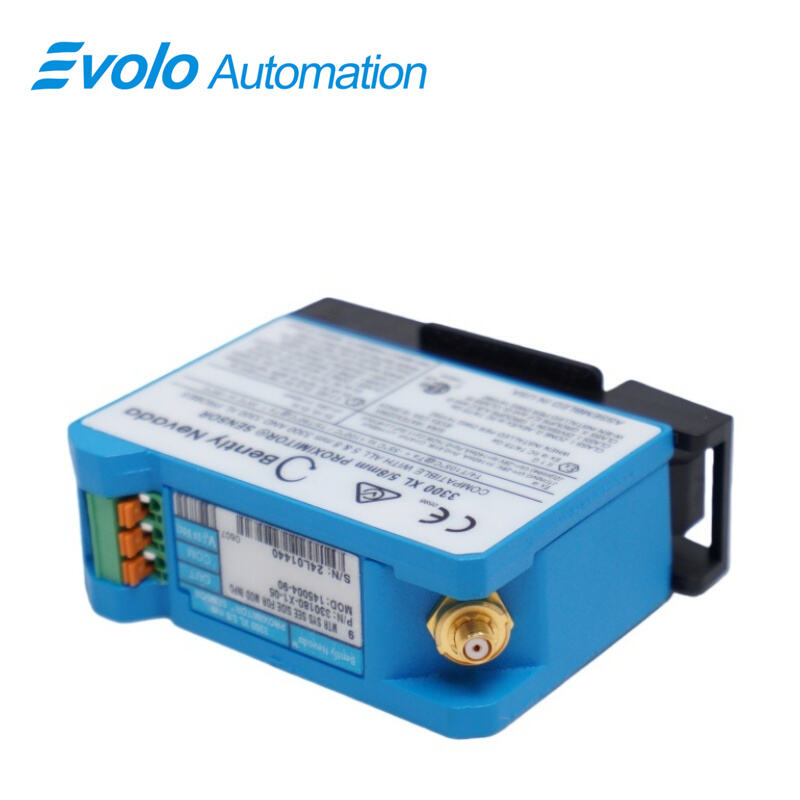

330180-X1-05 MOD 145347-05 3300 XL Proximitor Sensor

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330180-X1-05 MOD 145347-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330180-X1-05 MOD 145347-05 3300 XL Proximitor Sensor is designed for automated measurement of rotor vibration and position using one 3300 XL 8 mm Proximity Probe with a 1.0-meter system length. Accepting both 5 mm and 8 mm 3300-series probes, it operates from –17.5 Vdc to –26 Vdc with a supply sensitivity below 2 mV per volt. The sensor provides an output resistance of 50 Ω and measures target diameters as small as 15.2 mm. With frequency response from 0 to 10 kHz and field wiring up to 305 meters, the 330180-X1-05 MOD 145347-05 3300 XL Proximitor Sensor delivers precise static and dynamic displacement signals. Its A308 aluminum housing allows installation on DIN rails or panels, while RFI/EMI immunity supports automated systems in high-interference environments. Output voltage ranges from 0.0247 to 0.0348 mV pp/Gauss at 9 meters, enabling accurate Keyphasor speed signals for process control and predictive maintenance applications. The 330180-X1-05 MOD 145347-05 3300 XL Proximitor Sensor supports Fieldbus or SCADA integration for automated monitoring and remote diagnostics.

Applications

Monitor rotor vibration on fluid-film bearings
Use the 330180-X1-05 MOD 145347-05 3300 XL Proximitor Sensor with a 3300 XL 8 mm Proximity Probe to measure both static and dynamic rotor displacement. The sensor handles a frequency range of 0–10 kHz and small targets down to 15.2 mm, enabling precise vibration monitoring in turbines and compressors.

Measure shaft position for predictive control
Install the 330180-X1-05 MOD 145347-05 3300 XL Proximitor Sensor in automated systems to track shaft alignment or displacement. With output voltage from 0.0247 to 0.0348 mV pp/Gauss and field wiring up to 305 meters, the sensor supports long-distance signal transmission to SCADA or PLC systems.

Generate Keyphasor speed reference signals
The 330180-X1-05 MOD 145347-05 3300 XL Proximitor Sensor provides reliable Keyphasor signals for speed detection and synchronization in rotating machinery. Its low supply sensitivity (<2 mV per V) ensures consistent output for process automation.

Monitor small rotating components in compact spaces
With a 1.0-meter system length and DIN-rail mount option, the 330180-X1-05 MOD 145347-05 3300 XL Proximitor Sensor can be integrated into high-density panels, allowing precise measurements in limited spaces.

Specifications

Competitive Advantage

High RFI/EMI immunity
The 330180-X1-05 MOD 145347-05 3300 XL Proximitor Sensor can operate in fiberglass or non-metal housings without signal interference, supporting installation in automated plants with radio frequency equipment.

Flexible probe compatibility
Accepting both 3300 XL 8 mm and 5 mm 3300-series probes, the 330180-X1-05 MOD 145347-05 3300 XL Proximitor Sensor allows quick replacements or upgrades without reconfiguring control systems.

Robust field wiring support
The sensor transmits signals reliably over up to 305 meters of field wiring, enabling remote monitoring of equipment in large automated facilities.

Durable construction for automation environments
The 330180-X1-05 MOD 145347-05 3300 XL Proximitor Sensor uses A308 aluminum housing, operates from –52°C to +100°C, and tolerates harsh storage conditions up to 105°C, ensuring long-term performance in industrial automation.
