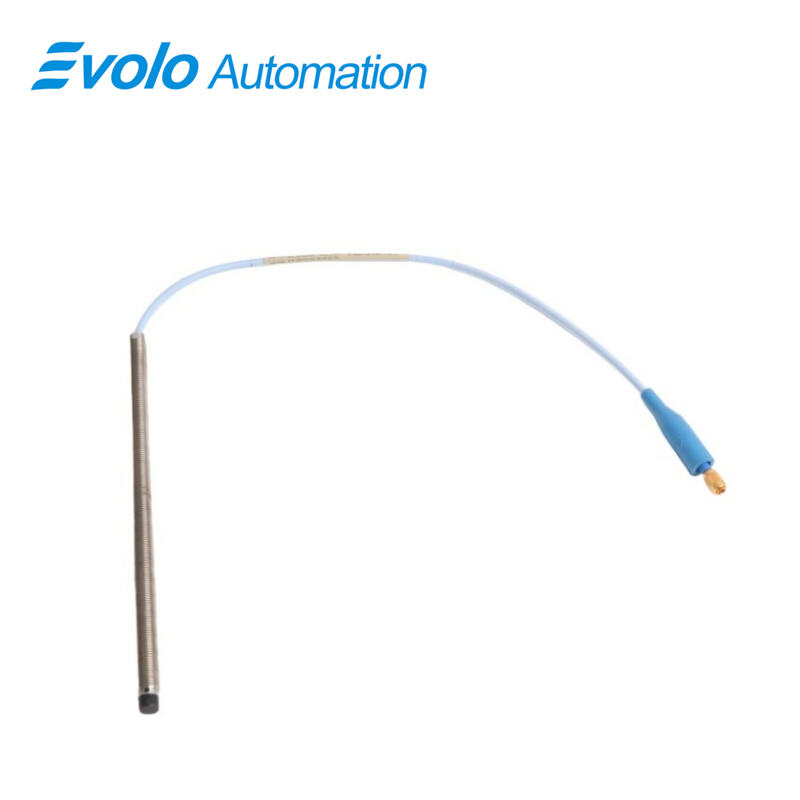

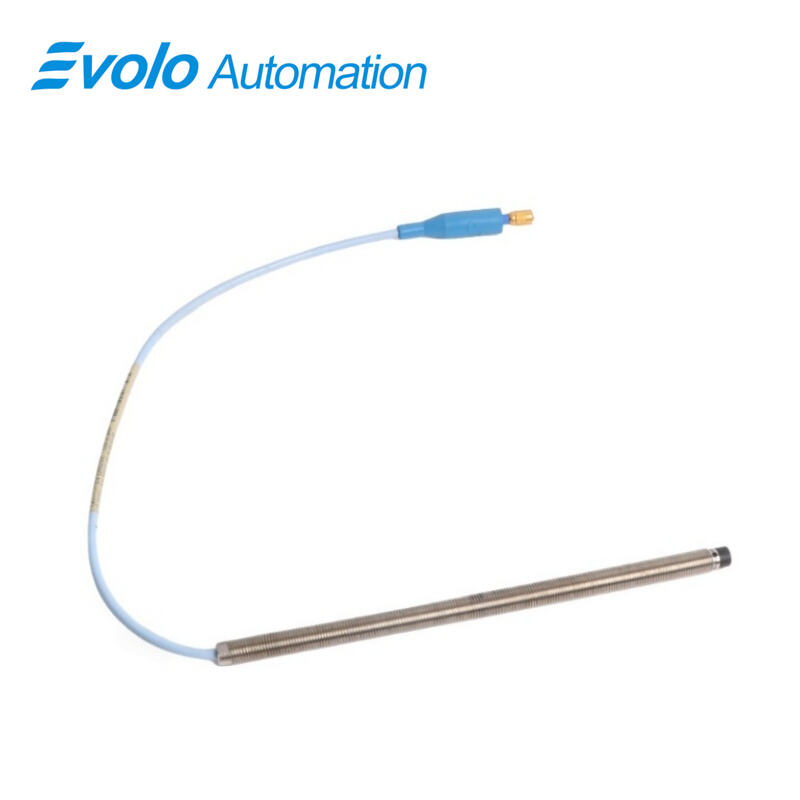

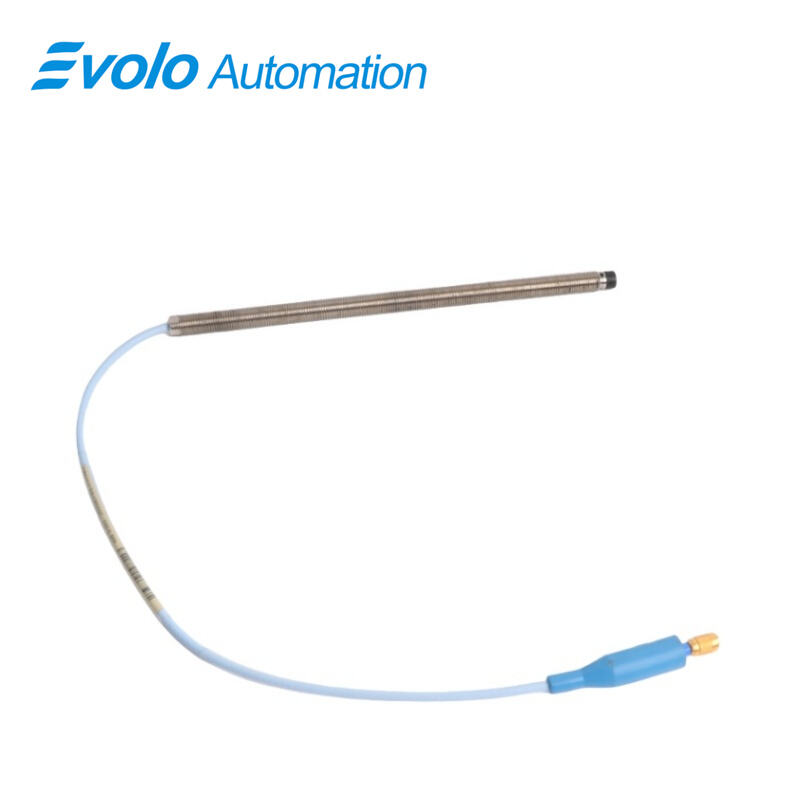

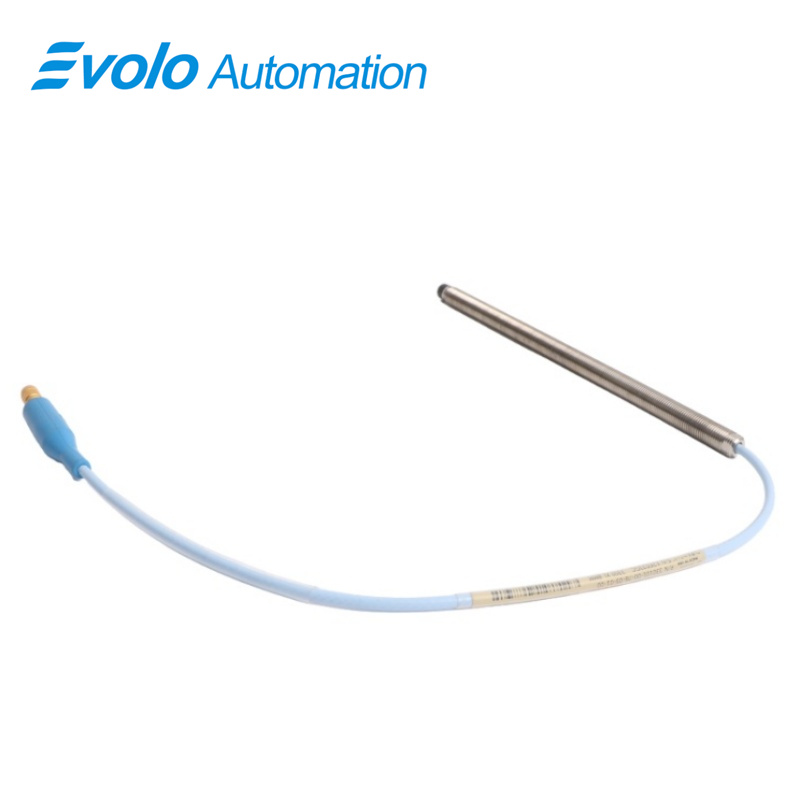

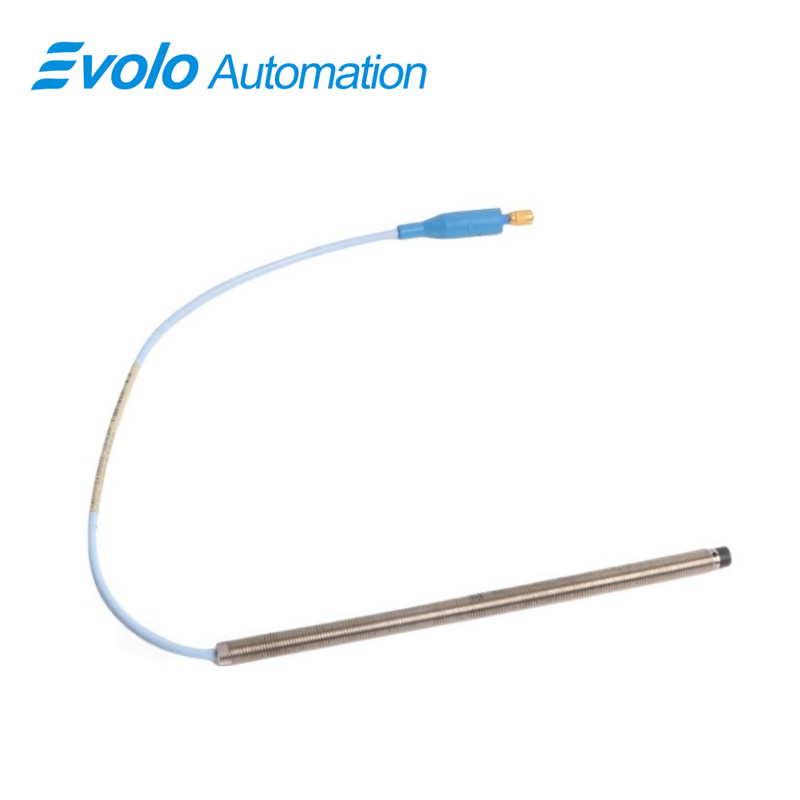

330101-00-77-15-02-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-77-15-02-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-77-15-02-00 3300 XL 8 mm Proximity Probe is a high-precision eddy current transducer specifically designed for industrial automation, vibration monitoring, and predictive maintenance. Delivering a voltage output directly proportional to the distance between the probe tip and a conductive target, it accurately captures both static position and dynamic vibration measurements. This probe features a 7.7-inch overall case length, 0.0-inch unthreaded tip, and a 1.5-meter miniature coaxial ClickLoc cable, ensuring robust and reliable signal transmission in automated machinery environments.

Operating reliably from -52°C to +177°C (-62°F to +350°F), the probe is ideal for extreme industrial conditions. It offers a 2 mm (80 mils) linear range, 50 Ω output resistance, and less than 2 mV/V supply sensitivity, providing highly stable and repeatable measurements. Mechanical enhancements include a patented TipLoc molding method for a stronger bond between probe tip and body and a CableLoc design offering 330 N (75 lbf) pull strength for secure cable attachment. An optional FluidLoc cable prevents fluid leakage from machinery, maintaining system integrity. Fully compatible with 3300 XL and standard 3300 series components, it supports plug-and-play replacement without recalibration, making it an excellent solution for automated and high-precision industrial systems.

Applications

1. Turbomachinery Vibration Monitoring
Measures vibrations in turbines, compressors, and generators with a 2 mm linear range, supporting automated condition monitoring and predictive maintenance.

2. Rotor and Shaft Position Control
Provides precise position feedback for shafts and rotors in fluid-film bearing machines, enabling accurate automated control and alignment.

3. High-Speed Phase Reference Signals
Generates Keyphasor reference signals for high-speed rotating machinery, allowing accurate speed and phase monitoring in industrial automation systems.

4. Extreme Temperature Operations
Operates from -52°C to +177°C, making it suitable for high-temperature industrial processes, including petrochemical and power generation applications.

5. Simplified Maintenance Integration
Supports plug-and-play replacement with compatible 3300 series probes, extension cables, and Proximitor sensors, minimizing maintenance downtime in automated facilities.

Specifications

Competitive Advantage

1. High Accuracy and Stability
Delivers a 2 mm linear measurement range and stable voltage output with less than 2 mV/V supply sensitivity, ensuring precise vibration and position monitoring.

2. Robust Mechanical Design
Patented TipLoc and CableLoc designs provide a strong probe tip-body bond and 330 N pull strength, ideal for high-vibration environments.

3. Fluid Containment Option
Optional FluidLoc cable prevents oil or liquid ingress, maintaining sensor reliability and protecting the automation system.

4. Full Component Interchangeability
Compatible with all 3300 XL and standard 3300 probes, extension cables, and Proximitor sensors, allowing seamless integration and easy replacements without recalibration.

5. Industry Standard Compliance
Complies with API 670 standards for linearity, mechanical configuration, temperature stability, and accuracy, supporting critical automated operations.
