Overview

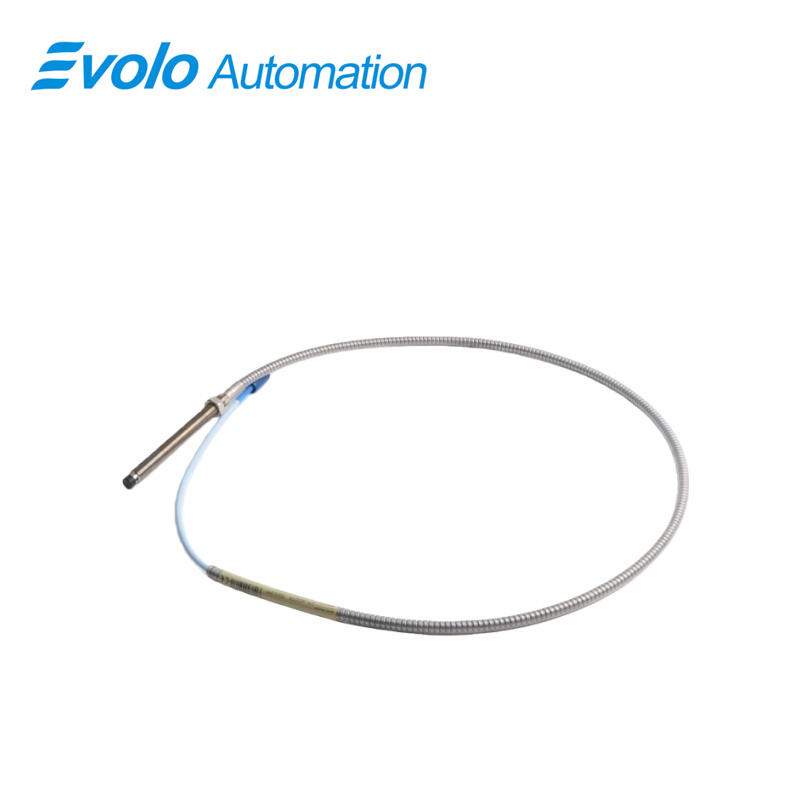

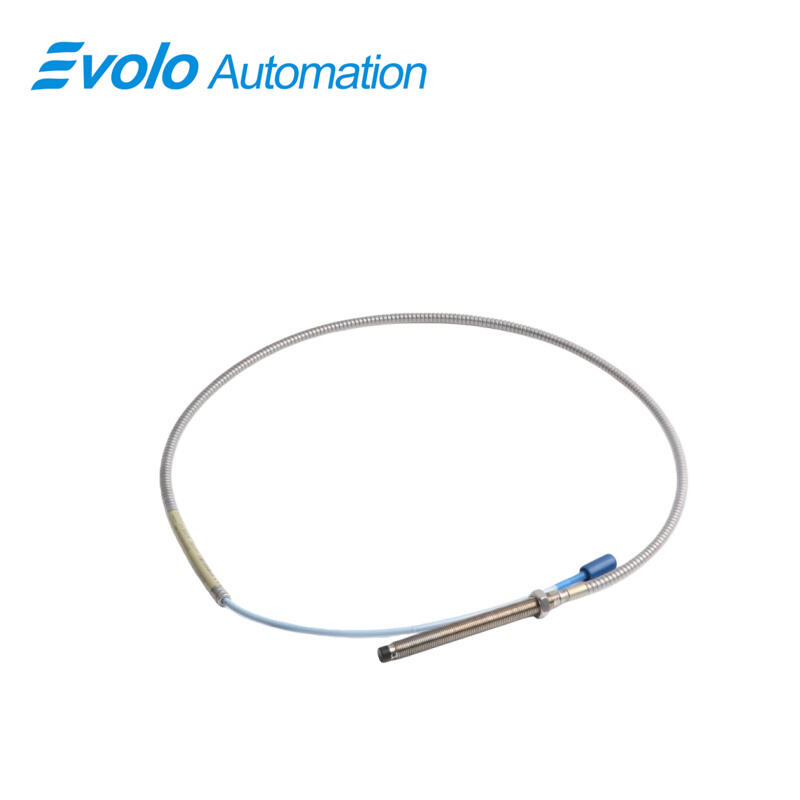

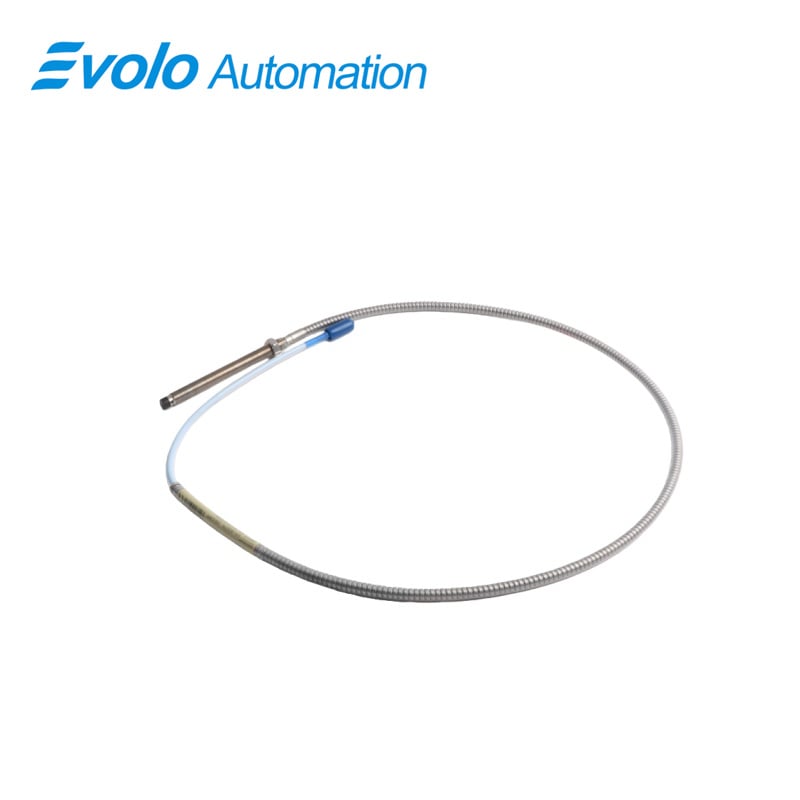

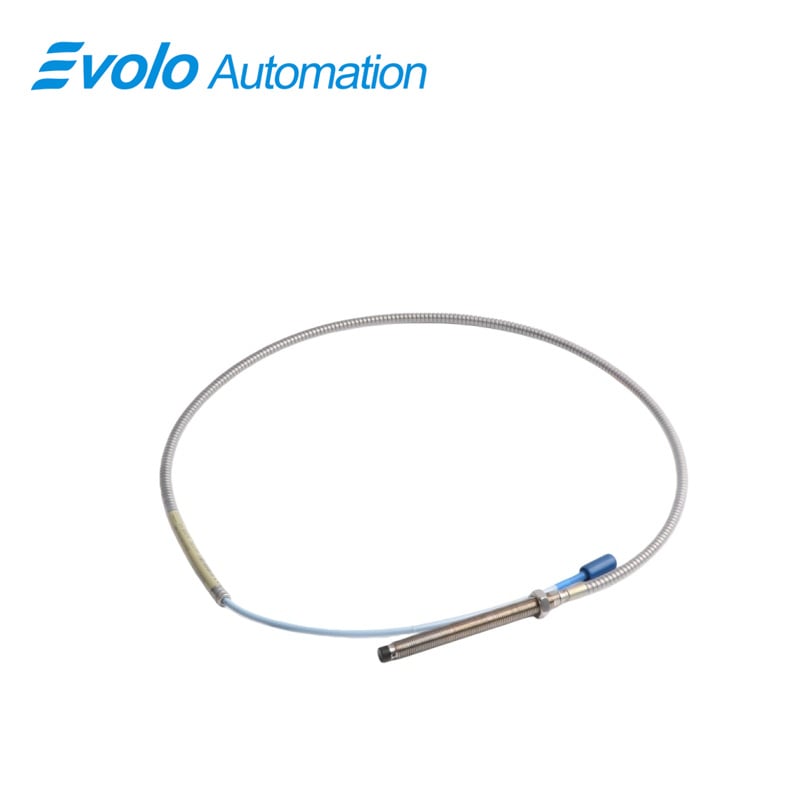

330102-00-40-10-02-00 3300 XL 8 mm Proximity Probes
At a Glance
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330102-00-40-10-02-00 |
Minimum Order Quantity: |
1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Product Overview
Description
The 330102-00-40-10-02-00 3300 XL 8 mm Proximity Probes is a high-precision eddy current sensing device designed for continuous measurement of vibration and displacement in critical rotating machinery. As a core member of the 3300 XL series, the 3300 XL 8 mm Proximity Probes converts the physical gap between its probe tip and a conductive target surface into a stable, proportional voltage output, enabling accurate monitoring of both static position and dynamic vibration behavior under demanding industrial conditions.
The 330102-00-40-10-02-00 3300 XL 8 mm Proximity Probes is engineered with a compact mechanical structure featuring a 0-inch unthreaded length and a 4-inch overall case length, allowing precise alignment in space-restricted equipment housings. Its probe case is manufactured from AISI 303 or 304 stainless steel, offering strong resistance to corrosion, oil contamination, and mechanical wear, while the polyphenylene sulfide (PPS) probe tip ensures thermal stability and consistent eddy current generation across a wide temperature range.
From an electrical performance standpoint, the 3300 XL 8 mm Proximity Probes provides a 3 mm linear measurement range, supporting accurate detection of shaft vibration, axial displacement, and radial movement. With an output resistance of 45 Ω and extremely low supply sensitivity, the probe maintains output stability even when power supply conditions fluctuate. Operating within a power range of -17.7 Vdc to -25 Vdc, the 330102-00-40-10-02-00 3300 XL 8 mm Proximity Probes integrates seamlessly into industrial condition monitoring architectures without the need for additional calibration.
Key Functions
Applications
The 330102-00-40-10-02-00 3300 XL 8 mm Proximity Probes is widely used for vibration monitoring in rotating machinery such as turbines, compressors, pumps, and motors, where precise detection of shaft vibration and dynamic displacement is essential for machinery protection and early fault identification.
The 3300 XL 8 mm Proximity Probes is suitable for shaft position, axial movement, and radial displacement measurement in fluid-film bearing machines, providing stable and repeatable output data to support condition-based maintenance programs.
The 330102-00-40-10-02-00 3300 XL 8 mm Proximity Probes is ideal for continuous industrial condition monitoring systems operating in environments exposed to temperature variation, oil contamination, and mechanical vibration, ensuring reliable long-term data acquisition for predictive maintenance.
Official Specifications
Quick Detail
|
Agency Approval Option: |
Not required |
|
Unthreaded Length Option: |
0in |
|
Overall Case Length Option: |
4in |
|
Total Length Option : |
1.0 meter (3.3 feet) |
|
Cable Length Option: |
8.0 meters (26.2 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector with connector protector, standard cable |
|
Dimension: |
1.5x115x1.0cm |
|
Weight: |
0.14kg |
Specifications
|
Operating Temperature Range: |
-55°C to +185°C (-60°F to+351°F) |
|
Linear Range: |
3 mm |
|
Output Resistance: |
45 Ω |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage. |
|
Power: |
Requires -17.7Vdc to -25 Vdc |
|
Probe Tip Material: |
Polyphenylene sulfide (PPS) |
|
Probe Case Material: |
AISI 303 or 304 stainless steel(SST) |
Frequently Asked Questions
What is the model number?
The listed model number is 330102-00-40-10-02-00.
What is the brand name?
The listed brand name is Bently Nevada.
What is the place of origin?
The listed place of origin is USA.
What are the packaging details?
The listed packaging details are Original new Factory Sealed.
What is the delivery time?
The listed delivery time is 5-7 days.
Is this model available?
The listed supply status is In stock.
What are the payment terms?
The listed payment terms are T/T.
Compatibility & Ordering Notes
Competitive Advantage
1.Extended Measurement Capability with Stable Output
The 3300 XL 8 mm Proximity Probes offers a 3 mm linear range, low supply sensitivity, and stable output resistance, enabling accurate and repeatable vibration and displacement measurements even under fluctuating electrical conditions.
2.Robust Construction for Industrial Environments
With an AISI 303/304 stainless steel probe case and PPS probe tip, the 330102-00-40-10-02-00 3300 XL 8 mm Proximity Probes delivers excellent resistance to corrosion, mechanical stress, and high temperatures, ensuring long service life in demanding applications.
3.Flexible Installation and Secure Connectivity
The combination of extended cable length options, compact probe dimensions, and a miniature coaxial ClickLoc connector with protector allows secure installation and vibration-resistant signal transmission in space-constrained or high-motion machinery environments.
