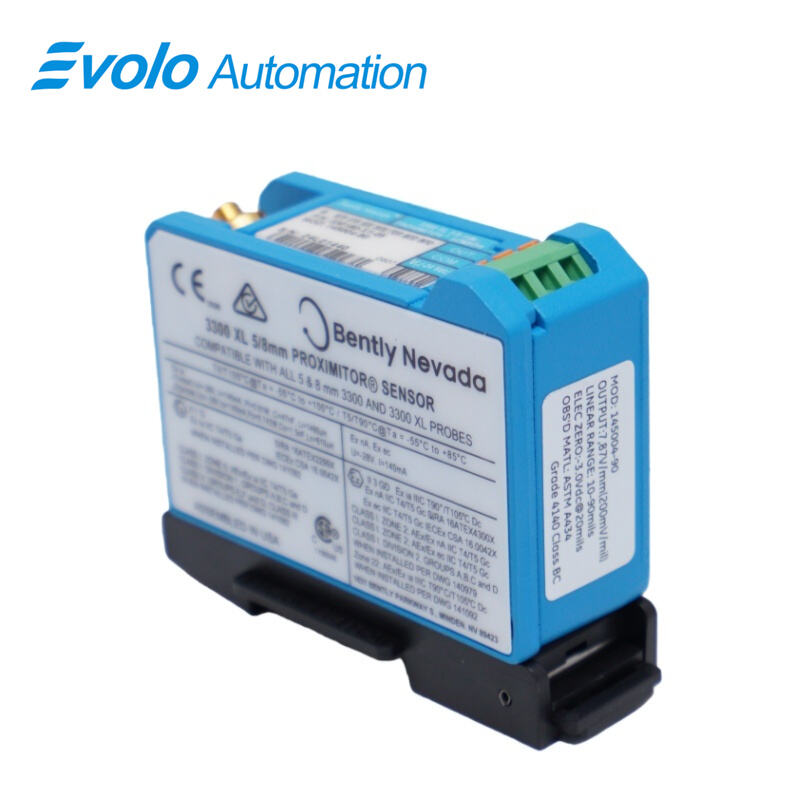

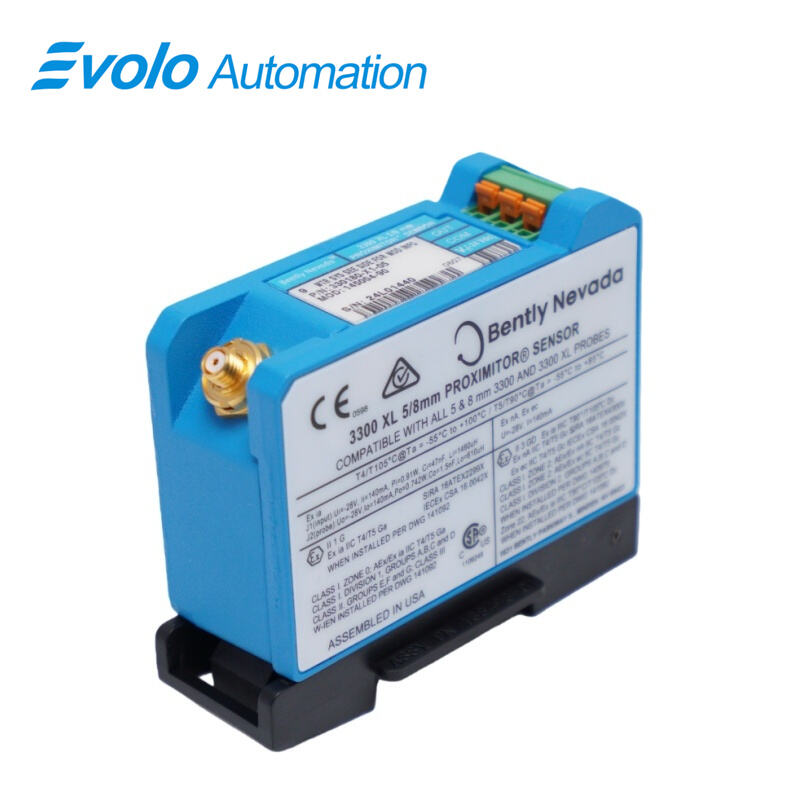

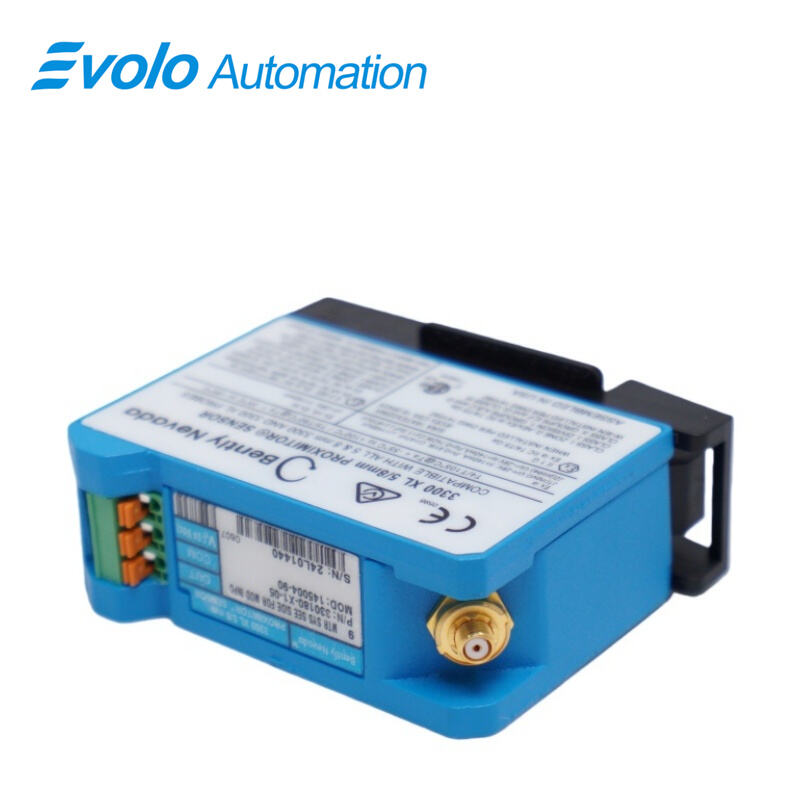

330180-X1-05 MOD 145193-06 3300 XL Proximitor Sensor

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330180-X1-05 MOD 145193-06
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330180-X1-05 MOD 145193-06 3300 XL Proximitor Sensor is designed for automated monitoring of machinery vibration and shaft position. It supports one non-contacting 5 mm 3300-series probe or 3300 XL 8 mm Proximity Probe with up to 305 meters of field wiring. Operating from -52°C to +100°C and powered between -17.5 Vdc to -26 Vdc, the 330180-X1-05 MOD 145193-06 3300 XL Proximitor Sensor outputs voltage proportional to target displacement, ranging 0.0247–0.0348 Mil pp/Gauss across gaps from 10 to 90. The A308 aluminum sensor accepts DIN-rail or 4-hole panel mounts and delivers <2 mV variation per volt input. Frequency response is 0–10 kHz, enabling real-time vibration analysis, Keyphasor pulse generation, and precise automated shaft speed measurements. Optional FluidLoc cable prevents fluid leakage, optimizing reliability in industrial automation systems.

Applications

Vibration Monitoring on Fluid-Film Bearings
The 330180-X1-05 MOD 145193-06 3300 XL Proximitor Sensor measures dynamic vibration on rotating machinery with an output voltage proportional to probe-to-shaft distance. Frequency response of 0–10 kHz and target sensitivity of 0.0247–0.0348 Mil pp/Gauss across 10–90 gap enables accurate vibration tracking for predictive maintenance.

Shaft Position Measurement
With a minimum target diameter of 15.2 mm and a supply sensitivity of <2 mV per volt input change, the 330180-X1-05 MOD 145193-06 3300 XL Proximitor Sensor captures precise shaft displacement in automated turbines and motors. The sensor supports both 5 mm 3300-series probes and 3300 XL 8 mm Proximity Probes with up to 305 meters of wiring.

Keyphasor Pulse Generation
The 330180-X1-05 MOD 145193-06 3300 XL Proximitor Sensor converts probe signals into digital Keyphasor pulses for synchronization and speed monitoring in industrial automation. The sensor’s voltage output ensures consistent pulse amplitude for real-time speed control.

Industrial Shaft Speed Measurement
Equipped with A308 aluminum housing and CSA/ATEX/IECEx approvals, the 330180-X1-05 MOD 145193-06 3300 XL Proximitor Sensor provides continuous shaft speed readings in high-temperature environments from -52°C to +100°C. It interfaces seamlessly with automation controllers for monitoring and alerting.

Specifications

Competitive Advantage

Long-Distance Signal Transmission
The 330180-X1-05 MOD 145193-06 3300 XL Proximitor Sensor supports up to 305 meters (1000 feet) of field wiring without signal loss, enabling flexible installation in large automated plants.

Robust Probe Connection
Patented CableLoc design on 3300 XL 8 mm Proximity Probes delivers 330 N pull strength, securing probe-to-sensor connections even in high-vibration industrial environments.

Flexible Mounting Options
The 330180-X1-05 MOD 145193-06 3300 XL Proximitor Sensor can be mounted on DIN rails or standard 4-hole panel footprints, allowing fast integration into existing automation control panels.

High-Frequency Response
Operating over 0–10 kHz, the 330180-X1-05 MOD 145193-06 3300 XL Proximitor Sensor accurately detects rapid vibrations and high-speed rotations, supporting advanced condition monitoring in industrial systems.
