Overview

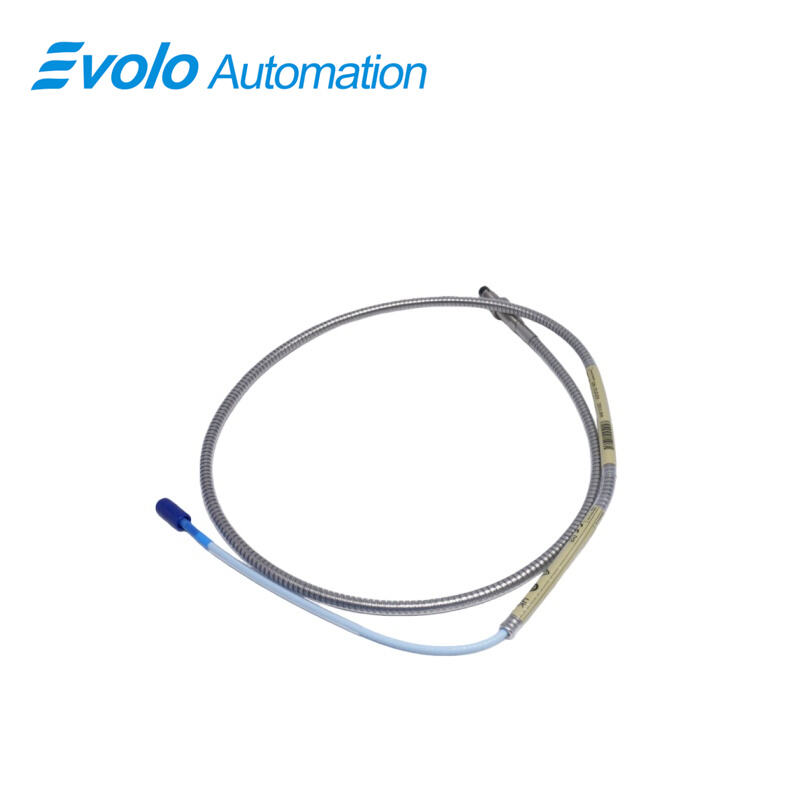

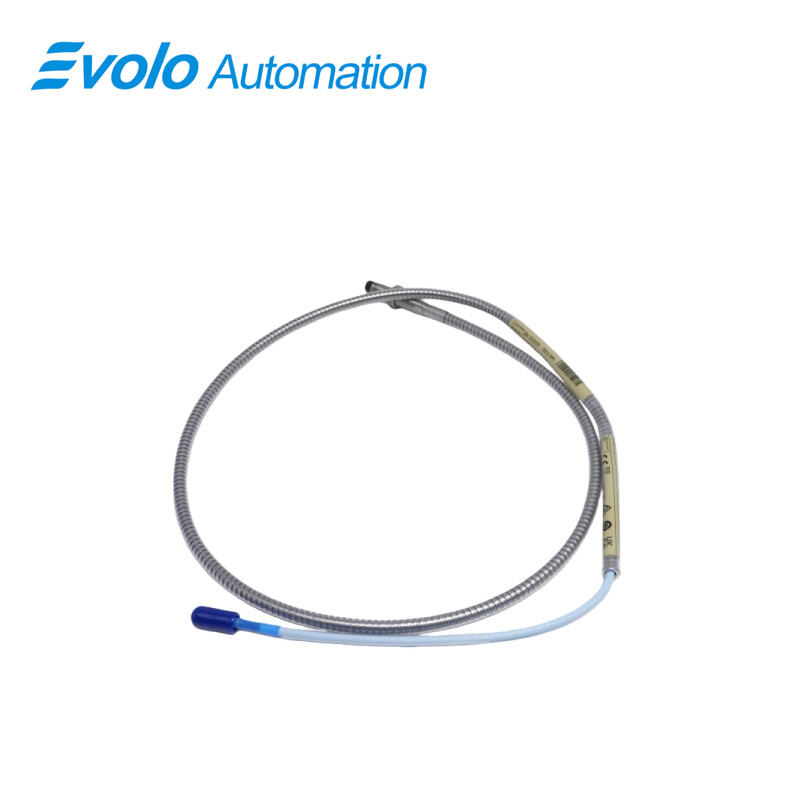

330130-040-00-CN 3300 XL Standard Extension Cable
At a Glance
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330130-040-00-CN |
Minimum Order Quantity: |
1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Product Overview
Description
The Bently Nevada 330130-040-00-CN is a high-performance, certified connectivity component within the renowned 3300 XL Standard Extension Cable series, designed to reliably extend the operational reach of 3300 XL proximity transducer systems in demanding industrial environments. Manufactured in the USA, this specific 3300 XL Standard Extension Cable is engineered to preserve the signal integrity and measurement accuracy essential for precise machinery condition monitoring, bridging the gap between sensitive 3300 XL Proximity Probes and their corresponding Proximitor signal conditioners over extended distances. A defining feature of this model is its comprehensive suite of global CSA, ATEX, and IECEx Approvals, which certifies it for safe deployment in classified hazardous areas commonly found in oil & gas, petrochemical, and chemical processing facilities where flammable atmospheres are a concern.
This 3300 XL Standard Extension Cable provides a critical 4.0-meter (26.2-foot) cable length, offering the necessary flexibility to accommodate large machinery layouts, deep-set sensor installations, or remote mounting locations for monitoring and control cabinets. The cable is constructed as a 75Ω triaxial standard cable, a design that ensures optimal impedance matching with the 3300 XL system to minimize signal reflection and attenuation. Its robust build guarantees the faithful transmission of the low-level, high-frequency signals generated by eddy current probes, which are directly proportional to the gap between the probe tip and the conductive target. This ensures that dynamic vibration data and static position measurements, critical for protecting assets like turbines, compressors, and pumps, are delivered without degradation.
Key Functions
Applications
The 330130-040-00-CN 3300 XL Standard Extension Cable is essential for extending signal reach in hazardous area applications within the oil, gas, and petrochemical sectors. Its CSA, ATEX, and IECEx Approvals allow it to be safely deployed in Zone 1/Division 1 areas, connecting 3300 XL Proximity Probes on critical equipment like gas compressors or reactor feed pumps to remotely located Proximitor sensors housed in safe-area junction boxes, ensuring compliance with international safety standards without sacrificing signal quality over the 4.0-meter distance.
In power generation plants, such as combined-cycle or fossil-fuel facilities, this cable is used to route signals from vibration and position probes installed on high-temperature steam turbines and generators to monitoring systems located in control rooms or cooler environments. Its wide operating temperature range (-51°C to +177°C) and stable 75Ω triaxial construction ensure that accurate data is transmitted despite the extreme heat near the turbine casing and the longer cable runs required to reach the data acquisition systems.
For general industrial machinery monitoring and retrofit projects, this extension cable provides the flexibility needed to adapt existing sensor installations to new control system layouts. The standard cable compatibility and support for common field wiring (0.2 to 1.5 mm²) make it an ideal solution for upgrading or extending the capability of legacy monitoring systems on large pumps, fans, and motors, where sensors need to be connected to newer monitoring hardware located further away from the measurement point.
Official Specifications
Quick Detail
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Connector Protector and Cable Option : |
Standard cable |
|
Cable Length Option: |
4.0 meters (26.2 feet) |
|
Dimension: |
20.5x22x3.5cm |
|
Weight: |
0.18kg |
Specifications
|
Operating Temperature Range: |
-51 °C to +177 °C (-60 °F to +351 °F) |
|
Linear Range: |
2 mm (80 mils) |
|
Output Resistance: |
50 Ω |
|
Supply Sensitivity: |
< 2 mV change in output per volt change in input |
|
Standard cable: |
75Ω triaxial |
|
Probe Tip Material: |
Polyphenylene sulfide (PPS) |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft)typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24AWG) |
Frequently Asked Questions
What is the model number?
The listed model number is 330130-040-00-CN.
What is the brand name?
The listed brand name is Bently Nevada.
What is the place of origin?
The listed place of origin is USA.
What are the packaging details?
The listed packaging details are Original new Factory Sealed.
What is the delivery time?
The listed delivery time is 5-7 days.
Is this model available?
The listed supply status is In stock.
What are the payment terms?
The listed payment terms are T/T.
Compatibility & Ordering Notes
Competitive Advantage
1. Globally Certified for Hazardous Area Safety
The inclusion of CSA, ATEX, and IECEx Approvals as a standard feature provides a significant regulatory and safety advantage. This pre-certification allows for immediate deployment in a wide range of global hazardous locations, streamlining project engineering, reducing the time and cost associated with obtaining site-specific certifications, and ensuring compliance with the strictest international explosion-protection standards.
2. Optimized Length and Electrical Design for Signal Fidelity
With a practical 4.0-meter (26.2-foot) cable length and engineered as a 75Ω triaxial standard cable with low typical capacitance (69.9 pF/m), this extension cable is specifically designed to maintain the high-frequency signal integrity of the 3300 XL system. This electrical optimization prevents signal degradation over distance, ensuring that the critical 2 mm linear range and measurement sensitivity of the connected probes are fully preserved at the Proximitor input.
3. Robust Construction for Extreme Environmental Resilience
Built to withstand the most challenging conditions, this cable offers an exceptional operating temperature range of -51°C to +177°C. This extreme thermal tolerance, combined with its durable construction, guarantees reliable performance and mechanical integrity in environments ranging from frigid outdoor installations to high-temperature zones adjacent to process equipment, outperforming standard industrial cables that may fail or degrade under such stress.
