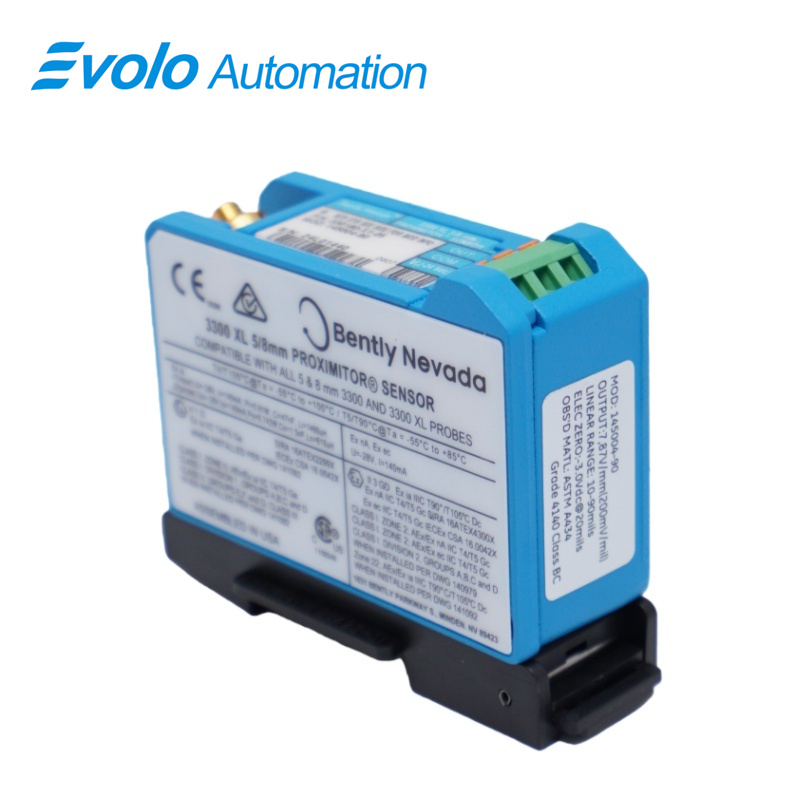

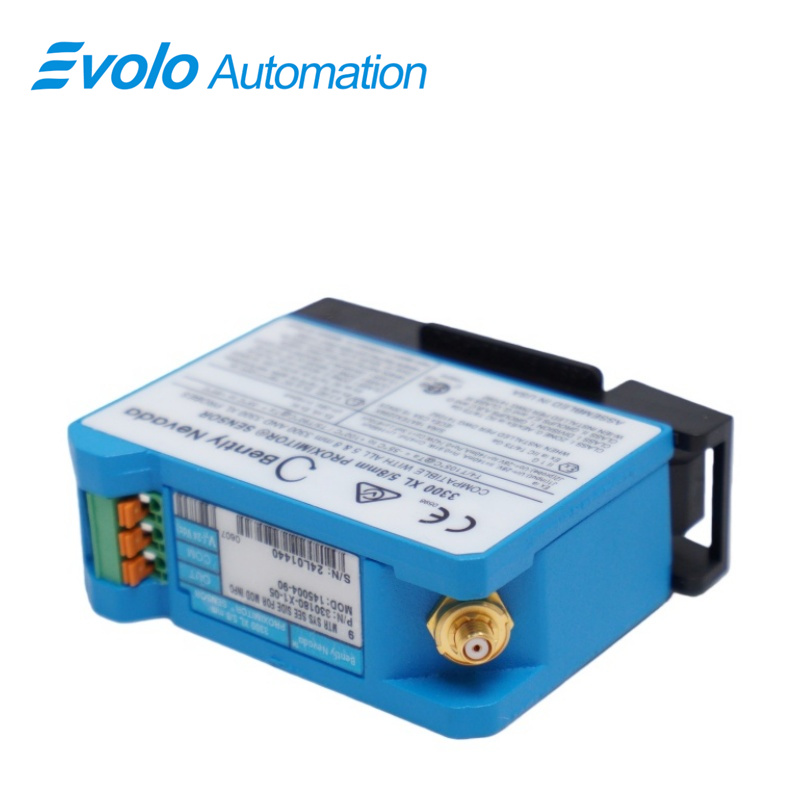

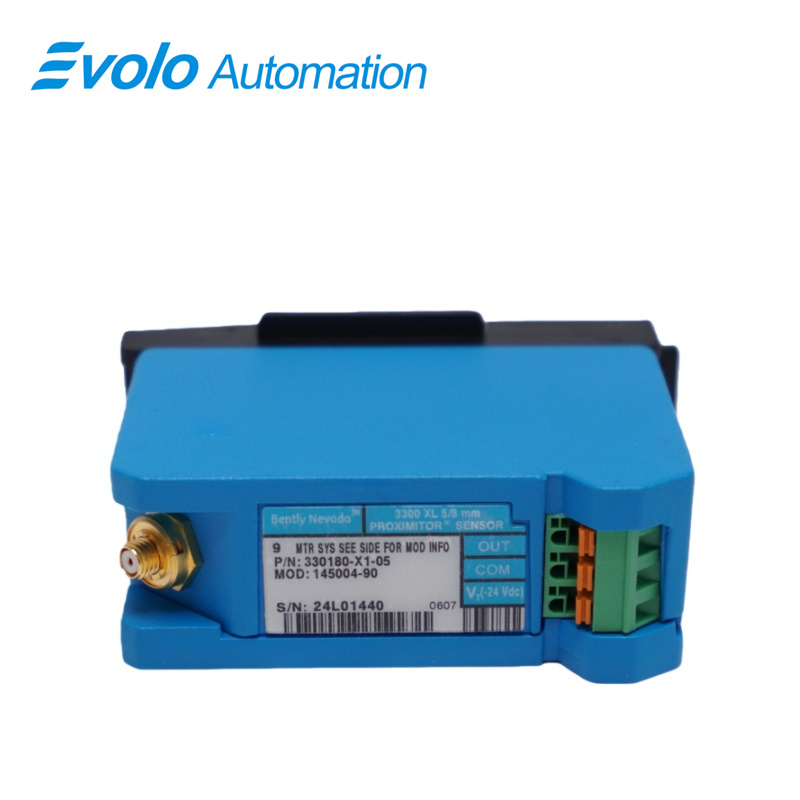

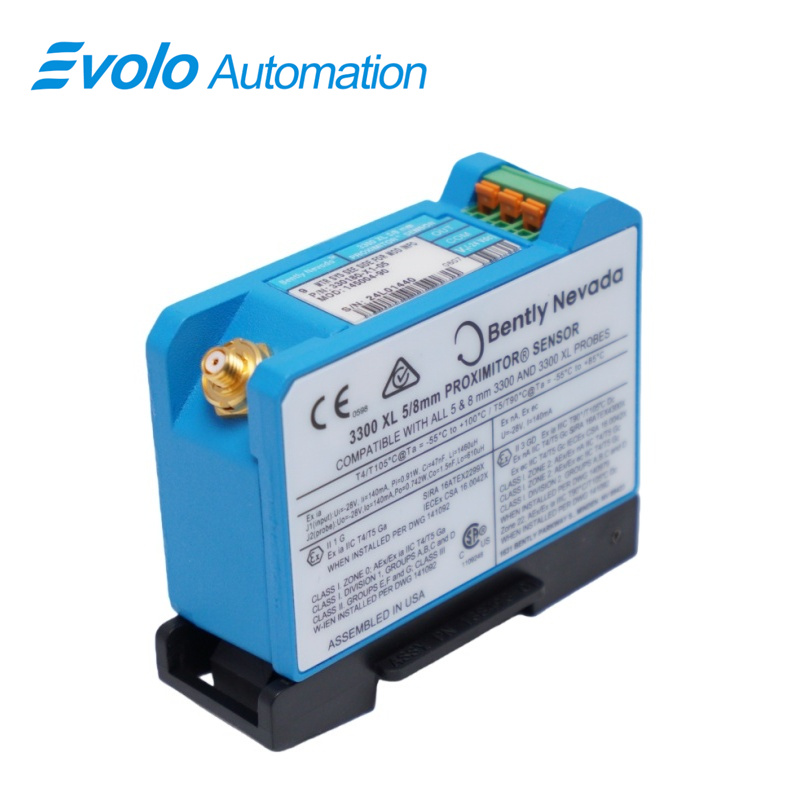

330180-X1-05 MOD 145193-01 3300 XL Proximitor Sensor

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330180-X1-05 MOD 145193-01
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330180-X1-05 MOD 145193-01 3300 XL Proximitor Sensor supports 1.0 meter system length and connects to a single 3300-series 5 mm or 3300 XL 8 mm Proximity Probe with extension cable. Operating from –52°C to +100°C and powered at –17.5 Vdc to –26 Vdc, the 330180-X1-05 MOD 145193-01 3300 XL Proximitor Sensor provides output resistance of 50 Ω and output voltages of 0.0247, 0.0323, and 0.0348 Mil pp/Gauss for gaps of 10, 50, and 90, respectively. Frequency response reaches 10 kHz over up to 305 meters of field wiring, enabling accurate vibration and position measurements. Constructed from A308 aluminum, the 330180-X1-05 MOD 145193-01 3300 XL Proximitor Sensor accommodates high-density DIN-rail or panel mount installations and features SpringLoc terminals for faster field wiring. CSA, ATEX, and IECEx approvals allow deployment in industrial automation environments. This sensor is designed to pair with 3300 XL 8 mm Proximity Probes, providing reliable Keyphasor reference signals, shaft position detection, and vibration monitoring in automated turbine, pump, and compressor systems while preventing fluid leakage with optional FluidLoc cables.

Applications

Vibration Monitoring on Fluid-Film Bearings
The 330180-X1-05 MOD 145193-01 3300 XL Proximitor Sensor measures dynamic shaft vibration with a frequency response up to 10 kHz and a minimum target diameter of 15.2 mm, enabling precise vibration tracking on turbines, pumps, and compressors.

Position Measurement of Rotating Shafts
Using a 3300 XL 8 mm Proximity Probe, the 330180-X1-05 MOD 145193-01 3300 XL Proximitor Sensor converts shaft displacement into output voltage signals (0.0247–0.0348 Mil pp/Gauss), providing accurate real-time position detection for automation control systems.

Extended Field Wiring Applications
Capable of operating with up to 305 meters of extension cable while maintaining ±3 dB frequency accuracy, the 330180-X1-05 MOD 145193-01 3300 XL Proximitor Sensor is suitable for distributed automation setups with long wiring distances.

Specifications

Competitive Advantage

High Voltage Sensitivity Control
The 330180-X1-05 MOD 145193-01 3300 XL Proximitor Sensor maintains less than 2 mV change in output per volt change in input, ensuring accurate voltage-based measurements under variable supply conditions.

RFI/EMI Immune Design
The 330180-X1-05 MOD 145193-01 3300 XL Proximitor Sensor resists interference from nearby radio frequency signals, allowing installation in fiberglass or metal housings without degrading signal quality.

Robust Probe and Cable Integration
Paired with a 3300 XL 8 mm Proximity Probe, the sensor’s TipLoc and CableLoc designs provide 330 N pull strength, and optional FluidLoc cables prevent fluid leaks, reducing maintenance in automated industrial machinery.

Compliance with Global Standards
The 330180-X1-05 MOD 145193-01 3300 XL Proximitor Sensor meets CSA, ATEX, and IECEx approvals, enabling deployment in automated environments requiring certified explosion-proof or industrial-grade equipment.
