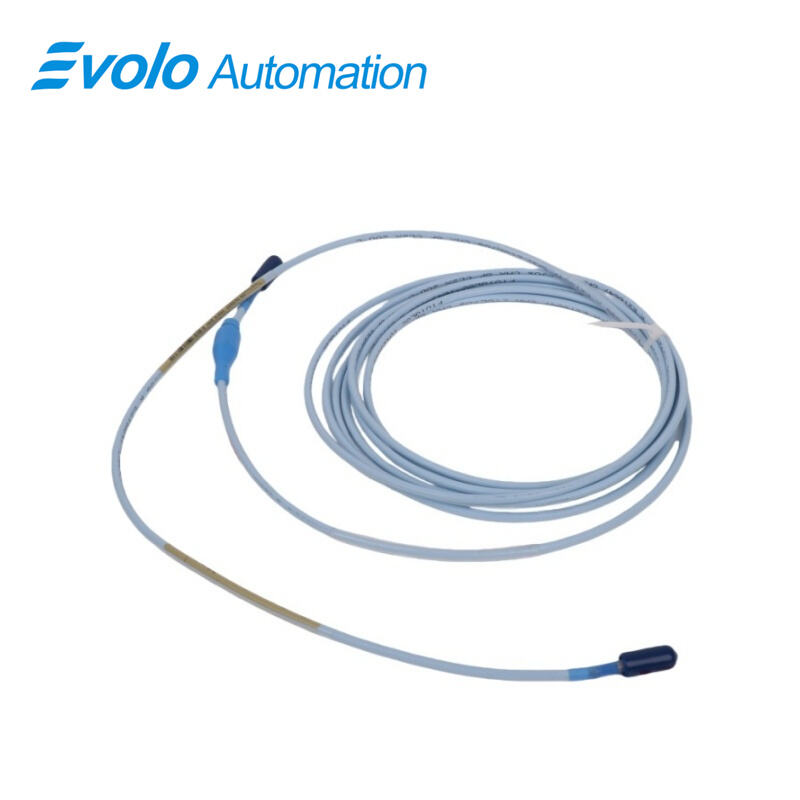

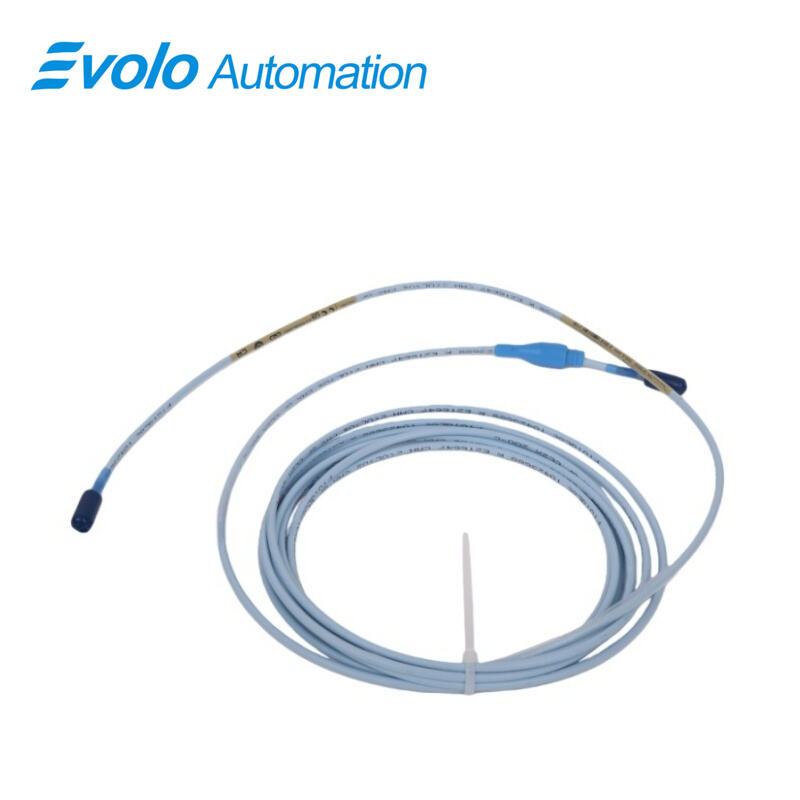

330130-040-12-05 3300 XL Standard Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330130-040-12-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330130-040-12-05 3300 XL Standard Extension Cable is engineered for high-performance industrial automation, providing seamless integration with the 3300 XL 8 mm Proximity Transducer System. Designed to extend measurement reach up to 4.0 meters (11.5 feet), this extension cable features FluidLoc cable with connector protector, ensuring robust protection against oil, moisture, and contaminants in harsh industrial environments. The cable’s 69.9 pF/m (21.3 pF/ft) capacitance supports precise signal transmission, maintaining the linear output range of 2 mm (80 mils) critical for vibration and position monitoring. Rated for -52°C to +177°C (-62°F to +350°F) operating temperatures and compliant with CSA, ATEX, and IECEx approvals, this extension cable guarantees reliable performance across extreme temperature and hazardous conditions. Compatible with 3300 XL probes and Proximitor sensors, it eliminates the need for component-specific calibration and supports full interchangeability across 3300 series 5 mm and 8 mm systems. Featuring patented TipLoc molding and CableLoc design, the 3300 XL extension cable provides up to 330 N (75 lbf) pull strength, securing the probe connection for long-term reliability and minimal maintenance in automated systems. This standard extension cable is ideal for applications requiring precision position sensing, vibration analysis, and speed measurements in fluid-film bearing machinery.

Applications

1. Fluid-Film Bearing Vibration Monitoring
The 3300 XL extension cable enables accurate vibration measurement of turbine and pump bearings, capturing dynamic movement with a linear range of 2 mm (80 mils). This ensures early detection of misalignment or imbalance, reducing unplanned downtime.

2. Rotating Equipment Position Tracking
Used with 3300 XL 8 mm probes, the extension cable accurately monitors shaft displacement in motors, generators, and compressors, supporting automated position control systems in industrial plants.

3. Keyphasor Reference Signal Generation
The system transmits high-fidelity Keyphasor signals for speed and phase monitoring in real-time, enabling predictive maintenance on turbines and high-speed machinery.

4. Hazardous Environment Measurement
With CSA, ATEX, and IECEx approvals and Fluoroethylene Propylene (FEP) insulation, this extension cable safely operates in explosive or flammable environments while maintaining signal integrity.

5. Long-Distance Signal Transmission
The 4.0-meter extension allows flexible installation of 3300 XL probes in large industrial automation setups, minimizing interference while maintaining precise signal output for process monitoring.

Specifications

Competitive Advantage

1. Superior Signal Integrity
The cable’s 75 Ω triaxial FEP construction ensures minimal signal loss over extended distances, maintaining precise linear output for vibration and position measurements.

2. Enhanced Mechanical Reliability
Patented TipLoc and CableLoc designs provide a secure probe-to-cable connection capable of withstanding 330 N (75 lbf) pull strength, reducing maintenance costs and operational interruptions.

3. Wide Operating Temperature Range
Rated from -52°C to +177°C (-62°F to +350°F), the extension cable supports industrial automation in extreme cold or high-temperature environments, maintaining consistent performance.

4. Full Component Interchangeability
Compatible with all 3300 XL 5 mm and 8 mm probes and Proximitor sensors, the cable eliminates component-specific calibration, streamlining installation and reducing inventory complexity.

5. Hazardous Area Compliance
Certified to CSA, ATEX, and IECEx standards, the cable ensures safe deployment in explosive or high-risk industrial zones, expanding the application range of 3300 XL proximity transducer systems.
