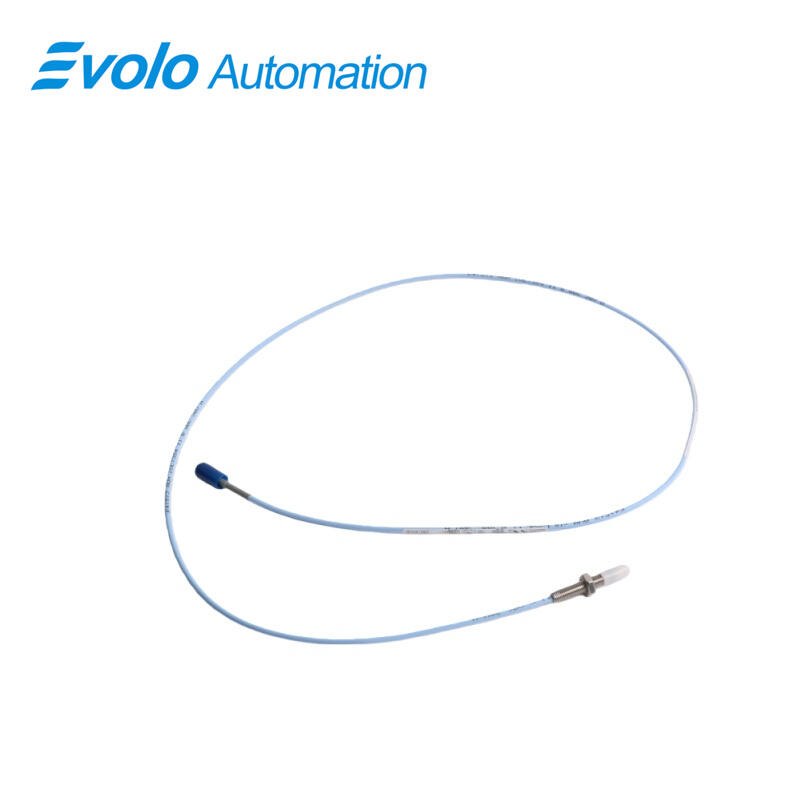

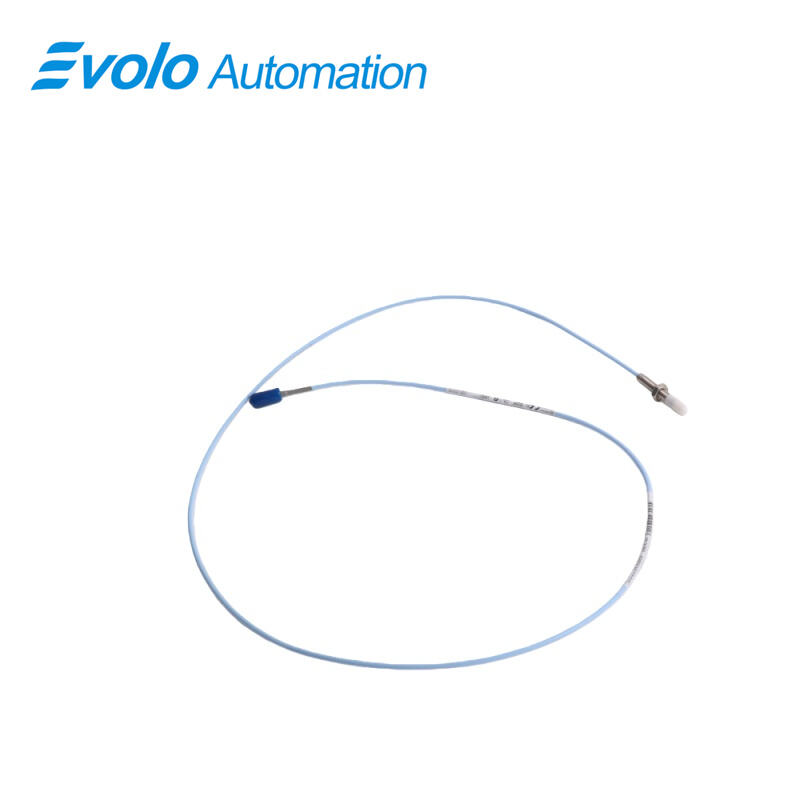

330901-00-10-10-02-05 3300 NSv Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330901-00-10-10-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330901-00-10-10-02-05 3300 NSv Proximity Probes is a precision-engineered eddy current proximity sensor designed for accurate non-contact measurement of shaft vibration, displacement, and position in industrial rotating machinery with extremely limited installation space. As a specialized member of the 3300 NSv Proximity Probes family, this model is optimized for narrow surface targets and confined mounting environments where conventional proximity probes cannot be reliably installed or aligned.

Utilizing advanced eddy current sensing technology, the 330901-00-10-10-02-05 3300 NSv Proximity Probes generates a stable, repeatable voltage output directly proportional to the distance between the probe tip and a conductive target surface. Its Narrow Surface (NSv) probe geometry enables precise measurement on small-diameter shafts and restricted target areas, making it particularly suitable for compact and high-speed rotating equipment. With a defined linear range of 1.8 mm and a recommended gap setting of 1.0 mm (40 mils), this proximity probe delivers high-resolution displacement and vibration data essential for machinery protection and condition monitoring systems.

Applications

The 330901-00-10-10-02-05 3300 NSv Proximity Probes is widely applied in compact rotating machinery such as small pumps, auxiliary compressors, and high-speed drive systems, where narrow mounting clearance and small shaft diameters require a narrow surface probe capable of delivering accurate vibration and displacement measurements.

In industrial environments with extreme temperature variation, the 330901-00-10-10-02-05 3300 NSv Proximity Probes is used for continuous shaft position and vibration monitoring in power generation, petrochemical, and process industries, ensuring stable signal output and reliable performance across a wide operating temperature range.

The probe is also suitable for machinery protection and condition monitoring systems, where its 1.8 mm linear range, low supply sensitivity, and secure ClickLoc connector support long-term monitoring of rotor movement, early fault detection, and reduction of unplanned downtime in critical equipment.

Specifications

Competitive Advantage

1. Compact Mechanical Design for Restricted Installations

The 330901-00-10-10-02-05 3300 NSv Proximity Probes features a short 1.0 in case length, zero unthreaded length, and compact housing dimensions, enabling installation in confined spaces where standard proximity probes cannot be accommodated.

2. Narrow Surface Optimization for Small Targets

Designed with NSv technology, the 330901-00-10-10-02-05 3300 NSv Proximity Probes maintains accurate measurement on small conductive targets and limited side-view clearance, delivering a 1.8 mm linear range that supports precise monitoring in compact rotating machinery.

3. Stable Electrical Performance in Harsh Environments

With wide temperature tolerance, controlled output resistance, and low supply sensitivity, the 330901-00-10-10-02-05 3300 NSv Proximity Probes ensures consistent signal integrity and long-term reliability, making it suitable for continuous industrial condition monitoring applications.
