Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330173-07-11-10-02-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option: |
70 mm |
|
Overall Case Length Option |
110 mm |
|
Total Length Option |
1.0 meter (3.3 feet) |
|
Connector Option |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option |
Not required |
|
Probe Case Thread: |
M8 x 1 thread |
|
Maximum Length of Thread Engagement: |
Maximum Rated:7.3 N•m (65 in•lb);Recommended:5.1 N•m (45 in•lb) |
|
Dimension: |
20.5x22.4x3.3cm |
|
Weight: |
0.14kg |
Description

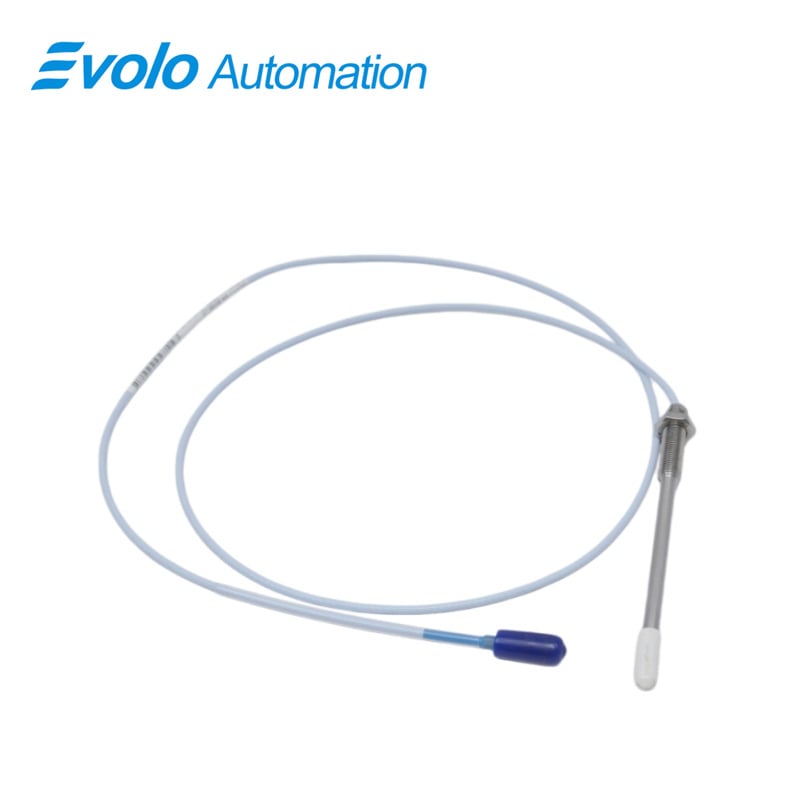

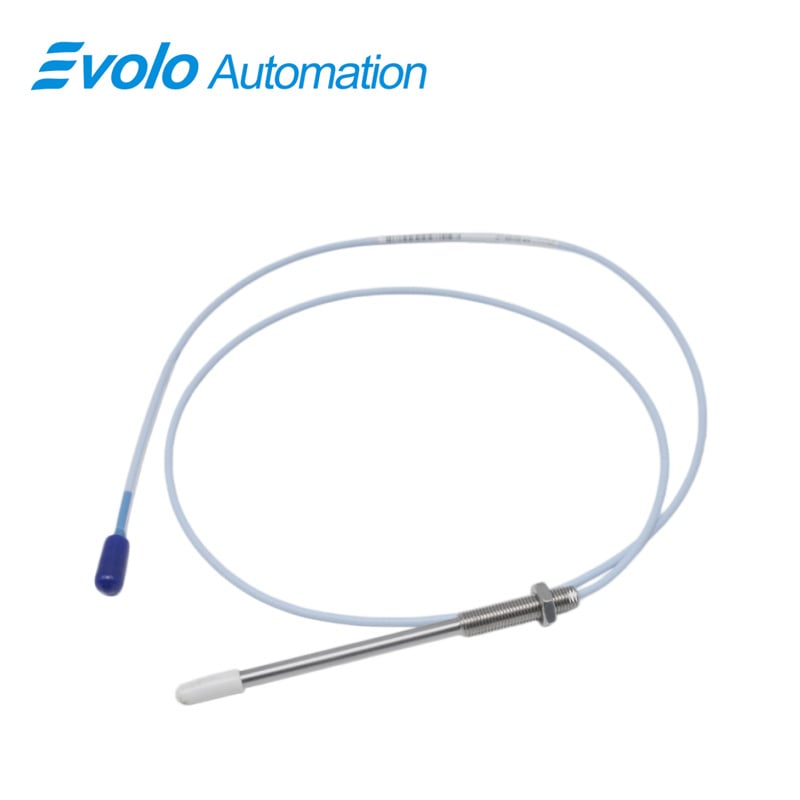

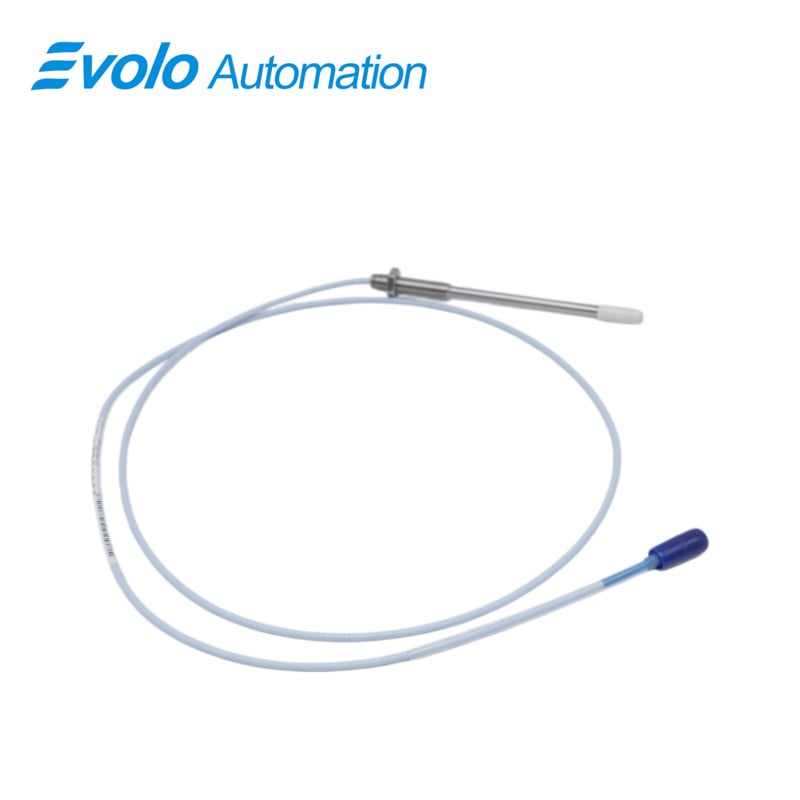

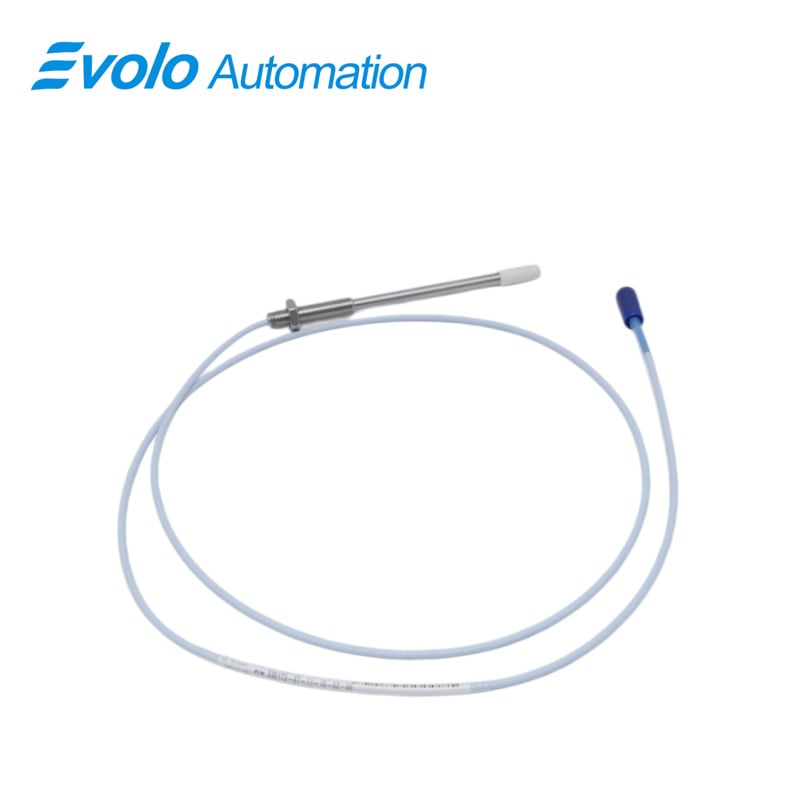

The 330173-07-11-10-02-00 3300 5 mm Proximity Probe features a 70 mm unthreaded length and 110 mm overall case length, with a 1.0-meter miniature coaxial ClickLoc connector cable. Designed for industrial automation, the 330173-07-11-10-02-00 3300 5 mm Proximity Probe measures vibration and position on fluid-film bearing machines with a 2 mm linear range and 50 Ω output resistance. Operating from -52°C to +177°C, it supports extension cable capacitance of 69.9 pF/m and field wiring of 0.2–1.5 mm². The M8 x 1 probe thread ensures secure mounting with a recommended torque of 5.1 N•m. The probe’s supply sensitivity remains below 2 mV per volt input change, making the 330173-07-11-10-02-00 3300 5 mm Proximity Probe ideal for Keyphasor reference and speed measurements in automation systems. Optional FluidLoc cable prevents oil leakage, and CableLoc design secures the probe tip with 330 N pull strength.
Applications
Measure Vibration on Fluid-Film Bearings
The 330173-07-11-10-02-00 3300 5 mm Proximity Probe monitors shaft vibration in pumps, turbines, and compressors using a 2 mm linear range and 50 Ω output resistance, providing precise vibration signals for condition analysis.
Track Shaft Position and Motion
Using its miniature coaxial ClickLoc connector and 1.0-meter cable, the 330173-07-11-10-02-00 3300 5 mm Proximity Probe measures static shaft displacement and dynamic motion, supporting accurate Keyphasor reference and speed detection.
Install in Tight Spaces
With a 70 mm unthreaded length and M8 x 1 threaded case, the 330173-07-11-10-02-00 3300 5 mm Proximity Probe fits compact mounting areas in industrial automation setups.
Monitor Temperature-Sensitive Equipment
Rated for -52°C to +177°C (-62°F to +350°F), the 330173-07-11-10-02-00 3300 5 mm Proximity Probe can be deployed in high-temperature turbines or low-temperature outdoor equipment.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
Secure Cable Connection
The patented CableLoc design delivers 330 N pull strength, keeping the 330173-07-11-10-02-00 3300 5 mm Proximity Probe cable and tip firmly attached.
Precise Voltage Output
With less than 2 mV change per volt input, the 330173-07-11-10-02-00 3300 5 mm Proximity Probe provides accurate and repeatable readings for automation control systems.
Easy Field Wiring and Installation
Supports 0.2–1.5 mm² (16–24 AWG) wiring and a maximum torque of 5.1 N•m, allowing fast and secure integration into existing industrial systems.
