330930-040-02-00 3300 NSv Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330930-040-02-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

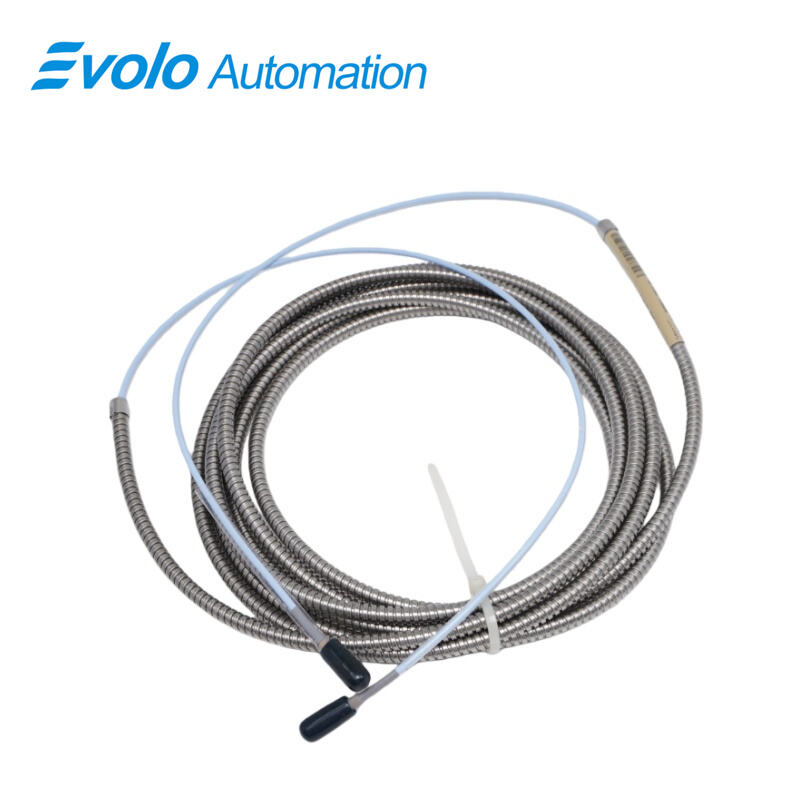

The 330930-040-02-00 3300 NSv 4-meter Extension Cable is designed for high-performance industrial automation and monitoring applications where compact installation and precision are critical. Engineered for use with the 3300 XL NSv Proximity Transducer System, this cable provides reliable signal transmission in tight spaces and for small targets, such as shafts under 51 mm (2 in) or flat targets smaller than 15 mm (0.6 in). Constructed with a stainless steel armored exterior and Polyphenylene Sulfide (PPS) probe tip, the cable ensures durability in chemical, vibration, and high-moisture environments. Operating from -52°C to +177°C (-62°F to +351°F), it supports high-fidelity measurement of radial vibration, axial thrust position, Keyphasor signals, and tachometer functions. With 1.5 mm (60 mils) linear range and 50 Ω output resistance, the NSv cable maintains <2 mV supply sensitivity, preserving signal accuracy over its full 4-meter length. ClickLoc connectors and connector protectors ensure secure connections and prevent contamination, while compatibility with existing 3300 RAM probes and extension cables allows seamless upgrades without reconfiguring the monitoring system.

Applications

1. Centrifugal Air Compressor Monitoring
Ideal for compact centrifugal air compressors, the cable ensures accurate radial vibration measurements where side-view access is limited.

2. Refrigeration Compressor Control
Supports axial thrust and vibration monitoring on small-diameter shafts in refrigeration compressors with minimal clearance.

3. Process Gas Compressor Diagnostics
Enables precise Keyphasor and zero-speed measurements in industrial gas compressors, facilitating early fault detection.

4. Retrofit and Upgrade Projects
Compatible with existing 3300 RAM systems, allowing replacement of probes and extension cables without modifying Proximitor Sensors.

5. Tight Space Installations
Designed for applications with counter bore, sideview, or rearview restrictions, ensuring signal integrity in confined machine housings.

Specifications

Competitive Advantage

1. Compact Design for Restricted Installations
The 4-meter cable and small target compatibility enable deployment in tight mechanical spaces where standard NSv cables cannot fit.

2. Armored Durability
Stainless steel armor provides mechanical protection against abrasion, chemical exposure, and vibration, increasing system reliability.

3. High Thermal Performance
Operates reliably between -52°C and +177°C, ensuring stable signal transmission under extreme ambient or process temperatures.

4. Low Supply Sensitivity
Maintains voltage accuracy with less than 2 mV change per volt of supply variation, ensuring consistent measurement fidelity.

5. Easy Integration and Upgrade
Mechanically and electrically compatible with 3300 RAM probes and extension cables, reducing downtime and installation complexity during system upgrades.
