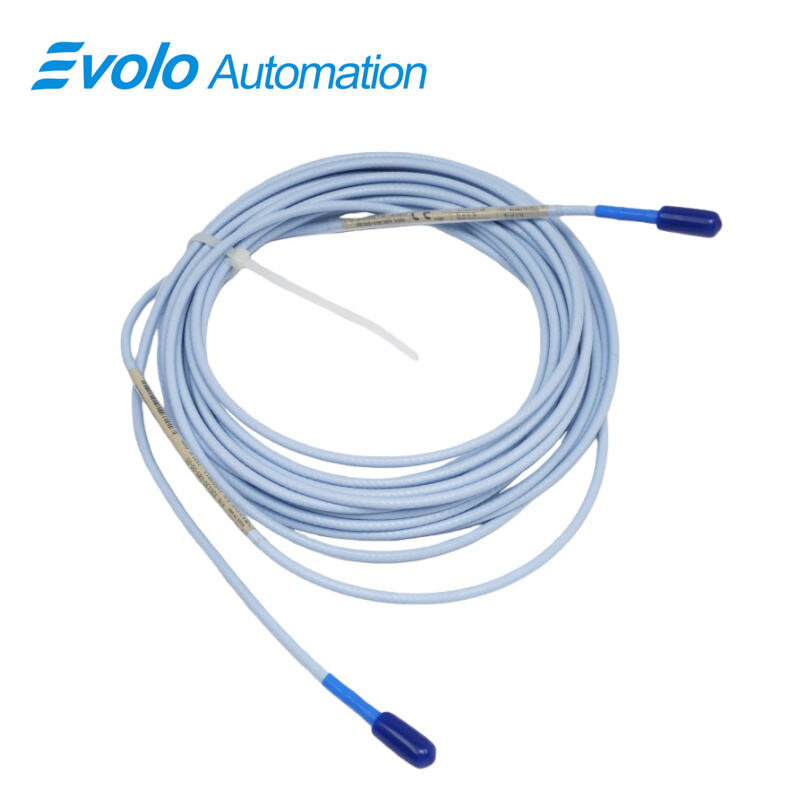

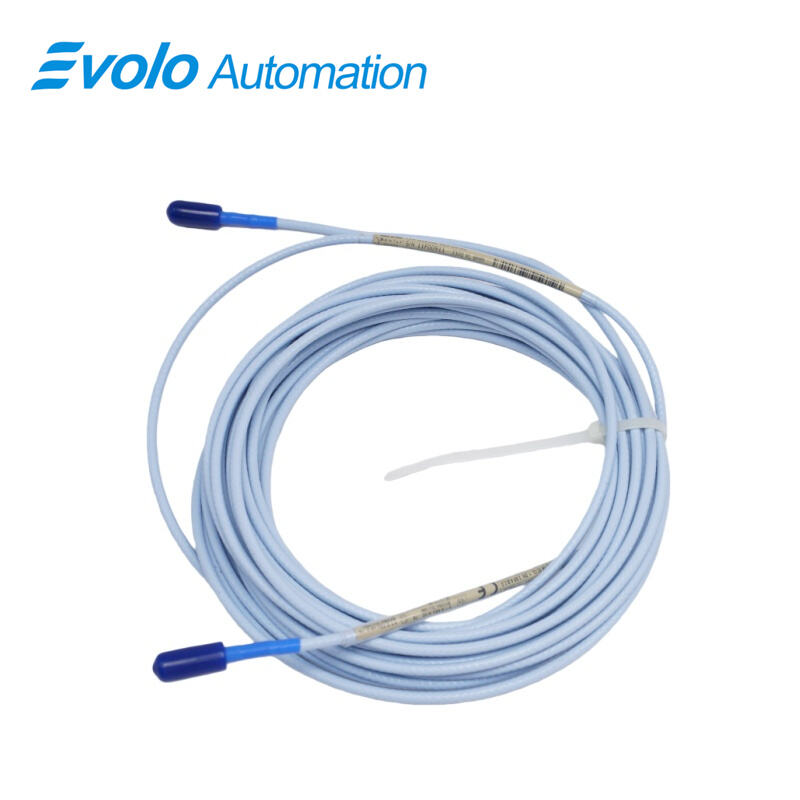

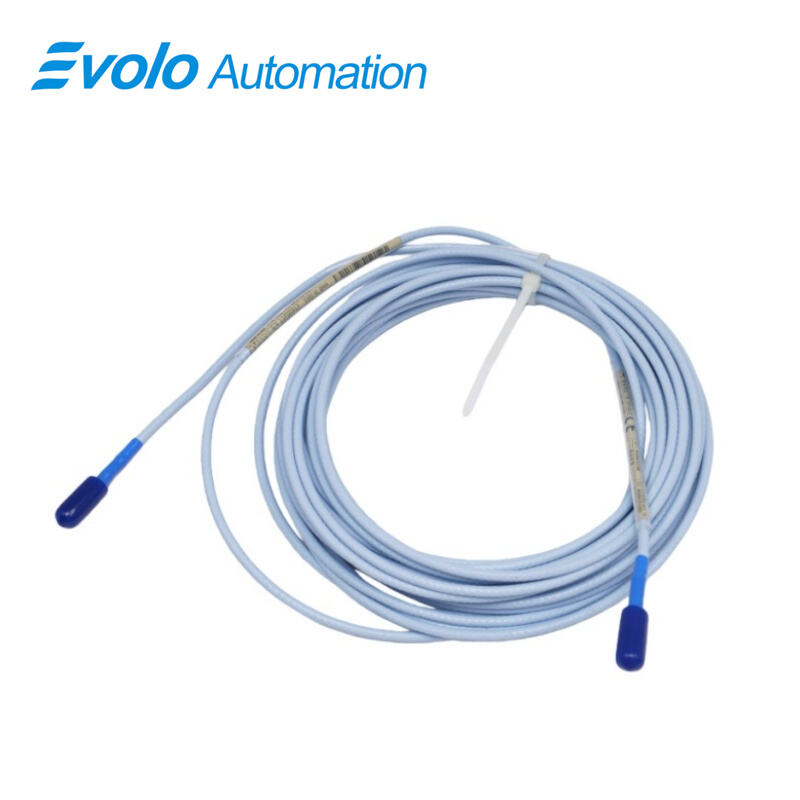

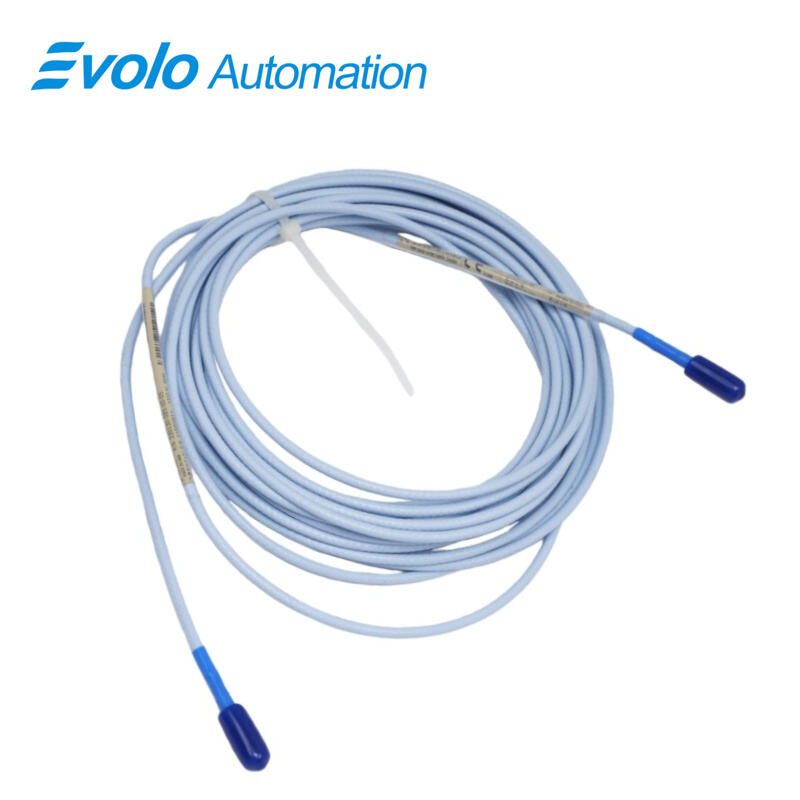

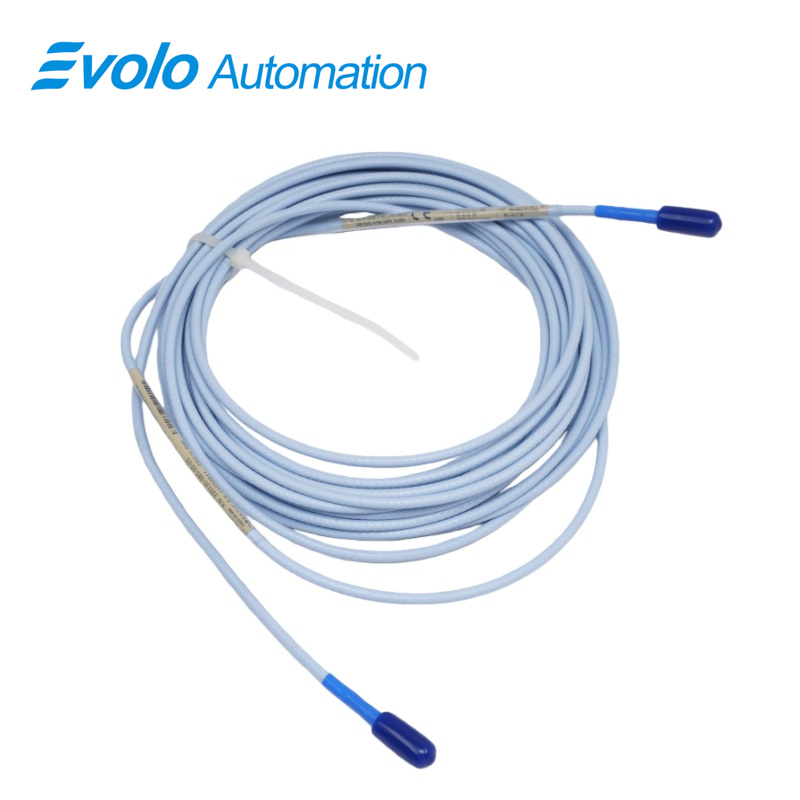

330130-085-00-05 3300 XL Standard Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330130-085-00-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330130-085-00-05 3300 XL Standard Extension Cable delivers precise signal transmission for 3300 XL 8 mm Proximity Transducer Systems in automated industrial applications. With an 8.5-meter (27.9 ft) standard cable, the 330130-085-00-05 3300 XL Standard Extension Cable maintains 50 Ω output resistance and 69.9 pF/m (21.3 pF/ft) capacitance. Its 75 Q triaxial FEP insulation keeps supply sensitivity under 2 mV per volt input change. Field wiring supports 0.2–1.5 mm² (16–24 AWG) up to 305 meters (1000 ft) while preserving a 2 mm (80 mils) linear range and 0–10 kHz frequency response. The 330130-085-00-05 3300 XL Standard Extension Cable enables vibration, position, speed, and Keyphasor measurements on fluid-film bearing machines. Patented TipLoc and CableLoc designs provide 330 N (75 lbf) pull strength and secure probe attachment. CSA, ATEX, and IECEx approvals allow deployment in hazardous environments. The 330130-085-00-05 3300 XL Standard Extension Cable integrates seamlessly with 3300 XL probes and Proximitor sensors, supporting automated monitoring without bench calibration.

Applications

Vibration Monitoring on Fluid-Film Bearings
The 330130-085-00-05 3300 XL Standard Extension Cable connects 3300 XL probes to Proximitor sensors for measuring shaft and rotor vibration with 2 mm linear range and frequency response up to 10 kHz, enabling automated detection of abnormal movement.

Position Sensing in Rotating Equipment
Use the 330130-085-00-05 3300 XL Standard Extension Cable to transmit displacement signals from 3300 XL probes over field wiring up to 305 meters (1000 ft) while maintaining 50 Ω resistance and 69.9 pF/m capacitance for accurate shaft positioning.

Speed and Keyphasor Signal Transmission
The 330130-085-00-05 3300 XL Standard Extension Cable delivers Keyphasor and rotational speed signals from 3300 XL probes with less than 2 mV supply sensitivity per volt, supporting automated turbine and generator monitoring.

Remote Monitoring in Hazardous Areas
CSA, ATEX, and IECEx approvals allow the 330130-085-00-05 3300 XL Standard Extension Cable to provide safe signal transmission from 3300 XL probes in explosive or high-risk environments.

Specifications

Competitive Advantage

High-Precision Signal Transfer
The 330130-085-00-05 3300 XL Standard Extension Cable preserves 2 mm linear range, 0–10 kHz frequency response, and output voltage accuracy across long distances, ensuring precise automated monitoring.

Durable Probe Connection
Patented TipLoc and CableLoc designs secure probe attachment under 330 N (75 lbf) tension. The 330130-085-00-05 3300 XL Standard Extension Cable prevents mechanical disconnection and maintains signal integrity in industrial environments.

Seamless System Integration
Fully compatible with 3300 XL probes and Proximitor sensors, the 330130-085-00-05 3300 XL Standard Extension Cable allows plug-and-play installation and quick replacement without bench calibration.

Long-Distance Automation Reach
Supports field wiring up to 305 meters (1000 ft) while maintaining linear range, frequency response, and capacitance. The 330130-085-00-05 3300 XL Standard Extension Cable enables flexible layout and extended automation coverage.
