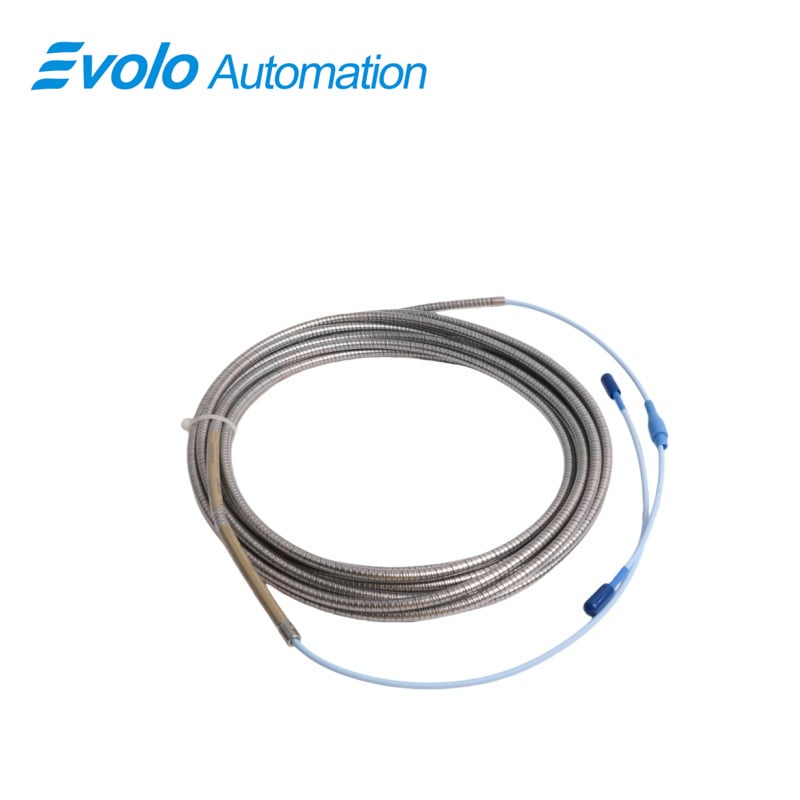

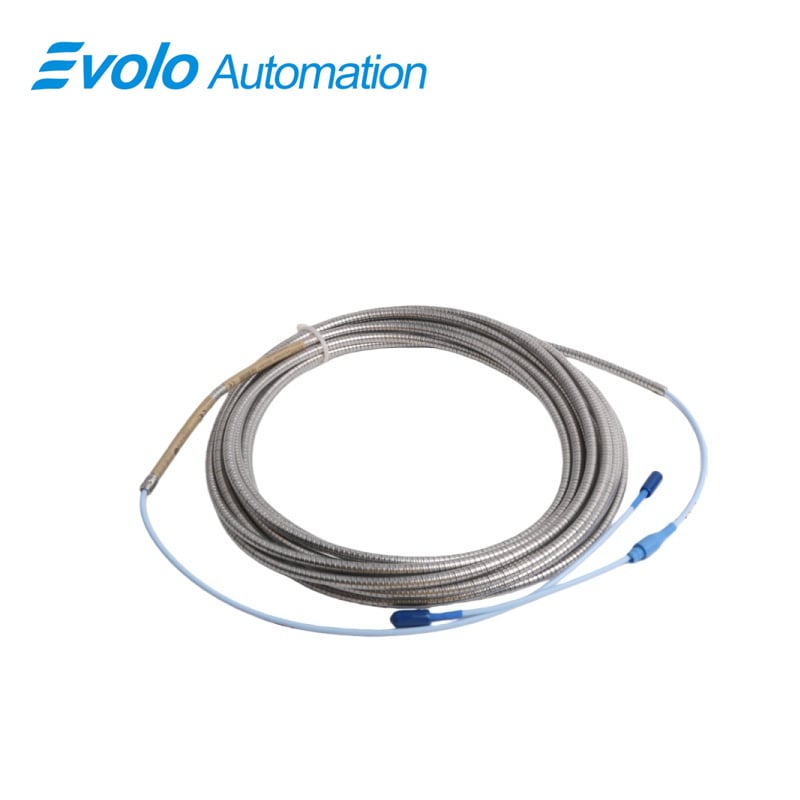

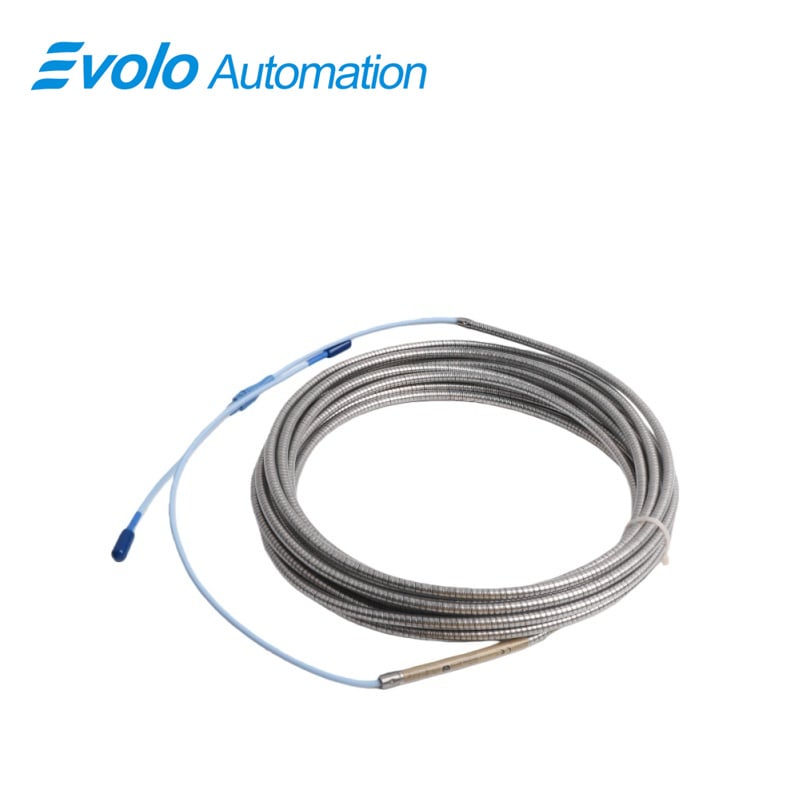

330130-085-03-05 3300 XL Standard Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330130-085-03-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330130-085-03-05 3300 XL Standard Extension Cable is a critical component in the 3300 XL 8 mm proximity transducer system, providing exceptional flexibility and reliability for a wide range of industrial applications. Designed for use with eddy current proximity probes, the cable facilitates both position and vibration measurements, offering direct correlation between the probe tip and the observed conductive surface. This capability is particularly beneficial in monitoring fluid-film bearing machines for vibration and position data. Additionally, the system supports Keyphasor reference and speed measurements, enhancing the versatility and functionality of the equipment in complex machinery setups.

The 3300 XL Standard Extension Cable is part of the most advanced proximity transducer systems, designed to meet the rigorous standards set by the American Petroleum Institute (API), specifically API 670. This compliance guarantees that the system delivers high-performance vibration and position measurements with a high degree of accuracy, ensuring that all components within the system maintain excellent temperature stability and linear range.

Applications

1.Hazardous Area Applications

With approvals from CSA, ATEX, and IECEx, the 3300 XL Standard Extension Cable is ideal for hazardous areas where explosion-proof and intrinsically safe equipment is required. These approvals ensure that the cable is safe for use in environments with flammable gases, dust, or other hazardous materials, ensuring that safety standards are met while maintaining reliable data collection and machinery monitoring.

2.Vibration and Position Sensing

This extension cable’s standard 75Ω triaxial cable construction makes it particularly well-suited for vibration and position sensing in applications where precise, high-quality signal transmission is essential. The extension cable capacitance of 69.9 pF/m ensures that the cable can carry high-fidelity data over long distances without signal degradation, making it suitable for installations where components are far apart or in complex machinery layouts.

3.Connector Protection and Durability

The armored cable design and connector protector option enhance the durability of the cable, offering additional protection against environmental factors such as mechanical wear, harsh chemicals, or moisture. This makes the cable well-suited for applications in rough industrial environments, ensuring long-term reliability.

4.Compatibility with 3300 XL Systems

The 3300 XL Standard Extension Cable is fully compatible with other components of the 3300 XL series, such as probes and Proximitor sensors, supporting complete system interchangeability without the need for recalibration. This feature allows for easy system upgrades, repairs, and replacements, providing both flexibility and cost savings in machinery monitoring.

Specifications

Competitive Advantage

1. Multi-Certified Safety for Hazardous Environments

Equipped with CSA, ATEX, and IECEx approvals, the 330130-080-01-05 3300 XL Standard Extension Cable fully complies with international explosion-proof standards, enabling safe deployment in flammable gas, vapor, or dust-rich areas such as oil refineries, chemical plants, and coal mines. Unlike ordinary extension cables that require additional protective measures for hazardous applications, this product eliminates compliance risks and extra costs, making it a trusted choice for safety-critical industrial scenarios.

2. Armored Construction for Enhanced Durability

Adopting armored cable design, the product delivers exceptional resistance to physical abrasion, mechanical impact, and corrosive substance erosion. This robust structure ensures reliable performance even in harsh working conditions like heavy industrial manufacturing plants, offshore oil rigs, and mining sites, where cables are prone to damage from debris or equipment vibration. Compared with standard unarmored cables, it significantly extends service life and reduces maintenance frequency.

3. Optimized Signal Transmission Stability

Featuring a 75Ω triaxial standard cable and 69.9 pF/m (21.3 pF/ft) typical low capacitance, the cable minimizes signal attenuation over its 8.0-meter (26.2-foot) length, ensuring high-fidelity data transmission between 3300 XL proximity probes and monitoring systems. With 50Ω output resistance and supply sensitivity of less than 2 mV/V, it effectively resists voltage fluctuations and external electromagnetic interference, providing stable and accurate data support for equipment condition monitoring
