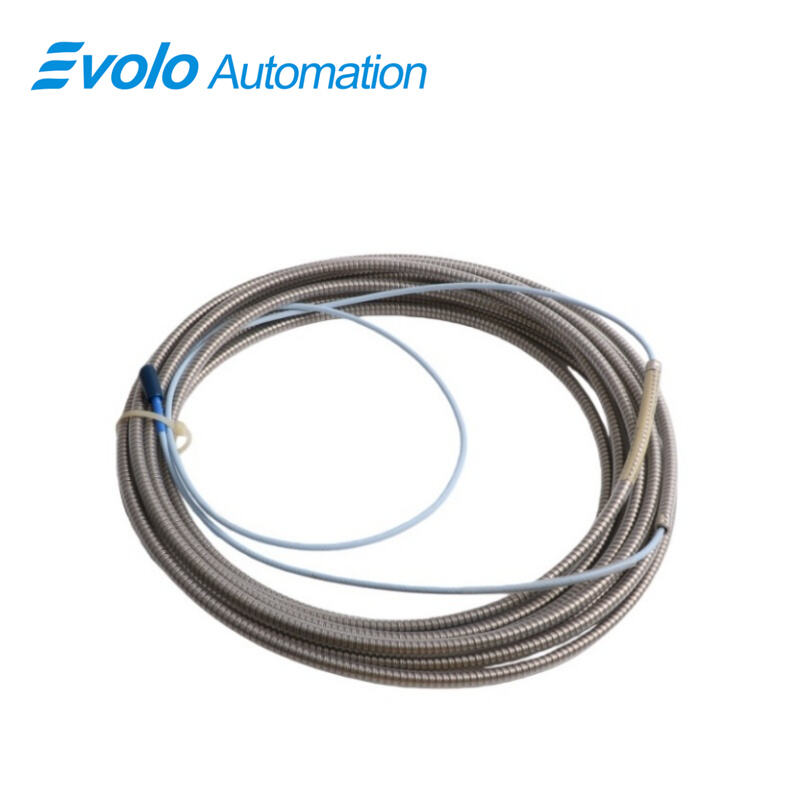

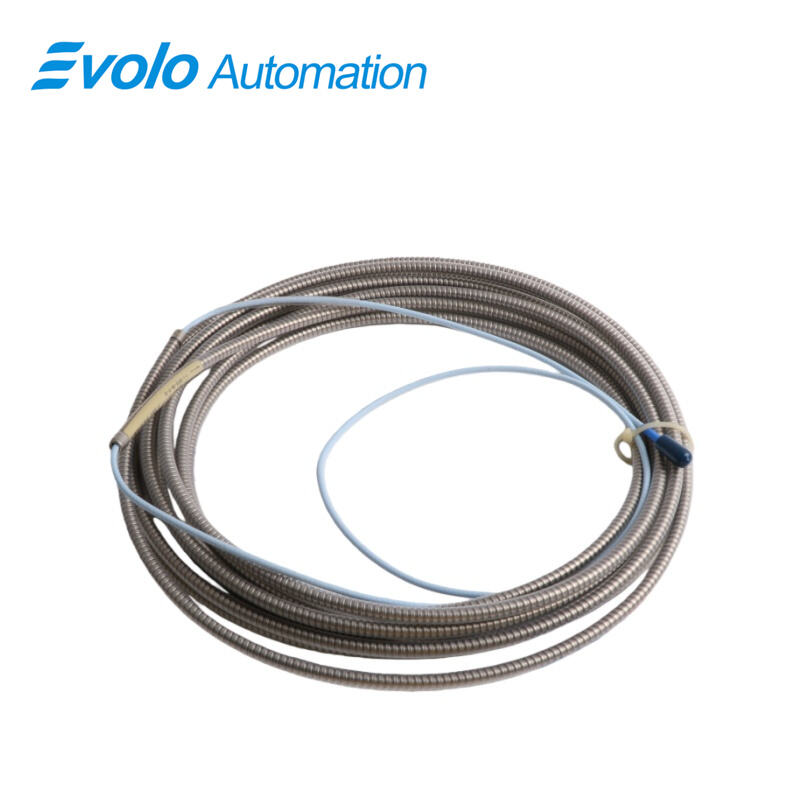

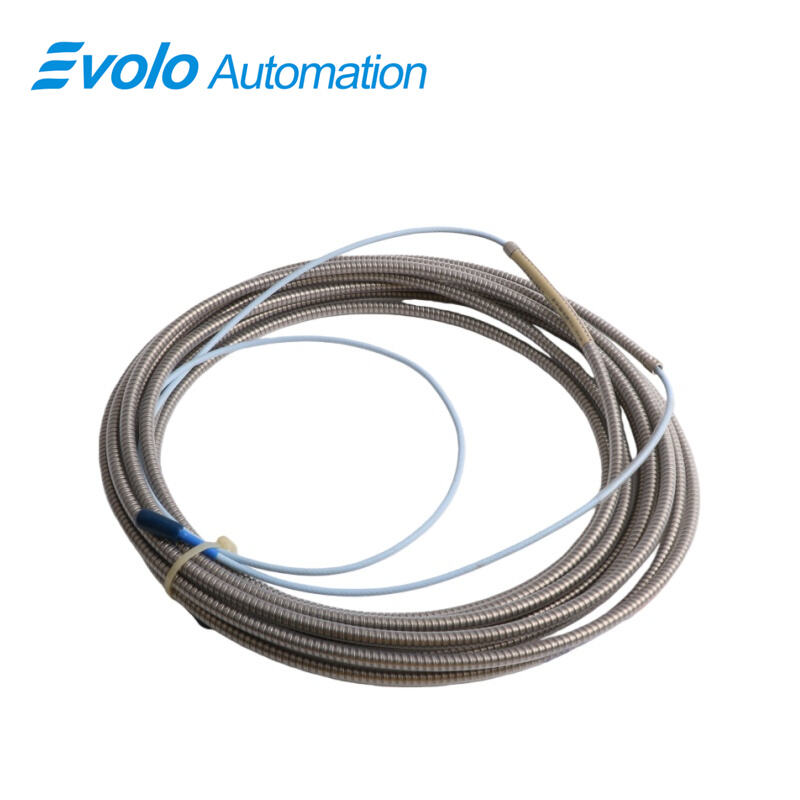

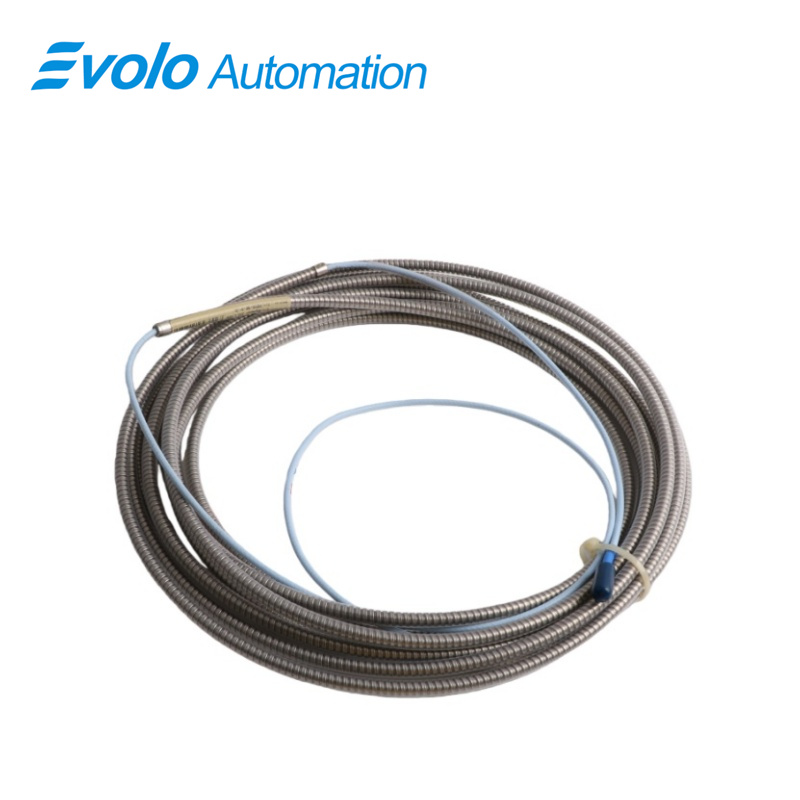

330130-080-01-00 3300 XL Standard Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330130-080-01-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330130-080-01-00 3300 XL Standard Extension Cable provides an 8.0-meter connection for 8 mm 3300 XL Proximity Transducers, supporting accurate transmission of output voltage proportional to probe tip displacement. Its armored 75 Q triaxial FEP cable ensures durability and supports field wiring from 0.2 to 1.5 mm² (16–24 AWG). With less than 2 mV change per volt input variation, 50 Ω output resistance, and 69.9 pF/m capacitance, the 330130-080-01-00 3300 XL Standard Extension Cable maintains precise static and dynamic position and vibration measurements. The linear range is 2 mm, and the frequency response spans 0–10 kHz, capable of transmitting signals over 305 meters (1000 feet) of field wiring. Minimum target size is 15.2 mm diameter, making the 330130-080-01-00 3300 XL Standard Extension Cable suitable for automated monitoring of fluid-film bearing machines, Keyphasor speed references, and real-time position detection. It integrates seamlessly with 3300 XL Proximity Probes and Proximitor sensors without bench recalibration, providing reliable signal transfer for industrial automation applications. Optional FluidLoc features prevent oil or liquid ingress, ensuring continuous operation in machine monitoring systems.

Applications

Monitor fluid-film bearing vibration
The 330130-080-01-00 3300 XL Standard Extension Cable transmits precise signals from 8 mm 3300 XL Proximity Probes to measure bearing vibration, supporting frequency response up to 10 kHz and linear range of 2 mm, enabling accurate early detection of abnormal motion.

Measure shaft position in real-time
Paired with 3300 XL Proximitor sensors, the 330130-080-01-00 3300 XL Standard Extension Cable transfers output voltage proportional to probe tip displacement, maintaining less than 2 mV variation per volt input, for accurate position tracking in automated machinery.

Keyphasor reference for speed monitoring
Using the 330130-080-01-00 3300 XL Standard Extension Cable, the system can deliver Keyphasor signals over long field wiring distances (up to 305 meters), allowing precise speed calculation and integration into automation control systems.

Automated process monitoring
The 330130-080-01-00 3300 XL Standard Extension Cable supports minimum target detection of 15.2 mm diameter, allowing integration with automated diagnostic systems to track both static and dynamic machine parameters.

Specifications

Competitive Advantage

Extended signal transmission with low loss
The 330130-080-01-00 3300 XL Standard Extension Cable’s 8.0-meter FEP-insulated triaxial cable with 50 Ω output resistance ensures accurate signal delivery across extended distances, reducing signal degradation for automation monitoring.

Industrial-grade field deployment
The 330130-080-01-00 3300 XL Standard Extension Cable supports 0.2–1.5 mm² field wiring and armored construction, making it suitable for direct use in automated industrial environments.

Seamless integration with 3300 XL systems
The 330130-080-01-00 3300 XL Standard Extension Cable is fully interchangeable with 8 mm 3300 XL Proximity Probes and Proximitor sensors, eliminating the need for bench calibration and enabling faster automation setup.
