330130-030-01-CN 3300 XL Standard Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330130-030-01-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

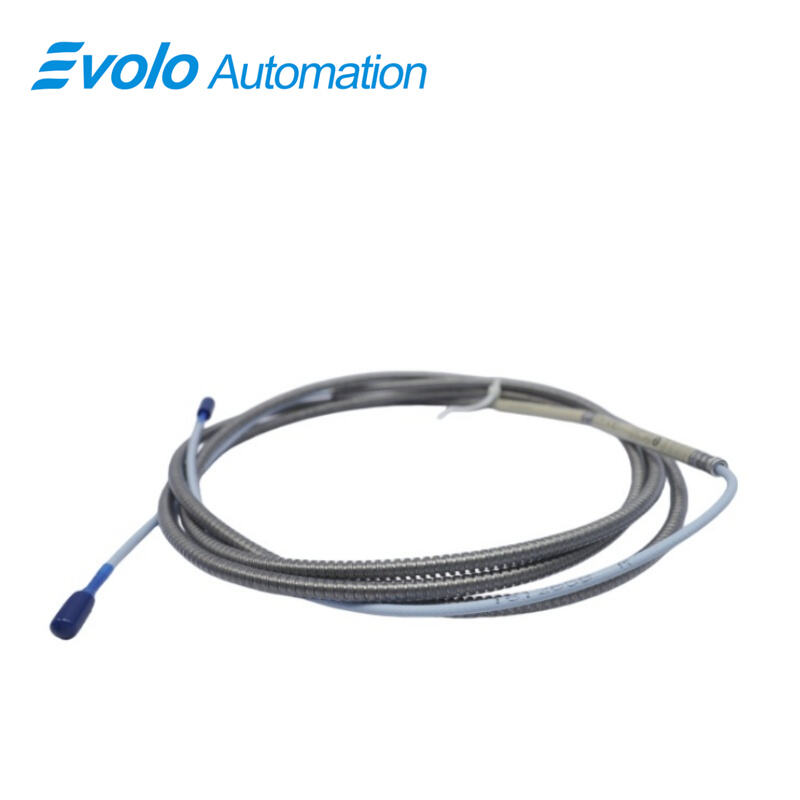

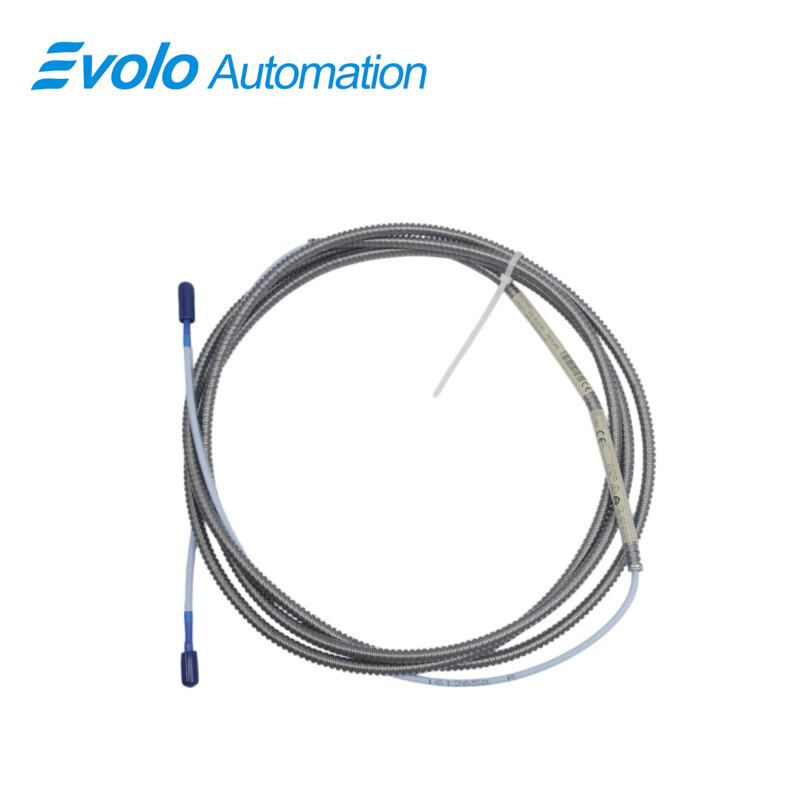

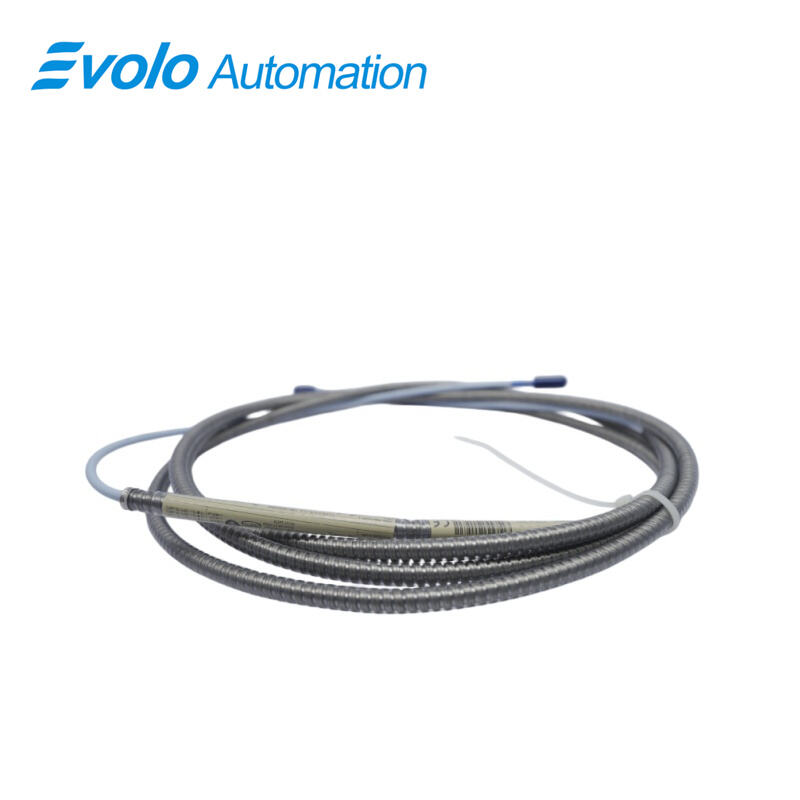

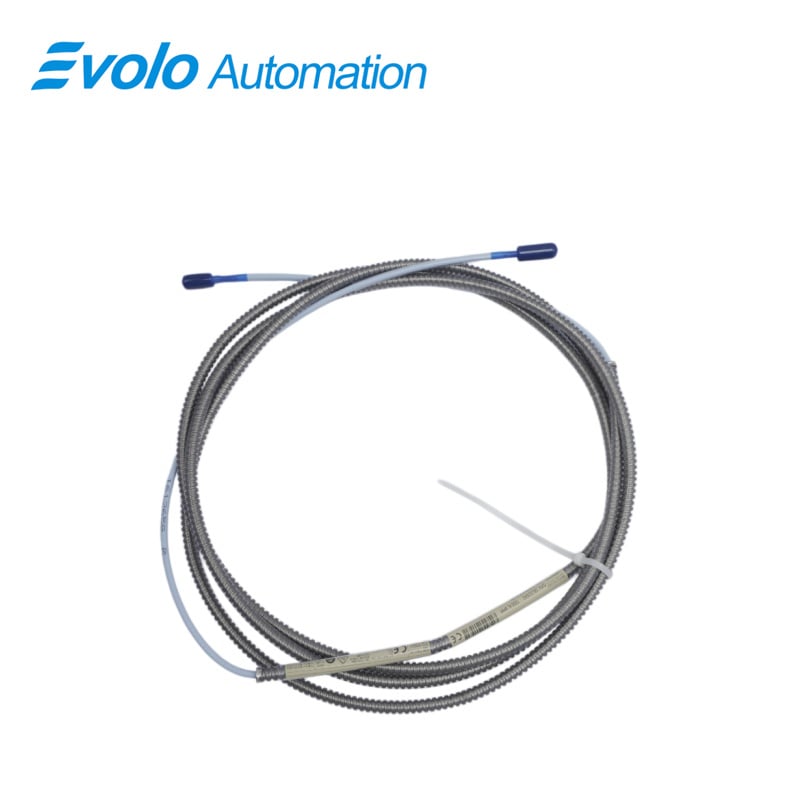

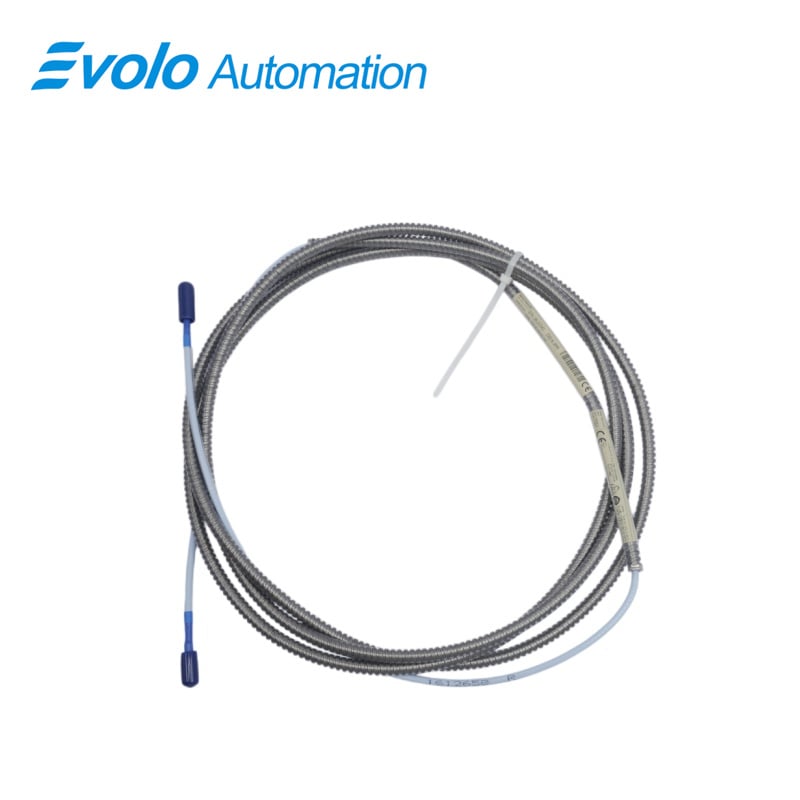

330130-030-01-CN is a 3.0-meter armored 3300 XL standard extension cable designed for industrial automation and rotating equipment monitoring. The 330130-030-01-CN uses 75 Ω triaxial FEP insulation with typical capacitance of 69.9 pF/m and output resistance of 50 Ω, ensuring accurate eddy current signal transmission within a 2 mm linear range. Supporting 0–10 kHz frequency response and up to 305 meters of field wiring, 330130-030-01-CN enables vibration, axial position, and Keyphasor speed measurement in turbines, compressors, and pumps. With supply sensitivity below 2 mV/V, 0.2–1.5 mm² wiring support, and operating temperature from –52°C to +177°C, 330130-030-01-CN meets CSA, ATEX, and IECEx requirements for hazardous automation environments.

Applications

Connect Proximity Probes to Turbine Monitoring Cabinets

330130-030-01-CN links 8 mm probes to turbine control cabinets for shaft vibration measurement. The 69.9 pF/m capacitance limits cumulative capacitance over extended wiring, keeping waveform distortion within measurable tolerance across 0–10 kHz. The 2 mm linear range supported by 330130-030-01-CN allows accurate radial displacement tracking in steam and gas turbines.

Transmit Axial Position Signals in Centrifugal Compressors

In compressor thrust monitoring systems, 330130-030-01-CN carries axial position signals through its 75 Ω triaxial cable. With 50 Ω output resistance, 330130-030-01-CN reduces signal reflection in long cable runs up to 305 meters. Supply sensitivity below 2 mV/V ensures output deviation remains minimal during voltage fluctuation in control panels.

Route Vibration Signals in Hazardous Process Areas

With CSA, ATEX, and IECEx approvals, 330130-030-01-CN can be installed in oil and gas production units. The –52°C to +177°C operating range allows 330130-030-01-CN to function near hot process piping and outdoor installations exposed to low ambient temperatures.

Deliver Keyphasor and Speed Pulse Signals to Automation Systems

330130-030-01-CN transmits Keyphasor reference pulses and rotational speed signals to protection modules. The controlled impedance of 75 Ω and defined 50 Ω output resistance in 330130-030-01-CN support accurate pulse recognition within the 0–10 kHz bandwidth used in generator and turbine monitoring.

Specifications

Competitive Advantage

Competitive Advantage in Controlled Capacitance for Long Cable Runs

The 69.9 pF/m capacitance of 330130-030-01-CN allows predictable total capacitance when combined with up to 305 meters of field wiring. This controlled electrical value reduces signal attenuation during long-distance routing inside large automation plants.

Competitive Advantage in High Temperature and Low Temperature Deployment

330130-030-01-CN operates from –52°C to +177°C, enabling installation in both outdoor cold regions and high-heat turbine enclosures. FEP insulation used in 330130-030-01-CN resists thermal breakdown during continuous operation.

Competitive Advantage in Mechanical Protection During Installation

The armored structure of 330130-030-01-CN provides added resistance against pulling force and abrasion during cable tray routing. This design supports field wiring sizes from 0.2 to 1.5 mm², allowing secure termination inside industrial automation cabinets.

Competitive Advantage in Certified Use for Explosive Atmospheres

With CSA, ATEX, and IECEx approvals, 330130-030-01-CN can be deployed in classified hazardous zones. These certifications allow 330130-030-01-CN to be integrated into automation systems used in petrochemical, refining, and gas processing facilities.
