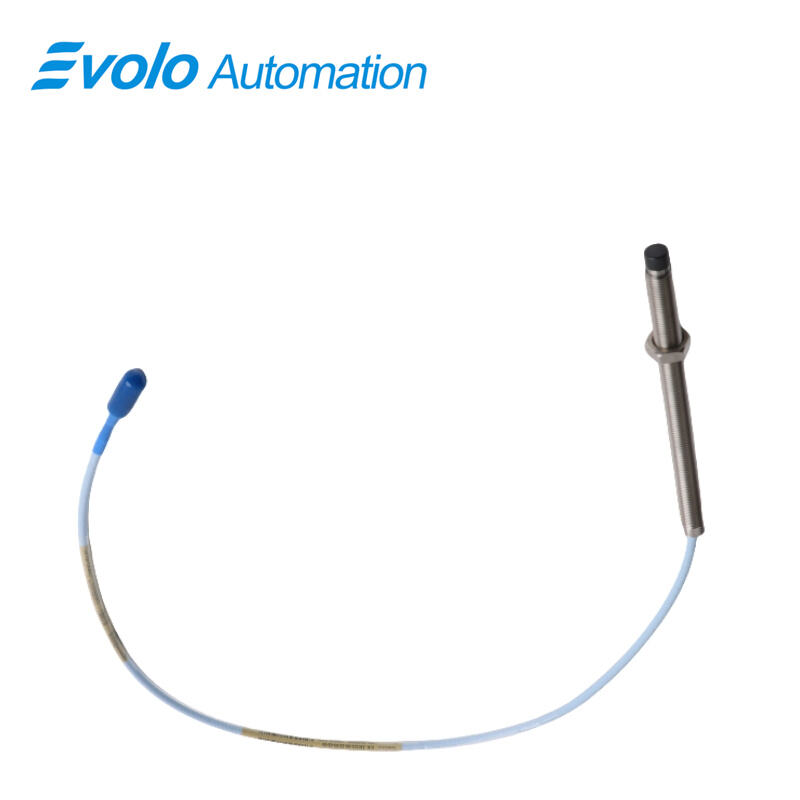

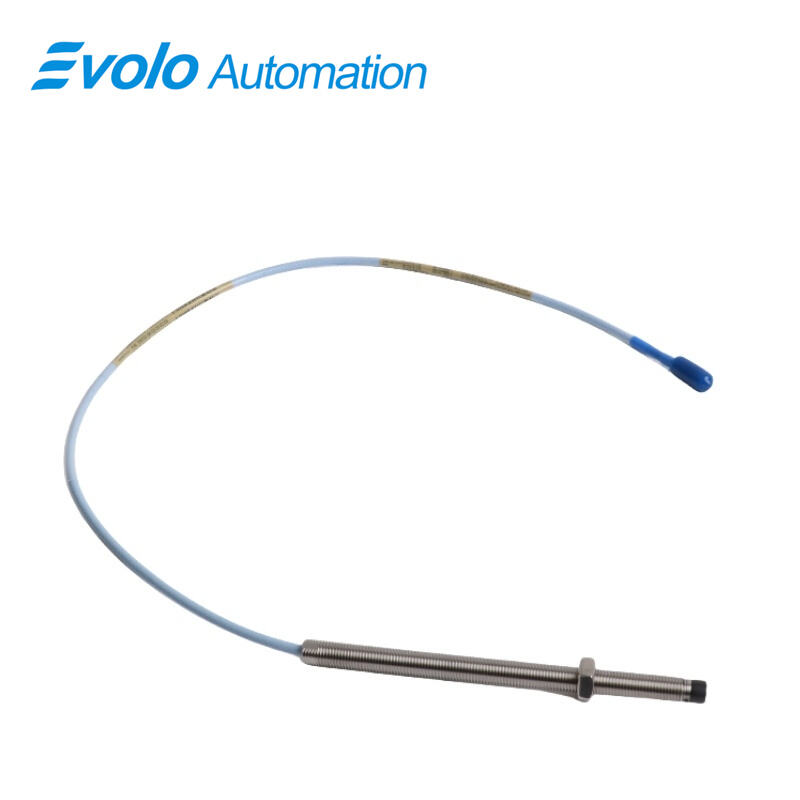

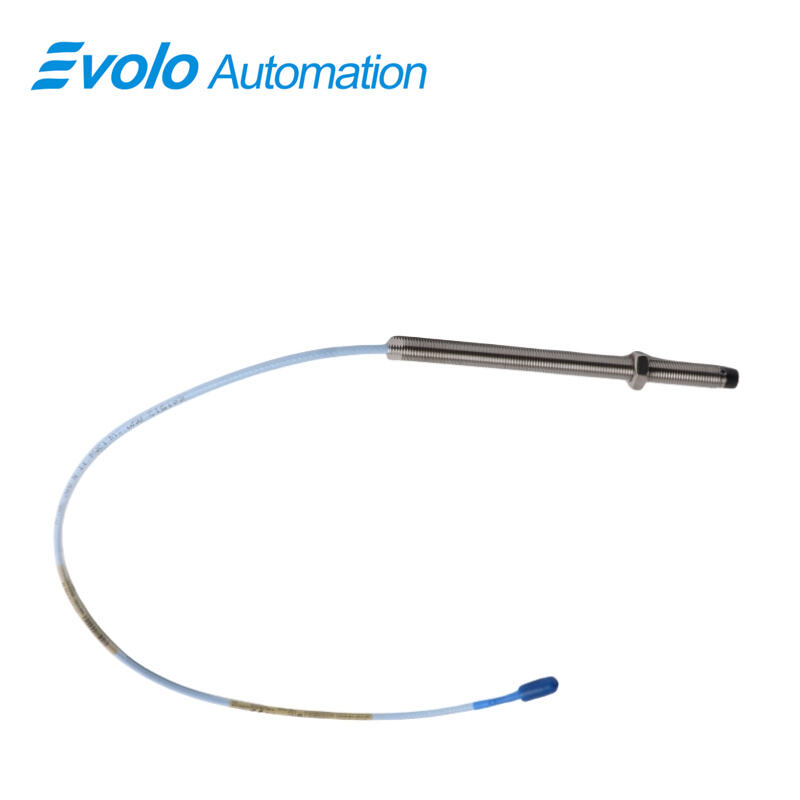

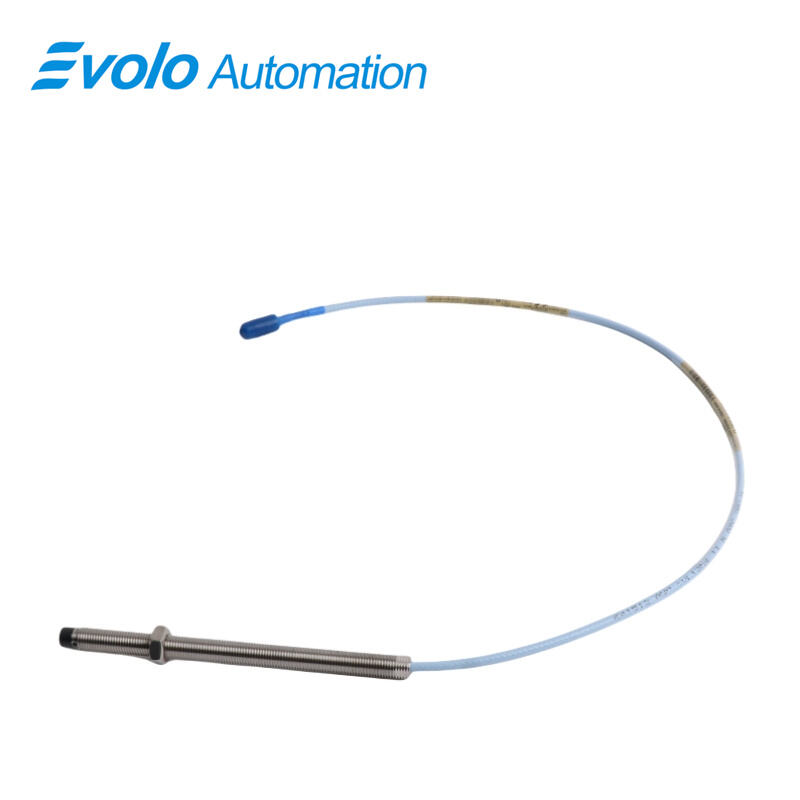

330101-00-59-15-12-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-59-15-12-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-59-15-12-05 3300 XL 8 mm Proximity Probe is a high-performance eddy current transducer engineered for precision industrial automation and predictive maintenance. Designed for measuring both static positions and dynamic vibrations, it provides an output voltage that is directly proportional to the distance between the probe tip and a conductive surface. With a linear range of 2 mm (80 mils) and a robust overall case length of 5.9 inches, this probe ensures accurate monitoring in high-vibration and harsh environments.

The probe comes with a 1.5-meter FluidLoc extension cable featuring a Miniature coaxial ClickLoc connector, providing enhanced signal integrity and fluid-proof operation. Built for extreme conditions, it operates within -52°C to +177°C (-62°F to +350°F), exhibits less than 2 mV supply sensitivity per volt, and maintains 50 Ω output resistance. The 3/8-24 UNF probe case thread ensures secure installation with maximum thread engagement of 0.563 inches. Patented TipLoc and CableLoc technologies provide 330 N (75 lbf) pull strength, guaranteeing reliable probe-to-cable attachment even under high mechanical stress. The probe is CSA, ATEX, and IECEx certified and fully API 670 compliant, allowing for seamless interchangeability with other 3300 series components and simplifying system upgrades and maintenance.

Applications

Application 1: Steam Turbine Shaft Monitoring

Tracks rotor displacement and vibration in steam turbines with micron-level precision, supporting predictive maintenance to reduce downtime and optimize operational efficiency.

Application 2: Industrial Pump Alignment

Monitors shaft positions in centrifugal and axial pumps, ensuring optimal alignment, reducing wear, and enhancing performance under continuous industrial operation.

Application 3: Compressor Speed and Keyphasor Signals

Delivers Keyphasor reference and speed measurement signals for compressors, improving automated process control and equipment protection.

Application 4: Heavy Gearbox Vibration Detection

Measures gear displacement and vibration in high-torque industrial gearboxes, enabling early detection of misalignment, imbalance, or wear to prevent catastrophic failures.

Application 5: Oil-Lubricated Machinery Monitoring

The FluidLoc cable option allows accurate measurements in lubricated machinery, preventing oil ingress while maintaining reliable signal quality for predictive maintenance.

Specifications

Competitive Advantage

Competitive Advantage 1: Hazardous Environment Ready

CSA, ATEX, and IECEx approvals ensure safe deployment in explosive or flammable industrial settings, expanding its application range.

Competitive Advantage 2: Extreme Temperature Operation

Performs reliably across -52°C to +177°C, suitable for extreme cold and high-temperature industrial processes.

Competitive Advantage 3: High Mechanical Durability

Patented TipLoc and CableLoc designs provide 330 N pull strength, ensuring the probe remains securely connected under heavy vibration or mechanical stress.

Competitive Advantage 4: Interchangeable Components

Fully API 670 compliant, the probe is backward compatible with other 3300 series probes, extension cables, and Proximitor sensors, simplifying maintenance and upgrades.

Competitive Advantage 5: Fluid-Proof Reliability

Optional FluidLoc cable prevents oil or liquid ingress, ensuring long-term signal reliability and accurate measurements in lubricated industrial systems.
