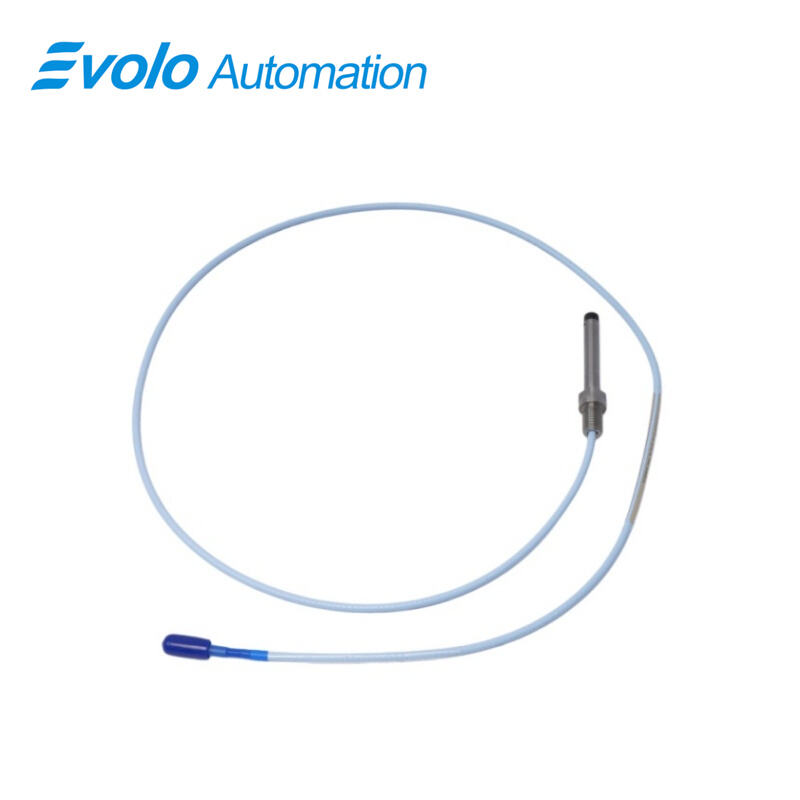

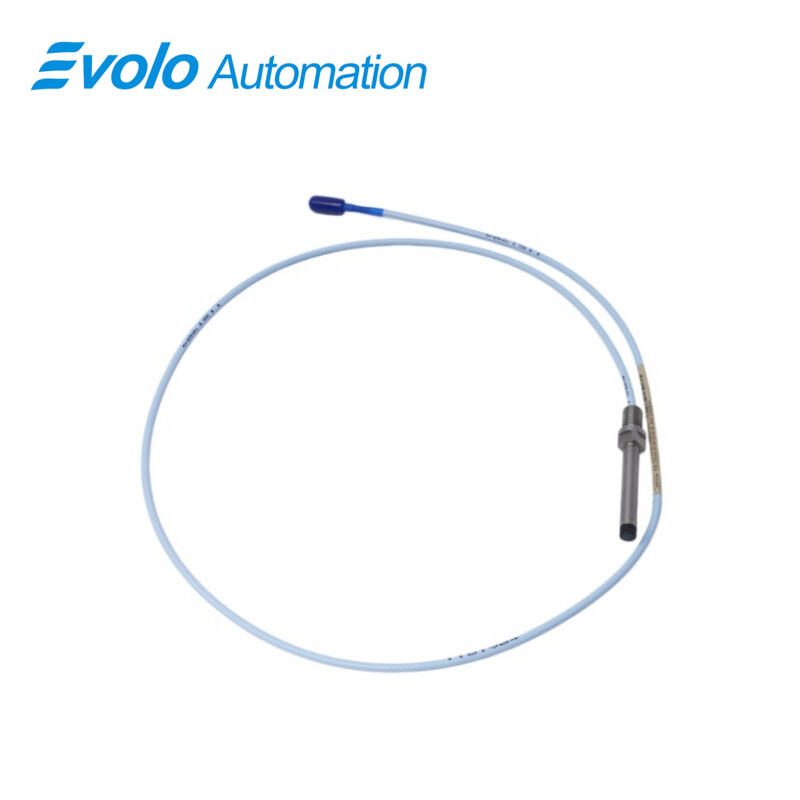

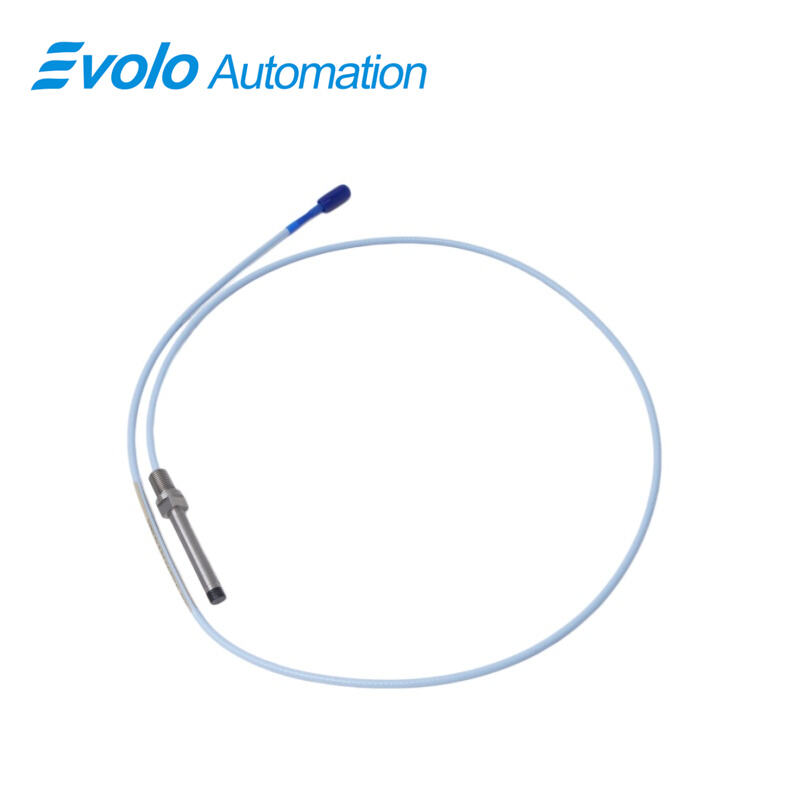

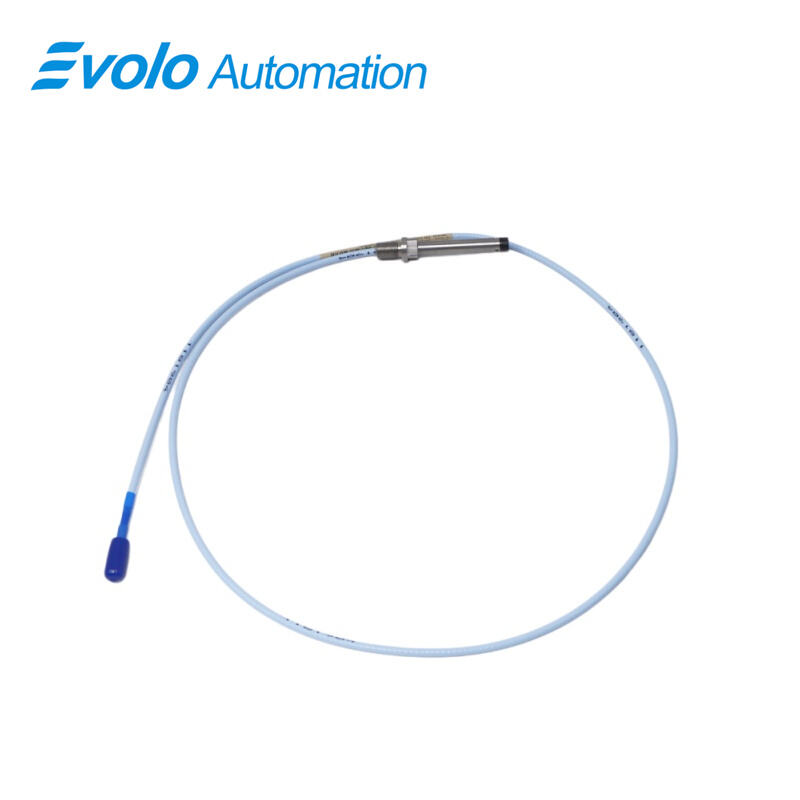

330106-XX-XX-10-02-00 MOD:145628-01 3300 XL 8 mm Reverse Mount Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330106-XX-XX-10-02-00 MOD:145628-01
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330106-XX-XX-10-02-00 MOD:145628-01 3300 XL 8 mm Reverse Mount Probes measure both static position and dynamic vibration in automated machinery, providing output voltage directly proportional to the distance between the probe tip and conductive surfaces. With a total length of 1.0 meter (3.3 feet) and M10x1 threaded case with 15 mm engagement, the 330106-XX-XX-10-02-00 MOD:145628-01 3300 XL 8 mm Reverse Mount Probes fit reverse or confined installations. Field wiring supports 0.2–1.5 mm² (16–24 AWG) cables, while the probe tip is polyphenylene sulfide and the case is AISI 303/304 stainless steel. Operating from -52°C to +177°C (-62°F to +350°F) with a linear range of 2 mm (80 mils), the 330106-XX-XX-10-02-00 MOD:145628-01 3300 XL 8 mm Reverse Mount Probes deliver Keyphasor signals, rotor vibration monitoring, and bearing position measurements in turbines, pumps, and motors, supporting automated process control and machine diagnostics.

Applications

Measure Rotor Vibration in Turbines
The 330106-XX-XX-10-02-00 MOD:145628-01 3300 XL 8 mm Reverse Mount Probes monitor rotor displacement with a linear range of 2 mm (80 mils) and output resistance of 50 Ω, providing accurate vibration data for steam and gas turbine monitoring. Its total length of 1.0 meter (3.3 feet) allows installation in reverse or confined turbine housings.

Monitor Bearing Position in Pumps
Equipped with an M10x1 threaded case and 15 mm maximum engagement, the 330106-XX-XX-10-02-00 MOD:145628-01 3300 XL 8 mm Reverse Mount Probes measure static fluid-film bearing positions. Field wiring supports 0.2–1.5 mm² (16–24 AWG) cables, enabling automated pump position tracking.

Capture Keyphasor Signals for Rotating Machinery
With minimal supply voltage impact (<2 mV per volt) and extension cable capacitance of 69.9 pF/m, the 330106-XX-XX-10-02-00 MOD:145628-01 3300 XL 8 mm Reverse Mount Probes deliver precise Keyphasor reference signals for speed measurements.

Check Shaft Alignment in Industrial Motors
Operating from -52°C to +177°C (-62°F to +350°F), the 330106-XX-XX-10-02-00 MOD:145628-01 3300 XL 8 mm Reverse Mount Probes detect shaft offsets and dynamic displacement in motors and compressors, supporting automated alignment diagnostics.

Specifications

Competitive Advantage

Direct Voltage Output with Quantified Accuracy
The 330106-XX-XX-10-02-00 MOD:145628-01 3300 XL 8 mm Reverse Mount Probes maintain less than 2 mV output change per volt input, with a linear range of 2 mm and output resistance of 50 Ω, ensuring precise measurements without recalibration.

Rapid Installation in Confined Spaces
With total length of 1.0 meter, M10x1 thread, and 15 mm engagement, the 330106-XX-XX-10-02-00 MOD:145628-01 3300 XL 8 mm Reverse Mount Probes mount quickly using a miniature ClickLoc coaxial connector, suitable for reverse or tight configurations.

Durable Materials for Continuous Operation
The 330106-XX-XX-10-02-00 MOD:145628-01 3300 XL 8 mm Reverse Mount Probes use a polyphenylene sulfide probe tip and AISI 303/304 stainless steel case, resisting mechanical wear and vibration in automated industrial environments.

High Temperature Operation Range
The 330106-XX-XX-10-02-00 MOD:145628-01 3300 XL 8 mm Reverse Mount Probes operate across -52°C to +177°C (-62°F to +350°F), enabling accurate rotor, bearing, and shaft position measurements under extreme temperature conditions.
