330101-00-20-20-12-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-20-20-12-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-20-20-12-05 3300 XL 8 mm Proximity Probe is a precision eddy current transducer specifically engineered for industrial automation and critical rotating machinery monitoring. This 3300 XL 8 mm Proximity Probe converts the distance between its probe tip and a conductive target into a proportional voltage signal, providing accurate measurements of both static shaft position and dynamic vibration. With a 2 mm (80 mils) linear range, it is designed for fluid-film bearing machines, compressors, turbines, pumps, and other automated industrial equipment where high reliability, precision, and safety compliance are essential.

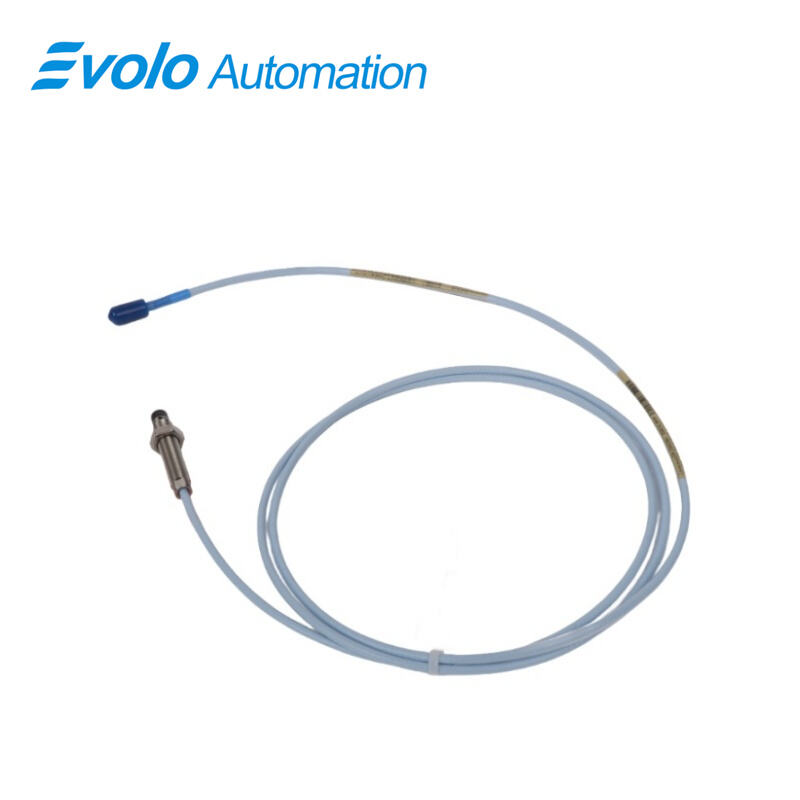

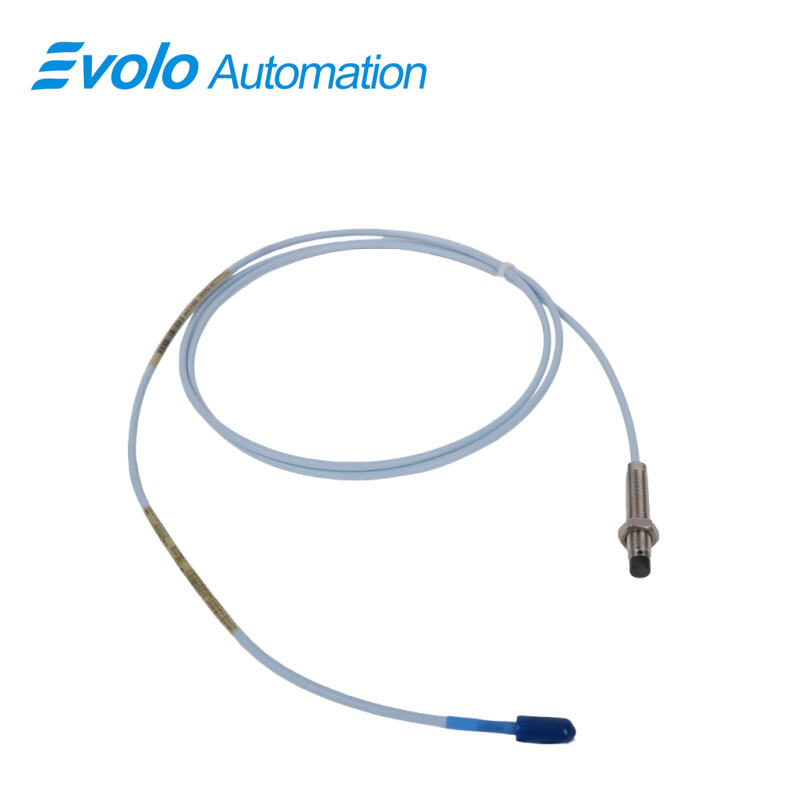

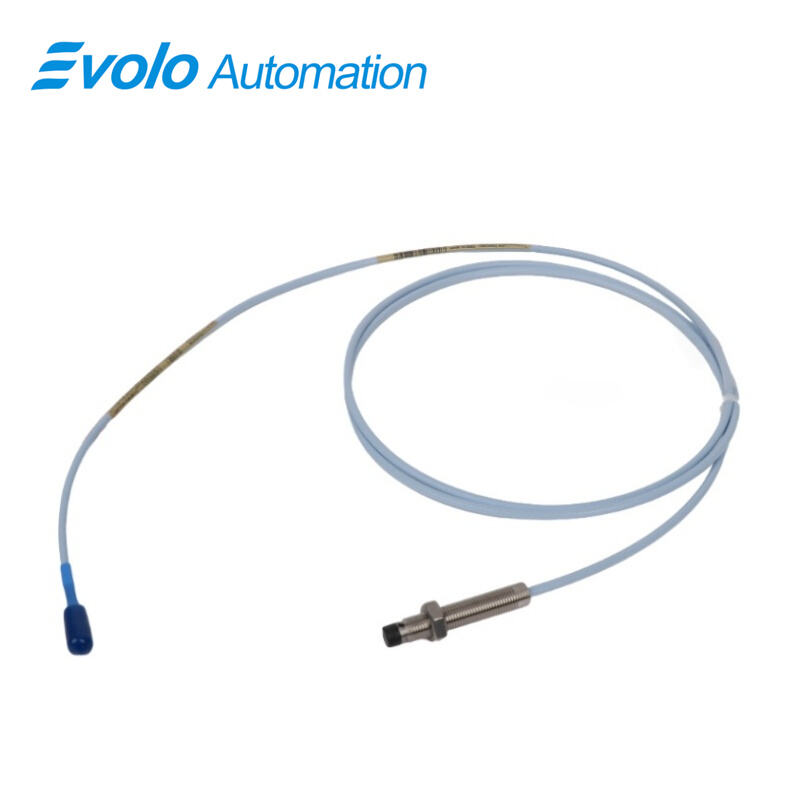

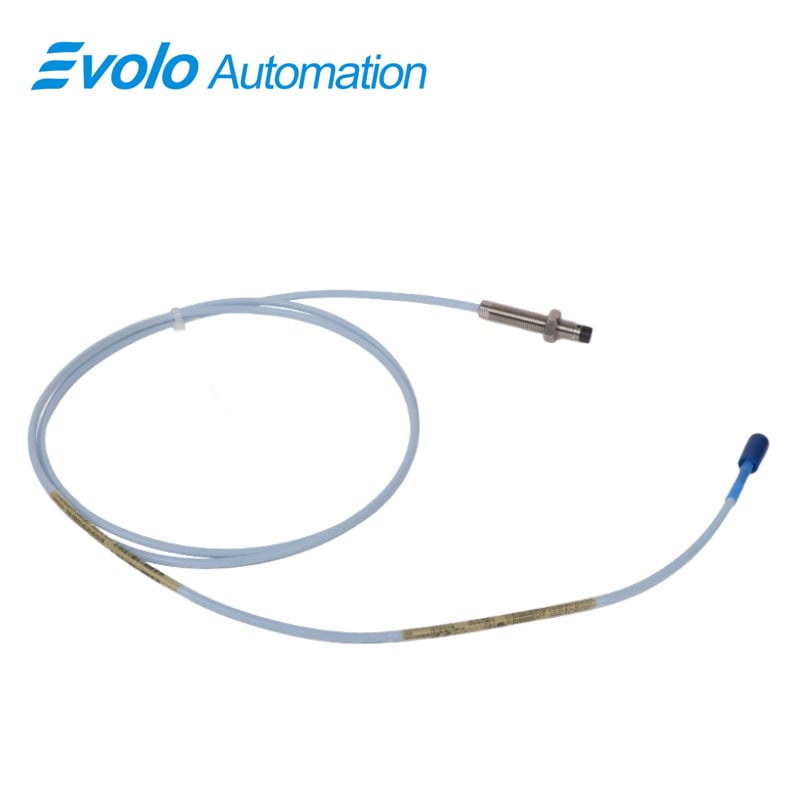

The 330101-00-20-20-12-05 probe features a 3/8-24 UNF threaded stainless steel case, a 2.0 meter FluidLoc cable, and a Miniature coaxial ClickLoc connector that ensures secure, vibration-resistant electrical connections. Its patented FluidLoc cable technology prevents process fluids or oil from entering the cable core, maintaining signal integrity and reducing maintenance requirements. The probe operates over a wide temperature range of -52°C to +177°C (-62°F to +350°F), with 50 Ω output resistance, less than 2 mV/V supply sensitivity, and typical 69.9 pF/m extension cable capacitance for long-distance signal stability. Certified with CSA, ATEX, and IECEx approvals, the 3300 XL 8 mm Proximity Probe is ideal for hazardous-area automation systems and ensures compliance in global industrial applications.

Applications

Application 1: Radial Vibration Monitoring in Turbines

The 3300 XL 8 mm Proximity Probe measures radial shaft vibration with high resolution. Its 2 mm linear range enables early detection of rotor imbalance and bearing wear, supporting automated alerts and predictive maintenance in turbine monitoring systems.

Application 2: Shaft Position Measurement in Centrifugal Compressors

The probe provides precise shaft displacement readings, ensuring reliable position monitoring in centrifugal compressors. Its low supply sensitivity guarantees stable measurements under voltage variations in automated control systems.

Application 3: Keyphasor Phase Reference Signals

As a Keyphasor sensor, the 330101-00-20-20-12-05 probe generates accurate phase reference signals for rotational speed calculations, enabling automated vibration analysis and fault detection in industrial machinery.

Application 4: Overspeed Protection and Tachometer Applications

Integrated into speed protection systems, the probe provides proportional output for accurate overspeed detection, safeguarding turbines, compressors, and pumps in automated safety systems.

Application 5: Predictive Maintenance in Industrial Automation

The probe continuously monitors vibration and displacement, feeding data into predictive maintenance systems. Analysis of this data reduces downtime, optimizes maintenance intervals, and extends equipment life in automated operations.

Specifications

Competitive Advantage

Competitive Advantage 1: Hazardous Area Certifications

The 3300 XL 8 mm Proximity Probe holds CSA, ATEX, and IECEx approvals, enabling deployment in hazardous automation environments while maintaining compliance with global safety standards.

Competitive Advantage 2: FluidLoc Cable for Contaminant Protection

The FluidLoc cable prevents ingress of oil and process fluids, maintaining signal accuracy and reducing maintenance needs in fluid-exposed industrial systems.

Competitive Advantage 3: Wide Operating Temperature Range

Operating from -52°C to +177°C, the probe maintains precise measurements in extreme thermal conditions, minimizing the need for recalibration in automated machinery.

Competitive Advantage 4: Robust Mechanical and Electrical Design

Patented TipLoc and CableLoc technologies provide up to 330 N pull strength, ensuring secure mechanical attachment and vibration-resistant electrical connections for reliable performance in industrial automation.

Competitive Advantage 5: API 670 Compliance and Interchangeability

Compliant with API 670, the 3300 XL 8 mm Proximity Probe is fully interchangeable with legacy 3300 series probes and sensors, simplifying system upgrades while ensuring consistent automation monitoring performance.
