330102-03-25-10-02-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330102-03-25-10-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

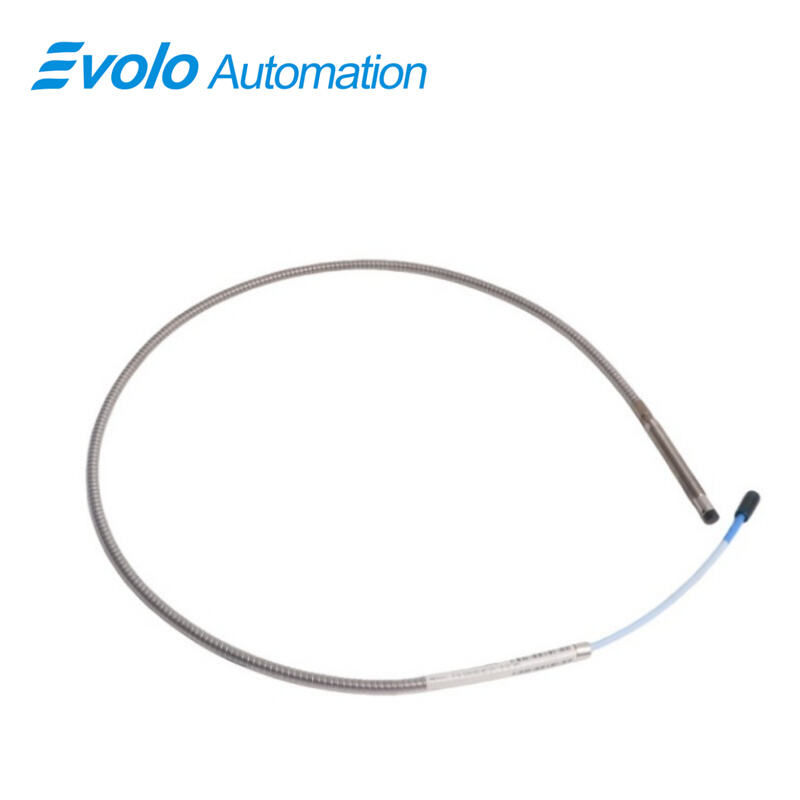

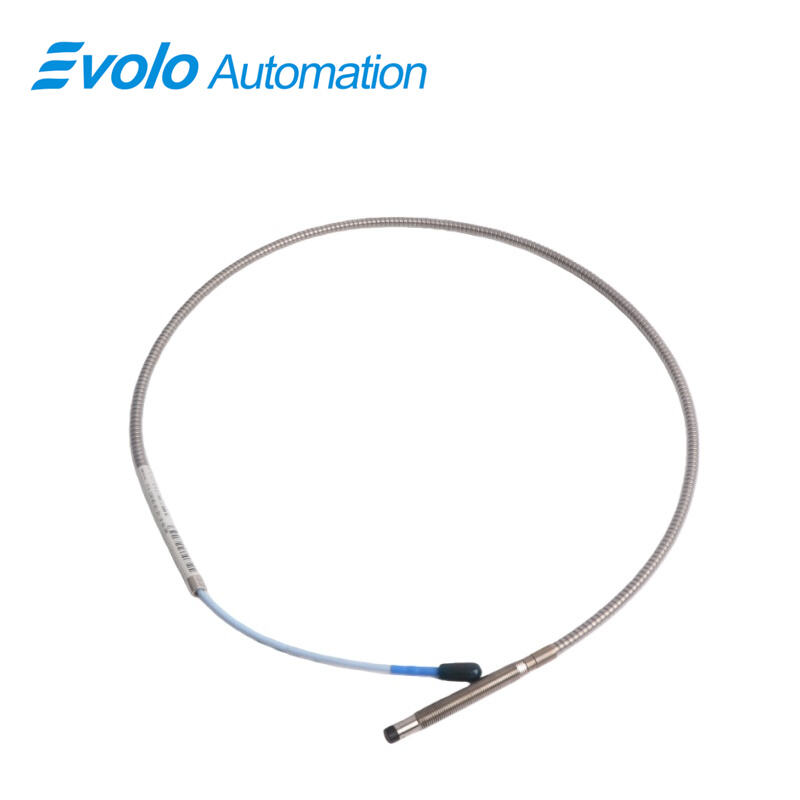

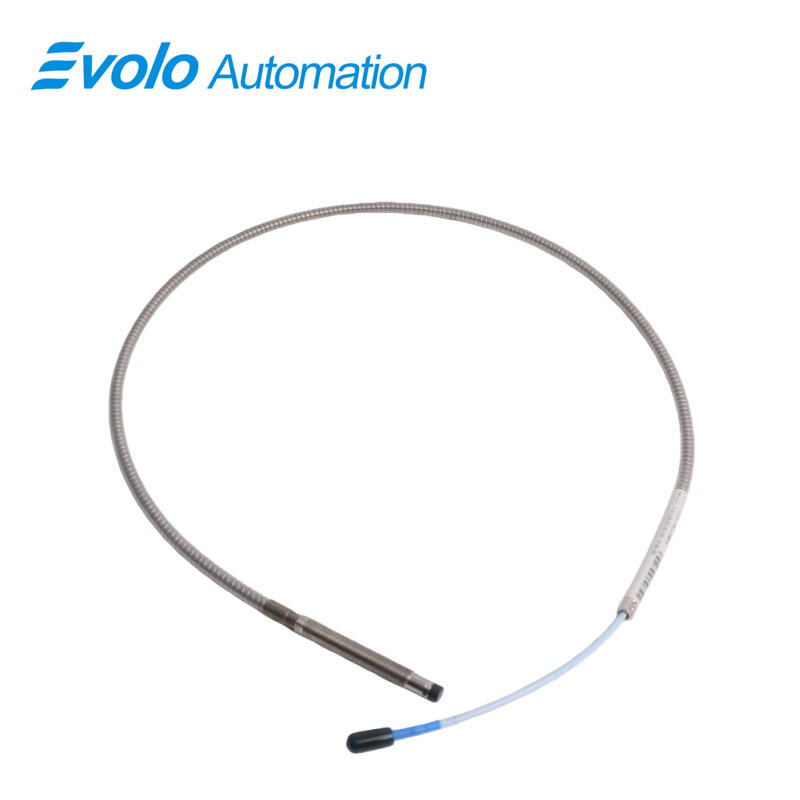

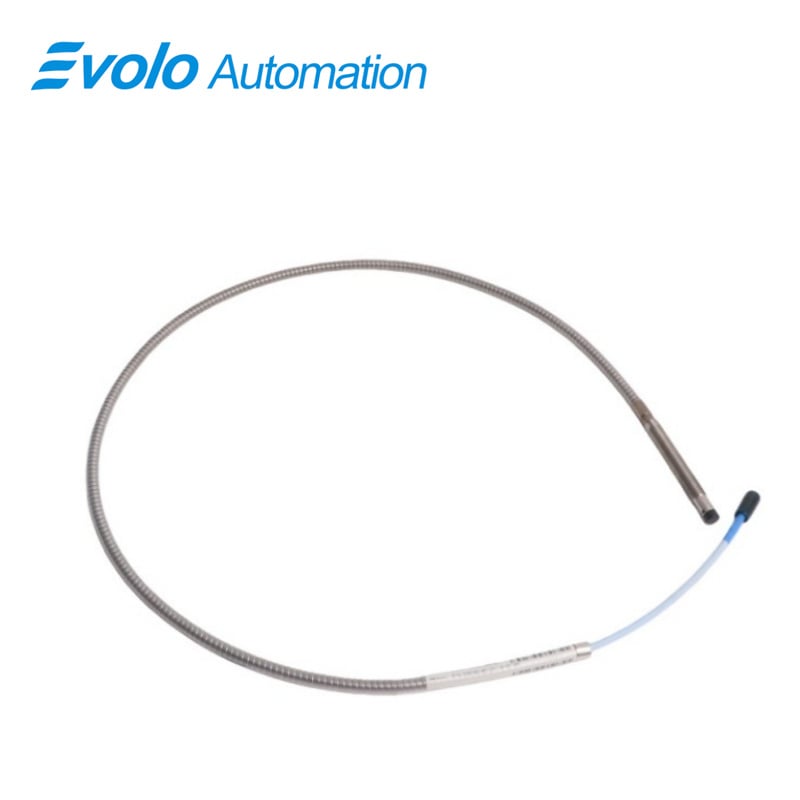

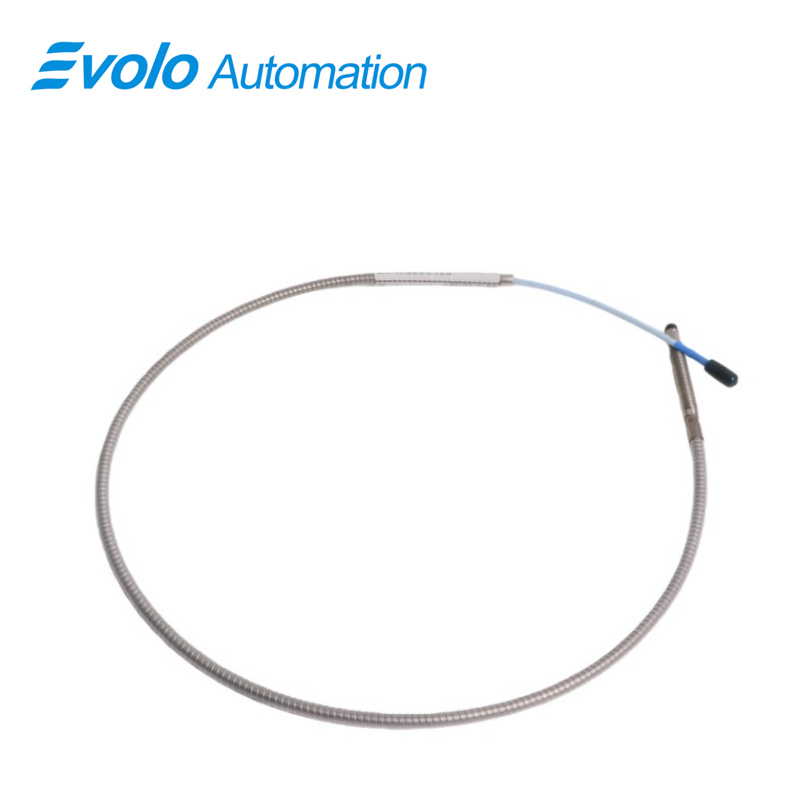

The 330102-03-25-10-02-05 3300 XL 8 mm Proximity Probe is a high-performance eddy-current transducer designed for industrial automation and machinery monitoring. It provides an output voltage directly proportional to the distance between the probe tip and the target conductive surface, enabling precise measurement of static shaft positions and dynamic vibration. With a 2 mm linear range and robust 3/8-24 UNF probe thread, the probe delivers reliable performance in tight installation spaces and high-temperature environments up to 177°C (350°F).

Equipped with a 1.0-meter (3.3 ft) miniature coaxial ClickLoc cable, this probe ensures secure connections and low signal interference. The TipLoc molded probe tip and CableLoc pull-strength cable design provide 330 N (75 lbf) retention for improved mechanical reliability. Optional FluidLoc cables prevent oil or other liquids from leaking, enhancing safety in automated machinery environments. Fully compatible with 3300 XL series transducers, the probe allows for seamless interchangeability with existing probes, extension cables, and Proximitor sensors, reducing installation time and maintenance requirements while maintaining API 670 compliance for mechanical configuration, accuracy, and temperature stability.

Applications

1. Shaft Vibration Monitoring
Measures radial and axial vibrations in fluid-film bearings with a 2 mm linear range, supporting predictive maintenance for high-speed turbines and pumps.

2. Static Position Sensing
Tracks shaft or rotor positions in automated machinery, ensuring precise alignment and operational stability.

3. Keyphasor Reference Signals
Provides phase reference and tachometer signals for rotating equipment, enabling synchronization with control systems and condition monitoring software.

4. Hazardous Area Operations
Certified CSA, ATEX, and IECEx, making the probe suitable for automated machinery in explosive or flammable industrial environments.

5. Quick Maintenance and Retrofit
Allows for fast replacement or cable adjustments without disassembling the machine, reducing downtime and maintenance costs in industrial automation setups.

Specifications

Competitive Advantage

1. High-Precision Measurement
The 2 mm linear range with less than 2 mV supply sensitivity variation ensures highly accurate vibration and position readings.

2. Mechanical Reliability
TipLoc and CableLoc designs provide 330 N (75 lbf) pull strength, preventing probe tip or cable disconnection under harsh operational conditions.

3. Hazardous Environment Compatibility
Certified to CSA, ATEX, and IECEx standards, allowing use in automated systems within hazardous industrial areas.

4. Full Component Interchangeability
Compatible with 3300 XL series probes, extension cables, and Proximitor sensors, eliminating the need for individual calibration or bench matching.

5. Optional FluidLoc Cable
Prevents leakage of oil and other liquids, protecting sensitive automation equipment and maintaining operational safety in industrial environments.
