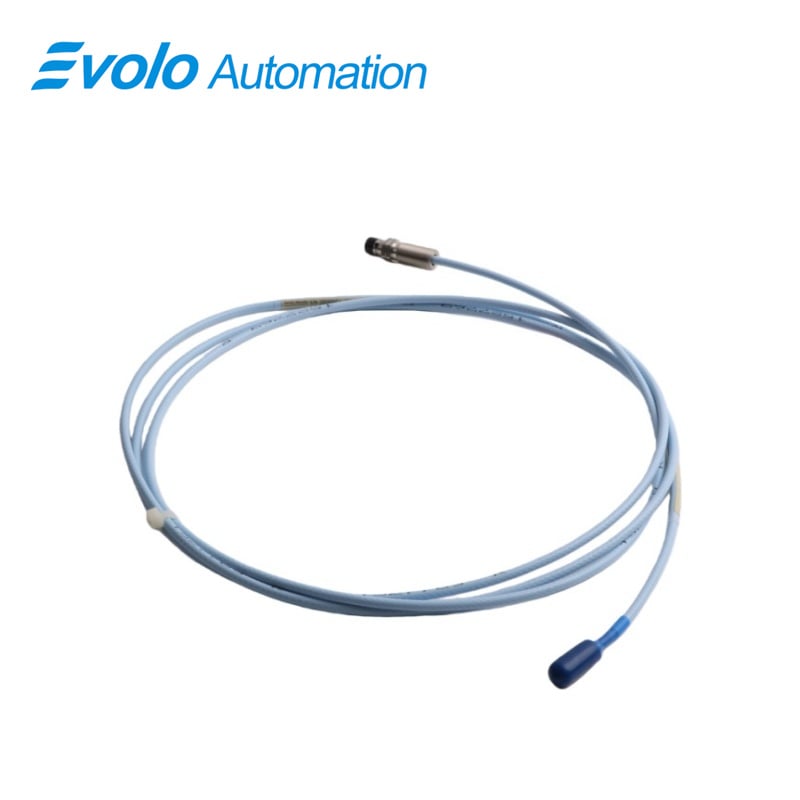

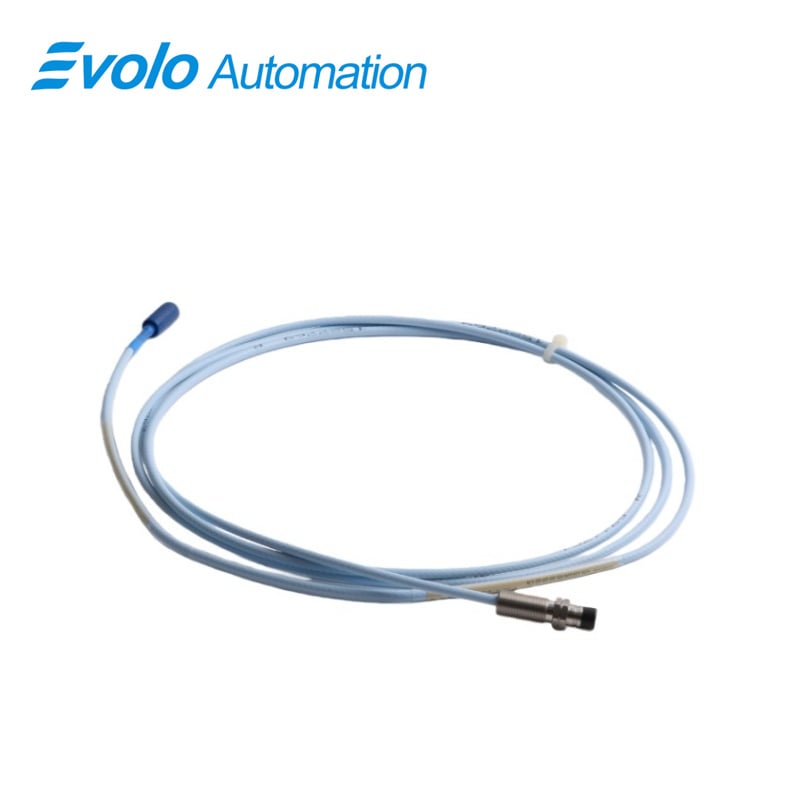

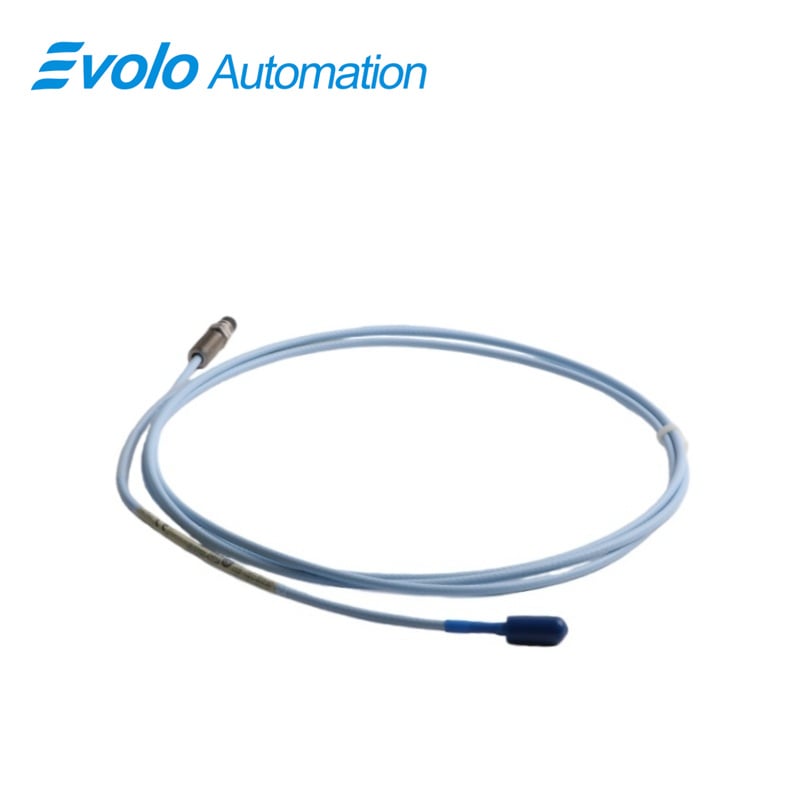

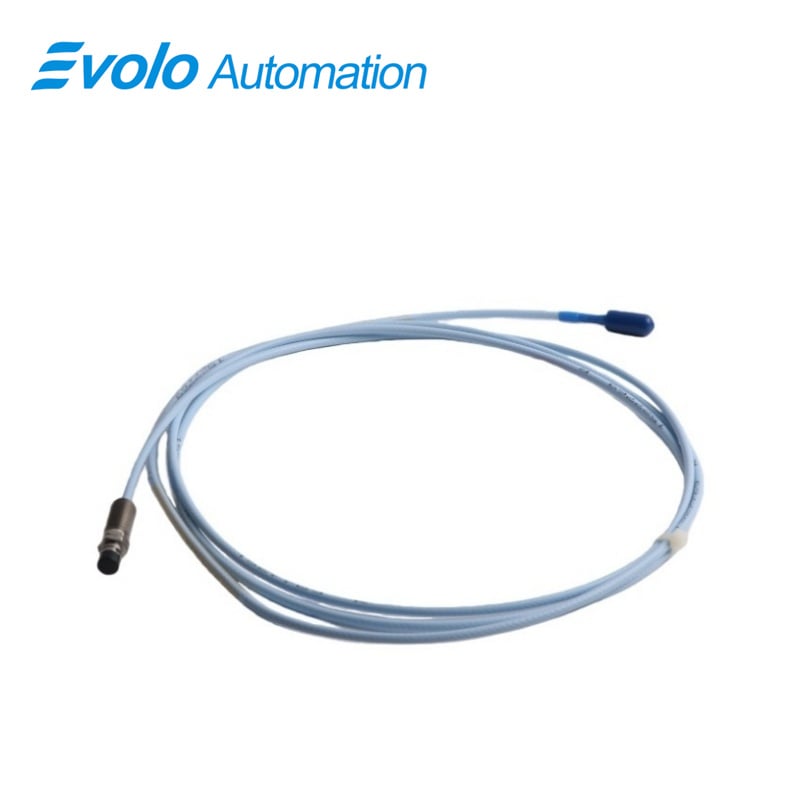

330106-05-30-20-02-CN 3300 XL 8 mm Reverse Mount Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330106-05-30-20-02-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330106-05-30-20-02-CN 3300 XL 8 mm Reverse Mount Probe provides precise non-contact measurement of shaft position and vibration for automated machinery. The 330106-05-30-20-02-CN converts the distance between the Polyphenylene sulfide probe tip and conductive targets into a proportional voltage signal, enabling real-time static and dynamic monitoring.

With a 2 mm (80 mils) linear range, the 330106-05-30-20-02-CN captures micrometer-level radial and axial shaft movements. The M10 × 1 stainless steel threaded probe case supports up to 15 mm of thread engagement for reverse mounting in confined bearing housings. The 2.0 meter total probe length of the 330106-05-30-20-02-CN allows direct routing to Proximitor or signal conditioning modules using the Miniature ClickLoc coaxial connector.

The 330106-05-30-20-02-CN operates across –52°C to +177°C, making it suitable for high-temperature pumps, turbines, and compressors. CSA, ATEX, and IECEx approvals allow deployment of the 330106-05-30-20-02-CN in hazardous-area automation systems. This probe supports accurate Keyphasor reference signals, vibration monitoring, and axial position tracking in industrial automated machinery.

Applications

Measure Radial Shaft Vibration on Pumps

Install the 330106-05-30-20-02-CN near pump shafts to monitor radial vibration across a 2 mm (80 mils) linear range. The Polyphenylene sulfide tip of the 330106-05-30-20-02-CN converts shaft movement into voltage signals for automated monitoring systems. The M10 × 1 threaded stainless-steel case allows up to 15 mm engagement to position the 330106-05-30-20-02-CN in compact pump bearings without interference.

Track Axial Shaft Movement on Compressors

The 330106-05-30-20-02-CN measures axial displacement in centrifugal compressors caused by thrust forces. Operating between –52°C and +177°C, the 330106-05-30-20-02-CN can be mounted close to hot thrust bearings. Its 2.0 meter cable supports direct connection to Proximitor modules or automation cabinets, reducing intermediate connectors and preserving signal integrity.

Generate Keyphasor Speed Signals for PLC and DCS

Mount the 330106-05-30-20-02-CN on shafts to detect surface features and generate Keyphasor pulses. The Miniature ClickLoc coaxial connector ensures secure voltage transmission from the 330106-05-30-20-02-CN under continuous rotation and vibration.

Specifications

Competitive Advantage

Install Behind Bearings in Confined Spaces

The reverse mount of the 330106-05-30-20-02-CN allows placement where front access is blocked. The 15 mm thread engagement provides precise insertion control for accurate radial and axial measurements.

Operate in High-Temperature Machinery

The 330106-05-30-20-02-CN functions from –52°C to +177°C, enabling measurement near hot pumps, turbines, and compressors without signal drift.

Direct Connection with Long Probe Cable

The 2.0 meter cable of the 330106-05-30-20-02-CN allows direct routing to signal conditioning units, reducing connectors and preserving the voltage signal for automated systems.

Maintain Close Shaft Clearance

The Polyphenylene sulfide tip of the 330106-05-30-20-02-CN holds consistent 2 mm spacing near rotating shafts, enabling accurate voltage output for radial and axial monitoring in automation setups.
