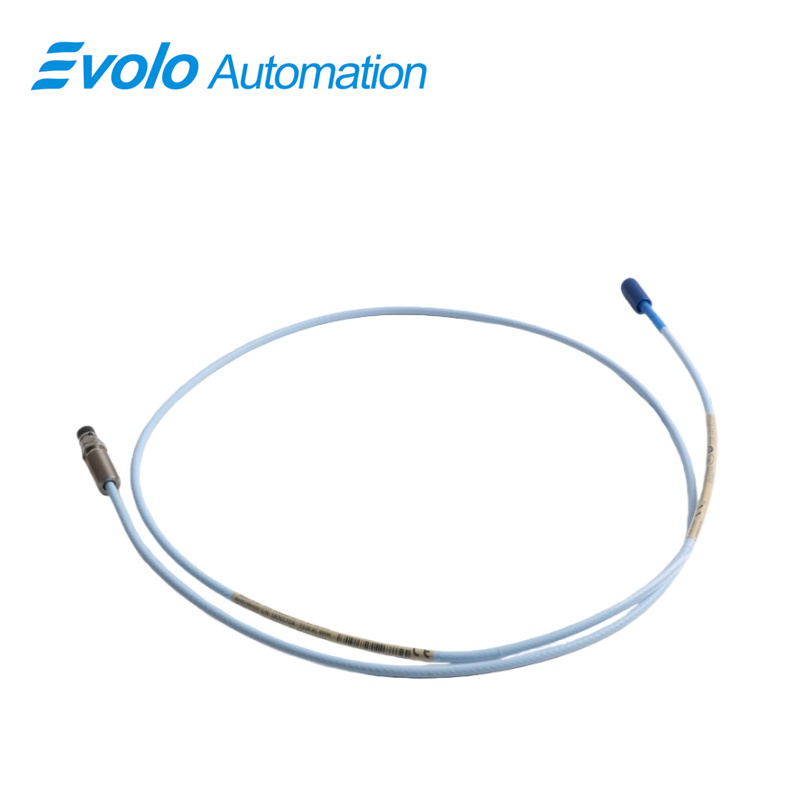

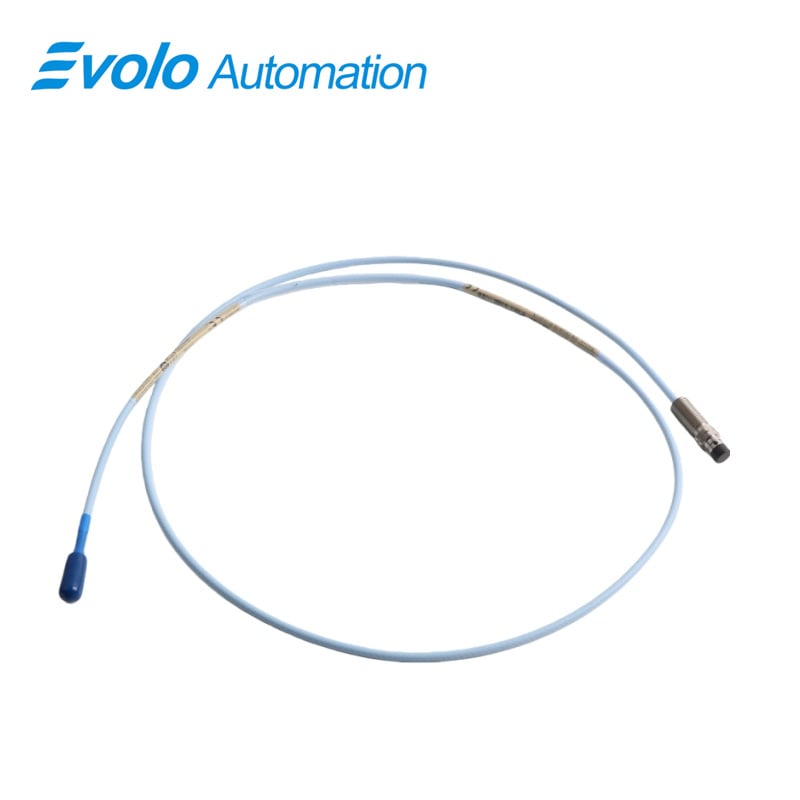

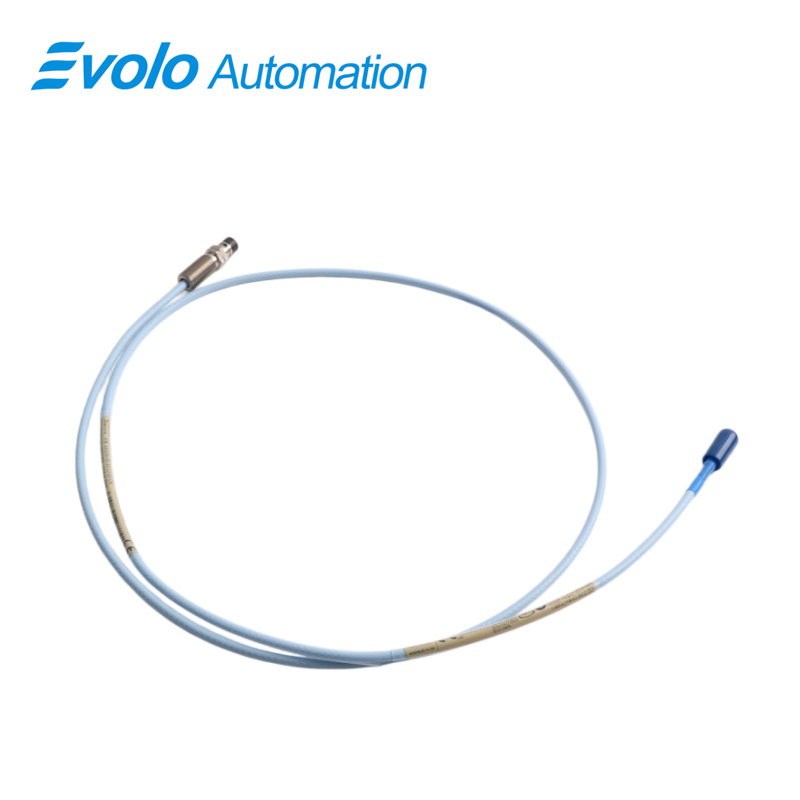

330106-05-30-10-12-CN 3300 XL 8 mm Reverse Mount Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330106-05-30-10-12-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330106-05-30-10-12-CN 3300 XL 8 mm Reverse Mount Probe is designed for automated machinery that requires precise non-contact measurement of shaft position and vibration. The 330106-05-30-10-12-CN probe uses eddy current technology to generate an output voltage proportional to the distance between the probe tip and a conductive target, enabling accurate static position and dynamic vibration monitoring in rotating equipment.

With a linear range of 2 mm (80 mils) and a total probe length of 1.0 meter, the 330106-05-30-10-12-CN supports installation in compact automation systems where reverse mounting is required. The M10 × 1 threaded stainless-steel probe case allows up to 15 mm of thread engagement, supporting controlled mechanical mounting on bearing housings and machine frames. The 330106-05-30-10-12-CN operates across a wide temperature range from –52°C to +177°C, making it suitable for harsh industrial environments.

The probe features a Polyphenylene sulfide tip, a Miniature ClickLoc coaxial connector, and a FluidLoc cable to block fluid migration along the cable path. CSA, ATEX, and IECEx approvals allow the 330106-05-30-10-12-CN to be applied in automated systems used in hazardous industrial areas.

Applications

Shaft Vibration Monitoring on Turbines

The 330106-05-30-10-12-CN is installed near turbine shafts to measure radial vibration caused by imbalance or misalignment. Using a linear measurement range of 2 mm (80 mils), the 330106-05-30-10-12-CN converts minute shaft movement into a proportional voltage signal for automated monitoring systems. The reverse mount structure of the 330106-05-30-10-12-CN supports installation behind bearing housings, where available mounting depth is limited to 15 mm of thread engagement.

Axial Position Measurement on Compressors

In centrifugal and axial compressors, the 330106-05-30-10-12-CN measures axial shaft displacement within the defined 2 mm range to detect thrust movement. The M10 × 1 stainless-steel probe case of the 330106-05-30-10-12-CN supports secure positioning under continuous load. Operating temperatures from –52°C to +177°C allow the 330106-05-30-10-12-CN to function near hot compressor stages without signal drift.

Speed Reference Signal Input for Control Systems

The 330106-05-30-10-12-CN detects surface features on rotating shafts to generate reference pulses for speed calculation. With a 1.0 meter probe length, the 330106-05-30-10-12-CN allows direct routing to Proximitor sensors and automation cabinets, reducing signal attenuation in high-speed rotating equipment.

Specifications

Competitive Advantage

Reverse Mount Design for Confined Machinery Layouts

The 330106-05-30-10-12-CN reverse mount configuration allows installation where front-mounted probes cannot fit. The 15 mm maximum thread engagement of the 330106-05-30-10-12-CN supports controlled insertion depth in compact bearing housings and sealed machine frames.

Wide Operating Temperature Range for Heavy Equipment

With an operating range of –52°C to +177°C, the 330106-05-30-10-12-CN supports continuous monitoring in hot bearing zones and outdoor machinery. This temperature range allows the 330106-05-30-10-12-CN to maintain signal output during thermal cycling in automated plants.

Hazardous Area Deployment with Multiple Certifications

CSA, ATEX, and IECEx approvals allow the 330106-05-30-10-12-CN to be installed in automated systems operating in explosive gas environments. These approvals enable the 330106-05-30-10-12-CN to be applied across petrochemical, power generation, and refining automation projects.
