330881-28-04-145-03-02 PROXPAC XL Proximity Transducer

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330881-28-04-145-03-02
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

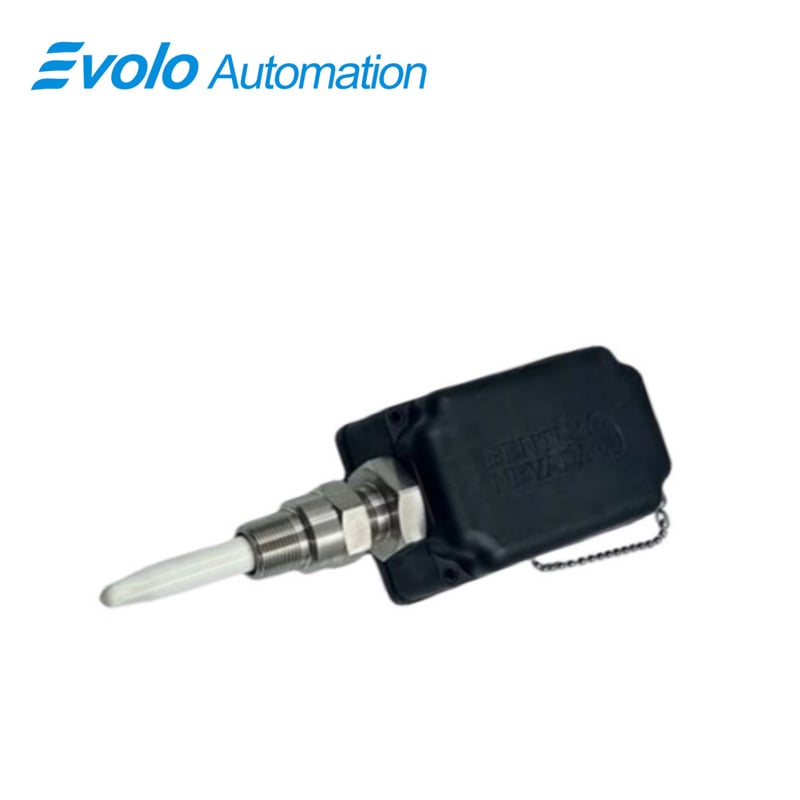

The PROXPAC XL Proximity Transducer (330881-28-04-145-03-02) is a self-contained 8 mm proximity probe assembly designed for precise vibration and shaft position monitoring in industrial automation and rotating machinery. Featuring a 145 mm probe penetration and a 40 mm standoff adapter, this assembly ensures accurate measurement in constrained machinery environments while simplifying installation. By integrating the 3300 XL Proximitor sensor directly into the housing, the PROXPAC XL eliminates the need for a separate Proximitor housing or extension cables, reducing wiring complexity and potential failure points.

The housing is constructed from Polyphenylene Sulfide (PPS) reinforced with glass and conductive fibers, providing exceptional mechanical strength, electrostatic dissipation, and resistance to chemicals. Rated IP66 and Type 4X, it delivers reliable operation in wet, dusty, or corrosive industrial conditions. The transducer supports a linear range of 2 mm (80 mils) with a recommended gap of 1.27 mm (50 mils) and accommodates shafts from 50.8 mm (2.0 in) minimum to 76.2 mm (3.0 in) recommended.

Electrical performance is highly stable with supply sensitivity < 2 mV per volt, output resistance of 50 Ω, and field wiring compatibility for 16–24 AWG cables (0.2–1.5 mm²). Operating across a temperature range of -52°C to +100°C (-62°F to +212°F), this PROXPAC XL transducer provides reliable, long-term monitoring for turbines, compressors, motors, and other critical rotating equipment in automated industrial processes. Its self-contained design ensures high-accuracy vibration measurement while minimizing installation errors and maintenance complexity.

Applications

1. Turbine Shaft Monitoring
The 145 mm probe penetration allows precise detection of turbine shaft displacement and vibration within a linear range of 2 mm, supporting predictive maintenance programs to prevent unscheduled downtime.

2. Motor Vibration Analysis
The integrated 3300 XL Proximitor sensor provides continuous monitoring of motor shaft vibration, enabling early detection of imbalance, misalignment, or bearing issues in automated production lines.

3. Harsh Environment Process Monitoring
The IP66 and Type 4X rated housing protects against dust, moisture, and chemical exposure, making it suitable for petrochemical, chemical, and power generation facilities.

4. Industrial Compressors and Pumps
The 40 mm standoff adapter and extended 145 mm probe allow installation in recessed or difficult-to-access housings, ensuring accurate vibration readings on pumps and compressors.

5. Simplified Installation in Automation Systems
Self-contained design eliminates external Proximitor housings and extension cables, reducing wiring complexity and installation errors in tight industrial spaces.

Specifications

Competitive Advantage

1. Integrated Sensor and Probe
Combining the 3300 XL Proximitor with an 8 mm probe reduces installation points of failure and eliminates external housings or cables.

2. Durable and Chemical-Resistant Housing
Constructed with reinforced PPS, the housing provides chemical resistance, electrostatic dissipation, and high mechanical strength.

3. High-Precision Measurement
Linear range of 2 mm with recommended 1.27 mm gap ensures accurate, repeatable vibration and shaft position monitoring.

4. Harsh Environment Capability
IP66 and Type 4X ratings allow reliable operation in wet, dusty, or corrosive industrial conditions, extending sensor lifespan.

5. Streamlined Installation and Maintenance
Preconfigured standoff adapter and integrated sensor allow quick installation and easy field wiring using 16–24 AWG cables, reducing setup time and maintenance effort.
