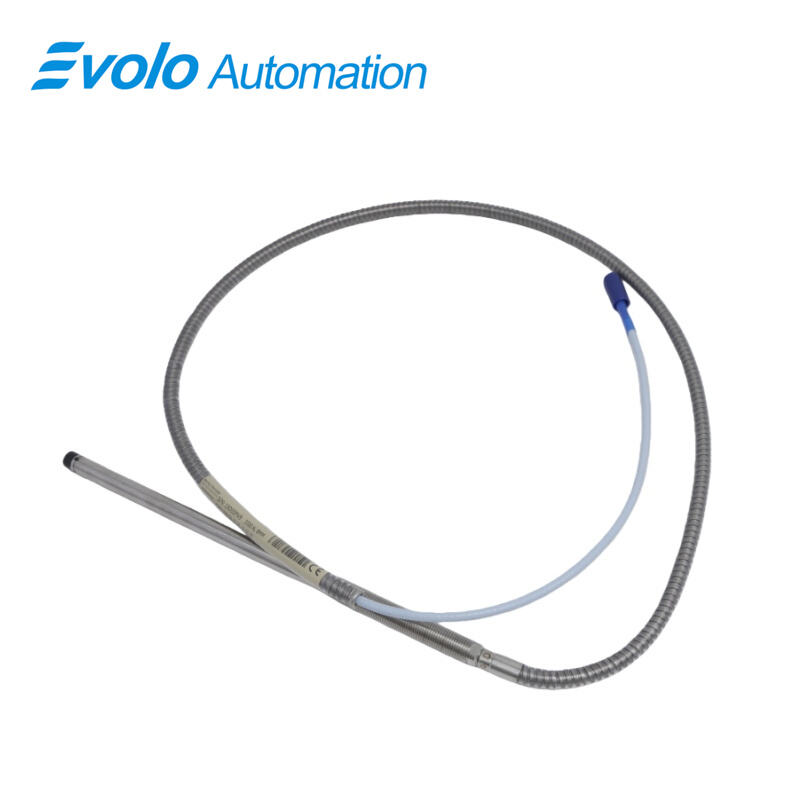

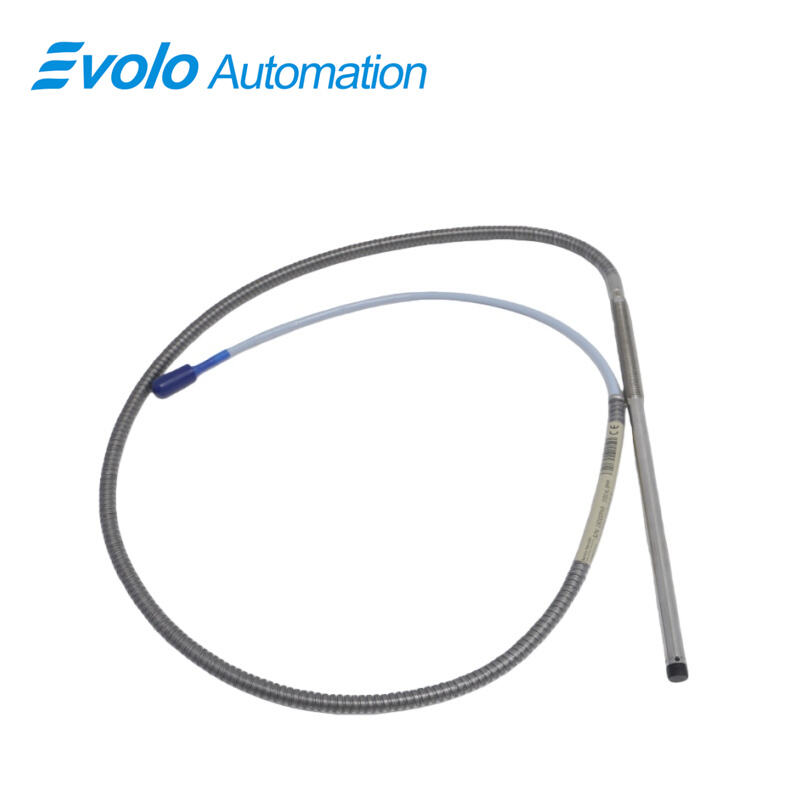

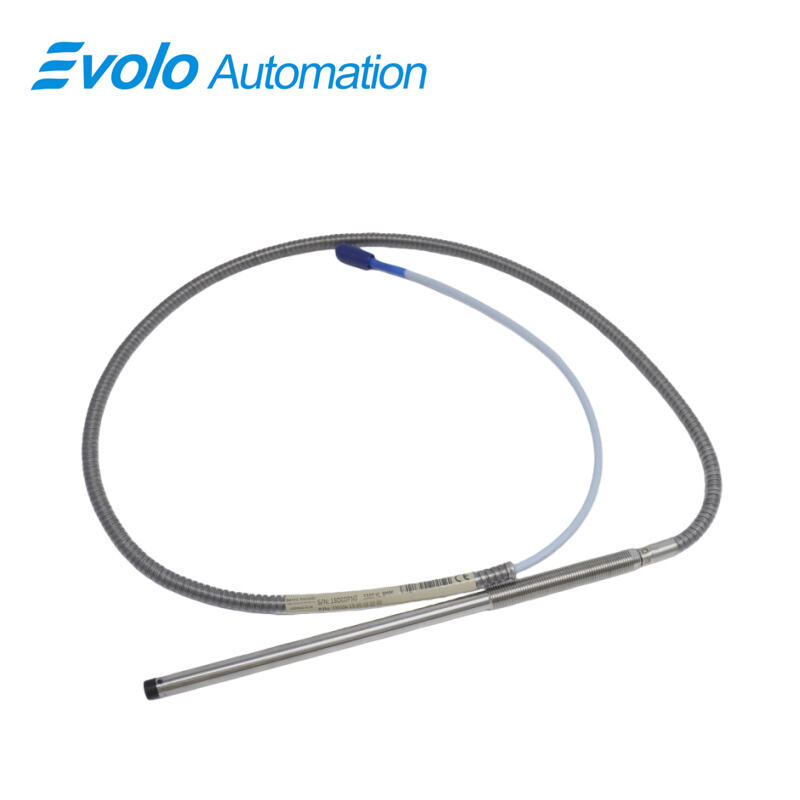

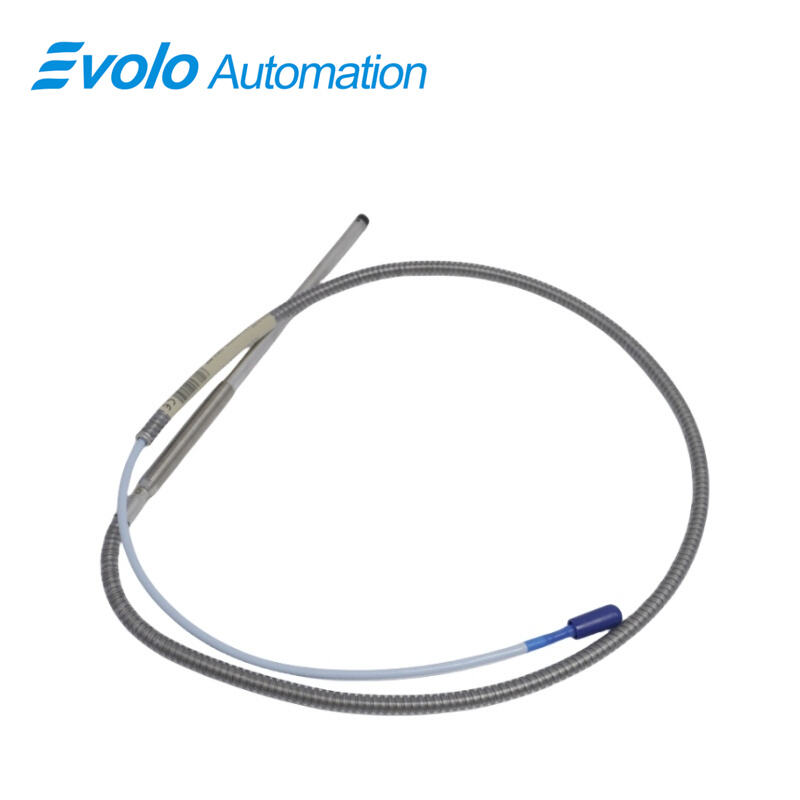

330104-13-20-10-02-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-13-20-10-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-13-20-10-02-00 3300 XL 8 mm Proximity Probes deliver precise position and vibration measurement for industrial automation systems. Each 330104-13-20-10-02-00 3300 XL 8 mm Proximity Probe features a 130 mm minimum unthreaded length, 200 mm minimum case length, and a total length up to 1.0 meter (3.3 feet), with an M10x1 threaded probe and 15 mm maximum thread engagement. Designed for extreme conditions, the 330104-13-20-10-02-00 3300 XL 8 mm Proximity Probe operates from -52°C to +177°C (-62°F to +350°F), with output resistance of 50 Ω and linear range of 2 mm (80 mils). The probe’s miniature coaxial ClickLoc connector and standard cable, with 69.9 pF/m capacitance, support field wiring from 0.2 to 1.5 mm² (16–24 AWG). These 330104-13-20-10-02-00 3300 XL 8 mm Proximity Probes are ideal for Keyphasor speed measurement, fluid-film bearing vibration monitoring, and static position detection. Optional FluidLoc cables prevent leakage of oil or liquids, while TipLoc molding and CableLoc designs enhance the probe-cable connection with 330 N pull strength. The 330104-13-20-10-02-00 3300 XL 8 mm Proximity Probes ensure interchangeability with other 3300 series probes and extension cables, enabling flexible integration into automation systems without bench calibration.

Applications

Monitor Bearing Vibration in Rotating Machinery
The 330104-13-20-10-02-00 3300 XL 8 mm Proximity Probes measure dynamic vibration on fluid-film bearings with a linear range of 2 mm (80 mils) and output resistance of 50 Ω. Each 330104-13-20-10-02-00 3300 XL 8 mm Proximity Probe operates from -52°C to +177°C (-62°F to +350°F), enabling reliable measurement under extreme temperatures. The 1.0 meter total length and M10x1 threaded probe with 15 mm maximum thread engagement secure the 330104-13-20-10-02-00 3300 XL 8 mm Proximity Probe in tight industrial spaces.

Detect Shaft Position in Pumps and Compressors
With a minimum unthreaded length of 130 mm and case length of 200 mm, the 330104-13-20-10-02-00 3300 XL 8 mm Proximity Probes precisely monitor shaft displacement. Its miniature coaxial ClickLoc connector and 69.9 pF/m extension cable capacitance allow the 330104-13-20-10-02-00 3300 XL 8 mm Proximity Probe to deliver accurate position readings for Keyphasor and speed measurement applications.

Measure Keyphasor Signals for Speed Analysis
The 330104-13-20-10-02-00 3300 XL 8 mm Proximity Probes produce output voltage directly proportional to tip distance, enabling precise Keyphasor detection on turbine and generator shafts. The 330104-13-20-10-02-00 3300 XL 8 mm Proximity Probe supports 0.2–1.5 mm² (16–24 AWG) field wiring, facilitating easy integration into automated monitoring systems.

Specifications

Competitive Advantage

Secure Probe-Cable Connection with CableLoc
The 330104-13-20-10-02-00 3300 XL 8 mm Proximity Probes use a patented CableLoc design providing 330 N pull strength, securing the probe cable to the probe tip. Each 330104-13-20-10-02-00 3300 XL 8 mm Proximity Probe benefits from this feature in high-vibration industrial applications.

Strong Probe Tip Bond with TipLoc Molding
The 330104-13-20-10-02-00 3300 XL 8 mm Proximity Probes feature TipLoc molding, creating a robust bond between probe tip and body. Each 330104-13-20-10-02-00 3300 XL 8 mm Proximity Probe withstands mechanical stress, ensuring accurate measurement across the full -52°C to +177°C (-62°F to +350°F) operating range.

Flexible Field Wiring for Easy Installation
Supporting 0.2–1.5 mm² (16–24 AWG) wiring, the 330104-13-20-10-02-00 3300 XL 8 mm Proximity Probes integrate easily into existing automation systems. The 330104-13-20-10-02-00 3300 XL 8 mm Proximity Probe can be installed without bench calibration, reducing setup time and labor.

Backward Compatible with Other 3300 Series Probes
The 330104-13-20-10-02-00 3300 XL 8 mm Proximity Probes can replace 5 mm or 8 mm 3300 series probes without modification. Each 330104-13-20-10-02-00 3300 XL 8 mm Proximity Probe ensures seamless replacement, minimizing downtime in automated production lines.
