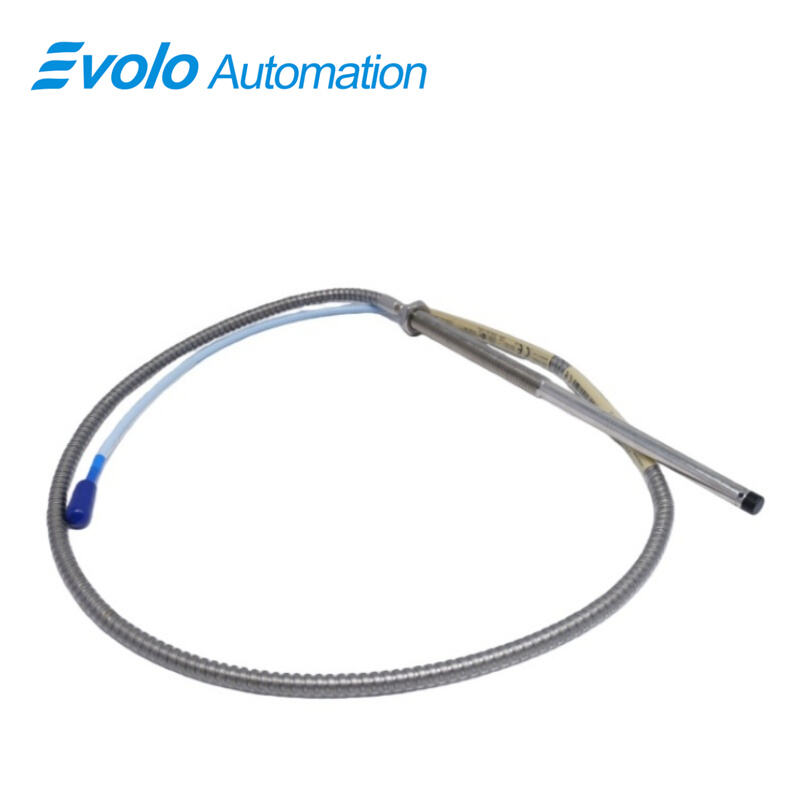

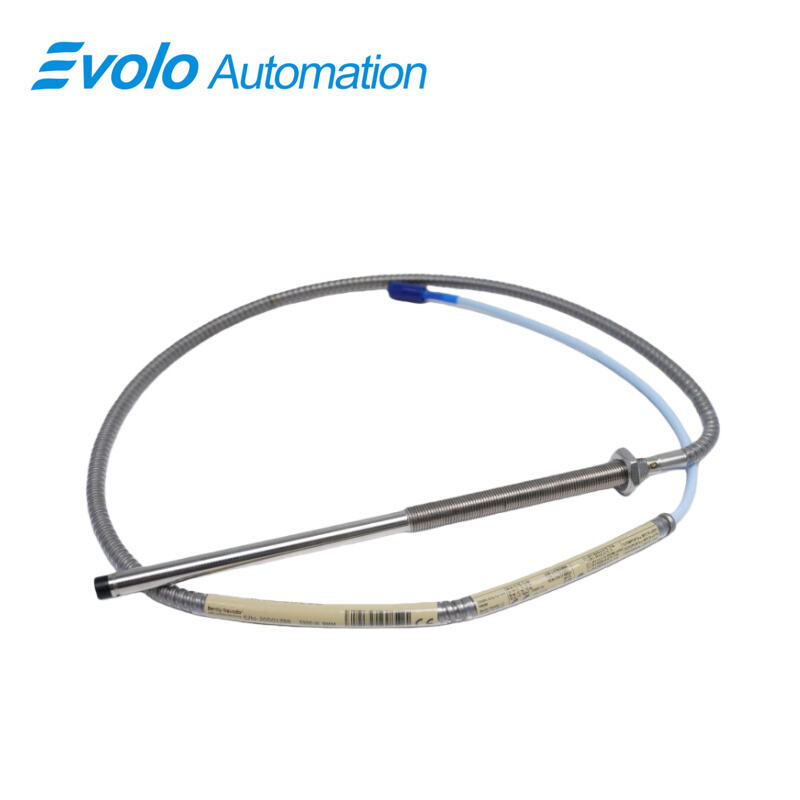

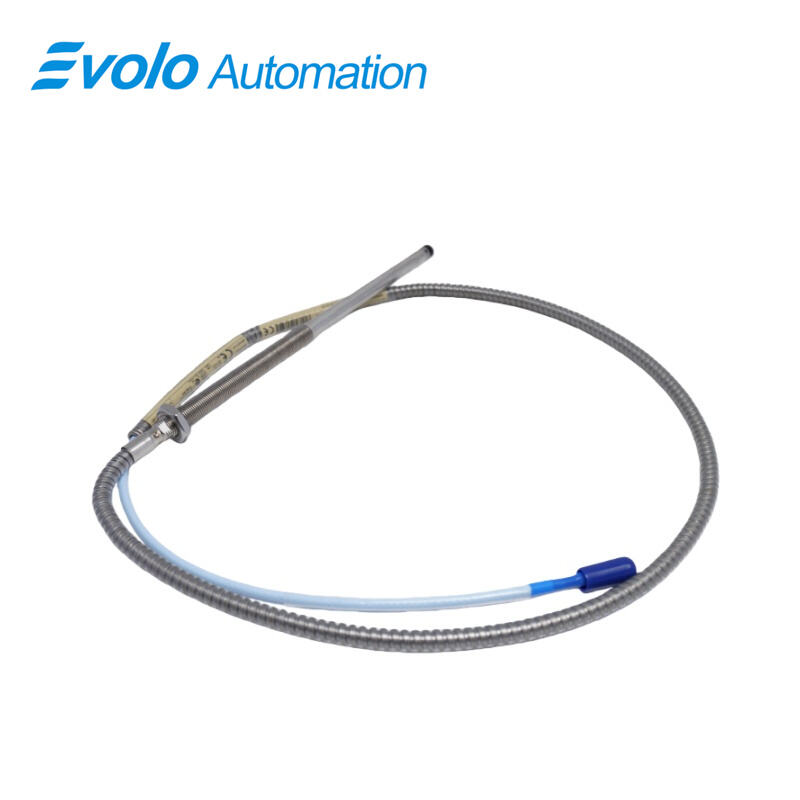

330104-10-16-10-02-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-10-16-10-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-10-16-10-02-00 3300 XL 8 mm Proximity Probe provides precise output voltage directly proportional to the distance between the probe tip and the target conductive surface, enabling accurate measurement of both static position and dynamic vibration. With a 2 mm linear range, 50 Ω output resistance, and supply sensitivity below 2 mV per volt, the 330104-10-16-10-02-00 3300 XL 8 mm Proximity Probe is ideal for automated vibration monitoring and rotor position tracking in fluid-film bearing machinery. Its M10x1 threaded case, 100 mm unthreaded length, and 160 mm minimum case length ensure secure mechanical installation. The probe’s 1.0-meter ClickLoc connector and standard cable integrate seamlessly with PLCs, DCS, and remote monitoring systems. Operating from –52°C to +177°C, the 330104-10-16-10-02-00 3300 XL 8 mm Proximity Probe supports harsh industrial environments without signal loss. Optional FluidLoc cable prevents oil or liquid ingress, maintaining uninterrupted automation monitoring. This probe system is compatible with existing 3300 XL 5 mm and 8 mm series components, allowing easy replacement or upgrades in automated control and Keyphasor speed measurement systems.

Applications

Vibration Monitoring on Fluid-Film Bearings: Use the 330104-10-16-10-02-00 3300 XL 8 mm Proximity Probe to track rotor vibration in turbines, compressors, and pumps. Its 2 mm linear range and <2 mV supply sensitivity enable precise detection of micrometer-level shaft movements for automated condition monitoring.

Rotor Position Measurement: Measure rotor shaft displacement with the 330104-10-16-10-02-00 3300 XL 8 mm Proximity Probe in high-speed machinery. The probe’s 50 Ω output resistance ensures accurate signal transmission to PLCs or DCS systems without signal distortion.

Keyphasor Reference and Speed Signals: Feed timing signals from the 330104-10-16-10-02-00 3300 XL 8 mm Proximity Probe into Keyphasor systems. The 1.0-meter ClickLoc cable and standard capacitance (69.9 pF/m) maintain signal integrity for rotational speed calculation.

Automated System Integration: Connect the 330104-10-16-10-02-00 3300 XL 8 mm Proximity Probe directly to control systems using the M10x1 threaded case and ClickLoc connector. The 160 mm case length and 100 mm unthreaded length provide flexible mounting in tight automation spaces.

Specifications

Competitive Advantage

High-Precision Linear Output: The 330104-10-16-10-02-00 3300 XL 8 mm Proximity Probe provides a direct proportional voltage output over a 2 mm linear range, with <2 mV supply sensitivity per volt, ensuring reliable automation data collection.

Accurate Signal Transmission: With 50 Ω output resistance and 69.9 pF/m cable capacitance, the 330104-10-16-10-02-00 3300 XL 8 mm Proximity Probe delivers clean signals over its 1.0-meter extension, reducing errors in automated measurement.

Flexible Installation: M10x1 probe thread, 100 mm unthreaded length, and 160 mm case length allow the 330104-10-16-10-02-00 3300 XL 8 mm Proximity Probe to be mounted securely in varied automated machinery layouts.

Harsh Environment Operation: The 330104-10-16-10-02-00 3300 XL 8 mm Proximity Probe functions across –52°C to +177°C, enabling continuous monitoring in extreme industrial conditions.

Component Interchangeability: Fully backward compatible with other 3300 XL 5 mm and 8 mm series components, the 330104-10-16-10-02-00 3300 XL 8 mm Proximity Probe allows rapid replacement and system upgrades without recalibration.
