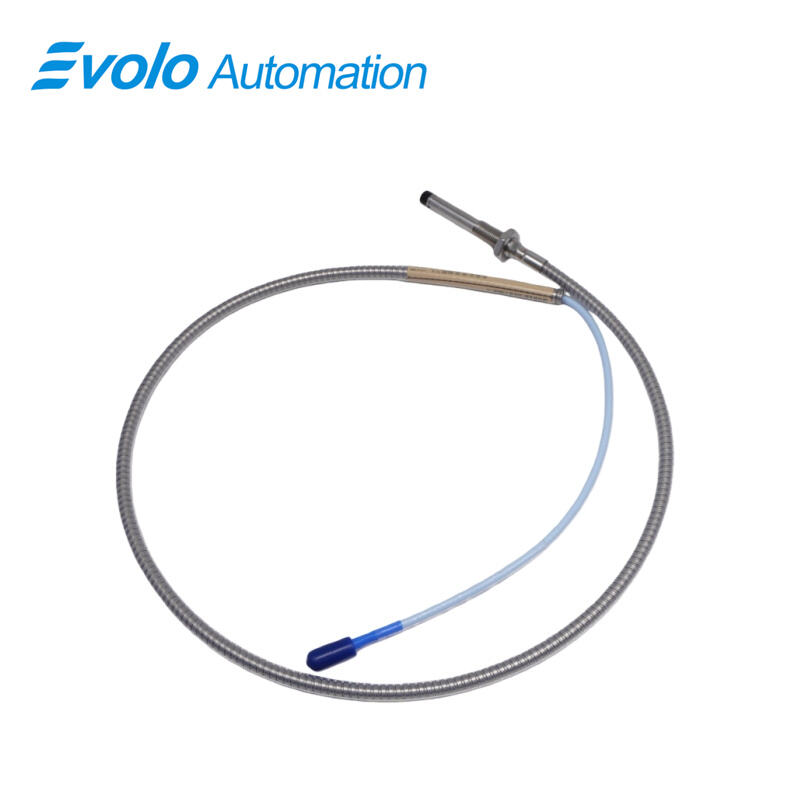

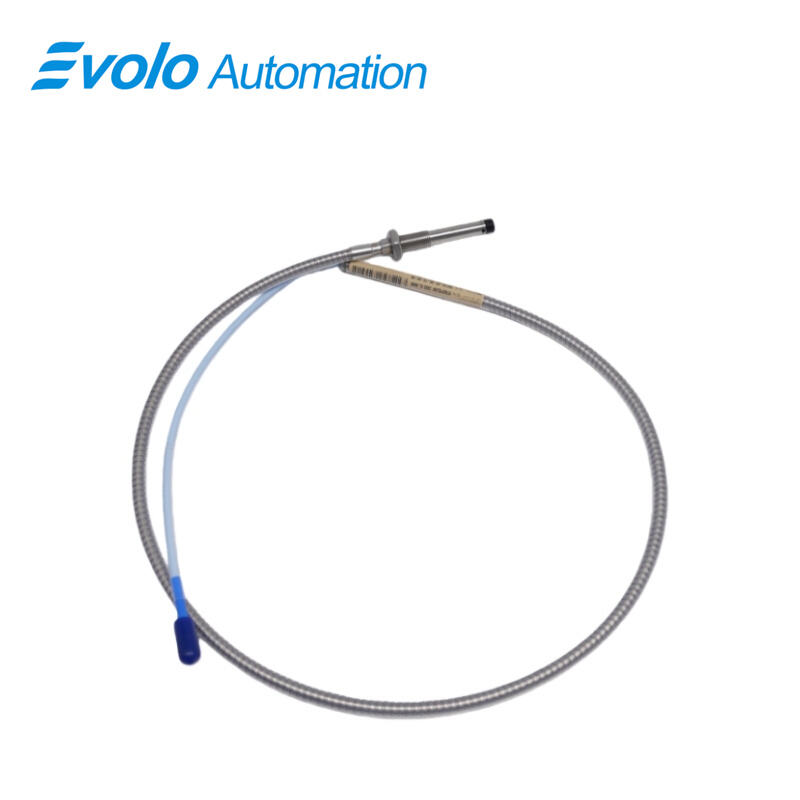

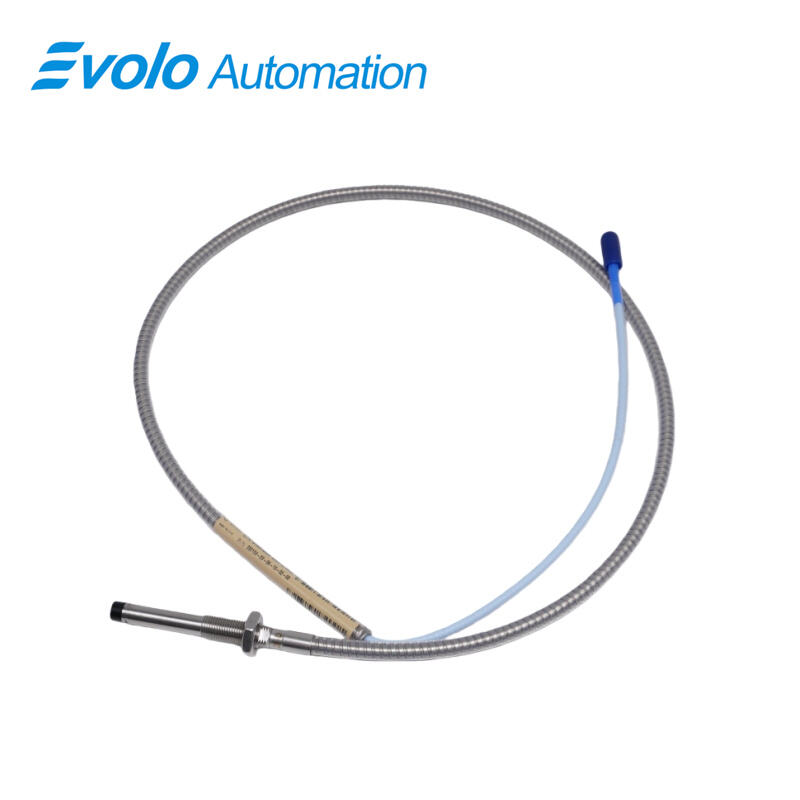

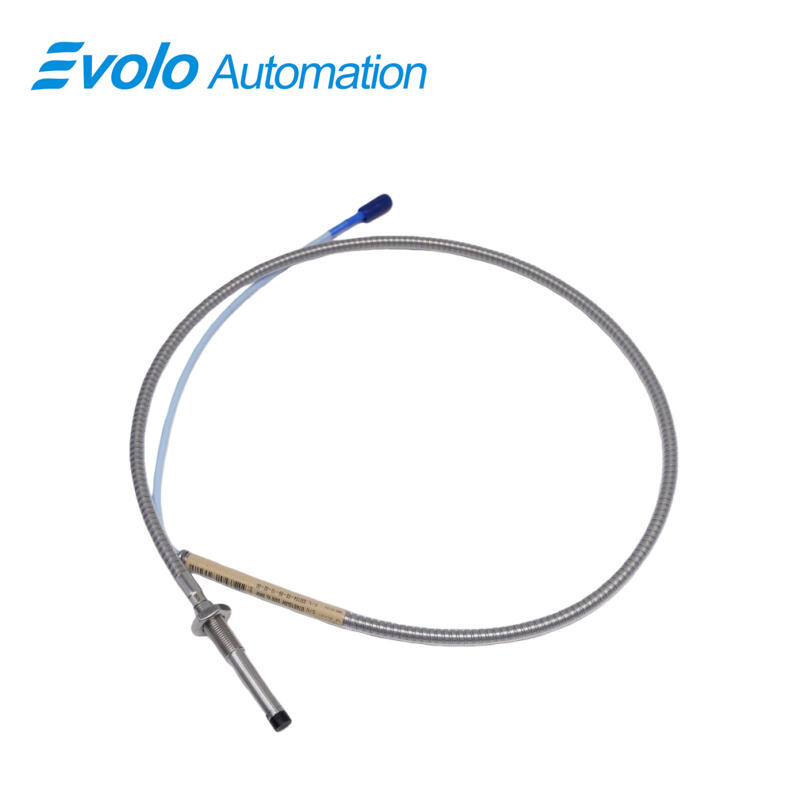

330104-03-06-10-02-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-03-06-10-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-03-06-10-02-00 3300 XL 8 mm Proximity Probes deliver precise distance measurement between the probe tip and conductive surfaces for both static (position) and dynamic (vibration) monitoring. With a 30 mm unthreaded length, 60 mm overall case, 1.0 meter total cable, M10x1 thread, and 15 mm maximum thread engagement, the 330104-03-06-10-02-00 3300 XL 8 mm Proximity Probes provide a 2 mm linear range and 50 Ω output resistance. Miniature coaxial ClickLoc connectors and 69.9 pF/m extension cables support 0.2–1.5 mm² (16–24 AWG) field wiring. Operating from -52°C to +177°C and supply sensitivity under 2 mV per volt, the 330104-03-06-10-02-00 3300 XL 8 mm Proximity Probes are ideal for fluid-film bearing position measurement, vibration monitoring, Keyphasor reference, and speed detection in automation systems. TipLoc molding and CableLoc design secure probe attachment, while optional FluidLoc cables prevent oil ingress, ensuring reliable measurement in rotating machinery.

Applications

Position Measurement on Fluid-Film Bearings
The 330104-03-06-10-02-00 3300 XL 8 mm Proximity Probes measure shaft position in fluid-film bearings using a 2 mm linear range. The output voltage directly correlates with the distance between the probe tip and the surface, enabling precise alignment monitoring.

Vibration Monitoring on Rotating Machinery
Equipped with a 1.0 meter cable, M10x1 probe thread, and 50 Ω output resistance, the 330104-03-06-10-02-00 3300 XL 8 mm Proximity Probes capture dynamic vibration signals, supporting Keyphasor reference and speed measurement in automation control systems.

Speed Detection and Keyphasor Signal Generation
The miniature coaxial ClickLoc connector and 69.9 pF/m extension cable capacitance allow the 330104-03-06-10-02-00 3300 XL 8 mm Proximity Probes to provide accurate Keyphasor and speed reference signals for rotating equipment.

Specifications

Competitive Advantage

Direct Output Proportional to Shaft Movement
The 330104-03-06-10-02-00 3300 XL 8 mm Proximity Probes provide voltage output directly proportional to the 2 mm linear range, enabling precise shaft position and vibration monitoring without additional signal conversion.

Mechanical Design with Quantified Pull Strength
With a 30 mm unthreaded length, 60 mm overall case, M10x1 thread, 15 mm maximum thread engagement, and patented TipLoc and CableLoc designs, the 330104-03-06-10-02-00 3300 XL 8 mm Proximity Probes withstand up to 330 N pull, ensuring secure probe attachment in rotating machinery.

Wide Temperature Operation
Operating from -52°C to +177°C (-62°F to +350°F), the 330104-03-06-10-02-00 3300 XL 8 mm Proximity Probes deliver consistent measurement performance in high-heat or sub-zero industrial environments.

Cable Length Adaptation for Field Wiring
The 330104-03-06-10-02-00 3300 XL 8 mm Proximity Probes feature 1.0 meter total cable, supporting field wiring of 0.2–1.5 mm² (16–24 AWG), allowing flexible deployment in automation and industrial monitoring setups.
