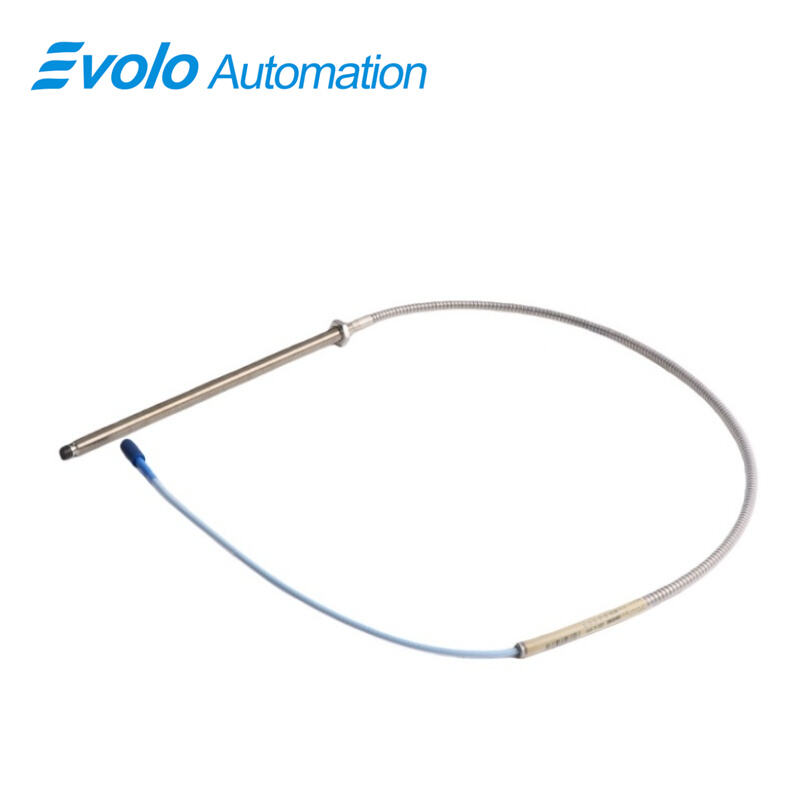

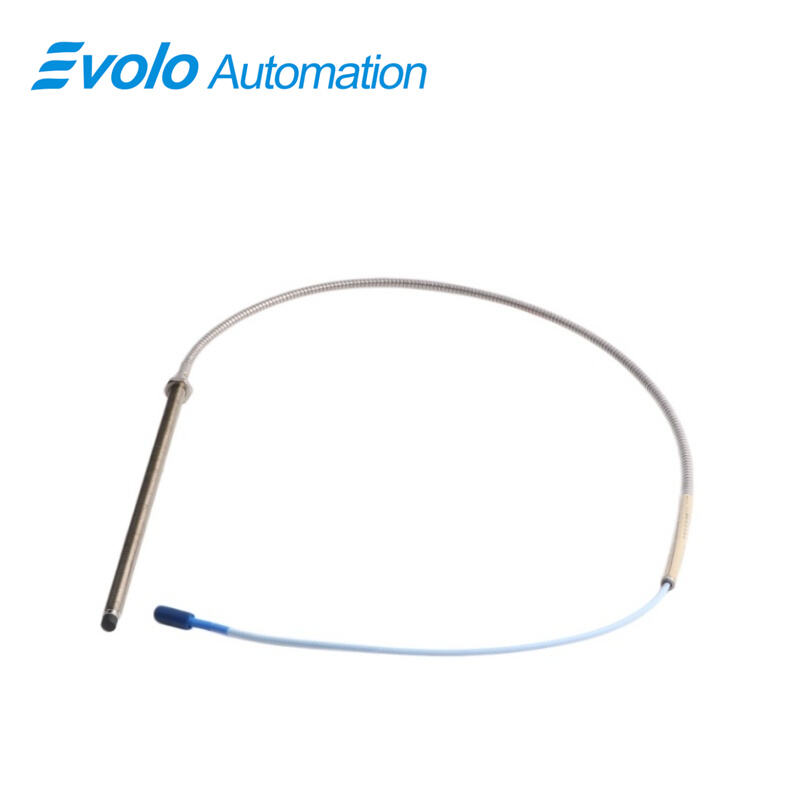

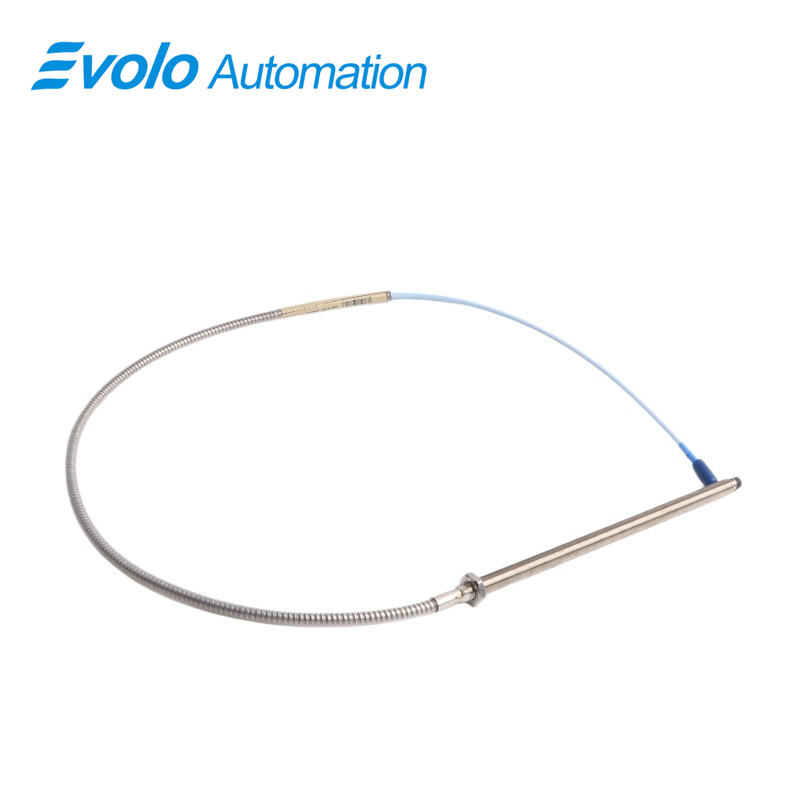

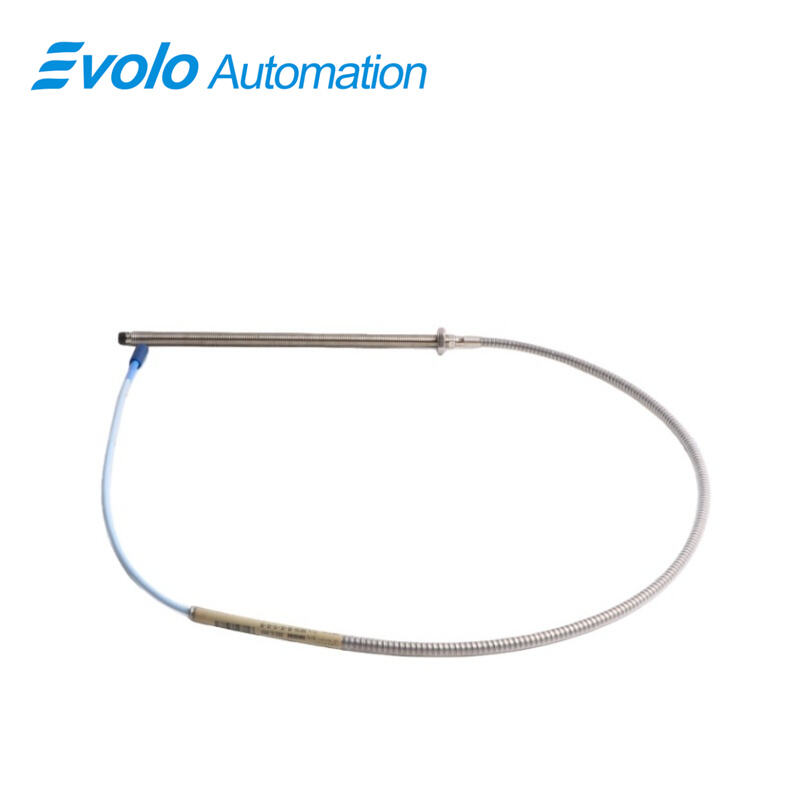

330104-00-22-10-02-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-00-22-10-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-00-22-10-02-00 3300 XL 8 mm Proximity Probe delivers a voltage output proportional to the distance between the probe tip and conductive surfaces, enabling accurate measurement of both static (position) and dynamic (vibration) data. With a 2 mm linear range, 50 Ω output resistance, and 69.9 pF/m extension cable capacitance, the 330104-00-22-10-02-00 3300 XL 8 mm Proximity Probe supports automated monitoring of fluid-film bearing machines. Its 220 mm overall case length and M10x1 thread engagement up to 15 mm allow secure mounting in tight spaces. Operating from –52°C to +177°C, this 330104-00-22-10-02-00 3300 XL 8 mm Proximity Probe can feed real-time signals to Keyphasor speed references, vibration control loops, and automated condition monitoring systems. Standard miniature coaxial ClickLoc connectors simplify integration, and optional FluidLoc cables prevent leakage of oil and other fluids, ensuring clean signals for automated control. The 330104-00-22-10-02-00 3300 XL 8 mm Proximity Probe maintains interchangeability with other 3300 XL 5 mm and 8 mm probes, enabling straightforward upgrades without recalibration.

Applications

Application – Vibration Measurement on Fluid-Film Bearings
The 330104-00-22-10-02-00 3300 XL 8 mm Proximity Probe measures vibration amplitude on high-speed fluid-film bearings. Its 2 mm linear range and 50 Ω output resistance deliver precise displacement signals for automated vibration control systems. Real-time feedback supports predictive maintenance in rotating machinery.

Application – Shaft Position Monitoring
Use the 330104-00-22-10-02-00 3300 XL 8 mm Proximity Probe to monitor shaft axial and radial positions. The 220 mm overall case length and M10x1 thread engagement up to 15 mm allow flexible mounting. Output voltage is proportional to the gap between the probe tip and shaft, enabling automated positioning analysis.

Application – Keyphasor Reference for Speed Control
The 330104-00-22-10-02-00 3300 XL 8 mm Proximity Probe provides precise Keyphasor pulses for speed measurement in turbines and compressors. Extension cable capacitance of 69.9 pF/m ensures low signal distortion, feeding accurate signals to speed-based automation systems.

Application – Condition Monitoring Integration
Connect the 330104-00-22-10-02-00 3300 XL 8 mm Proximity Probe to Proximitor sensors or PLC/SCADA systems. Standard miniature coaxial ClickLoc connectors enable seamless integration, supporting automated alert systems when vibration or position thresholds are exceeded.

Specifications

Competitive Advantage

Competitive Advantage – High-Temperature Operation
Operating from –52°C to +177°C, the 330104-00-22-10-02-00 3300 XL 8 mm Proximity Probe can be installed in extreme industrial environments, providing consistent measurements without additional thermal compensation.

Competitive Advantage – Robust Mounting and Cable Attachment
The 330104-00-22-10-02-00 3300 XL 8 mm Proximity Probe incorporates patented TipLoc molding for a strong probe tip bond and CableLoc design for 330 N pull strength, minimizing signal loss due to cable movement or vibration.

Competitive Advantage – Backward Compatibility
The 330104-00-22-10-02-00 3300 XL 8 mm Proximity Probe is fully interchangeable with other 3300 XL 5 mm and 8 mm probes, allowing upgrades in automated systems without recalibration, saving installation time and reducing operational downtime.
