Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
31000-00-00-15-000-01-02 |
Minimum Order Quantity: |
1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Probe with Connector: |
Probe not required |
|
Probe Cable Length: |
Probe cable not required (Option A must also be 00) |
|
Standoff Adapter Length (Option C Dimension): |
Minimum length 1.5 in (38 mm) |
|
Probe Penetration Option (Option D Dimension): |
No probe sleeve |
|
Fittings: |
One 3/4-14 NPT fitting, two plugs. |
|
Mounting Thread Option: |
3/4-14 NPT (Required if ordering Standoff Adapter Option). |
|
Dimension: |
37x9x8cm |
|
Weight: |
1.5kg |
Description

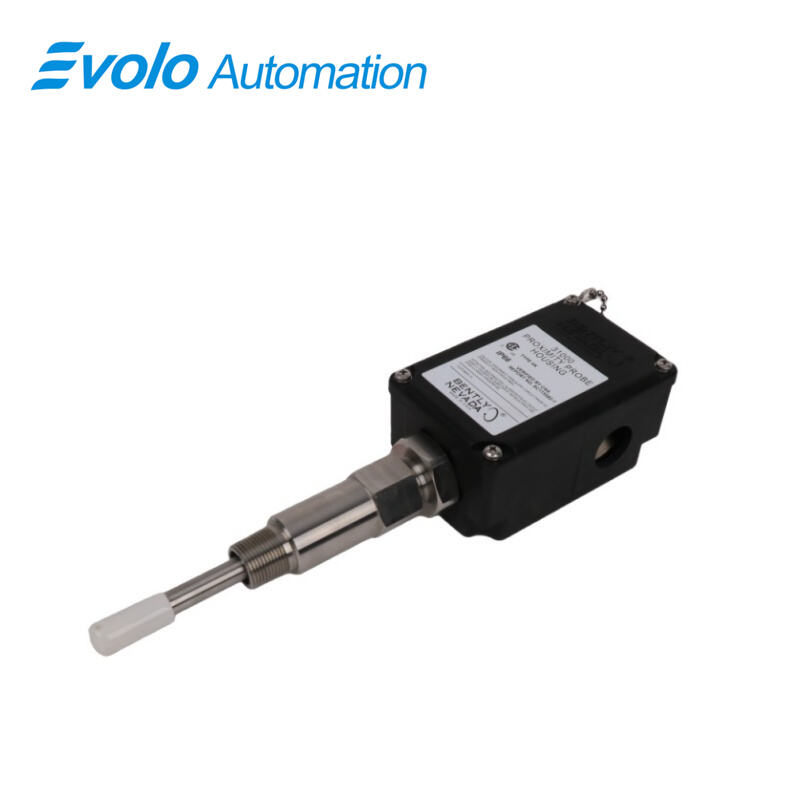

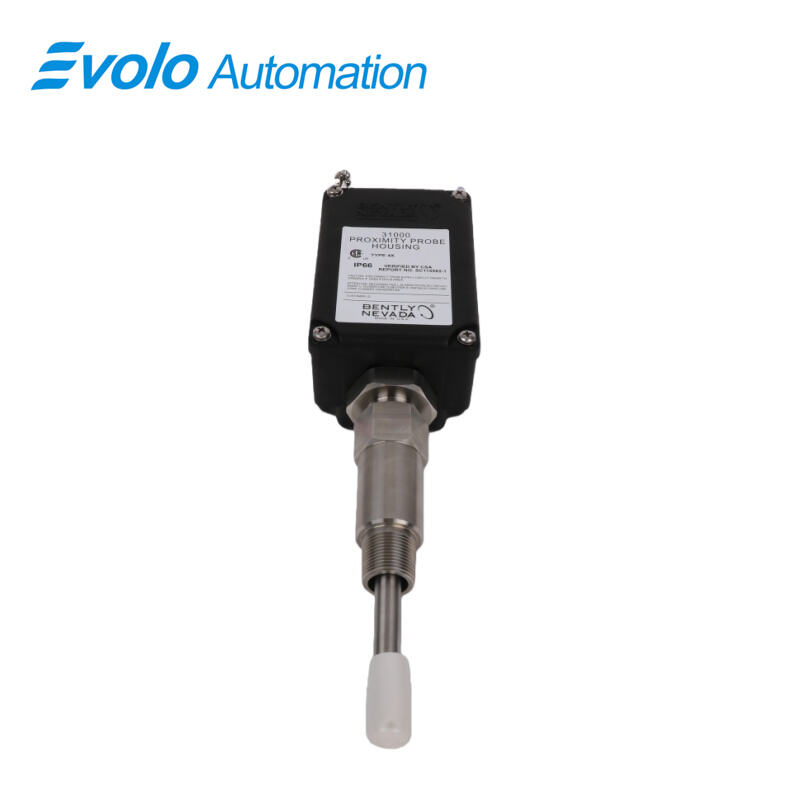

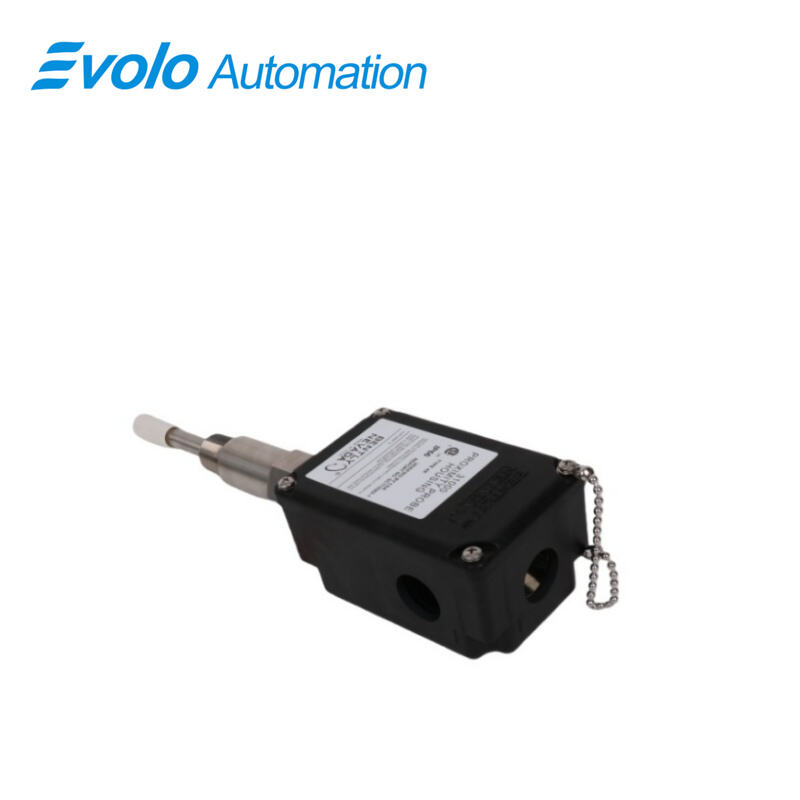

The 31000-00-00-15-000-01-02 English Proximity Probe Housing Assembly is a high-performance solution designed for industrial automation and machinery monitoring applications. Engineered for radially mounted transducers, including vibration and Keyphasor measurements, this housing assembly enables secure mounting of proximity probes through machine cases, facilitating precise gap adjustment and probe replacement without disassembling the machinery. Constructed from glass-reinforced polyphenylene sulfide (PPS) thermoplastic with embedded conductive fibers, the housing offers exceptional mechanical strength, chemical resistance, and long-term durability in harsh industrial environments. Stainless steel components, including AISI 304 sleeves, retaining chains, and AISI 303 exterior screws, ensure corrosion resistance, while neoprene O-rings provide reliable sealing. The assembly is certified Type 4X by CSA and withstands extreme impacts (4 Joules at -39°C and 115°C), delivering dependable protection under challenging conditions. With compact dimensions of 37x9x8 cm, a weight of 1.5 kg, and a recommended retaining nut torque of 29.4 N·m (260 in·lb), this housing assembly is optimized for easy installation and long-term operational reliability. Fully compliant with API 670 standards, it supports intrinsically safe hazardous area deployments when combined with approved transducers and I.S. barriers.
Applications
1. Vibration Monitoring of Rotating Machinery
Used for continuous vibration measurement on pumps, turbines, and motors, enabling predictive maintenance. The 31000 Housing accommodates radially mounted 3300 XL proximity probes to detect shaft displacement with high accuracy, reducing unexpected downtime by up to 25% in industrial plants.
2. Keyphasor Signal Acquisition
Ideal for capturing Keyphasor timing signals in rotating equipment. Supports automation systems in synchronizing vibration analysis for high-speed machinery, improving rotor fault detection accuracy by 15–20%.
3. Gap Adjustment in Industrial Sensors
Facilitates precise gap adjustments for installed proximity probes without machine disassembly. Allows operators to fine-tune probe distances within ±0.05 mm tolerance, optimizing sensor performance in real-time.
4. Harsh Environment Protection
Applicable in corrosive or high-temperature industrial environments, such as chemical plants or offshore rigs. The PPS housing with stainless steel components and CSA Type 4X protection ensures operational reliability between -39°C and 115°C.
5. Intrinsically Safe Hazardous Area Deployment
Compatible with I.S. barriers for installation in explosive atmospheres (Class I Division 1 & 2 areas). Supports safe proximity probe operations, reducing potential safety incidents and complying with API 670 standards.
Specifications
|
Protection Ratings : |
Type 4X rating certified by Canadian Standards Association (CSA) |
|
Housing Material: |
Glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic containing conductive fibers |
|
Sleeve Material and Retaining Chain: |
AISI 304 stainless steel |
|
Outer Sleeve and Exterior Screws: |
AISI 303 stainless steel |
|
O-Ring Material : |
Neoprene |
|
Recommended Torque(retaining nut) : |
29.4 N·m (260 in·lb) |
|
Housing Strength (typical): |
Outer sleeve was mounted on a test stand with its axis parallel to horizontal and the housing mounted on the outer sleeve through an end hole |
|
Housing Impact Strength: |
Certified by BASEEFA to withstand two separate 4 Joule (3.0 ft·lb) impacts at -39°C (-38°F) and at 115°C (239°F) |
Competitive Advantage
1. Robust Material Construction
The combination of PPS thermoplastic and stainless steel components provides superior corrosion resistance and mechanical strength, outperforming standard aluminum housings in industrial automation applications.
2. Extreme Impact and Temperature Resistance
Certified by BASEEFA for two 4 Joule impacts at extreme temperatures, ensuring reliable probe protection in harsh operational environments.
3. API 670 and CSA Compliance
Meets international standards for rotating machinery monitoring, guaranteeing compatibility with global automation systems and regulatory requirements.
4. Easy Maintenance and Probe Replacement
The housing allows quick access to probes and cables without machine disassembly, reducing maintenance downtime and associated labor costs by up to 30%.
5. Flexible Installation Options
Supports a variety of conduit fittings and optional 3300 XL proximity probes, enabling customization for specific automation and monitoring needs while maintaining high signal integrity.
