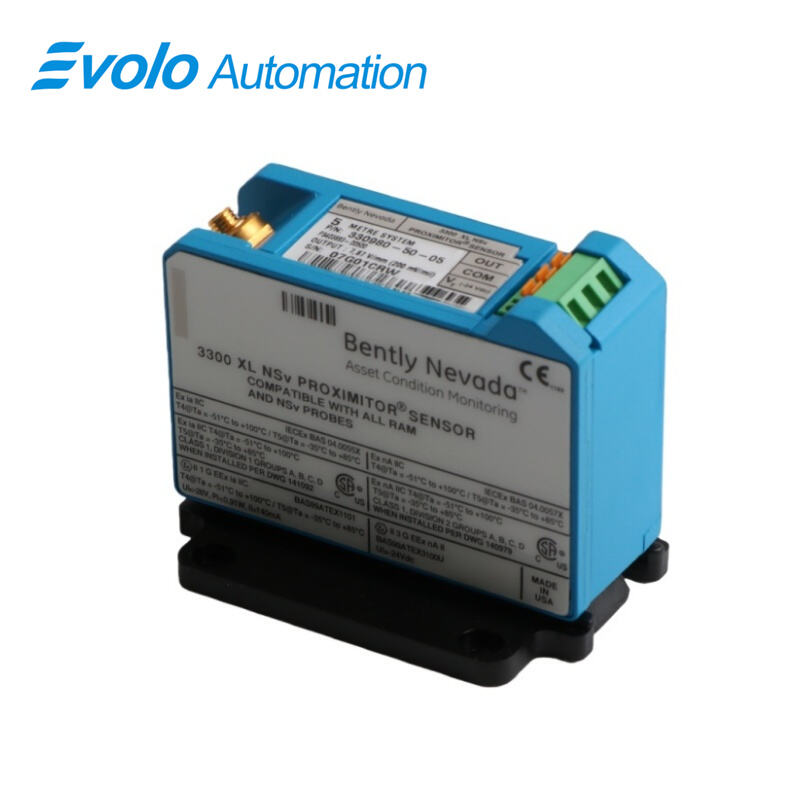

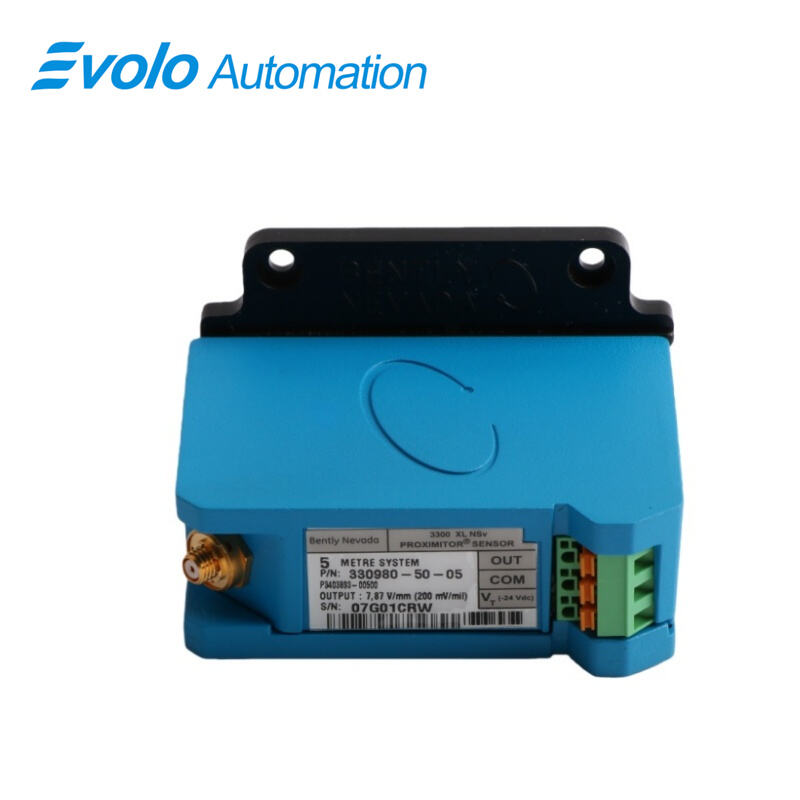

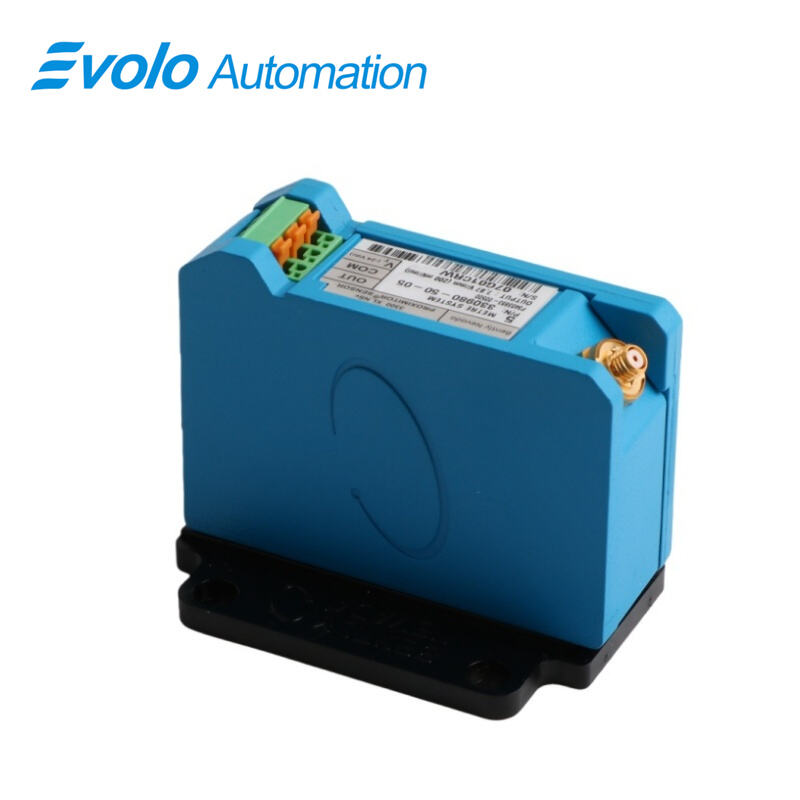

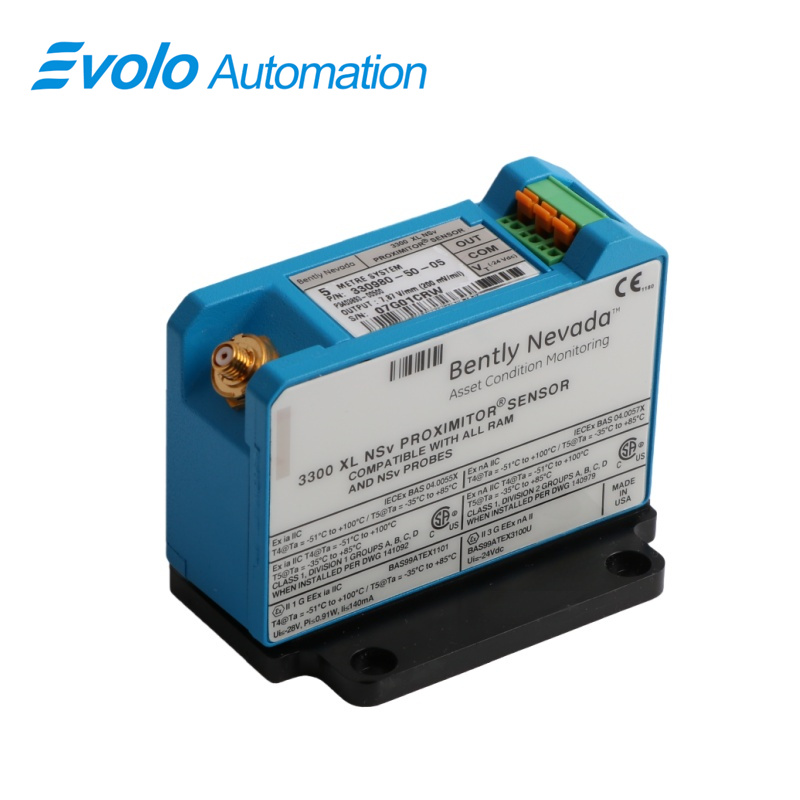

330980-50-05 3300 XL NSv Proximitor Sensor

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330980-50-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330980-50-05 3300 XL NSv Proximitor Sensor is a high-precision signal conditioning module designed for industrial automation and advanced machinery monitoring systems. Engineered for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with restricted installation spaces, this panel-mount sensor provides reliable signal processing for NSv proximity probes and extension cables. Measuring radial vibration, axial displacement, and phase (Keyphasor) signals, the 3300 XL NSv Proximitor Sensor supports small target applications, including shafts under 51 mm (2 in) and flat targets below 15 mm (0.6 in), while maintaining exceptional signal fidelity. Constructed from robust A380 aluminum and rated for operation from -52°C to +100°C (-62°F to +212°F) with relative humidity up to 100% condensing, the sensor delivers stable performance in challenging industrial environments. With a system length of 5.0 meters (16.4 feet), linear range of 1.5 mm (60 mils), output resistance of 50 Ω, and supply sensitivity under 2 mV per volt, this sensor is fully compatible with Bently Nevada’s 3300 RAM and 3000/7000-series systems. Featuring patented TipLoc and CableLoc designs and gold-plated ClickLoc connectors, the 3300 XL NSv Proximitor Sensor ensures secure mechanical and electrical connections, RFI/EMI immunity for CE approvals, and fast, tool-free field wiring with SpringLoc terminals, making it an ideal solution for modern automation and condition monitoring systems.

Applications

Radial Vibration Monitoring

Ideal for shafts smaller than 51 mm, the NSv sensor processes signals from NSv probes to monitor radial vibration with linear range of 1.5 mm, enabling early detection of imbalance or bearing wear.

Axial (Thrust) Position Measurement

Supports accurate axial displacement monitoring on small or constrained targets, providing ±0.05 mm measurement precision for predictive maintenance of fluid-film bearing machinery.

Tachometer and Zero-Speed Detection

Generates reliable rotational and zero-speed signals for control and safety systems, maintaining output stability (<2 mV per volt) even in high-frequency industrial environments.

Keyphasor Signal Acquisition

Processes high-fidelity Keyphasor phase reference signals for vibration analysis, enhancing condition monitoring reliability in small-target or side-view restricted applications.

High-Density Panel or DIN-Rail Mounting

The compact design allows installation in tight control panels or high-density DIN-rail setups without compromising signal integrity or RFI/EMI immunity.

Specifications

Competitive Advantage

Small-Target and Side-View Capability

Engineered for restricted spaces and small shaft or flat targets, offering installation flexibility while maintaining high measurement accuracy.

Robust Construction and Environmental Tolerance

A380 aluminum sensor body with operation from -52°C to +100°C and full condensation resistance ensures reliable performance in harsh industrial conditions.

High-Fidelity Signal Transmission

Maintains stable output with 50 Ω resistance and <2 mV voltage variation per volt, ensuring precise vibration, position, and Keyphasor measurements.

Secure Electrical Connectivity

Gold-plated ClickLoc connectors with TipLoc and CableLoc designs provide robust probe and cable attachment, with 220 N (50 lb) pull strength, reducing failure risk in vibration-prone installations.

Fast, Tool-Free Field Wiring

SpringLoc terminal strips allow quick, reliable connections without special tools, reducing installation time and minimizing wiring errors in automation and condition monitoring systems.
