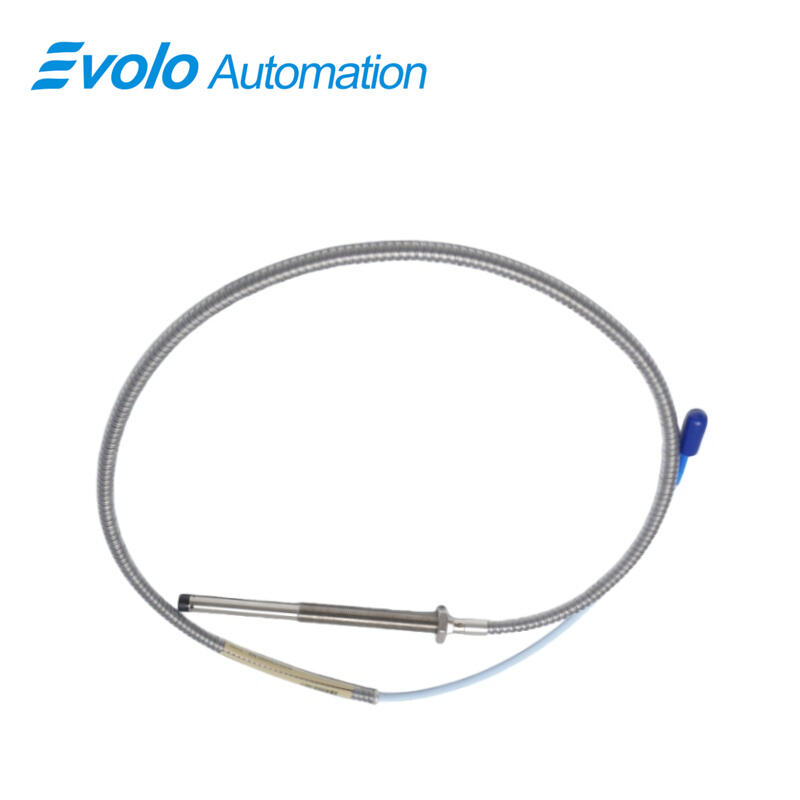

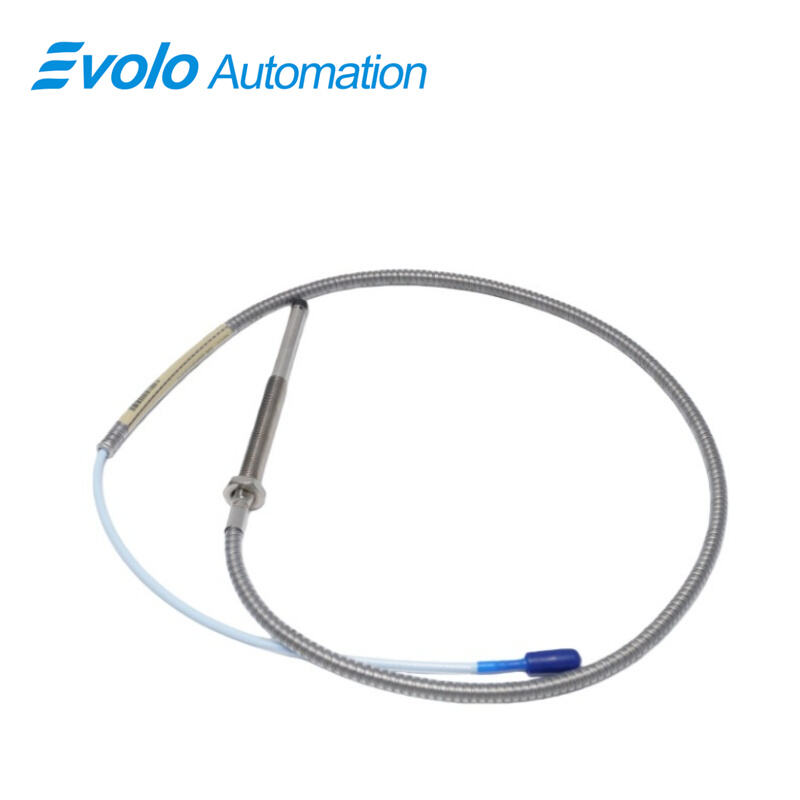

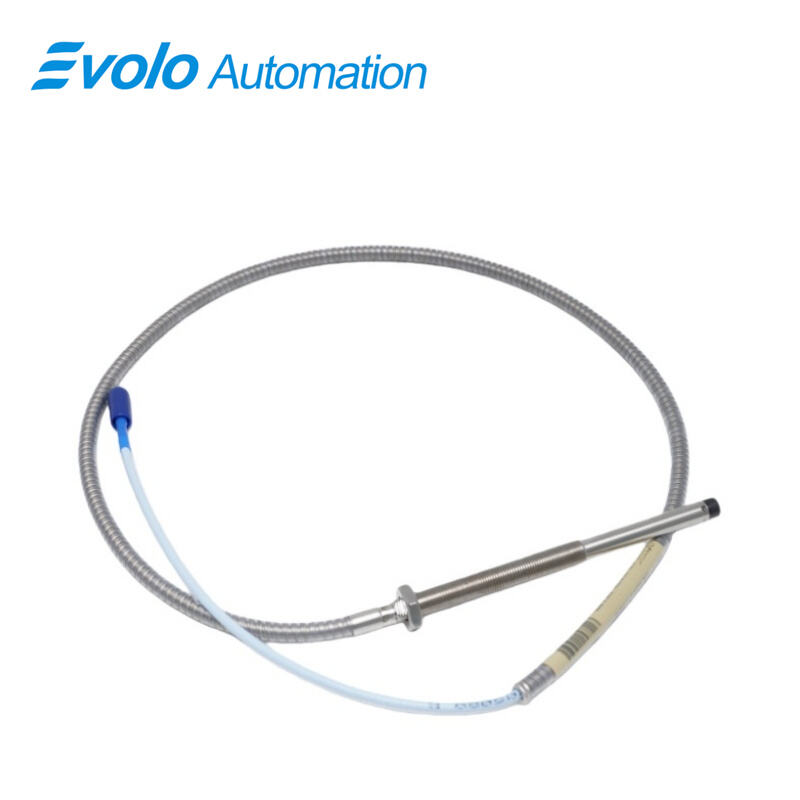

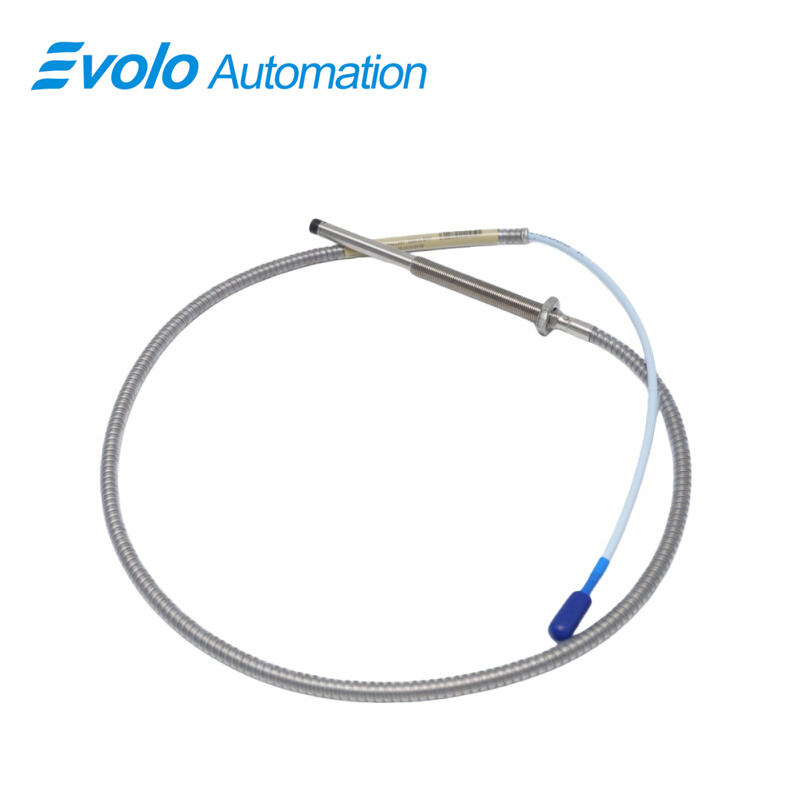

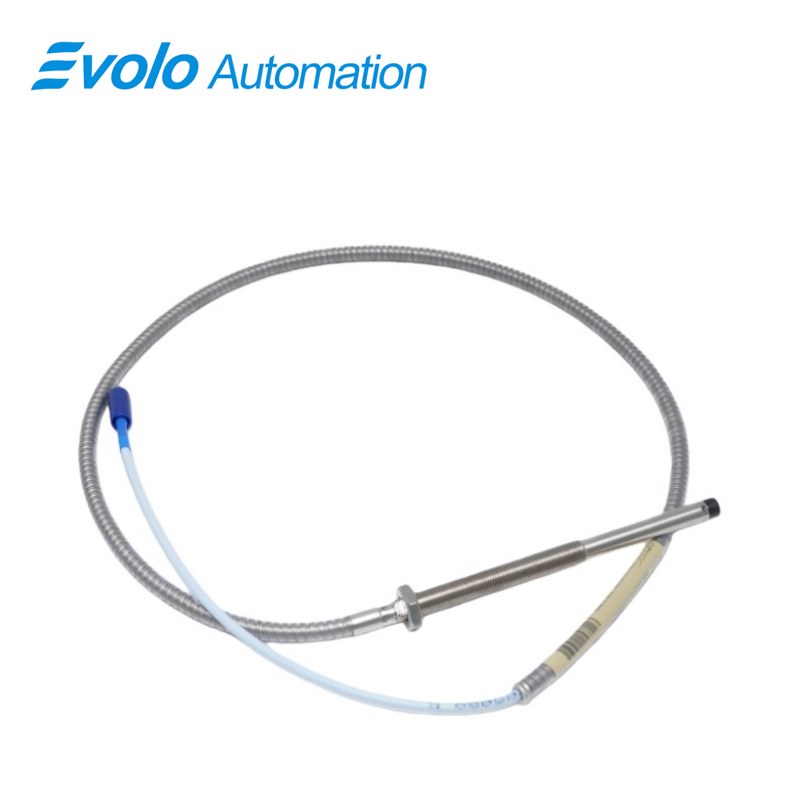

330104-00-13-10-02-CN 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-00-13-10-02-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-00-13-10-02-CN 3300 XL 8 mm Proximity Probe delivers an output voltage directly proportional to the distance between its probe tip and the conductive surface, enabling precise position and vibration monitoring. With a 2 mm linear range and 50 Ω output resistance, the 330104-00-13-10-02-CN 3300 XL 8 mm Proximity Probe measures dynamic shaft movement on fluid-film bearing machines. Its M10x1 threaded probe case and 1.0 meter total length allow automated system integration, while the miniature coaxial ClickLoc connector and 69.9 pF/m extension cable capacitance ensure reliable signal transmission. Operating from –52°C to +177°C, the 330104-00-13-10-02-CN 3300 XL 8 mm Proximity Probe supports CSA, ATEX, and IECEx approved installations. Supply sensitivity under 2 mV per volt change maintains consistent readings for automated control and Keyphasor speed detection. Field wiring supports 16–24 AWG (0.2–1.5 mm²), enabling flexible connection to monitoring systems. Optional FluidLoc cable prevents oil ingress, preserving measurement integrity. All 330104-00-13-10-02-CN 3300 XL 8 mm Proximity Probe are interchangeable with 3300 series probes and extension cables, simplifying automation deployment and reducing setup time.

Applications

Shaft Position Measurement
The 330104-00-13-10-02-CN 3300 XL 8 mm Proximity Probe monitors shaft displacement in fluid-film bearing machines, using its 2 mm linear range and M10x1 threaded probe case to ensure precise distance measurement for automated control systems.

Vibration Monitoring
With an output resistance of 50 Ω and 69.9 pF/m extension cable capacitance, the 330104-00-13-10-02-CN 3300 XL 8 mm Proximity Probe detects high-frequency vibration, enabling automated vibration analysis and predictive maintenance.

Keyphasor Speed Reference
The 330104-00-13-10-02-CN 3300 XL 8 mm Proximity Probe provides Keyphasor reference signals for speed measurement in rotating equipment, supporting integration with PLCs and DCS systems.

Automated System Integration
Its 1.0 meter total length, miniature coaxial ClickLoc connector, and field wiring support for 16–24 AWG allow the 330104-00-13-10-02-CN 3300 XL 8 mm Proximity Probe to connect directly to control panels and monitoring modules for automated data acquisition.

Specifications

Competitive Advantage

High-Temperature Operation
The 330104-00-13-10-02-CN 3300 XL 8 mm Proximity Probe operates from –52°C to +177°C, enabling use in extreme automation environments without additional cooling or insulation.

Consistent Output Across Voltage Variations
Supply sensitivity below 2 mV per volt change ensures the 330104-00-13-10-02-CN 3300 XL 8 mm Proximity Probe provides reliable signals under fluctuating input voltage conditions.

Component Interchangeability
The 330104-00-13-10-02-CN 3300 XL 8 mm Proximity Probe is compatible with other 3300 series probes and extension cables, simplifying automated system upgrades and reducing maintenance time.
