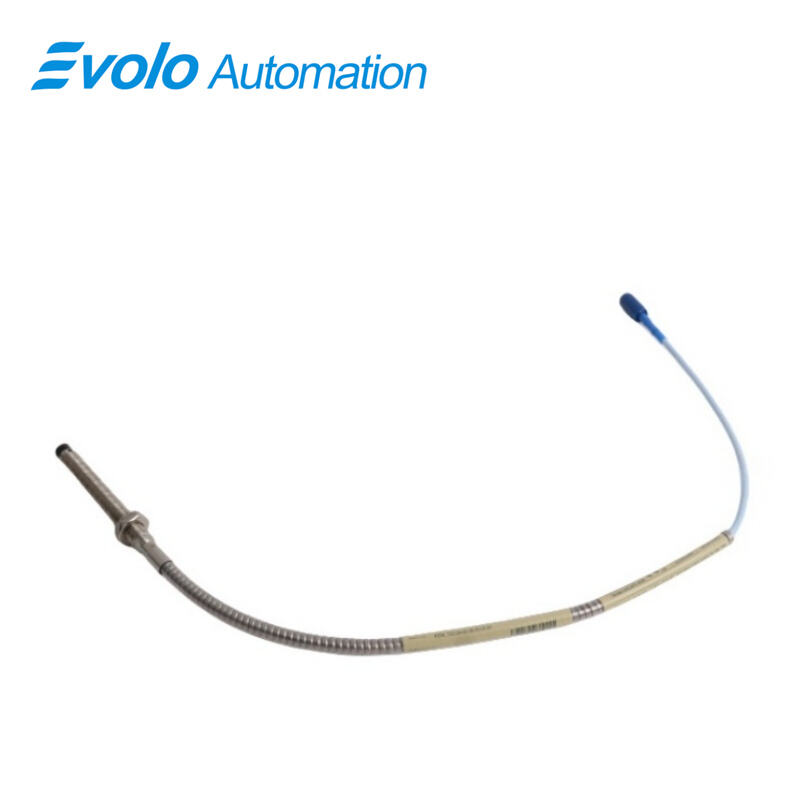

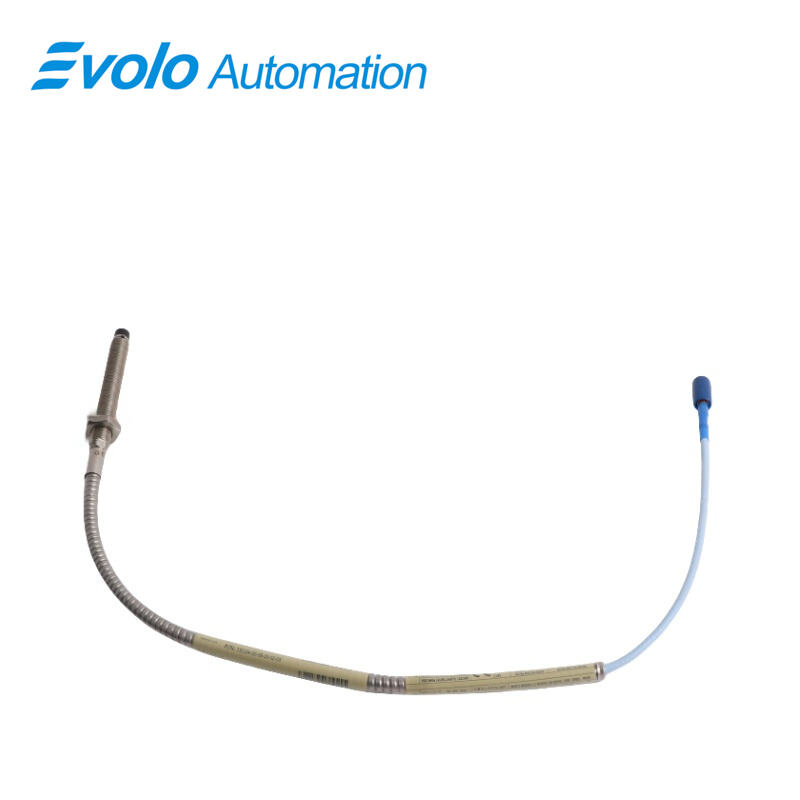

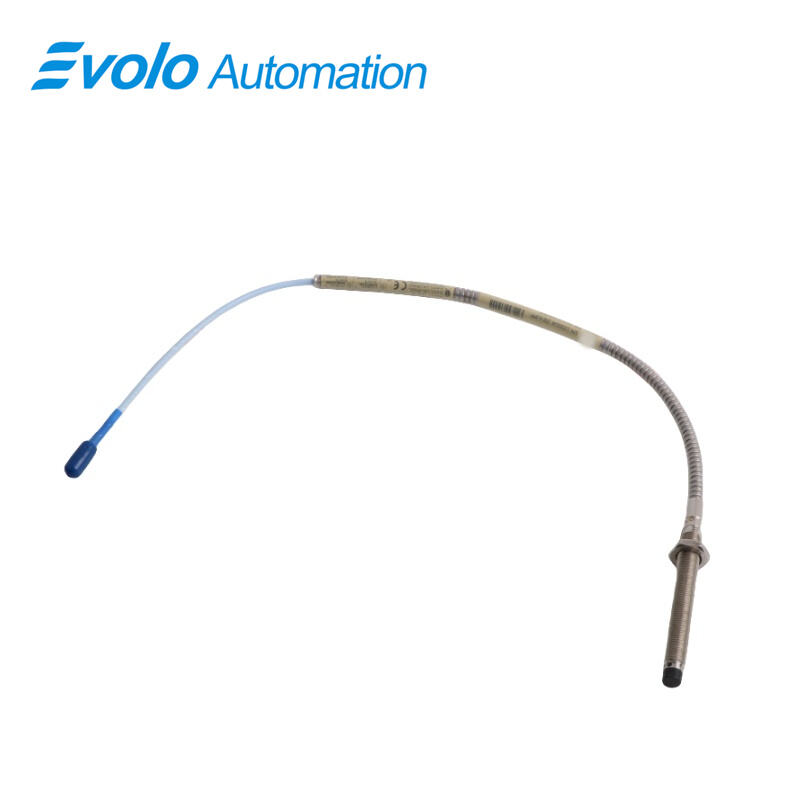

330104-00-08-05-02-CN 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-00-08-05-02-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-00-08-05-02-CN 3300 XL 8 mm Proximity Probe delivers an output voltage directly proportional to the distance between the probe tip and the conductive surface, enabling precise measurement of static position and dynamic vibration. With a linear range of 2 mm, 50 Ω output resistance, and supply sensitivity under 2 mV/V, the 330104-00-08-05-02-CN 3300 XL 8 mm Proximity Probe ensures accurate data for automated condition monitoring in fluid-film bearing machinery. The probe’s 80 mm case length, M10x1 thread, and 0.5-meter extension cable with 69.9 pF/m capacitance support secure mounting and reliable signal transmission to PLCs and control systems. CSA, ATEX, and IECEx approvals make the 330104-00-08-05-02-CN 3300 XL 8 mm Proximity Probe suitable for hazardous area installations. Patented TipLoc molding bonds the probe tip to the body, while the CableLoc design provides 330 N pull strength, reducing the risk of cable detachment during high-speed rotation. Optional FluidLoc cabling prevents oil ingress, supporting continuous automated monitoring. The 330104-00-08-05-02-CN 3300 XL 8 mm Proximity Probe is backward compatible with other 3300 series probes and Proximitor sensors, allowing automated component replacement without recalibration.

Applications

Monitor rotor vibration in fluid-film bearing machines
The 330104-00-08-05-02-CN measures dynamic vibration within its 2 mm linear range and outputs 50 Ω signals, enabling automated systems to track rotor amplitude and frequency in real time.

Track shaft position for automated alignment
Using the 2 mm linear range and low supply sensitivity (<2 mV/V), the 330104-00-08-05-02-CN provides accurate shaft displacement readings for automated positioning and alignment in machinery.

Provide Keyphasor reference signals for speed measurement
The 330104-00-08-05-02-CN outputs consistent voltage signals suitable for PLC or DCS systems, allowing automated speed calculation and monitoring based on real-time shaft rotation.

Enable remote monitoring through Proximitor sensors
With a 0.5 m extension cable (69.9 pF/m capacitance) and standard ClickLoc connector, the 330104-00-08-05-02-CN transmits reliable signals to central automation systems without recalibration.

Specifications

Competitive Advantage

High measurement accuracy under varying supply voltage
The 330104-00-08-05-02-CN maintains voltage output variation under 2 mV per volt of supply change, ensuring precise position and vibration measurements across automated systems. Frequent use of 330104-00-08-05-02-CN in rotor monitoring demonstrates its reliability in maintaining signal integrity.

Secure probe attachment with TipLoc and CableLoc
The 330104-00-08-05-02-CN leverages patented TipLoc and CableLoc designs, delivering 330 N pull strength. This parameter ensures that 330104-00-08-05-02-CN retains mechanical and electrical stability in high-speed automated machinery.

Oil-resistant cable for automated environments
With optional FluidLoc, the 330104-00-08-05-02-CN prevents oil ingress through the 0.5-meter, 69.9 pF/m extension cable, allowing automated monitoring in lubrication-heavy systems. Frequent deployment of 330104-00-08-05-02-CN in such environments validates its operational resilience.

Certified for hazardous automation zones
CSA, ATEX, and IECEx approvals allow 330104-00-08-05-02-CN to be deployed safely in explosive atmospheres. Parameter compliance and frequent use of 330104-00-08-05-02-CN in automated safety-critical systems highlight its proven performance.
