330101-00-24-05-02-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-24-05-02-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

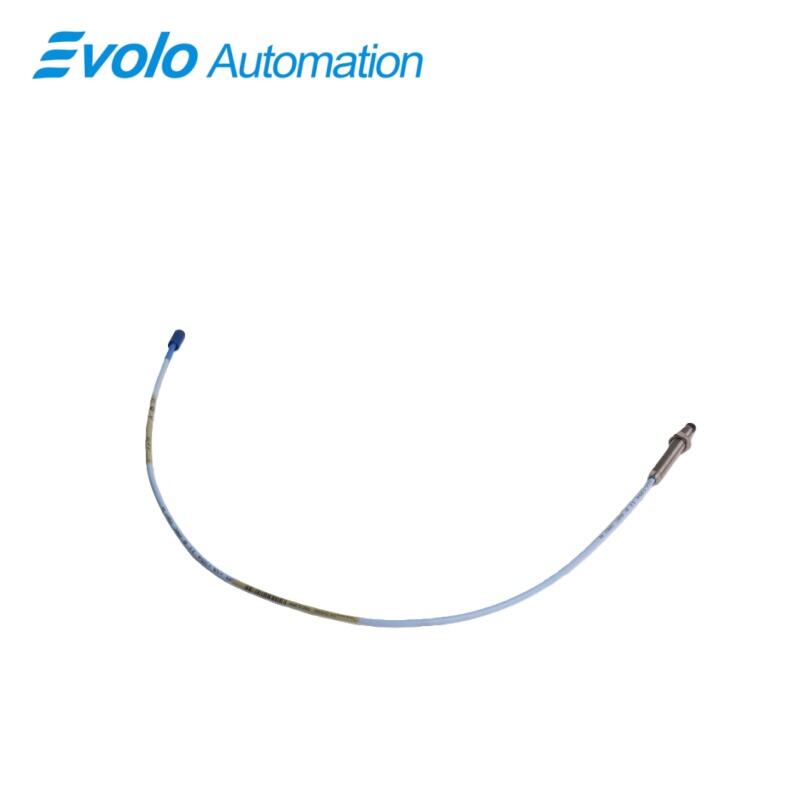

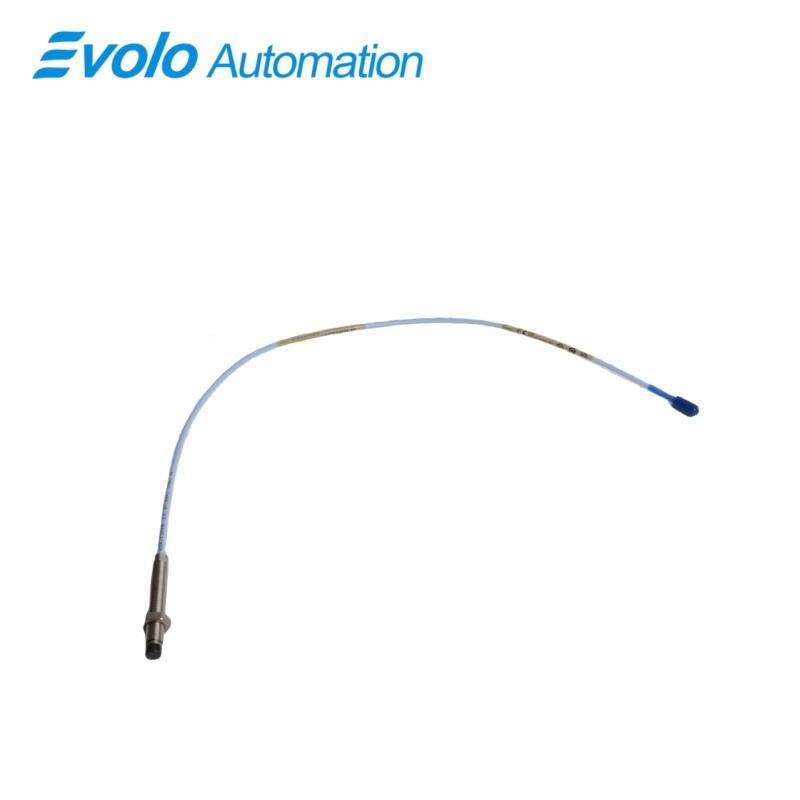

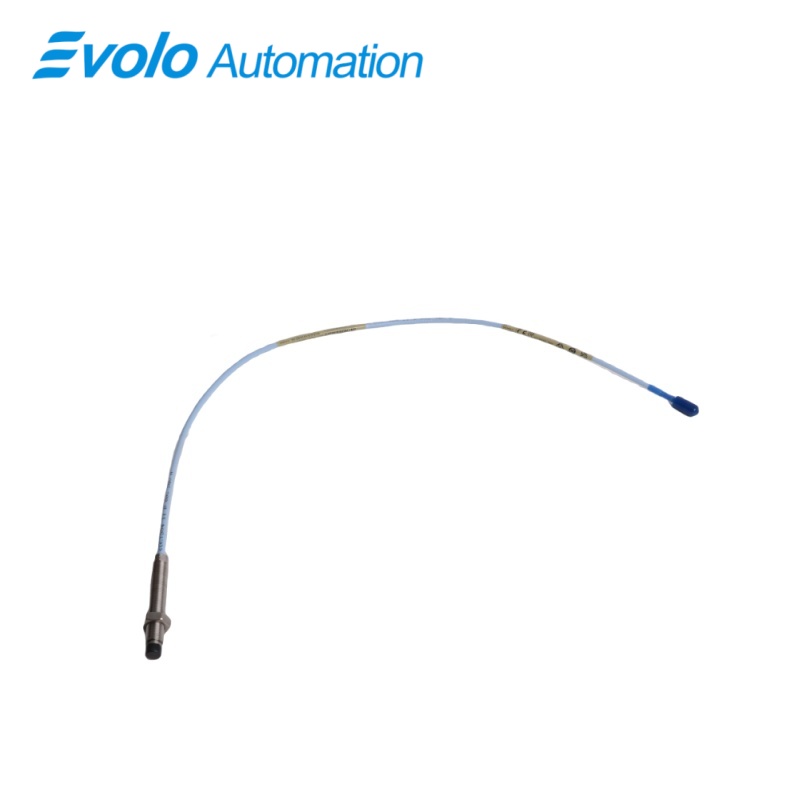

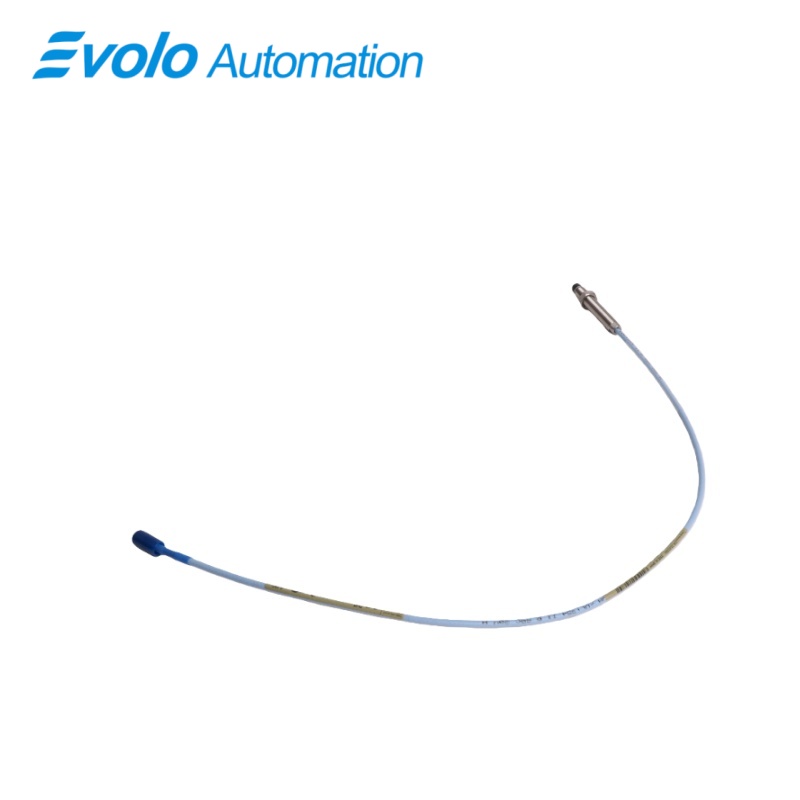

The Bently Nevada 330101-00-24-05-02-00 3300 XL 8 mm Proximity Probe is a high-precision, industrially robust eddy current transducer designed for reliable vibration and position monitoring in a broad range of general-purpose and non-hazardous industrial applications. As an integral component of the trusted 3300 XL monitoring system from Bently Nevada, this proximity probe offers a balanced combination of performance, durability, and value, making it a versatile choice for safeguarding critical rotating assets such as pumps, fans, motors, and compressors. Engineered for non-contact measurement, the sensor delivers a substantial 2 mm linear range, enabling accurate detection of both dynamic shaft vibration and static axial position to support effective predictive maintenance strategies and prevent unplanned machinery downtime.

This specific model features a compact and practical mechanical design, characterized by a 2.4-inch overall case length and a 0-inch unthreaded length. This optimized form factor provides excellent adaptability for standard mounting configurations while maintaining a low-profile presence in space-conscious installations. The probe is equipped with a 0.5-meter (1.6 feet) standard cable terminated with a reliable Miniature coaxial ClickLoc connector, facilitating straightforward connection and seamless integration with the 3300 XL monitoring framework. While this variant does not carry hazardous area certifications, its design and construction are focused on delivering reliable performance in demanding but non-explosive industrial environments.

Applications

This probe is ideally suited for general machinery health monitoring in power generation facilities, including fans, boiler feed pumps, and cooling water pumps. Its 2.4-inch case length and robust temperature range allow for reliable installation in both indoor mechanical rooms and exposed outdoor locations, providing continuous vibration data to detect imbalance, misalignment, and bearing wear before they lead to operational failures.

It is an excellent choice for monitoring motors, pumps, and blowers in heavy industries such as mining, metals, and cement production. The probe's durable stainless steel construction and PPS tip withstand environments with high dust, moisture, and incidental chemical exposure, delivering reliable position and vibration signals for condition-based maintenance programs in these abrasive and demanding settings.

The sensor is effectively used for providing Keyphasor® reference and speed detection in various industrial rotating machines, from paper mill rolls to large industrial compressors. Its standard length and connector allow for easy integration into both new installations and as a direct replacement in existing 3300 system upgrades, ensuring accurate timing signals for balancing, startup analysis, and overspeed protection.

Specifications

Competitive Advantage

1. Optimized General-Purpose Design for Cost-Effective Deployment

This probe offers a purpose-engineered solution for non-hazardous areas, providing the core performance and durability of the 3300 XL series without the additional cost associated with hazardous area certifications. Its balanced 2.4-inch case length and standard features deliver exceptional value, making it the optimal choice for a vast range of general industrial monitoring applications where explosive atmospheres are not a concern.

2. Extreme Temperature Endurance for Demanding Environments

Engineered to operate reliably across a wide temperature span from -55°C to +175°C, this sensor offers outstanding thermal resilience. This capability ensures stable, drift-free performance in applications ranging from cold outdoor compressor stations to high-temperature zones near turbines or furnaces, outperforming many standard sensors with narrower operational limits and reducing failure risks linked to thermal stress.

3. Ruggedized Construction for Long-Term Reliability in Harsh Conditions

The combination of an AISI 303/304 stainless steel case and a chemical-resistant PPS probe tip provides a robust defense against corrosion, abrasion, and common industrial fluids. This durable build guarantees extended service life and minimizes maintenance requirements in demanding environments such as wastewater treatment plants, pulp and paper mills, and mineral processing facilities, effectively lowering the total cost of ownership.
