Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330104-00-06-10-02-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
00 mm |
|
Overall Case Length Option(Minimum case length): |
60 mm |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
Not required |
|
Probe Case Thread: |
M10x1 |
|
Maximum Length of Thread Engagement: |
15 mm |
|
Dimension: |
113x2x1.5cm |
|
Weight: |
0.14kg |
Description

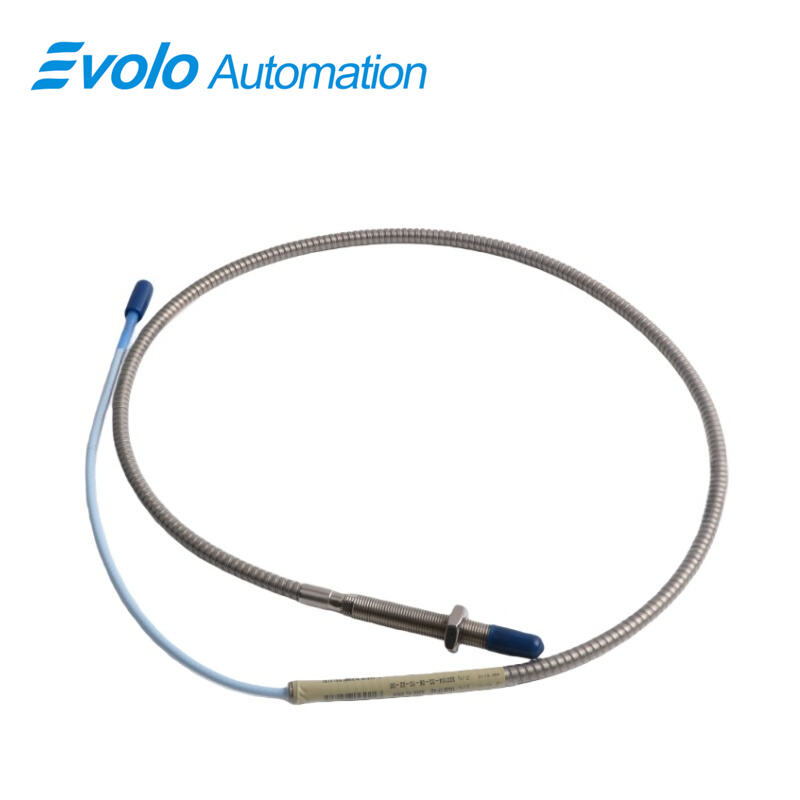

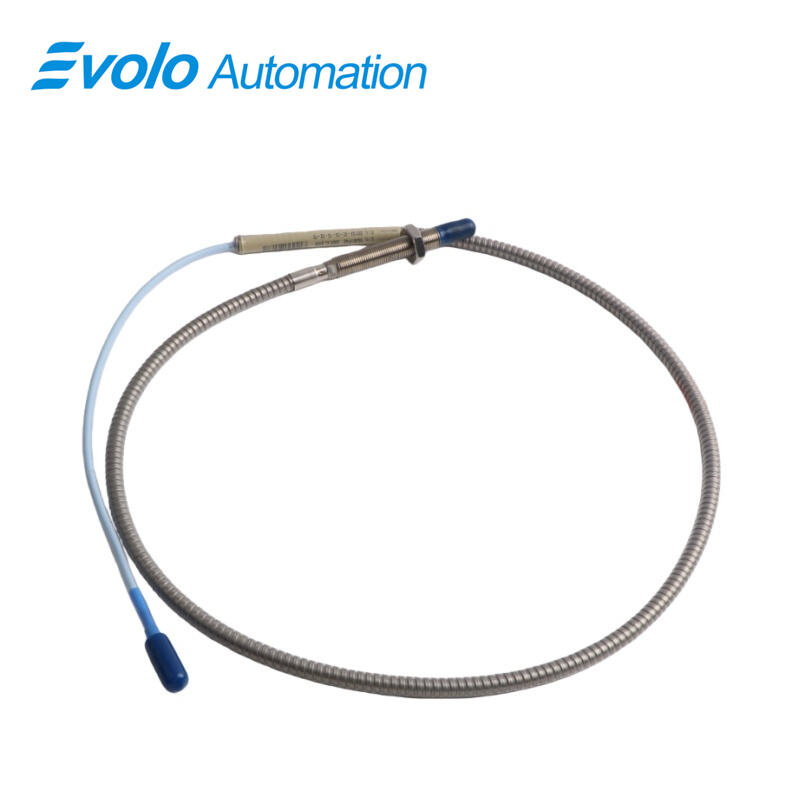

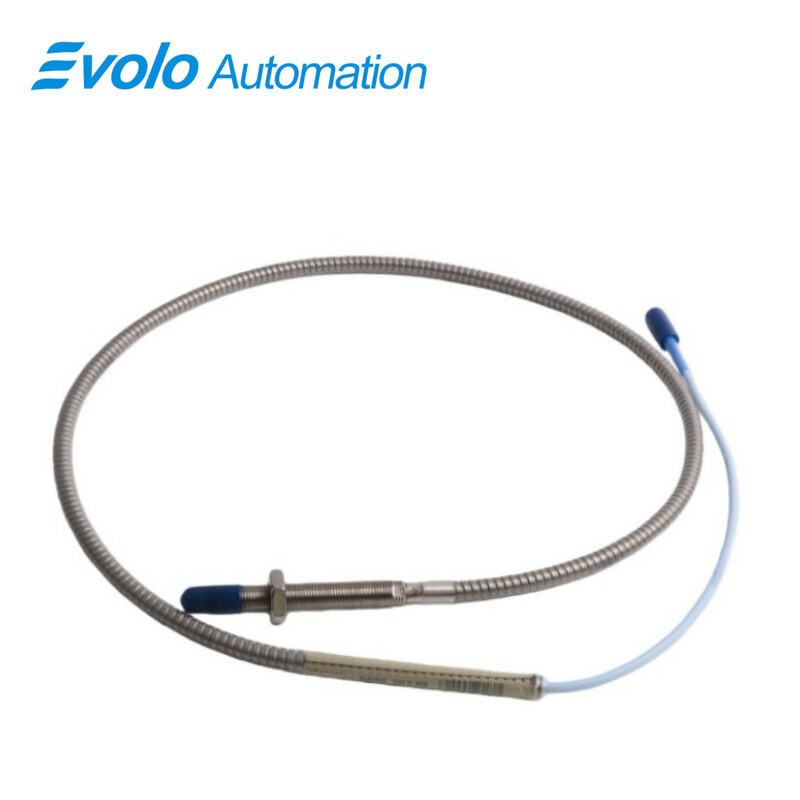

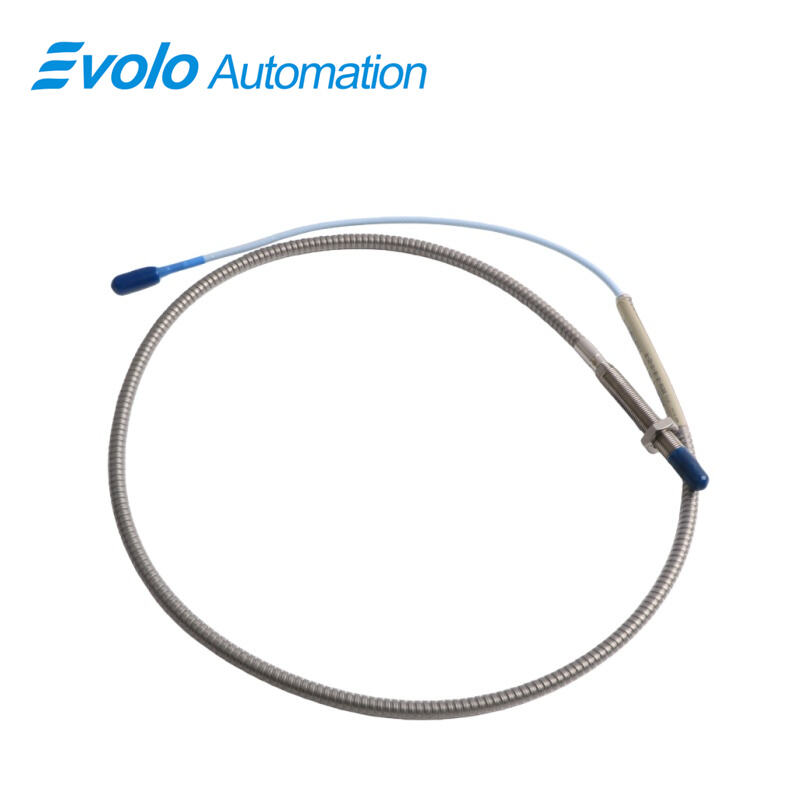

The 330104-00-06-10-02-00 3300 XL 8 mm Proximity Probe delivers voltage output proportional to the distance between its tip and the measured conductive surface. It measures both static positions and dynamic vibrations for automated machinery monitoring. The 330104-00-06-10-02-00 features a 60 mm case length, M10x1 thread, and 15 mm thread engagement. Its 1.0-meter standard extension cable supports 0.2–1.5 mm² field wiring (16–24 AWG), 50 Ω output resistance, and 69.9 pF/m capacitance. Operating temperature ranges from -52°C to +177°C. Patented TipLoc and CableLoc designs secure the probe tip and cable, and the optional FluidLoc cable prevents oil or liquid leaks. The 330104-00-06-10-02-00 is fully compatible with all 3300 XL 8 mm and standard 3300 series components, enabling automated system upgrades without recalibration.
Applications
Monitor Turbine Bearing Vibration
The 330104-00-06-10-02-00 tracks real-time vibration in fluid-film bearings. Its 2 mm linear range and 50 Ω output resistance allow automated monitoring systems to detect subtle displacement changes.
Measure Shaft Position for Automation
The 330104-00-06-10-02-00 captures shaft positions with 1.0-meter extension cable support, enabling automated machinery alignment and precise position control in manufacturing processes.
Provide Keyphasor Signals for Speed Control
The 330104-00-06-10-02-00 generates Keyphasor signals for speed monitoring. Its 69.9 pF/m extension cable capacitance ensures accurate high-frequency signal transmission for automated speed regulation.
Long-Distance Proximity Monitoring
With optional FluidLoc cables up to 1.0 meter standard length, the 330104-00-06-10-02-00 allows safe automated measurements in hard-to-access locations, while preventing oil leaks.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
Quick Installation in Automated Systems
The 60 mm case and M10x1 thread of 330104-00-06-10-02-00 allow rapid mounting in tight spaces, reducing downtime during automation integration.
Strong Probe-to-Cable Attachment
TipLoc and CableLoc designs in 330104-00-06-10-02-00 provide 330 N pull strength, ensuring secure connections under vibration, critical for automated monitoring reliability.
Wide Operating Temperature Range
The 330104-00-06-10-02-00 functions from -52°C to +177°C, supporting automated operations in extreme industrial environments.
